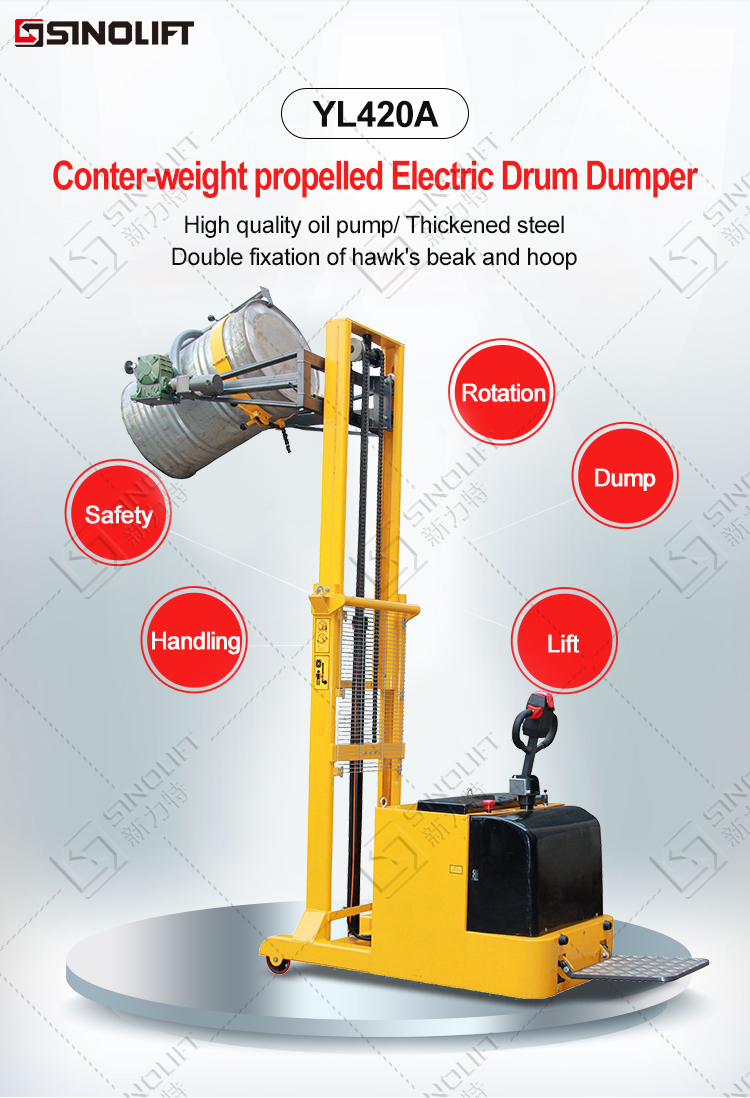

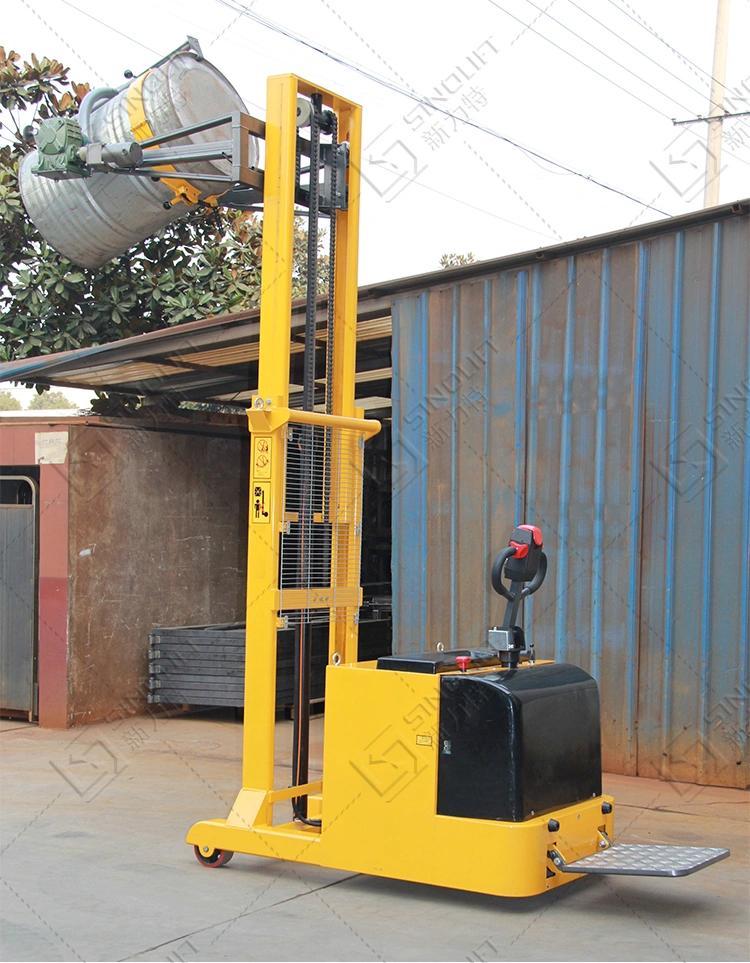

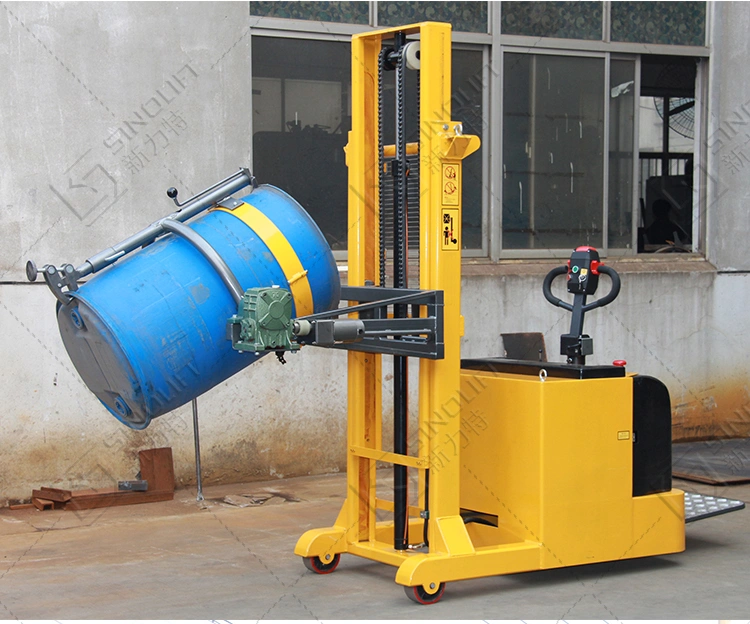

YL420A Counter-weight propelled Electric Drum Dumper
YL420A
Quantity:

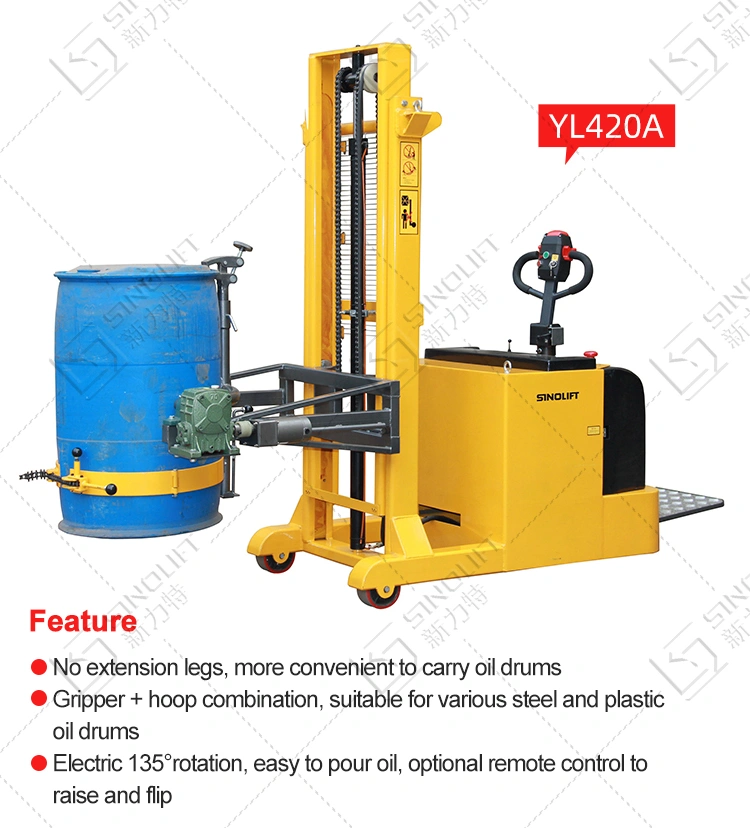

Feature of Full Electric Drum Tilter Counter Balance 420kg YL420A:
1. Drum Dumper Max. Load capacity 420kg;
2. Power drive, transport, lift and tilt 55 gallon steel drums;
3. Drum Dumper is Imported electrical vehicle exclusive walking control system;
4. Drum Dumper With manned pedal and can be operated by one people, labor saving and high work efficiency;

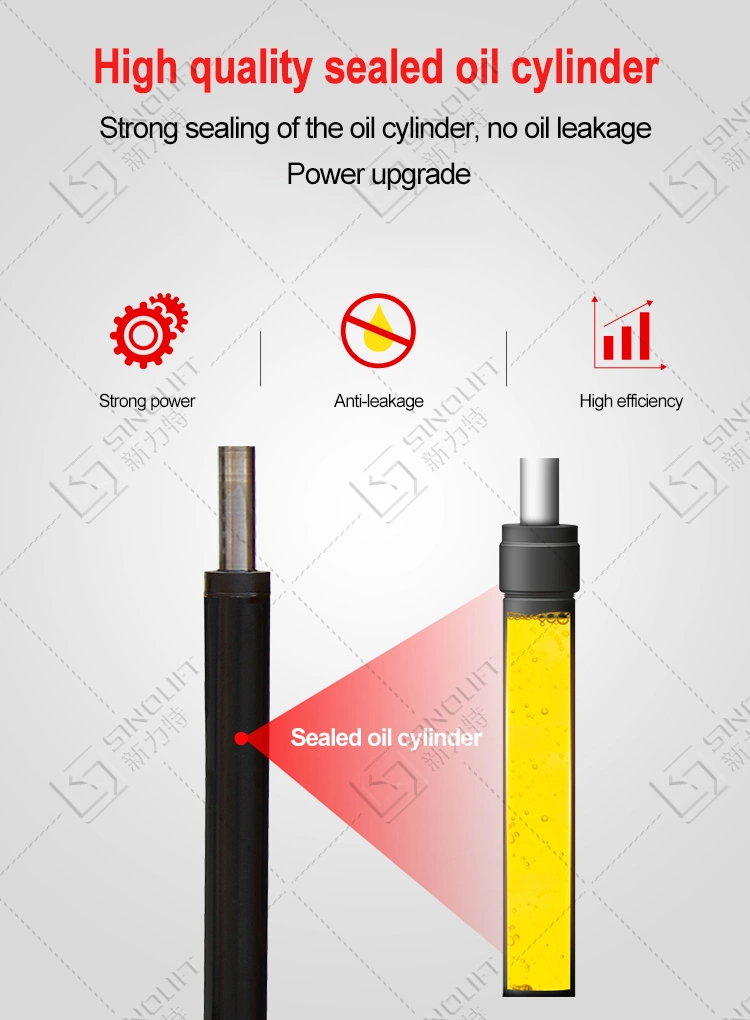

5. Drum Dumper With step-less speed regulator, high-power reversing switch, integrated hydraulic pump stations, power walking driving wheel;
| Model | Drum Dumper YL420A | |
| Drive type | / | Electric |
| Operating type | / | Standing steer type |
| Rated load capacity | kg | 420 |
| Lifting height | mm | 2400 |
| Total height | mm | 1860 |
| Total length | mm | 2270 |
| Total width | mm | 1170 |
| Turning radius | mm | 2120 |
| Max. Grade ability (Fully-loaded/no-loaded) | % | 3/5 |
| Driving wheel size | mm | Ø250*80 |
| Tire | / | Polyurethane |
| Brake type | / | Electromagnetic braking |
| Drive motor power | kw | 1.2 |
| Lifting motor power | kw | 2.2 |
| Noise level | db(A) | <70 |
| Battery voltage/capacity | V/Ah | 24/210 |
| Charger | V/A | 24/30 |
| Net weight | kg | 1100 |

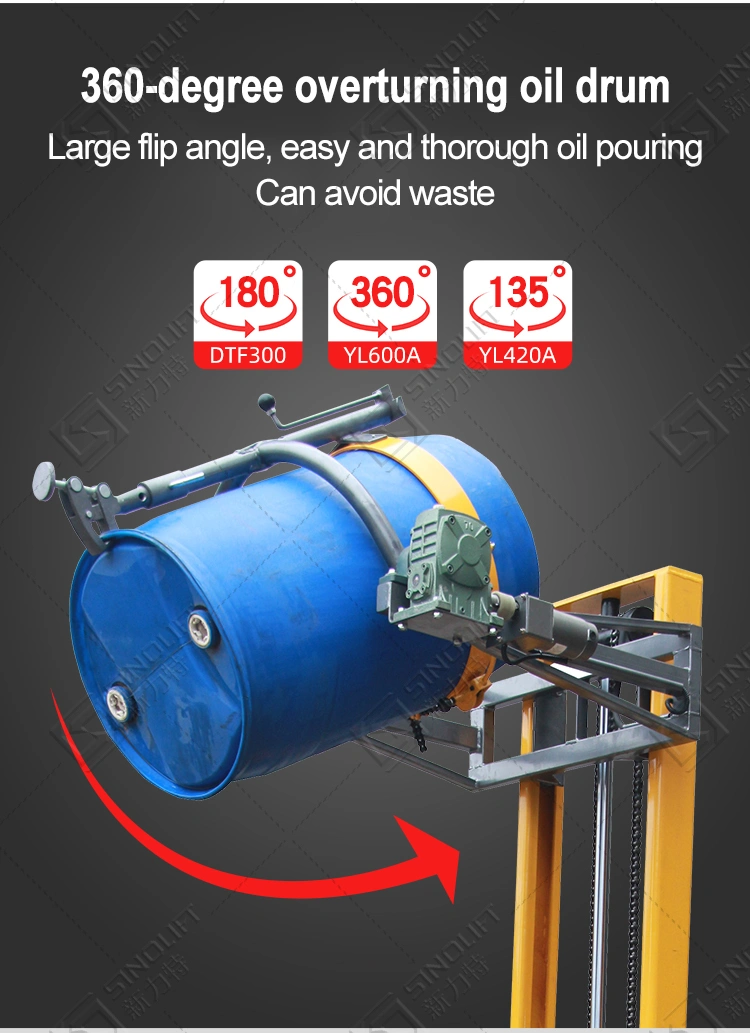

| Drum rotating range | ° | 135 |
