A New Era of Roll Handling: SINOLIFT Clamping Truck Series — In-Depth Review
One Machine,
Every Roll. Every Load.
From paper mills to printing floors, cylindrical materials present a persistent handling challenge — heavy, unstable, and unforgiving of imprecise movement. SINOLIFT's latest industrial lineup addresses this head-on: a purpose-built series of roll-handling clamping trucks and a heavy-duty electric counterbalance forklift that together cover the full spectrum of warehouse and production floor demands.
Why Roll Handling Demands Specialized Equipment
Standard forklifts and pallet trucks are engineered for flat, palletized loads. Paper rolls, film reels, drums, and textile bobbins are none of those things. They are round, often heavy relative to their diameter, prone to rolling, and sensitive to surface damage. A careless grip tears packaging. An off-center lift destabilizes the load. A slow, uncontrolled rotation on the production floor becomes a safety incident.
The right equipment removes these variables entirely. Hydraulic clamping holds without crushing. Powered 360° rotation means operators position the roll at the machine rather than wrestling it by hand. And a dedicated clamp geometry — circular rather than flat-faced — distributes contact force evenly across the roll's surface, eliminating point pressure that damages materials.
SINOLIFT's clamping truck series is designed around these realities. Three models address three distinct operational profiles, from low-frequency, space-constrained environments to high-throughput production lines where every second of downtime costs money.
Clamping Truck Series

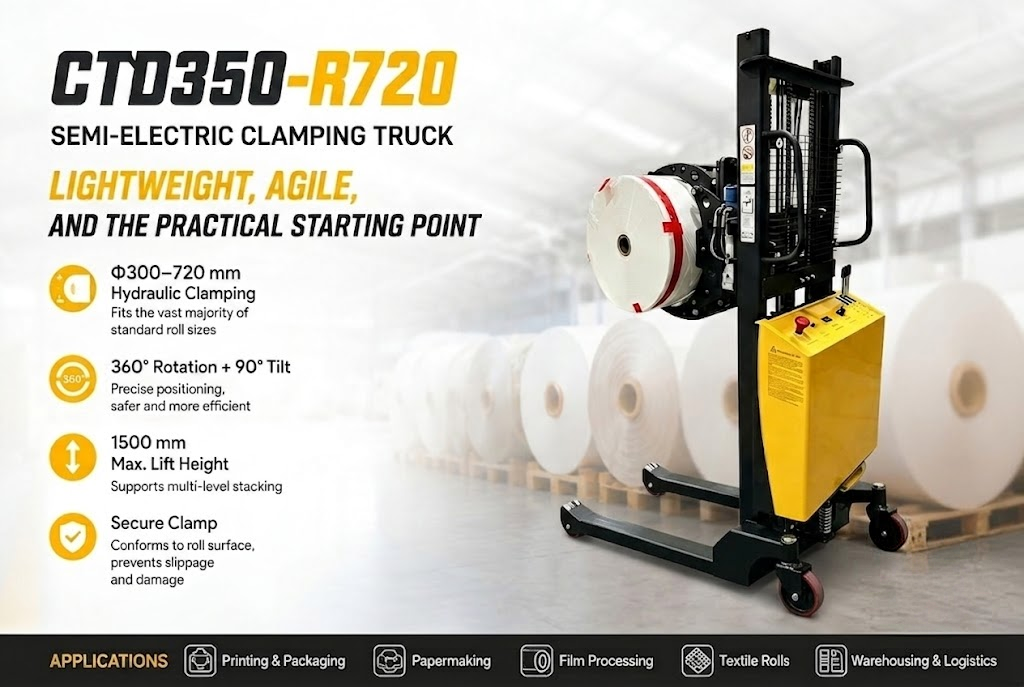

The entry point of the series — and the right choice for operations that need precision handling without the overhead of a full-electric platform. Manual travel keeps the machine simple and cost-effective; electric lifting takes the strain out of the vertical work.

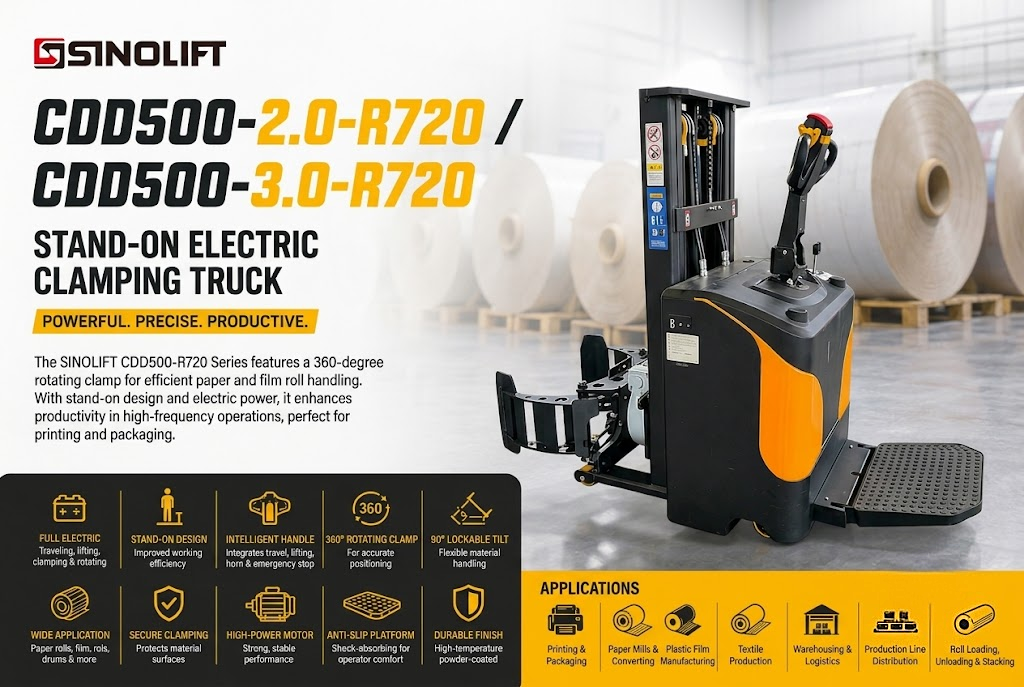

When volume increases and distances grow, the CDD500 series steps in. Full electric travelling, lifting, clamping, and rotating — all on a stand-on platform that keeps operators off their feet during long-distance runs and high-cycle operations. The intelligent multifunction handle consolidates travel, lift, horn, and emergency stop into a single ergonomic interface.
The most capable machine in the roll-handling lineup. Counterbalance design eliminates support legs entirely — the truck accesses pallets, production machinery, and line-side positions without clearance constraints. Where the CDD500 needs leg clearance, the CPD500 simply drives in.
Clamping Truck Series — Side-by-Side
| Feature | CTD350-R720 | CDD500-R720 | CPD500-2.0-R720 |
|---|---|---|---|
| Drive Type | Semi-electric (manual travel) | Full electric | Full electric |
| Operation Mode | Walk-behind | Stand-on | Stand-on |
| Support Legs | Yes | Yes | No (counterbalance) |
| Pallet / Machinery Access | Limited by legs | Limited by legs | Unrestricted |
| Rated Capacity | 350 kg | 500 kg (2T / 3T) | 500 kg |
| Clamp Rotation | 360° powered | 360° powered | 360° powered |
| Tilt | 90° lockable | 90° lockable | 90° lockable |
| Clamp Diameter Range | Φ300–720 mm | Φ300–720 mm | Φ300–720 mm |
| Best Fit | Low-to-mid frequency, compact spaces | High frequency, long-distance runs | Confined layouts, direct line access |
Which Machine Is Right for Your Operation?
Product capability only matters when it matches the operational context. Here is a practical guide to matching each machine to the environment it was designed for.
CTD350-R720
Your handling volume is moderate. You need precision clamping and rotation without committing to full-electric infrastructure. Budget and simplicity matter.
CDD500-R720 Series
Your operators cover significant ground each shift. Stand-on travel reduces
fatigue. Full electric functions maximise cycle throughput on paper or film lines.
CPD500-2.0-R720
Your floor has no room for support leg clearance geometry. You need to reach directly into pallets or alongside machinery. Counterbalance design removes the constraint entirely.
Final Word
Industrial material handling is not a single problem. A printing plant rotating film reels on a tight production line has different constraints than a logistics centre stacking 5-tonne pallets across a large warehouse floor. The mistake is applying a general-purpose machine to a specialised problem — or over-specifying when a simpler solution would do the job at lower cost and complexity.
SINOLIFT's approach across both product lines is the same: identify the real constraint — access geometry, operating distance, load type, frequency — and engineer a machine built specifically around it. The result is a lineup that covers the full handling spectrum without asking any single machine to do more than it was designed for.
