BAR ARM CLAMP
YGC19A YGC30A YGC50A

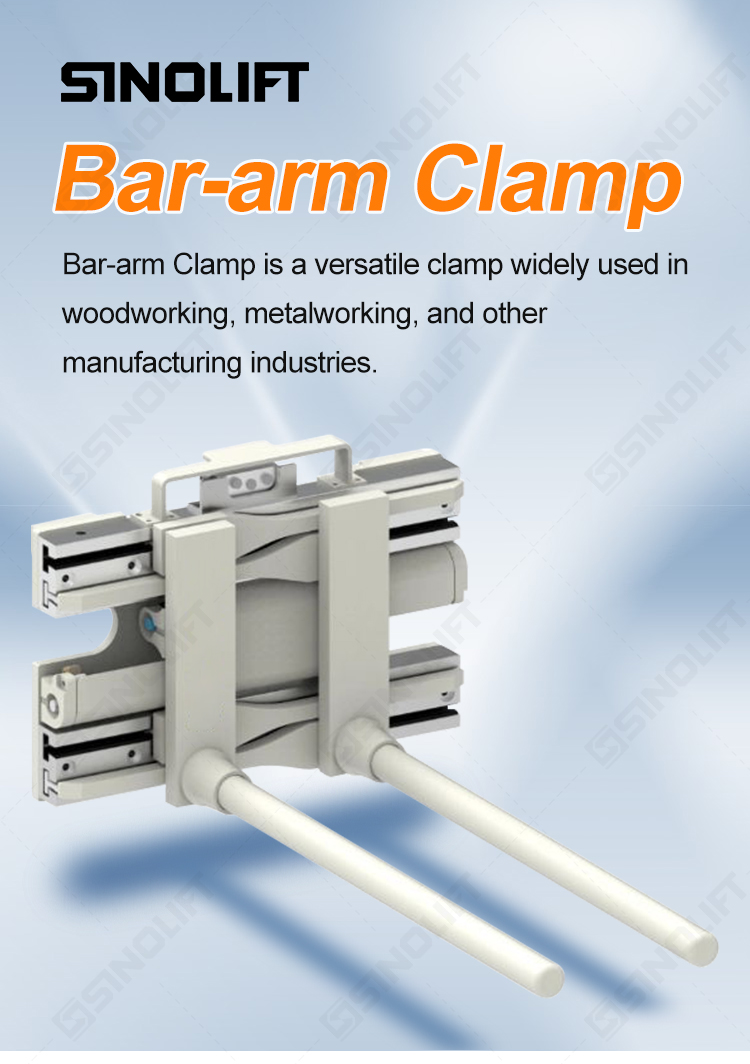

Bar-arm Clamp is a versatile clamp widely used in woodworking, metalworking, and other manufacturing industries. Its advantages include versatility, stability, and reliability. This unique design allows it to flexibly adjust to different shapes and sizes of workpieces. Its sturdy structure and high-quality materials ensure long-term reliable use.
Quantity:

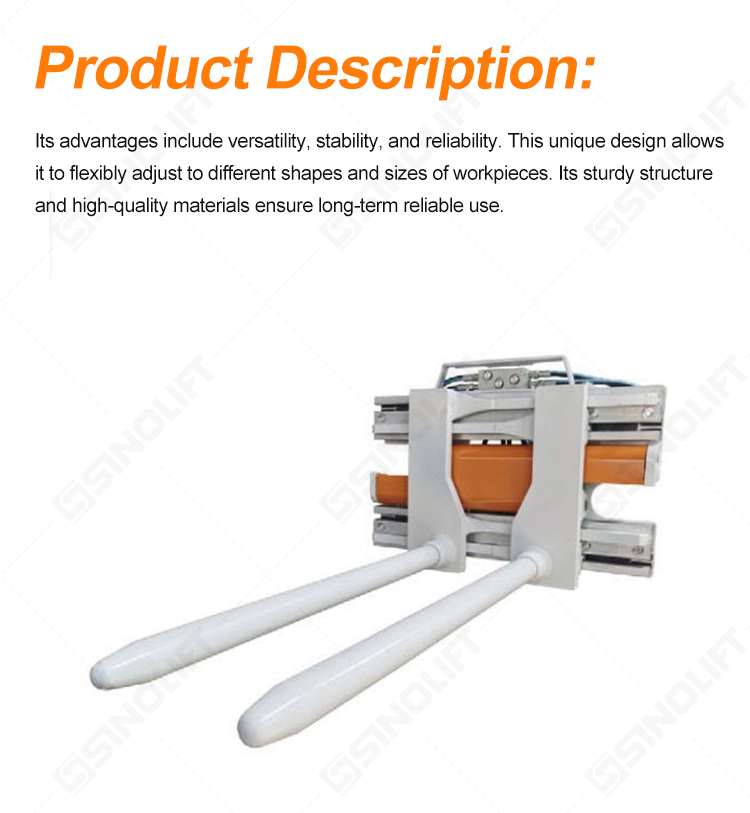

Bar-arm Clamp is a versatile clamp widely used in woodworking, metalworking, and other manufacturing industries. Its advantages include versatility, stability, and reliability.
Features:
- Suitable for various cargo handling scenarios, enhancing operational flexibility and efficiency.
- The product is known for its durability and reliability, withstanding long-term use without damage.
- Simple to operate, reducing labor intensity for operators.

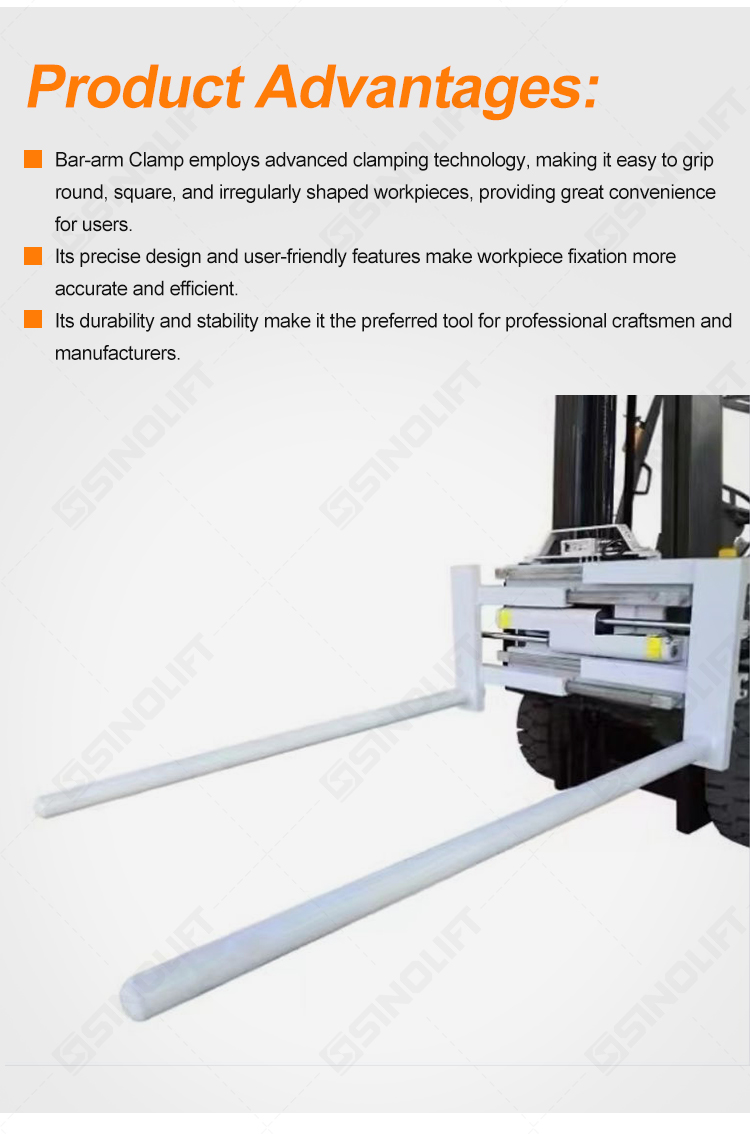

Advantages:
- Its precise design and user-friendly features make workpiece fixation more accurate and efficient.
- Its durability and stability make it the preferred tool for professional craftsmen and manufacturers.
Parameters:

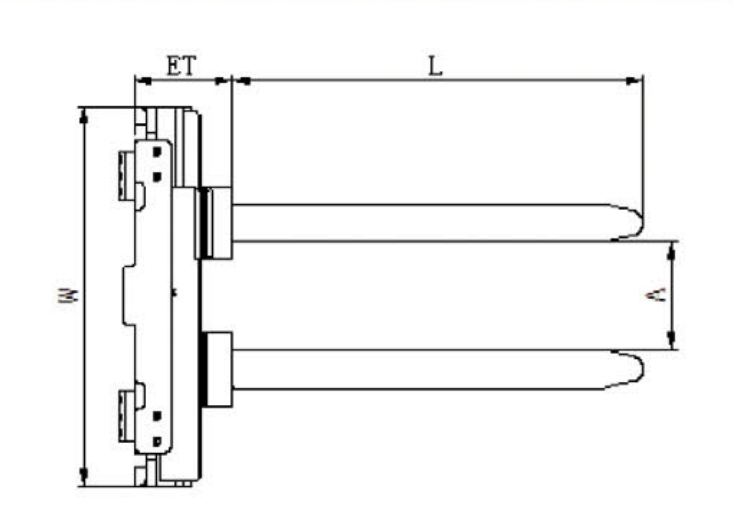

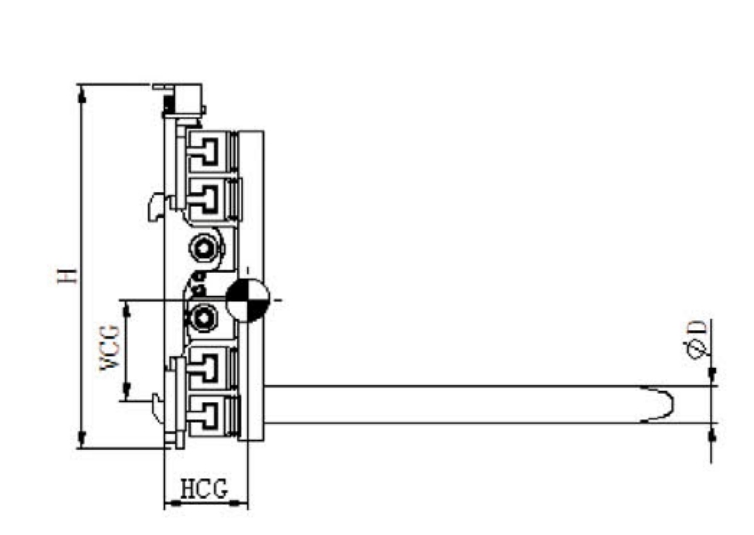

| CAPACITY@LOAD CENTER | MODEL | MOUNTING CLASS | OPENING RANGE | FRAME WIDTH | OVERALL HEIGHT | FORK SIZE | VERTICAL CENTER OF GRAVITY | WEIGHT | EFFECTIVE THICKNESS | HORIZONTAL CENTER OF GRAVITY |
| （kg@mm） | A(mm) | W(mm) | H(mm) | фDxL(mm) | VCG(mm) | (kg) | ET(mm) | HCG(mm） | ||
| 1900kg@500mm | YGC19A-B001 | II | 250-1410 | 940 | 681 | ф700×1200 | 165 | 330 | 170 | 226 |
| 3000kg@500mm | YGC30A-C001 | III | 360-1500 | 1130 | 789 | ф100×1196 | 202 | 580 | 201 | 262 |
| 5000kg@600mm | YGC50A-C/D001 | III/IV | 300-1300 | 1040 | 998 | ф105×2000 | 243 | 1080 | 272 | 402 |
