Customized Solution: EZ2515 Electric Stacker for Precision Assembly Operations

Project Overview

A precision electronics assembly plant required a compact lifting solution for handling lightweight pallets and sensitive components within a cleanroom environment. Their primary challenges included tight space constraints, the need for stable lifting of light loads, and minimizing equipment maintenance that could disrupt production. The ideal solution needed to be efficient, user-friendly, and compatible with high cleanliness standards.

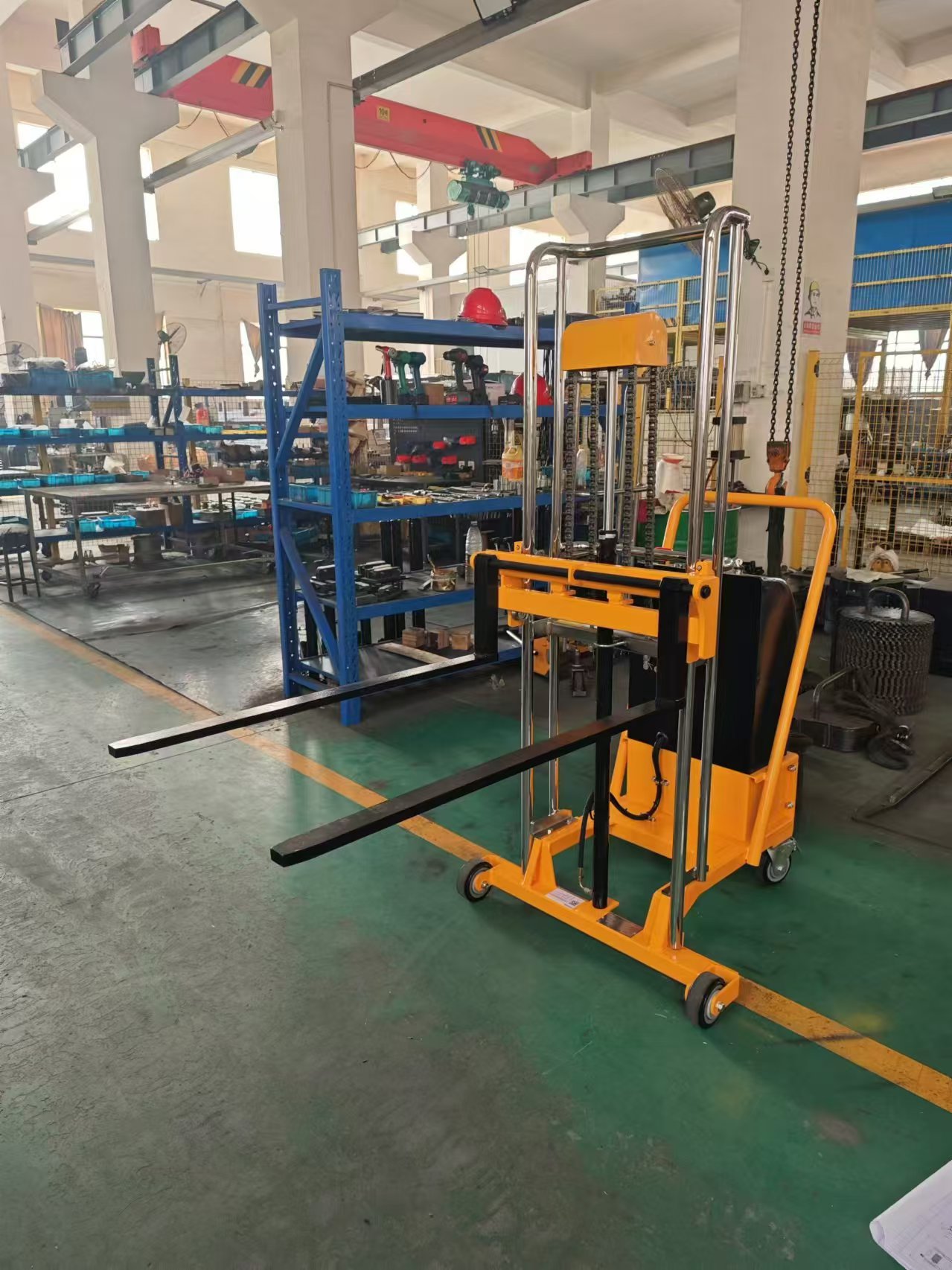

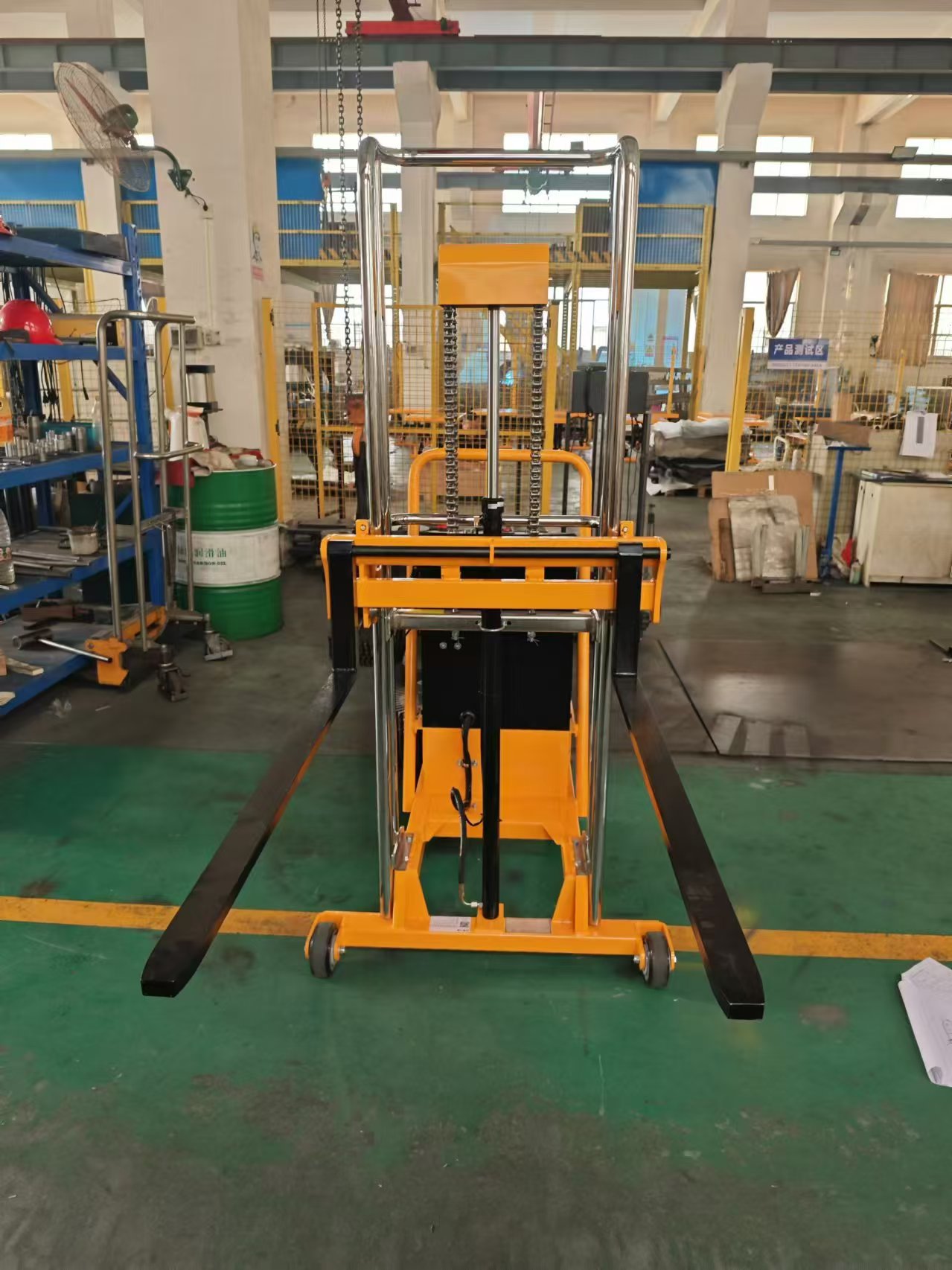

SINOLIFT provided a customized EZ2515 Electric Stacker, designed with a maximum lifting height of 1400 mm and a rated capacity of 100 kg. The equipment features a compact footprint, smooth lifting, and low-maintenance components, significantly improving intra-factory material flow, reducing operator fatigue, and enhancing operational safety—all while meeting the client's cleanliness requirements.

Solution Highlights

The EZ2515 is an electric stacker tailored for small-scale, high-precision applications, offering:

• 100 kg Load Capacity: Ideal for electronic components, modular trays, and light pallet loads.

• 1400 mm Maximum Lifting Height: Enables ergonomic work positioning for assembly and packaging tasks.

• Smooth Electric Lifting: Powered by a high-quality hydraulic motor made in Italy for reliable and efficient vertical motion.

• Built-In Charger: Allows convenient plug-and-play charging, improving workplace safety and ease of use.

• Maintenance-Free Battery: Equipped with a 12V/60Ah maintenance-free battery for long-term stability with minimal upkeep.

• Counterweight Structure: Facilitates entry into closed or low-clearance pallets without additional support.

• No-Marking Castors (Standard): Ensures clean operation, ideal for use in cleanrooms and sensitive floor environments.

• EN1757-1:2001 Compliant: Meets European standards for safety and industrial design quality.

Tailored Customizations

To meet the client’s specific cleanroom and production line needs, SINOLIFT implemented the following modifications:

• Ultra-Low Platform Height (20 mm): Easily slides under low-clearance goods and custom pallets.

• Simplified Control Console: Intuitive layout for fast learning and safe operation, even for new users.

• Compact and Agile Design: Perfect for maneuvering in narrow aisles and between machines.

• Controlled Lifting Speed: Smooth acceleration and deceleration reduce impact on fragile components during elevation.

Application Scenarios and Client Benefits

This electric stacker is ideal for:

• Electronics Assembly Lines: Enables precise and efficient supply of materials to workstations.

• Medical Equipment Production: Supports sterile, no-mark handling in controlled environments.

• Research Laboratories: Safe movement of sensitive instruments and delicate apparatus.

• Clean Storage Areas: Promotes clean, efficient stacking and transport of light loads.

Key Benefits for the Client:

• Improved Ergonomics: Reduces bending and repetitive manual handling.

• Increased Efficiency: Single-operator use with electric lifting streamlines workflow.

• Cleanroom Compatibility: Quiet operation and no-mark castors ensure clean working conditions.

• Low Maintenance Costs: Maintenance-free battery and simple structure minimize service downtime.

Shipping Details

• Delivery Region: Domestic (China)

• Load Capacity: 100 kg

• Lifting Height: 1400 mm

• Net Weight: 230 kg

• Power Source: 12V/60Ah maintenance-free battery

• Wheels: Ø125x50 front load wheels and rear steering castors (non-marking)

• Operation: Electric lifting with built-in charger

Why Choose SINOLIFT?

SINOLIFT specializes in delivering tailored material handling solutions designed for industry-specific challenges. The EZ2515 electric stacker showcases our commitment to precision engineering, operator safety, and operational efficiency. With our user-centric design philosophy and high manufacturing standards, SINOLIFT helps businesses work smarter, safer, and more sustainably.
