Case Study: Custom Electric Reel Lift / Film Roll Lifter (Single Mast) for Special Applications

Introduction:
This case study presents a custom-engineered Electric Reel Lift, designed to address the unique challenges of handling long, heavy cylindrical loads in constrained and demanding operational environments. This bespoke solution transcends the capabilities of standard equipment, establishing a new benchmark for safety, control, and operational efficiency in specialized material handling.

Solution Highlights: The Custom Electric Reel Lifter

This lifter is the product of a targeted engineering process, integrating heavy-duty construction with intelligent control systems to master the handling of lengthy, fragile, or heavy rolls such as film, paper, or steel coils.

1. Heavy-Duty All-Steel Monocoque Chassis:
The entire structure is fabricated from high-tensile steel plate, guaranteeing exceptional structural integrity and longevity under rigorous, high-cycle operations. The design delivers a substantial load capacity of 1-2 tons, providing robust performance for the most demanding tasks.

2. Advanced Ergonomic Control Interface with Variable Speed:
Operators are equipped with a multi-function control handle featuring a butterfly grip, engineered to minimize fatigue during extended use. The centralized and intuitive operator interface includes a variable speed control system, enabling precise slow-speed maneuvering for positioning and faster travel speeds for efficiency.

3. Integrated Visual Monitoring & Process Documentation System:
A key innovation is the integrated high-definition camera mounted on the operator panel. This system provides real-time visual feedback, drastically improving accuracy and safety when handling long loads with limited visibility. Furthermore, the workflow recording capability provides invaluable data for process optimization, quality assurance, and operational audits.

4. Optimized Dimensional Profile for Long Load Stability:

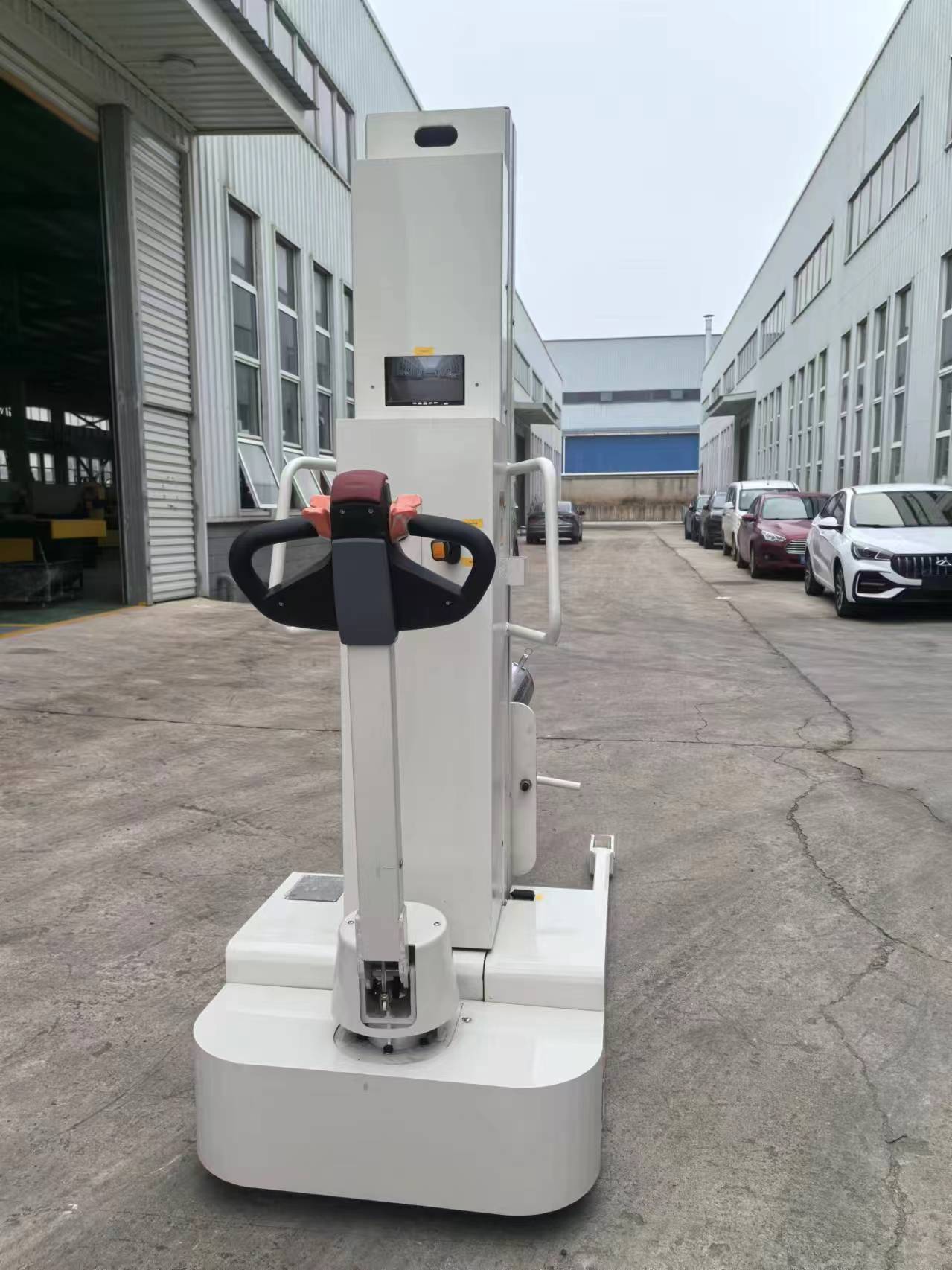

The lifter's geometry is strategically configured for its primary function. With a substantial single mast length of 1.2m, a lift height of 1.6m, and a stable footprint (900mm width x 2m length), it ensures superior support and stability for lengthy cylindrical goods, effectively preventing deflection and potential damage during transit.

5. Enhanced Stability and Integrated Safety Protocols:
The combination of the all-steel chassis, a wide base, and a low center of gravity ensures maximum stability under load. This foundational safety is complemented by integrated safety protocols, including regenerative braking, fail-safe mechanisms, and overload protection, resulting in an exceptionally high safety index.

Application & Benefits
This Custom Electric Reel Lifter has redefined efficiency and safety for handling non-standard roll goods, delivering:

• Unprecedented Operational Safety & Precision through real-time visual monitoring and a stable, heavy-duty platform.

• Maximized Handling Efficiency & Throughput with variable speed control, powerful lifting, and a design that minimizes product damage.

• Complete Process Accountability & Data Traceability with built-in workflow recording.

• Superior Operator Ergonomics & Reduced Fatigue via an intuitive control handle and user-friendly interface.

• Exceptional Durability and Minimized Total Cost of Ownership owing to its all-steel construction and reduced maintenance needs.

Why Choose Our Custom Solutions?
We specialize in developing reliable, bespoke material handling solutions tailored to your unique challenges. Leveraging deep engineering expertise and proactive technical support, we deliver equipment built to excel in your specific operational environment.
