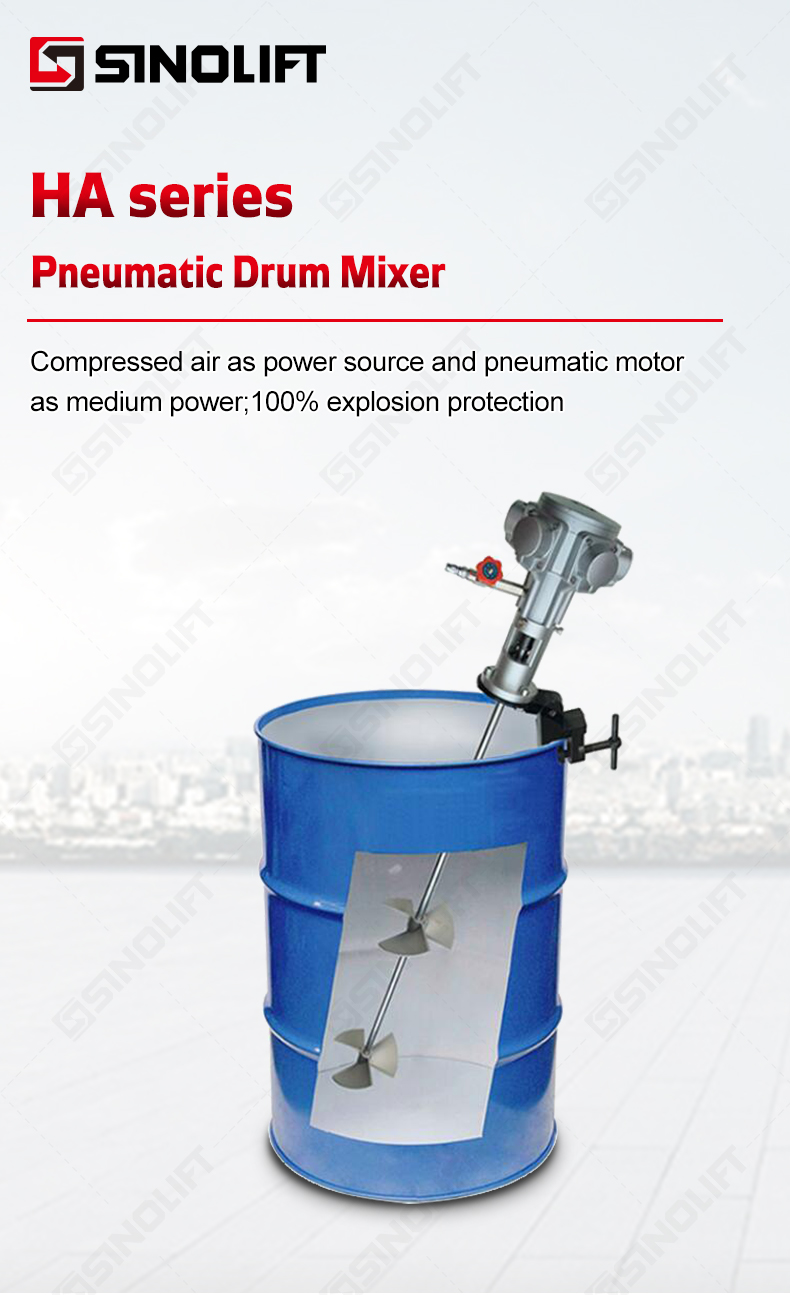

HA Series Pneumatic Drum Mixer
HA
Compressed air as power source and pneumatic motor as medium power;100% explosion protection;

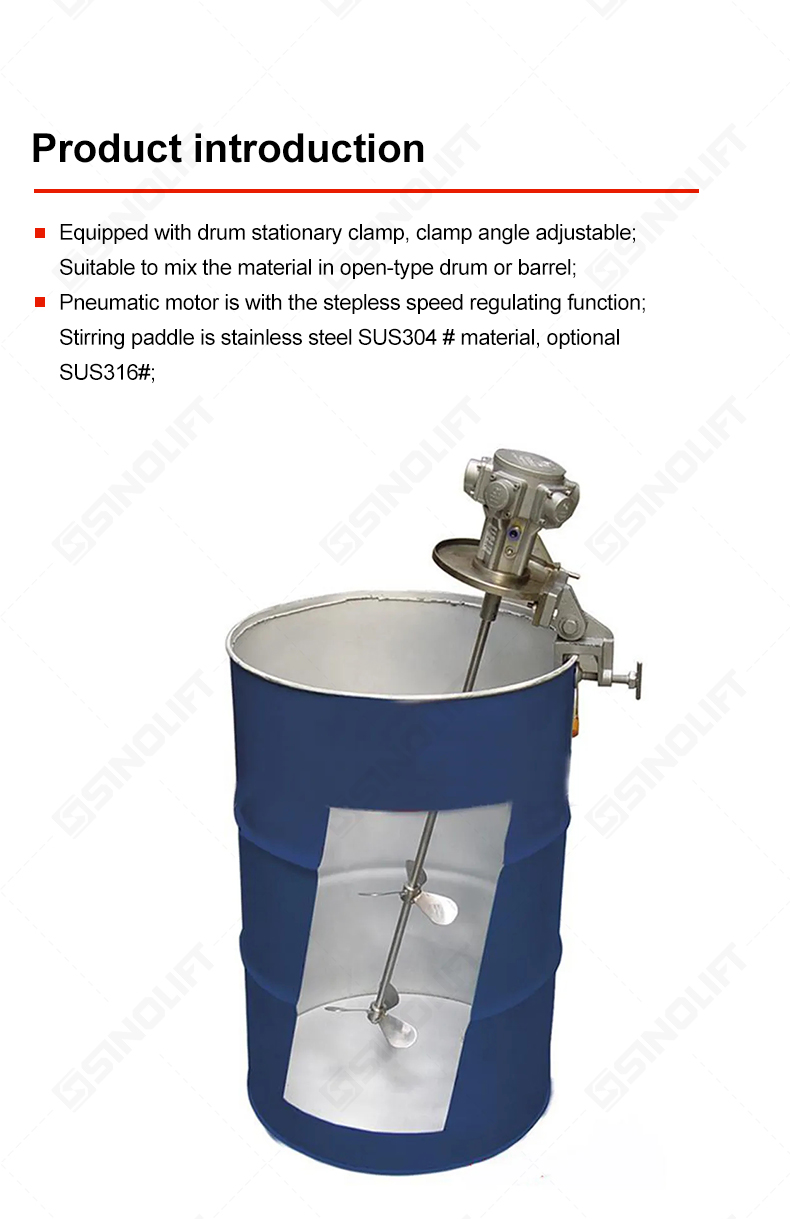

Equipped with drum stationary clamp, clamp angle adjustable;
Suitable to mix the material in open-type drum or barrel;
Pneumatic motor is with the stepless speed regulating function;
Stirring paddle is stainless steel SUS304 # material, optional SUS316#;
Equipped with drum stationary clamp, clamp angle adjustable;
Suitable to mix the material in open-type drum or barrel;
Pneumatic motor is with the stepless speed regulating function;
Stirring paddle is stainless steel SUS304 # material, optional SUS316#;
Quantity:
Compressed air as power source and pneumatic motor as medium power;100% explosion protection;
Equipped with drum stationary clamp, clamp angle adjustable;
Suitable to mix the material in open-type drum or barrel;
Pneumatic motor is with the stepless speed regulating function;
Stirring paddle is stainless steel SUS304 # material, optional SUS316#;

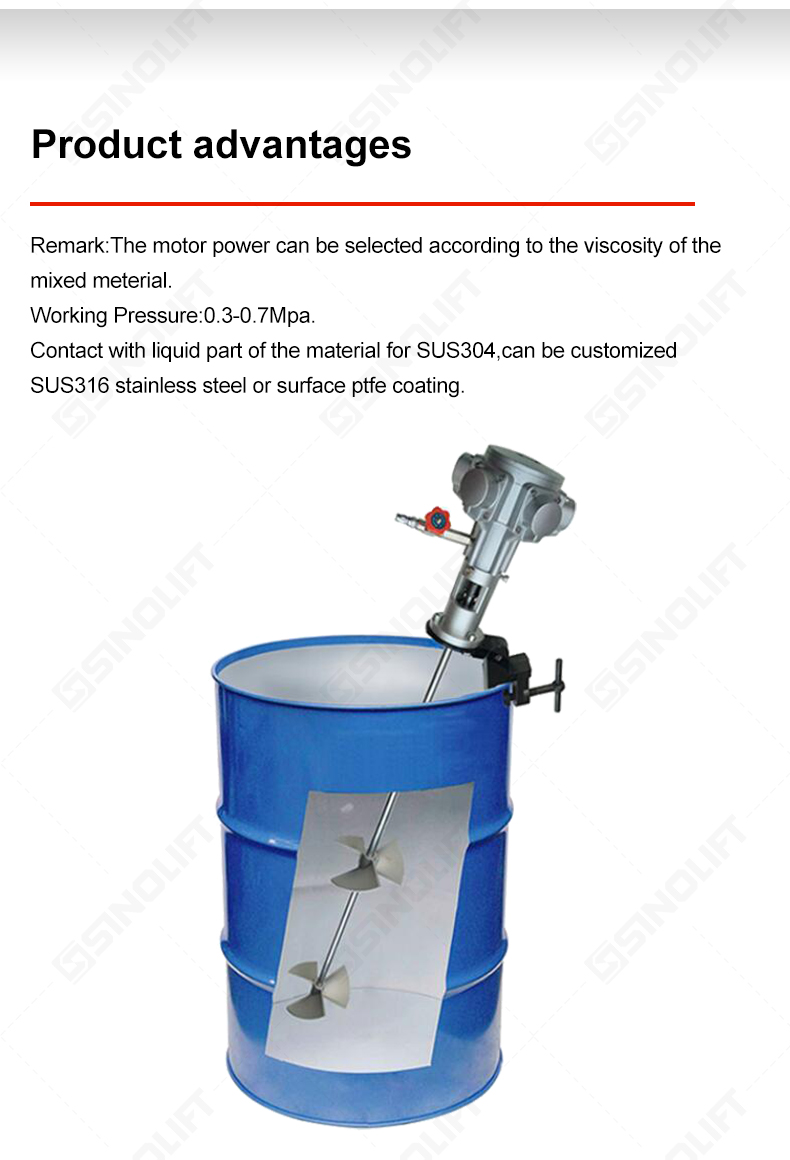

Remark:The motor power can be selected according to the viscosity of the mixed meterial.
Working Pressure:0.3-0.7Mpa.
Contact with liquid part of the material for SUS304,can be customized SUS316 stainless steel or surface ptfe coating.

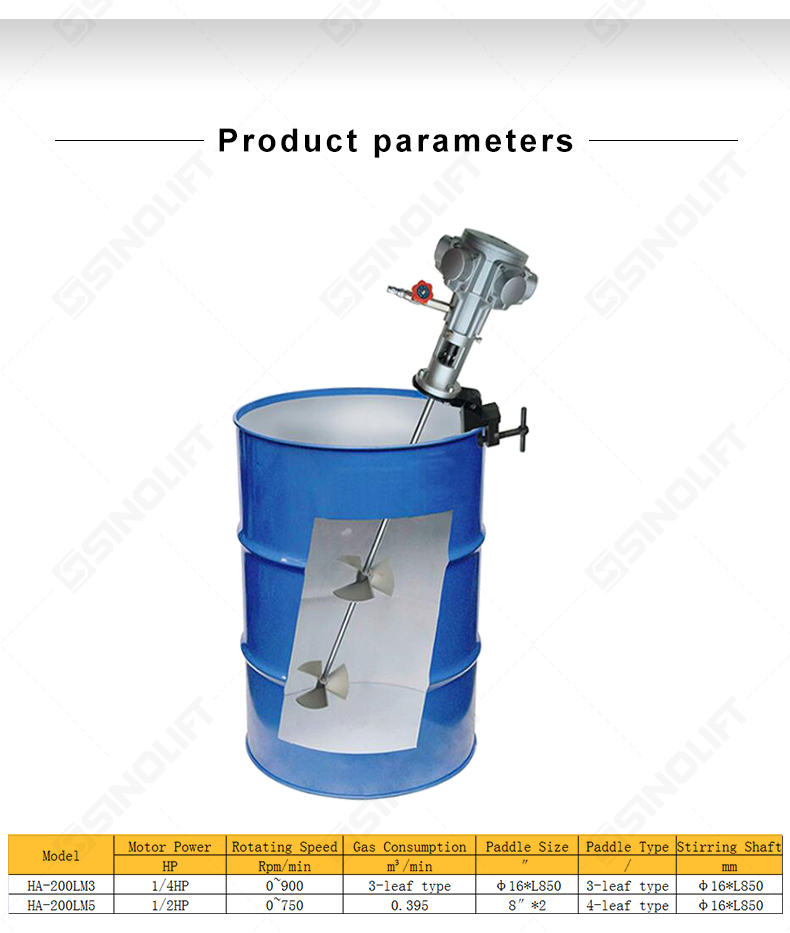

Specifications
| Model | Motor Power | Rotating Speed | Gas Consumption | Paddle Size | Paddle Type | Stirring Shaft |
| HP | Rpm/min | m³/min | ″ | / | mm | |
| HA-200LM3 | 1/4HP | 0~900 | 3-leaf type | φ16*L850 | 3-leaf type | φ16*L850 |
| HA-200LM5 | 1/2HP | 0~750 | 0.395 | 8″*2 | 4-leaf type | φ16*L850 |
