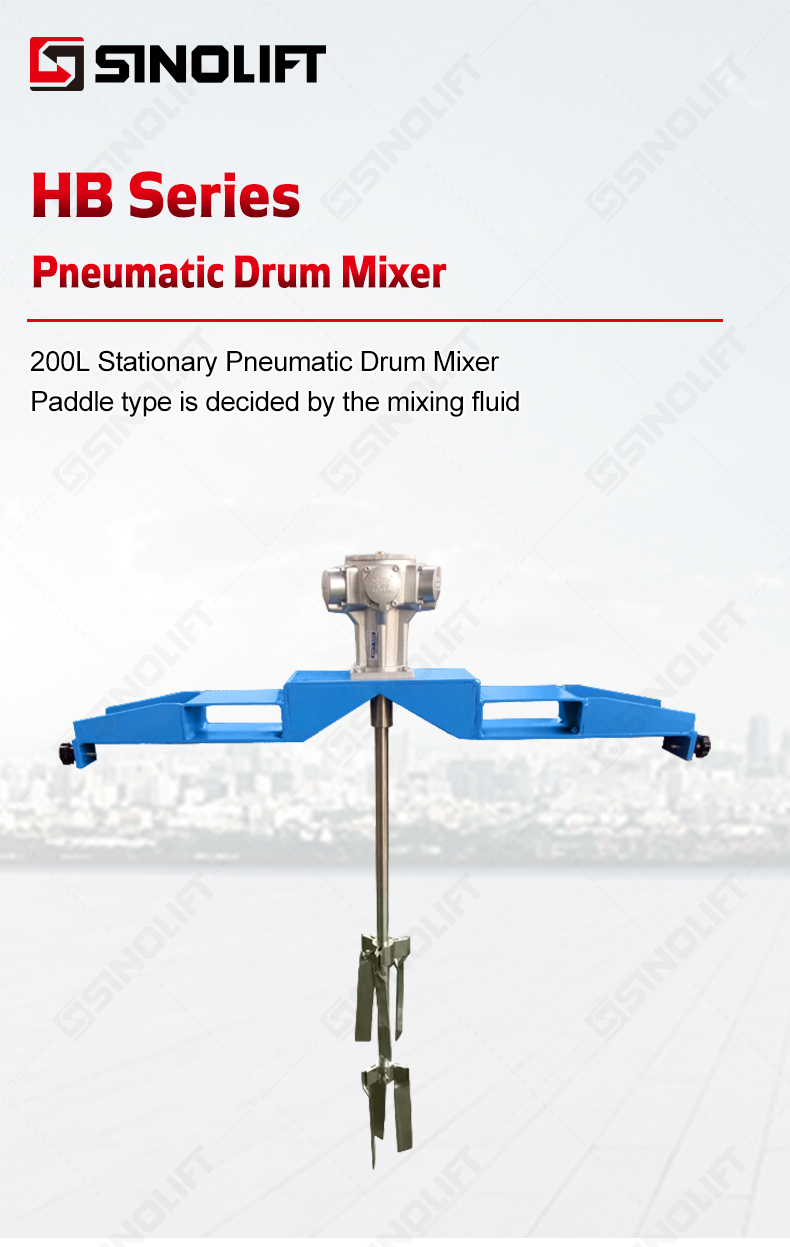

HB Series Pneumatic Drum Mixer
HB
200L Stationary Pneumatic Drum Mixer
Paddle type is decided by the mixing fluid

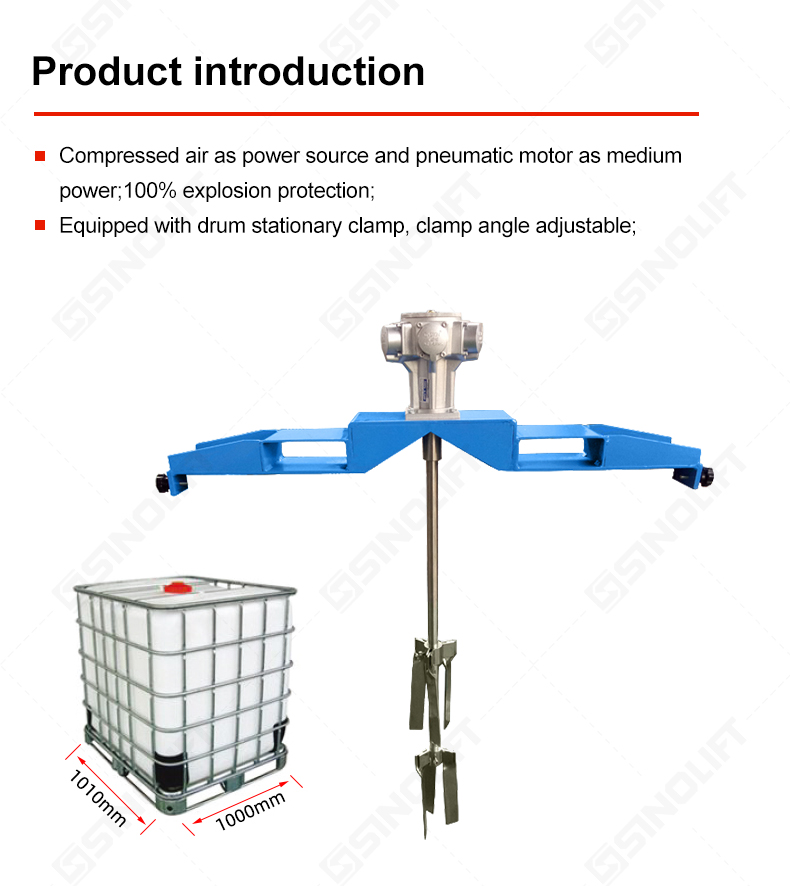

Compressed air as power source and pneumatic motor as medium power;100% explosion protection;
Equipped with drum stationary clamp, clamp angle adjustable;

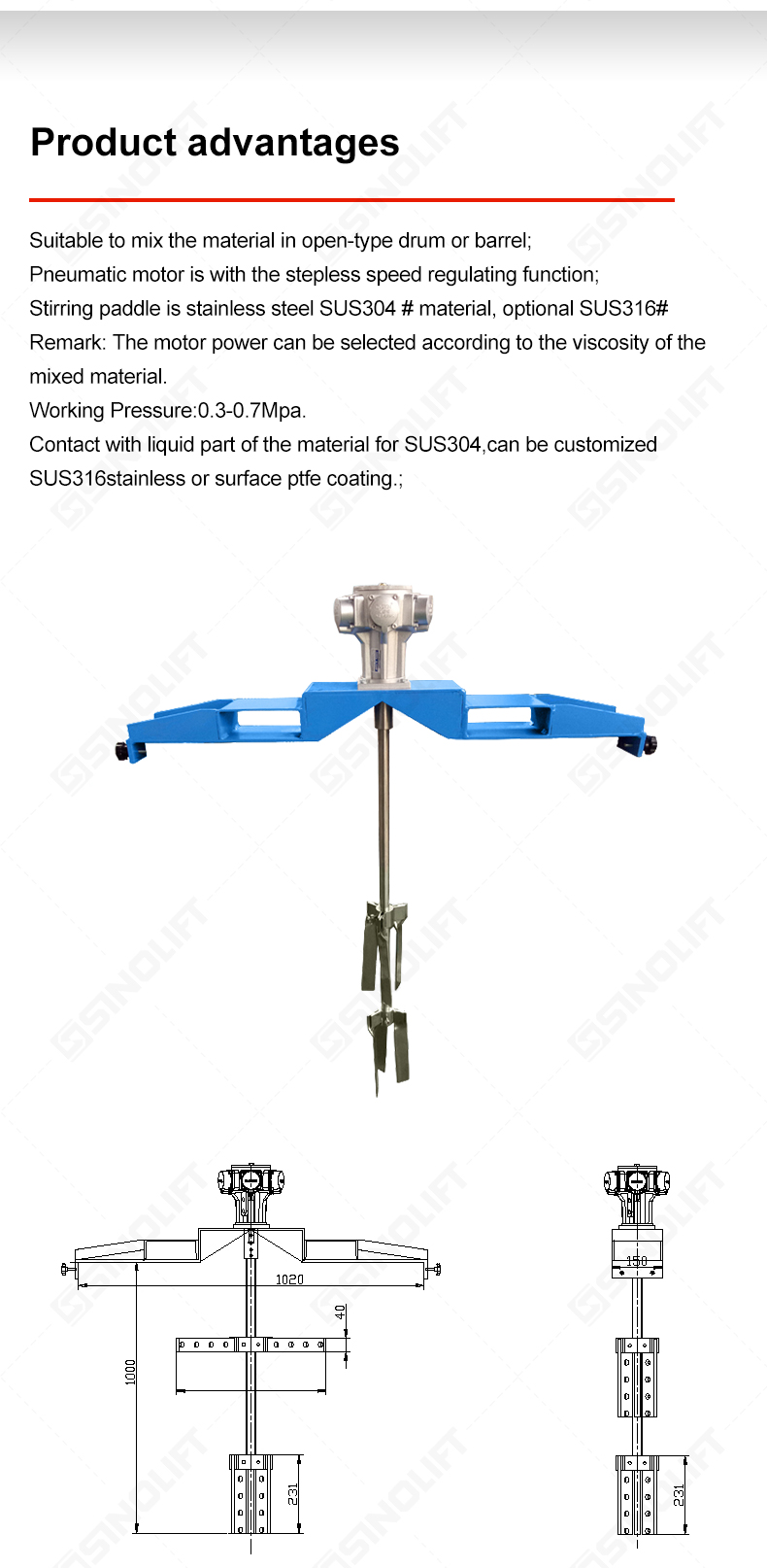

Suitable to mix the material in open-type drum or barrel;
Pneumatic motor is with the stepless speed regulating function;
Stirring paddle is stainless steel SUS304 # material, optional SUS316#
Remark: The motor power can be selected according to the viscosity of the mixed material.
Working Pressure:0.3-0.7Mpa.
Contact with liquid part of the material for SUS304,can be customized SUS316stainless or surface ptfe coating.;
Paddle type is decided by the mixing fluid
Compressed air as power source and pneumatic motor as medium power;100% explosion protection;
Equipped with drum stationary clamp, clamp angle adjustable;
Suitable to mix the material in open-type drum or barrel;
Pneumatic motor is with the stepless speed regulating function;
Stirring paddle is stainless steel SUS304 # material, optional SUS316#
Remark: The motor power can be selected according to the viscosity of the mixed material.
Working Pressure:0.3-0.7Mpa.
Contact with liquid part of the material for SUS304,can be customized SUS316stainless or surface ptfe coating.;
Quantity:
200L Stationary Pneumatic Drum Mixer
Paddle type is decided by the mixing fluid
Compressed air as power source and pneumatic motor as medium power;100% explosion protection;
Equipped with drum stationary clamp, clamp angle adjustable;
Suitable to mix the material in open-type drum or barrel;
Pneumatic motor is with the stepless speed regulating function;
Stirring paddle is stainless steel SUS304 # material, optional SUS316#
Remark: The motor power can be selected according to the viscosity of the mixed material.
Working Pressure:0.3-0.7Mpa.
Contact with liquid part of the material for SUS304,can be customized SUS316stainless or surface ptfe coating.

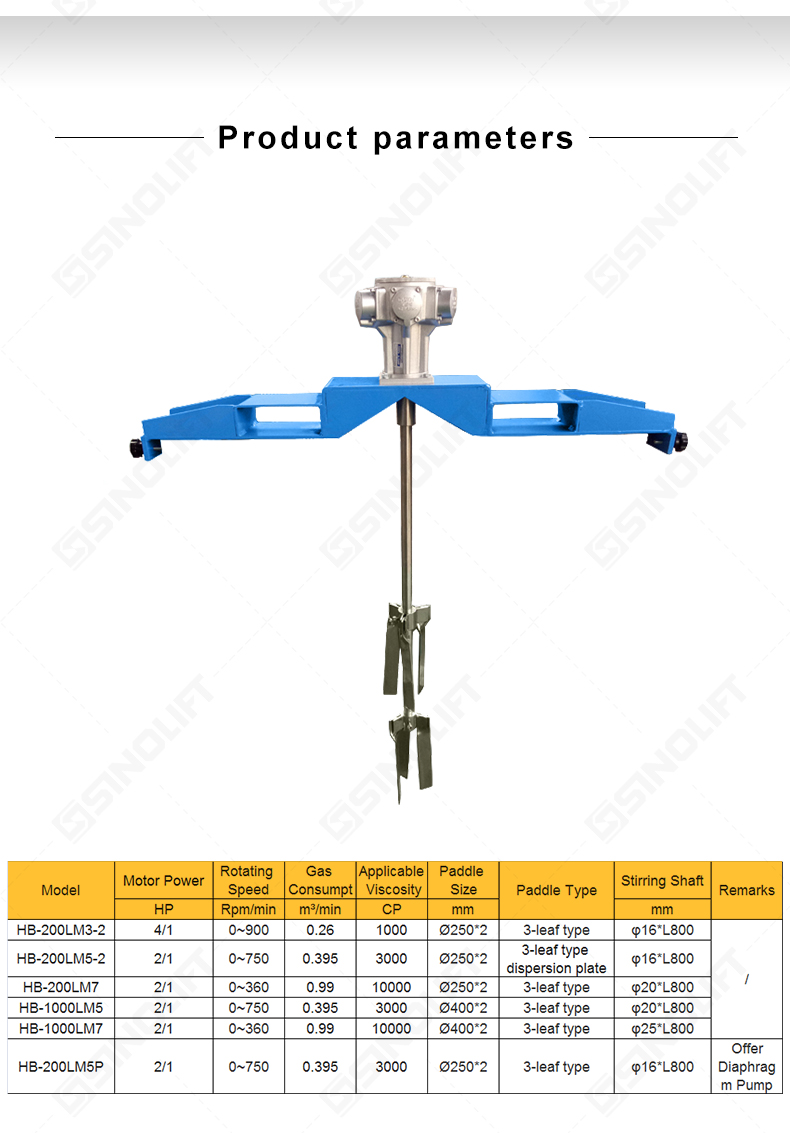

Specifications
| Model | Motor Power | Rotating Speed | Gas Consumption | Applicable Viscosity | Paddle Size | Paddle Type | Stirring Shaft | Remarks |
| HP | Rpm/min | m³/min | CP | mm | mm | |||
| HB-200LM3-2 | 4/1 | 0~900 | 0.26 | 1000 | Ø250*2 | 3-leaf type | φ16*L800 | / |
| HB-200LM5-2 | 2/1 | 0~750 | 0.395 | 3000 | Ø250*2 | 3-leaf type dispersion plate | φ16*L800 | |
| HB-200LM7 | 2/1 | 0~360 | 0.99 | 10000 | Ø250*2 | 3-leaf type | φ20*L800 | |
| HB-1000LM5 | 2/1 | 0~750 | 0.395 | 3000 | Ø400*2 | 3-leaf type | φ20*L800 | |
| HB-1000LM7 | 2/1 | 0~360 | 0.99 | 10000 | Ø400*2 | 3-leaf type | φ25*L800 | |
| HB-200LM5P | 2/1 | 0~750 | 0.395 | 3000 | Ø250*2 | 3-leaf type | φ16*L800 | Offer Diaphragm Pump |
