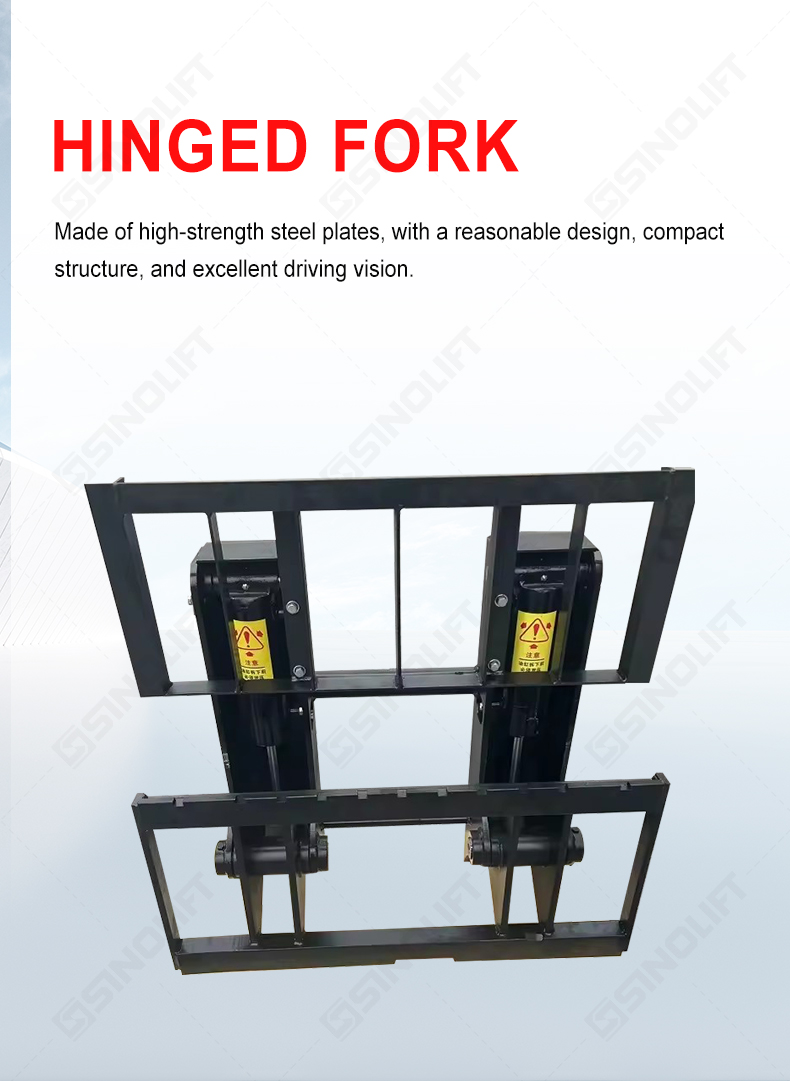

Hinged Fork
Hinged Fork

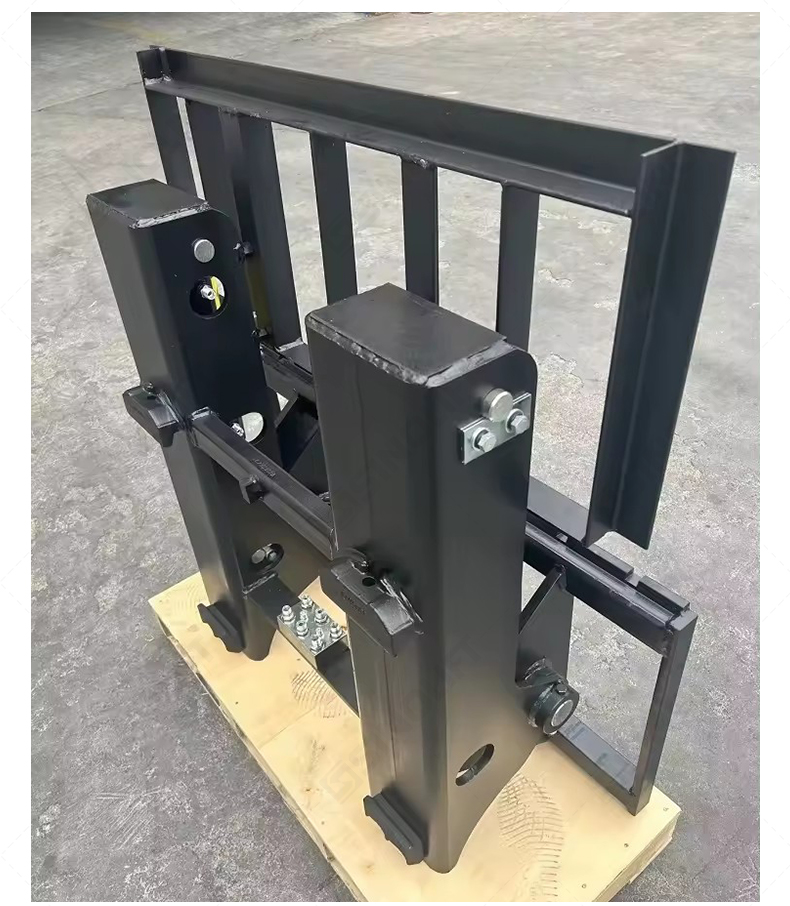

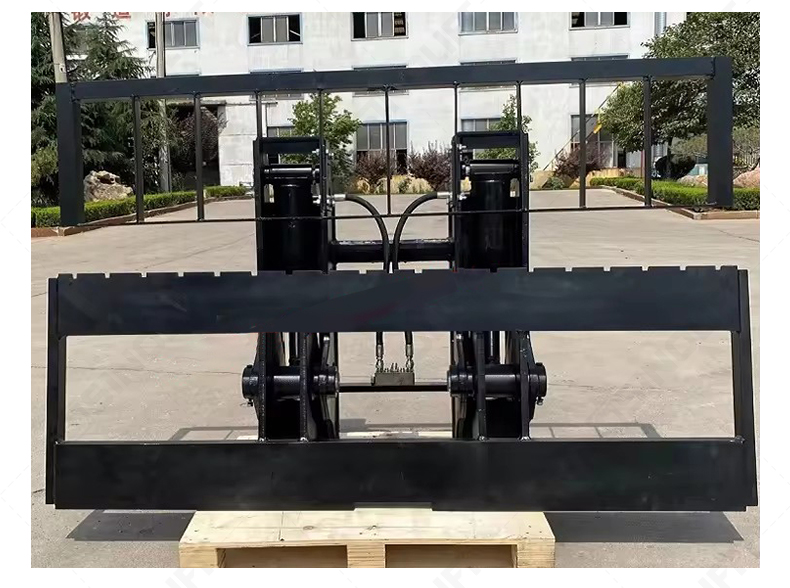

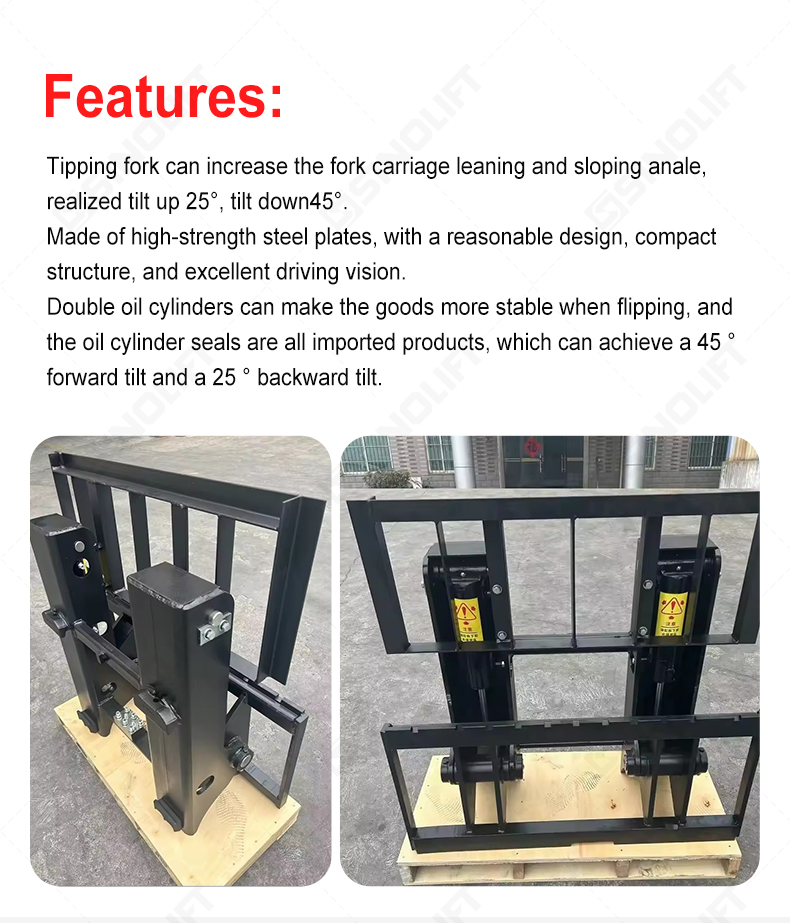

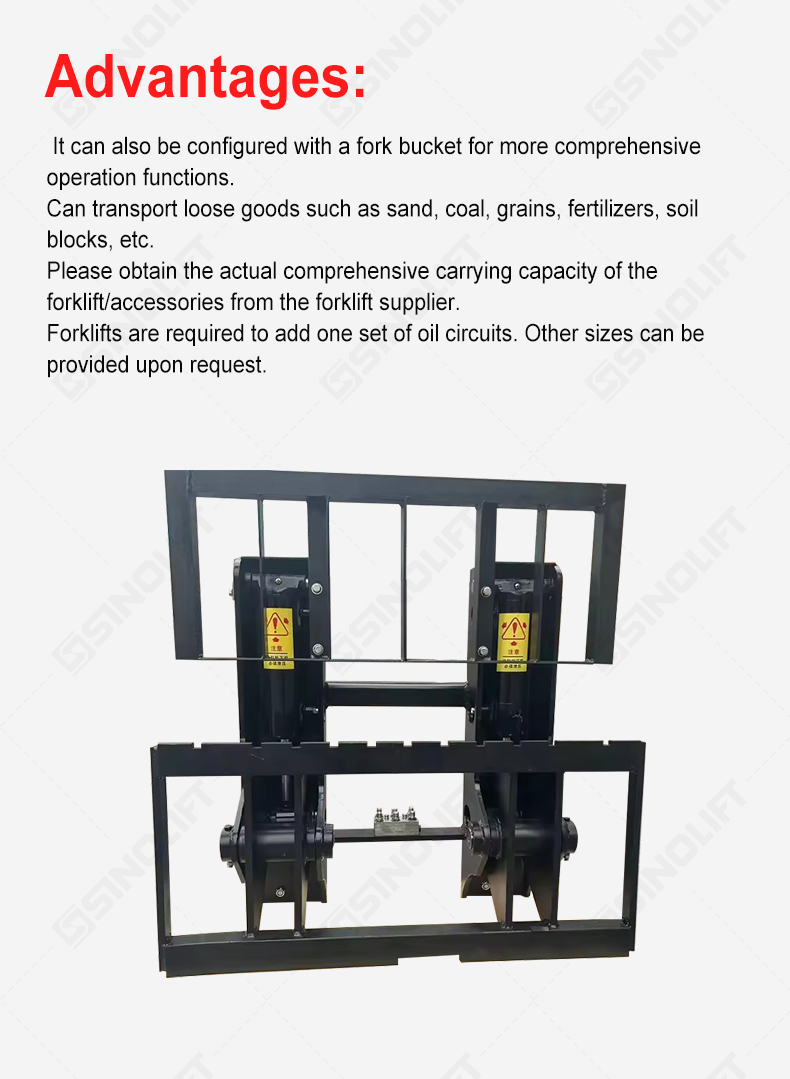

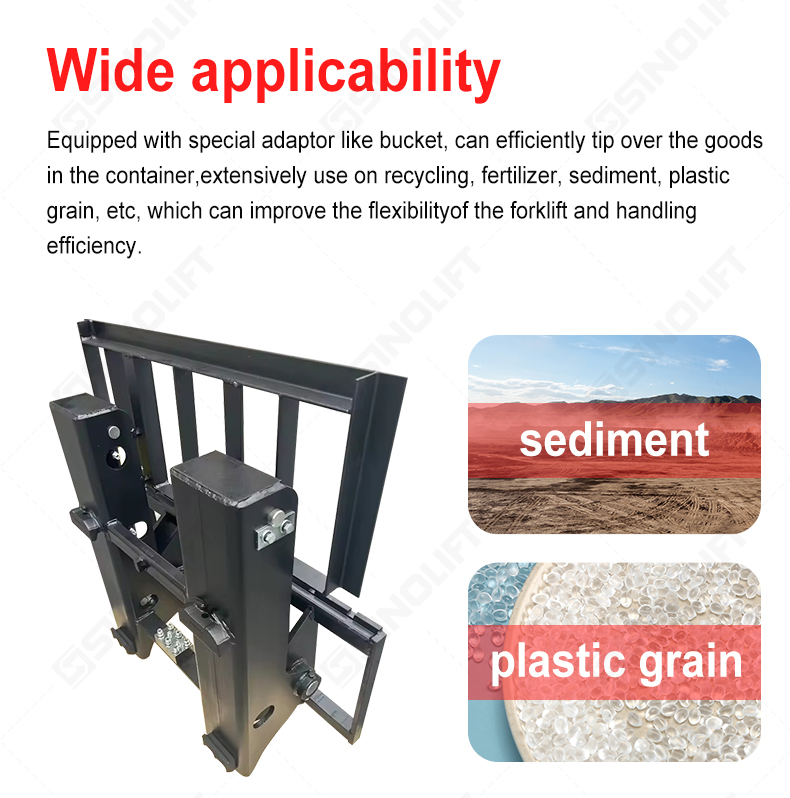

Made of high-strength steel plates, with a reasonable design, compact structure, and excellent driving vision. Double oil cylinders can make the goods more stable when flipping, and the oil cylinder seals are all imported products, which can achieve a 45 ° forward tilt and a 25 ° backward tilt. It can also be configured with a fork bucket for more comprehensive operation functions. Can transport loose goods such as sand, coal, grains, fertilizers, soil blocks, etc. Please obtain the actual comprehensive carrying capacity of the forklift/accessories from the forklift supplier. Forklifts are required to add one set of oil circuits. Other sizes can be provided upon request.
Quantity:
Made of high-strength steel plates, with a reasonable design, compact structure, and excellent driving vision. Double oil cylinders can make the goods more stable when flipping, and the oil cylinder seals are all imported products, which can achieve a 45 ° forward tilt and a 25 ° backward tilt. It can also be configured with a fork bucket for more comprehensive operation functions. Can transport loose goods such as sand, coal, grains, fertilizers, soil blocks, etc. Please obtain the actual comprehensive carrying capacity of the forklift/accessories from the forklift supplier. Forklifts are required to add one set of oil circuits. Other sizes can be provided upon request.

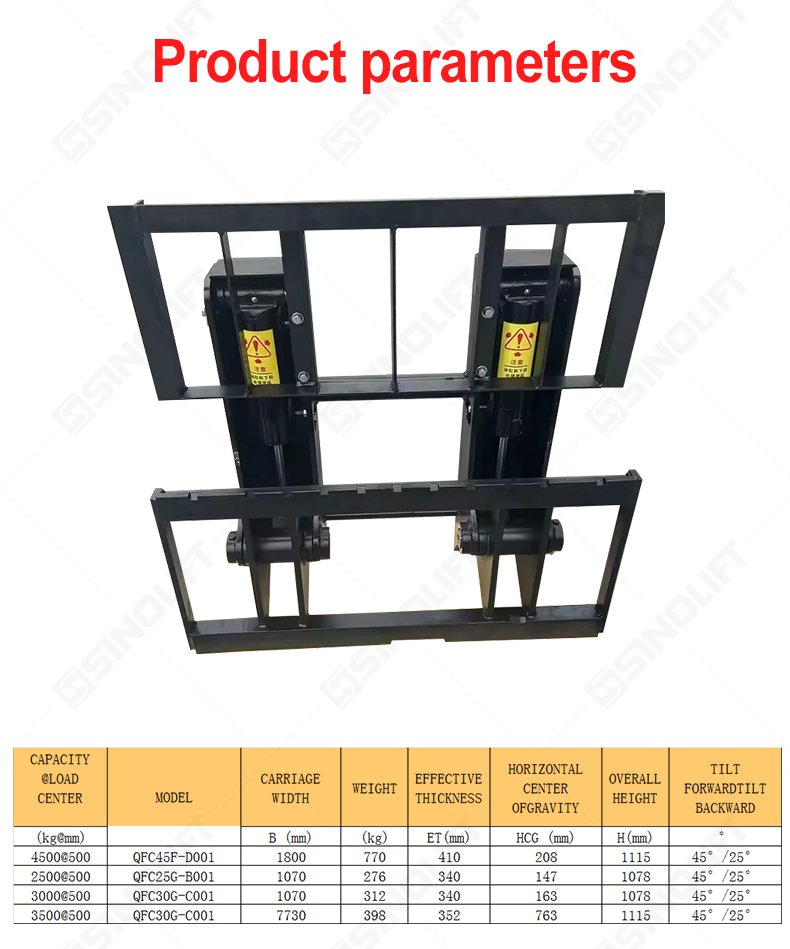

Specifications
CAPACITY @LOAD CENTER | MODEL | CARRIAGE WIDTH | WEIGHT | EFFECTIVE THICKNESS | HORIZONTAL CENTER OFGRAVITY | OVERALL HEIGHT | TILT FORWARDTILT BACKWARD |
| (kg@mm) | B (mm) | (kg) | ET(mm) | HCG (mm) | H(mm) | ° | |
| 4500@500 | QFC45F-D001 | 1800 | 770 | 410 | 208 | 1115 | 45°/25° |
| 2500@500 | QFC25G-B001 | 1070 | 276 | 340 | 147 | 1078 | 45°/25° |
| 3000@500 | QFC30G-C001 | 1070 | 312 | 340 | 163 | 1078 | 45°/25° |
| 3500@500 | QFC30G-C001 | 7730 | 398 | 352 | 763 | 1115 | 45°/25° |
