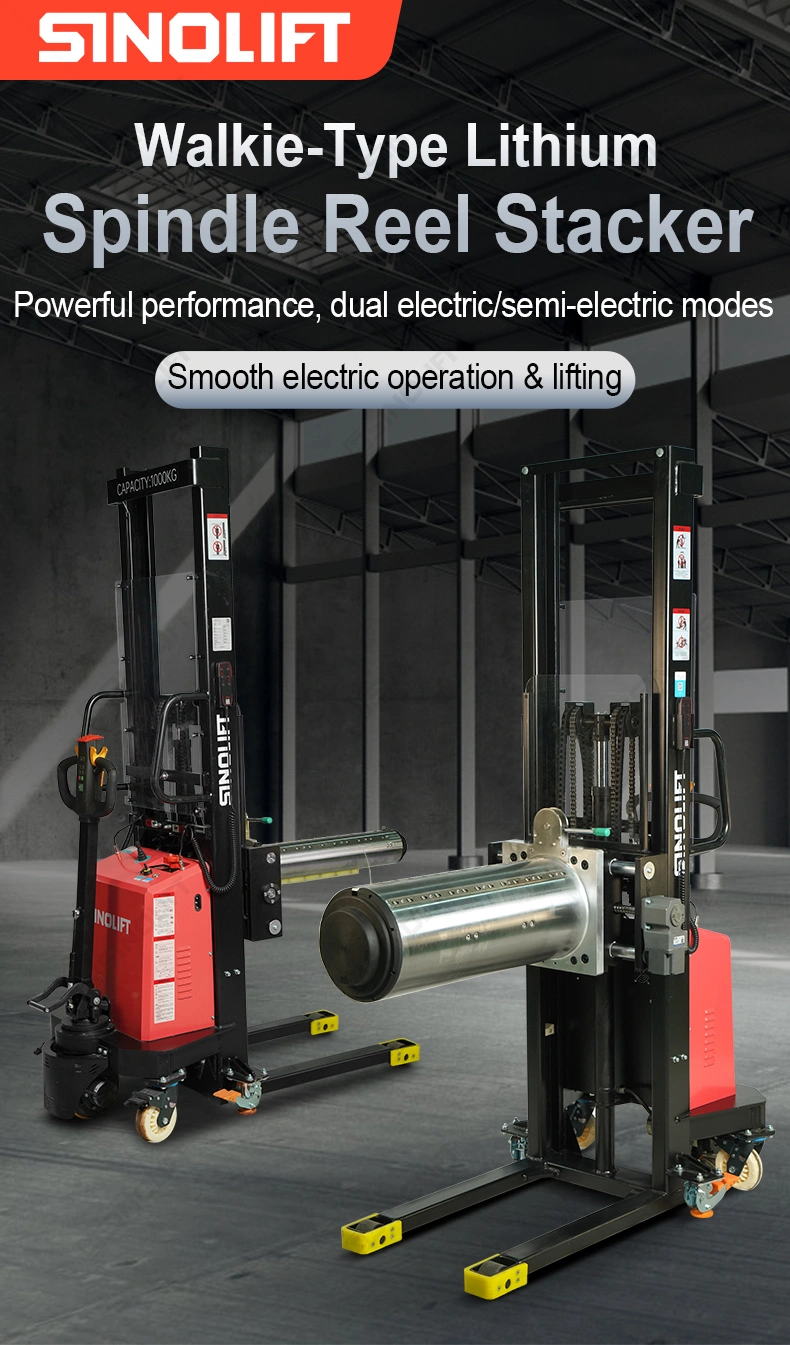

ND99S Walkie-Type Lithium Cell Reel Truck
ND99S

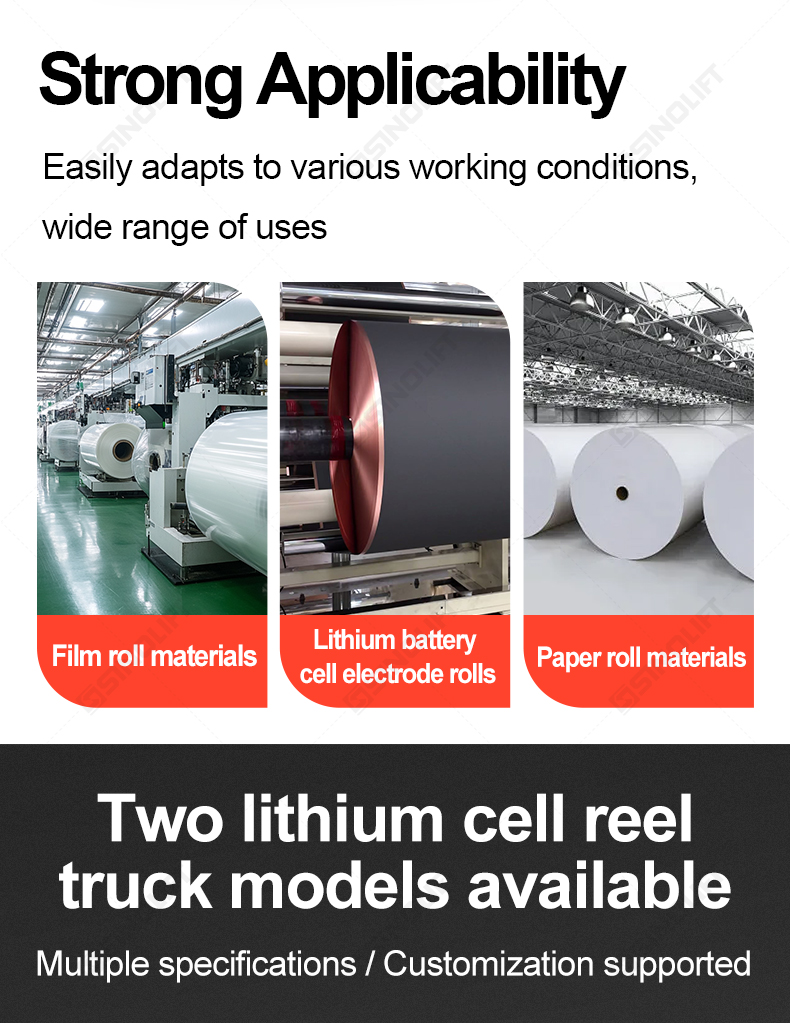

The ND99S is a compact and reliable reel handling solution designed for the lithium battery, film, and paper industries.A smart choice for improving productivity and safety in demanding reel-handling environments.
Quantity:
Product Name
ND99S Walkie-Type Lithium Cell Reel Truck
The ND99S is a compact and reliable reel handling solution designed for the lithium battery, film, and paper industries.A smart choice for improving productivity and safety in demanding reel-handling environments.

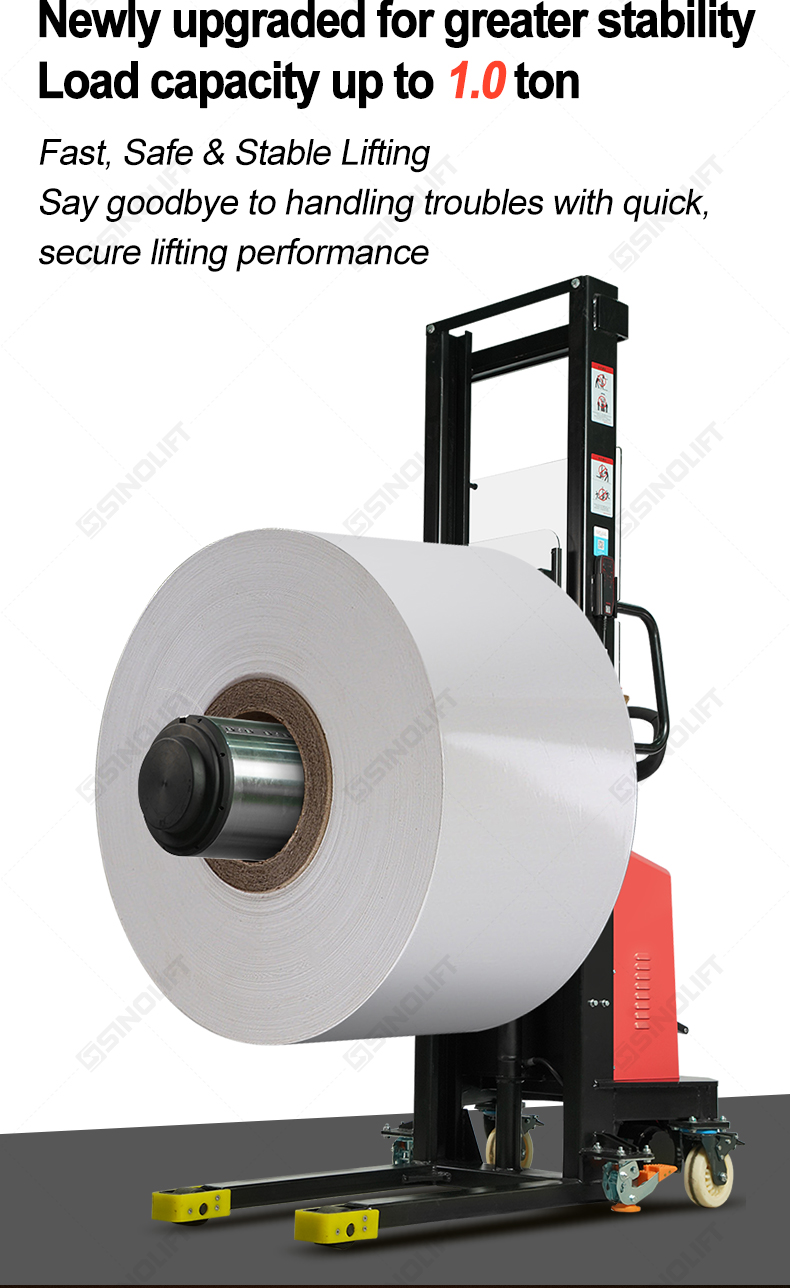

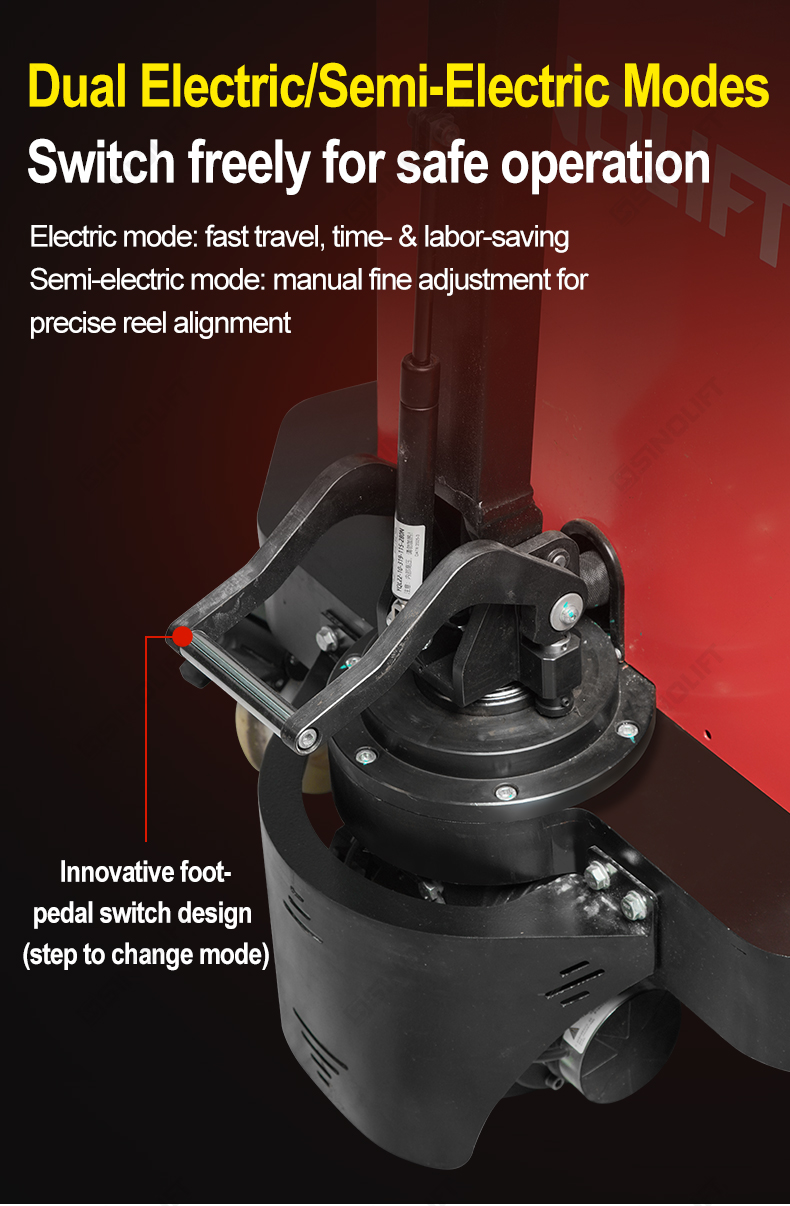

- Versatile Performance: Supports both electric and semi-electric operation with a 1.0-ton load capacity.
- Efficient Handling: Intelligent push-pull system ensures fast, stable, and safe lifting of reels.
- User-Friendly Design: Built for one-person operation, ideal for narrow aisles and quick loading/unloading.
Product Specifications
| Model | ND99S1 | ND9952 | |
| Drive Type | Hydraulic | Hydraulic | |
| Rated Load | kg | 1000 | 1000 |
| Load Center | mm | 650 | 650 |
| Minimum Height | mm | 650 | 650 |

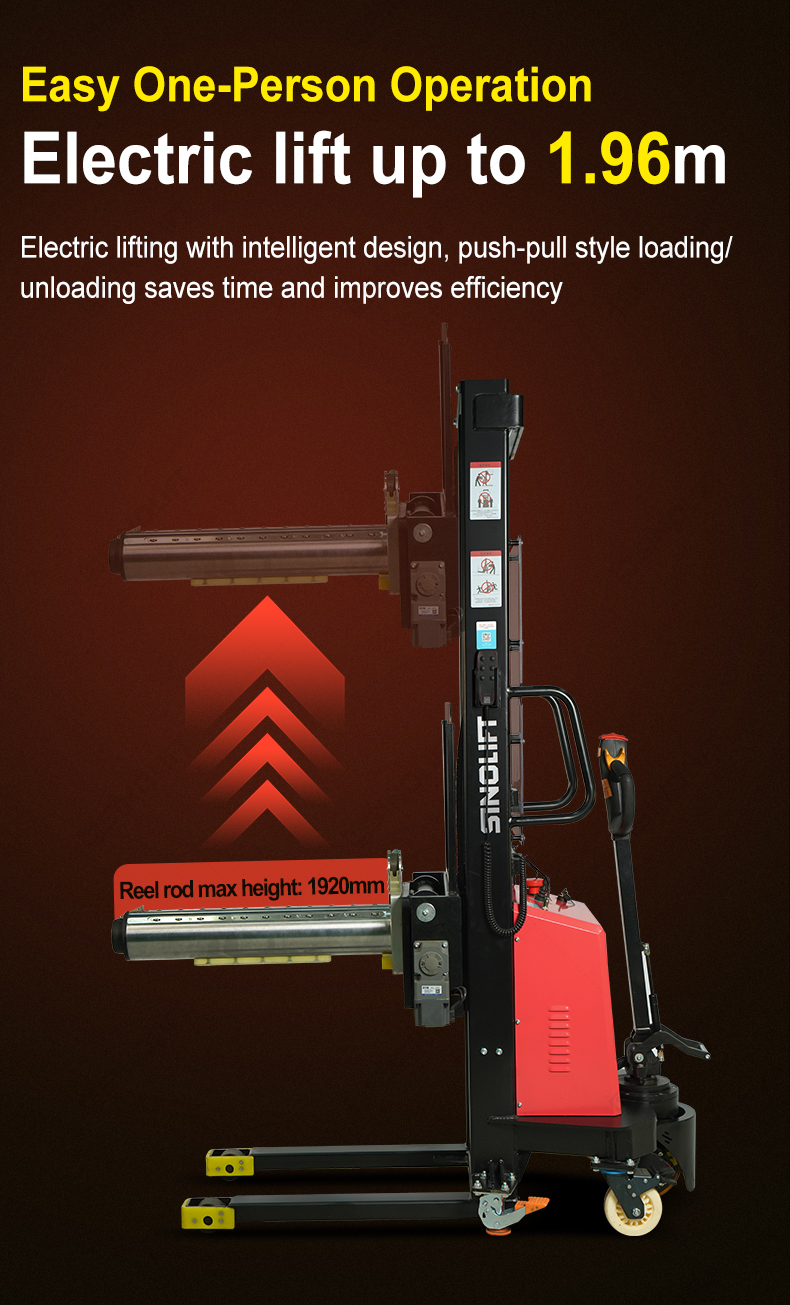

| Maximum Height | mm | 1960 | 1960 |
| Overall Length | mm | 1496 | 1496 |
| Overall Width | mm | 780 | 780 |
| Overall Height | mm | 2200 | 2200 |

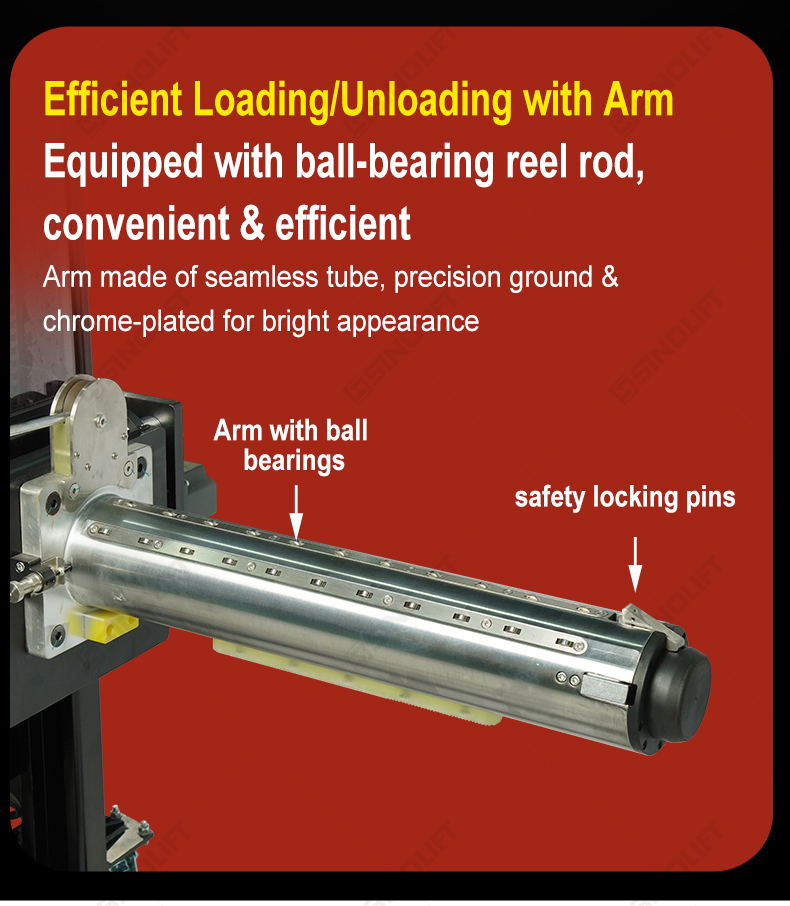

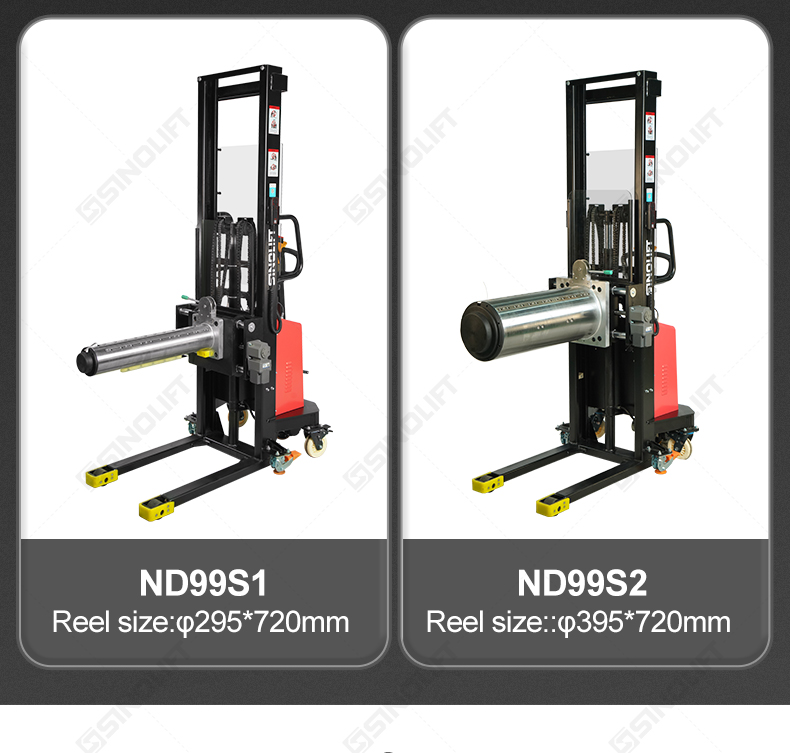

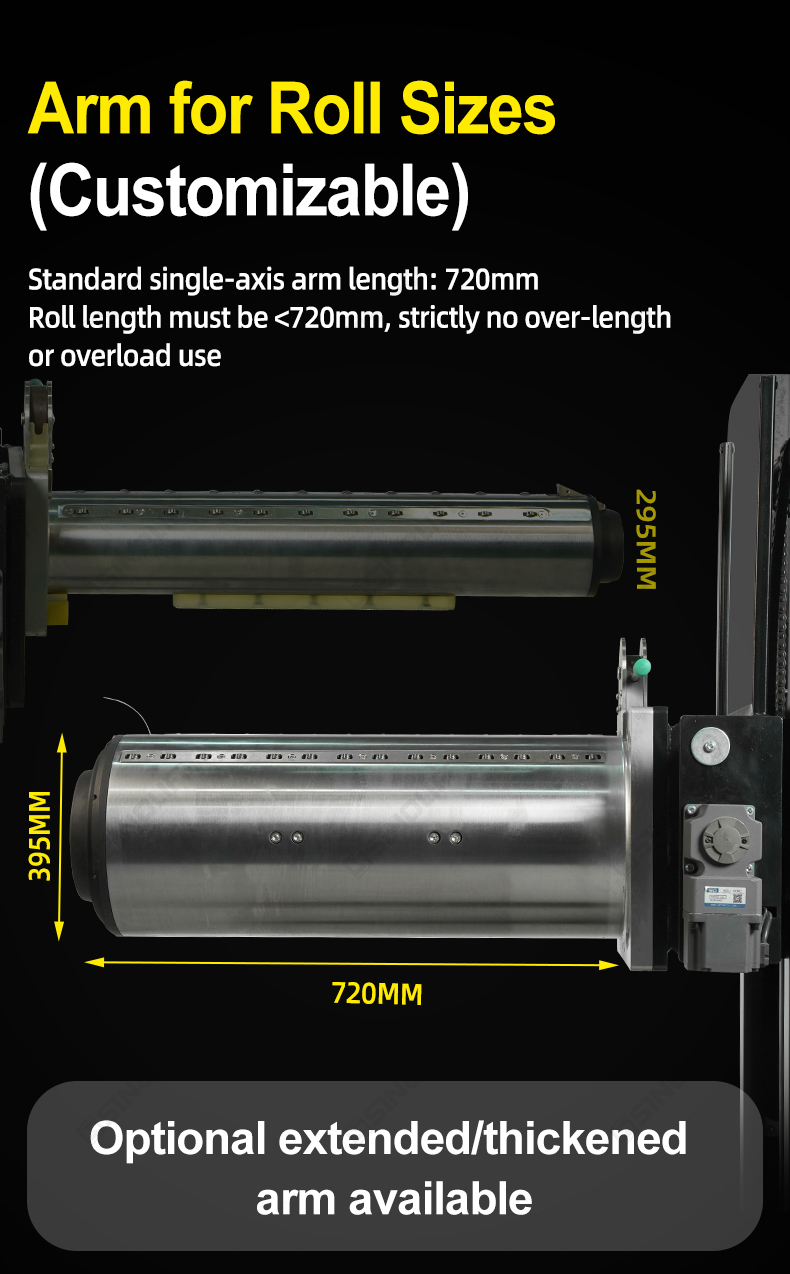

| Cantilever Specification | mm | Ø295*720 | Ø395*720 |

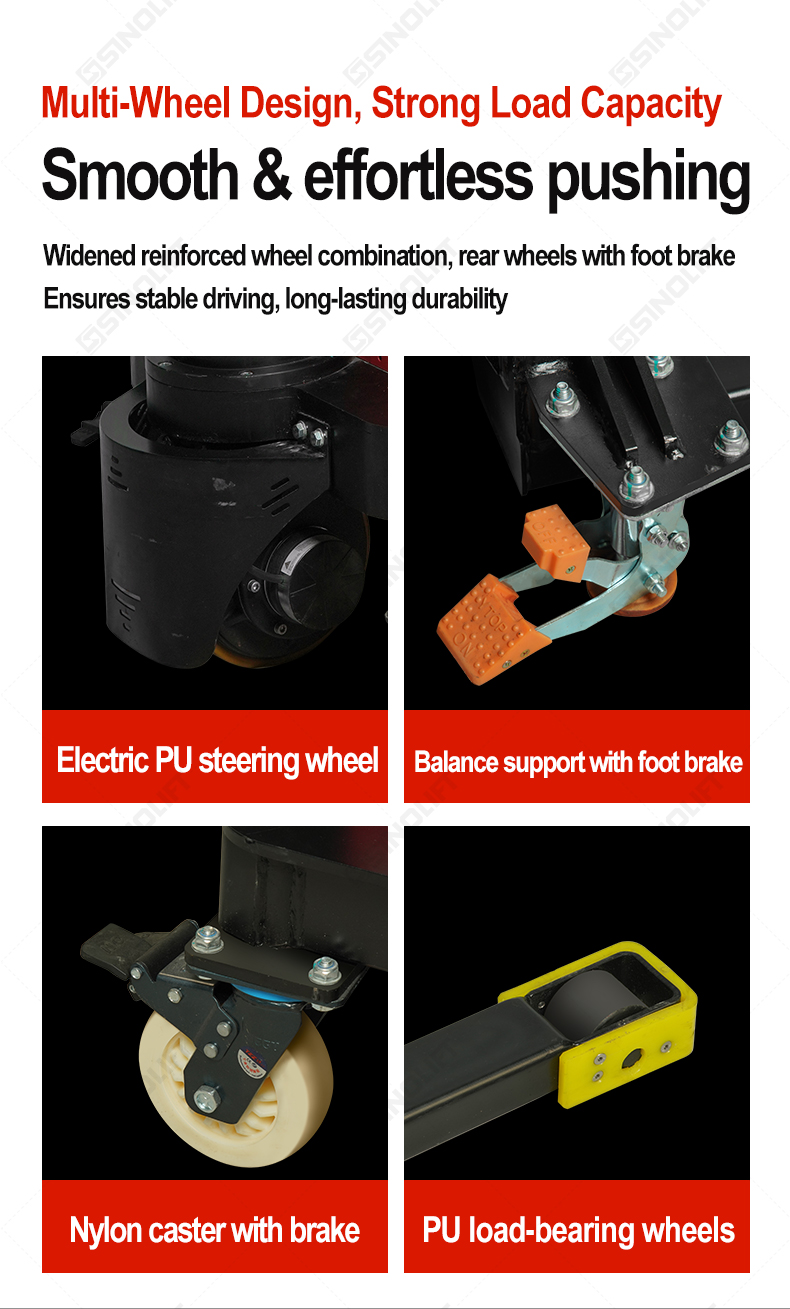

| Front Wheel Specification | mm | Ø80-70 | Ø80-70 |
| Rear Wheel Specification | mm | Ø205X75 | 205X75 |
| Lifting Motor | kw | DC24V/1.2 | DC24V/1.2 |
| Driving Motor | kw | DC24/0.75 | DC24/0.75 |
| Power Supply Specification | V/Ah | DC24/125AH | DC24/125AH |
| Battery Type | Lithium Iron Phosphate (LiFePO₄) | Lithium Iron Phosphate (LiFePO₄) | |
| Drive Control Type | DC Speed Control | DC Speed Control | |
| Noise Level | Db | ≤70 | ≤70 |
| Steering Type | Mechanical Steering | Mechanical Steering | |
| Braking Mode | Electromagnetic Brake | Electromagnetic Brake | |
| Net Weight | kg | 730 | 740 |
| Lifting Speed | mm/s | 103 | 103 |

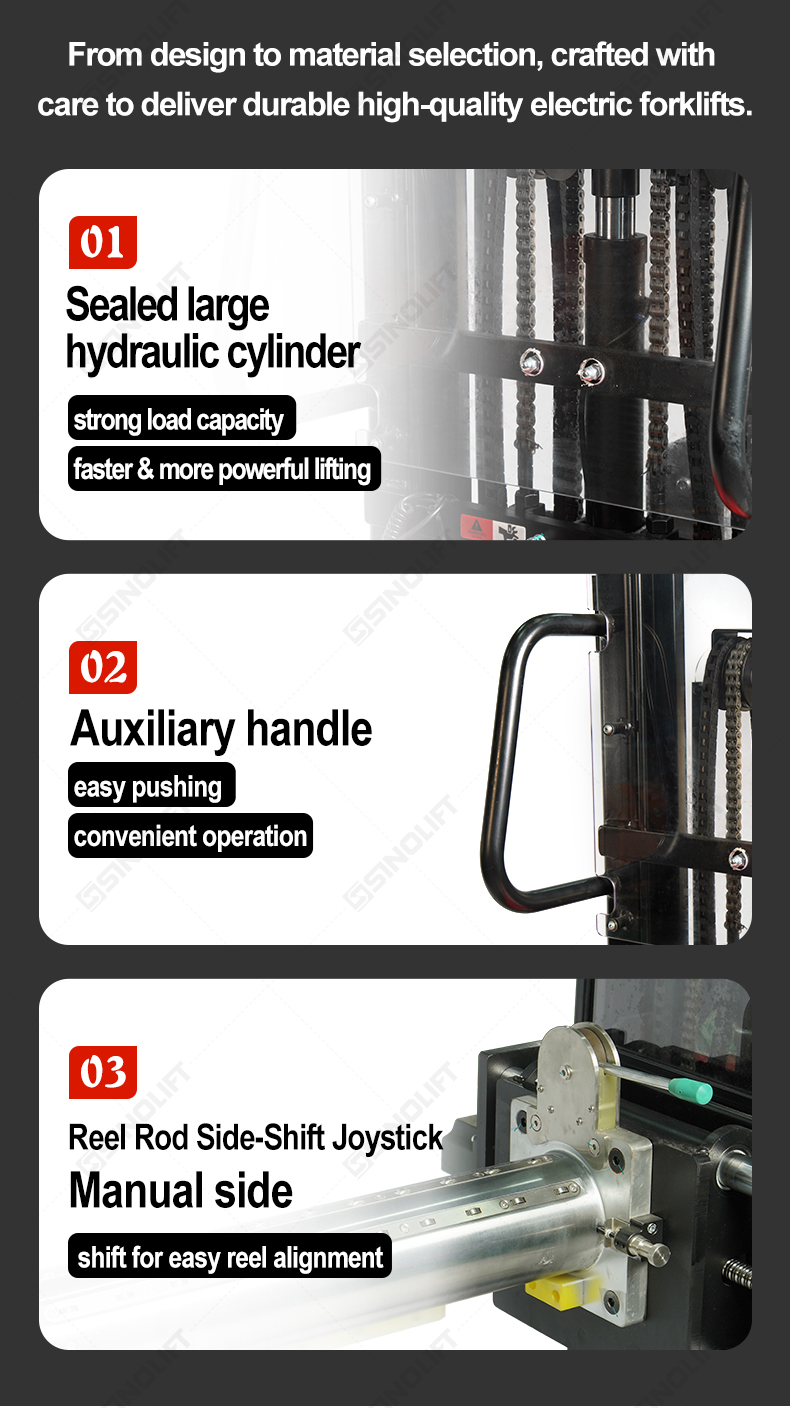

| Side Shift Mechanism | Ball Screw | Ball Screw | |
| Side Shift Motor | Kw | DC24V/0.4 | DC24V/0.4 |
