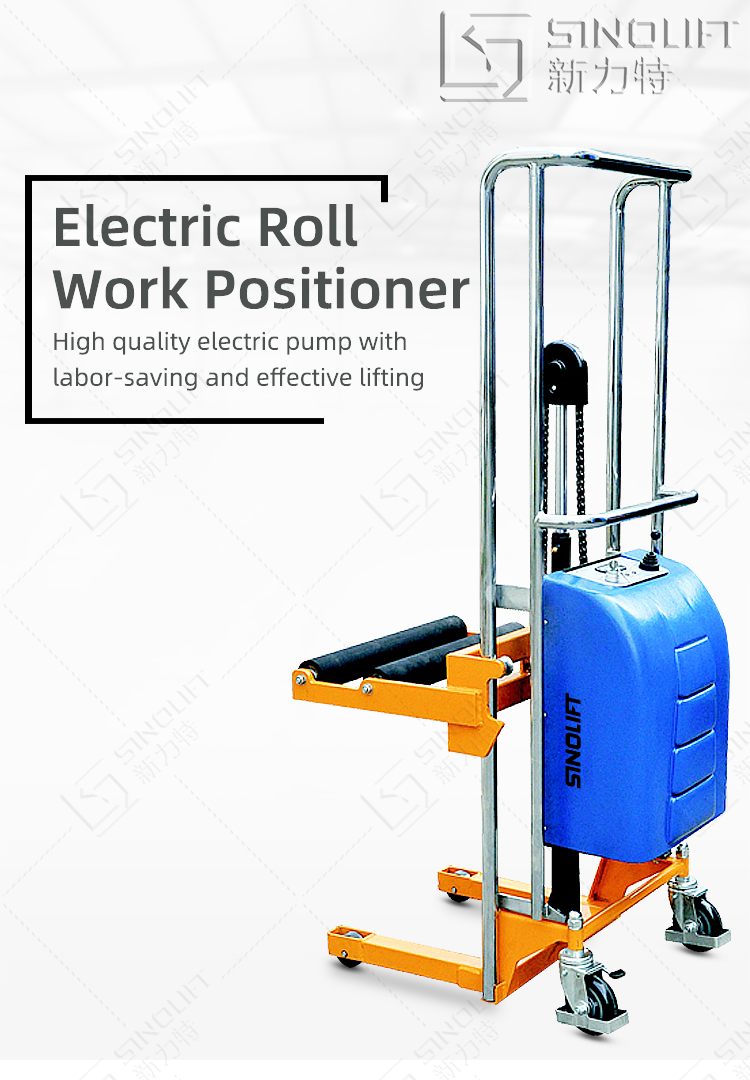

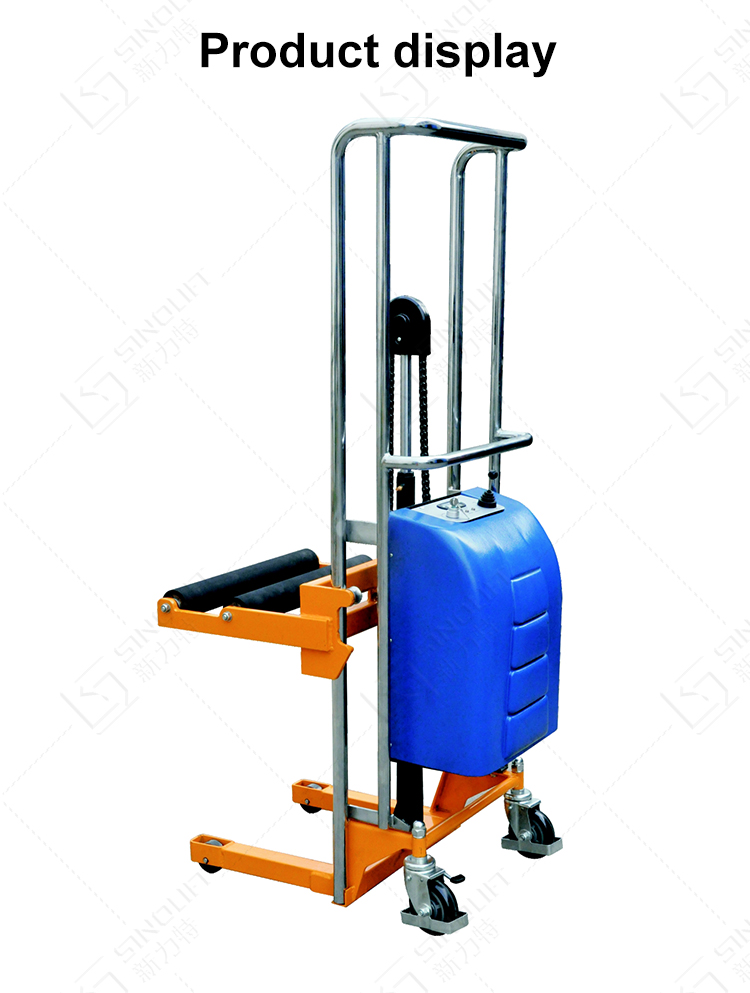

PFG4085(W)E PFG4120(W)E PFG4150(W)E Roll & Reel Hydraulic Stacker
The SINOLIFT Work Positioner range has been designed, developed and built to give long service with minimum maintenance required and assist with all manner of manual handling within industry and commerce.
The SINOLIFT Reel Lifting Work Positioner is ideal for those applications where reels of material are to be offered to and removed from equipment such as packaging and printing lines. The sturdy construction of this SINOLIFT Reel Lifter makes easy work of handling and manipulating heavy rolls etc.

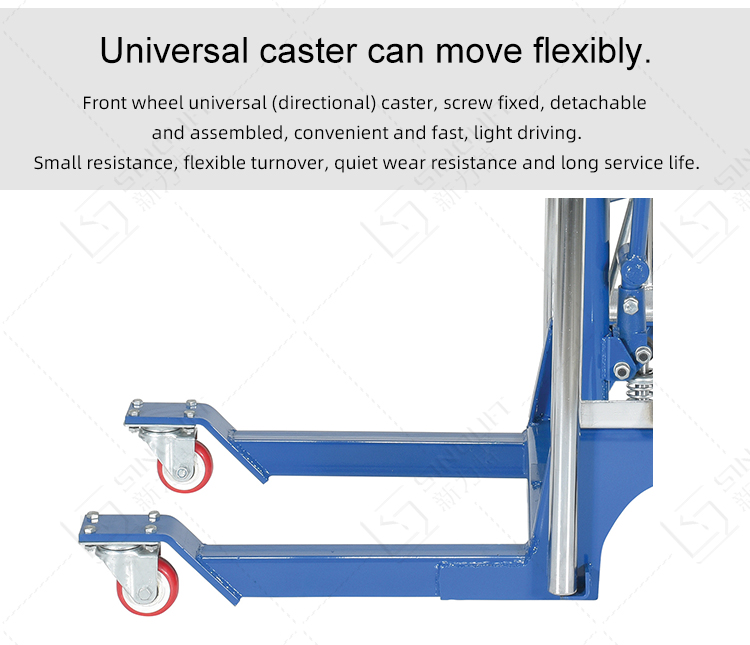

The unit is mounted on 4 swivel castors allowing the unit to turn easily in confined areas.
Lift is by means of foot operated hydraulic pump unit which easily allows the operator to elevate the load to a given height. Lowering is via “dead mans” release knob.

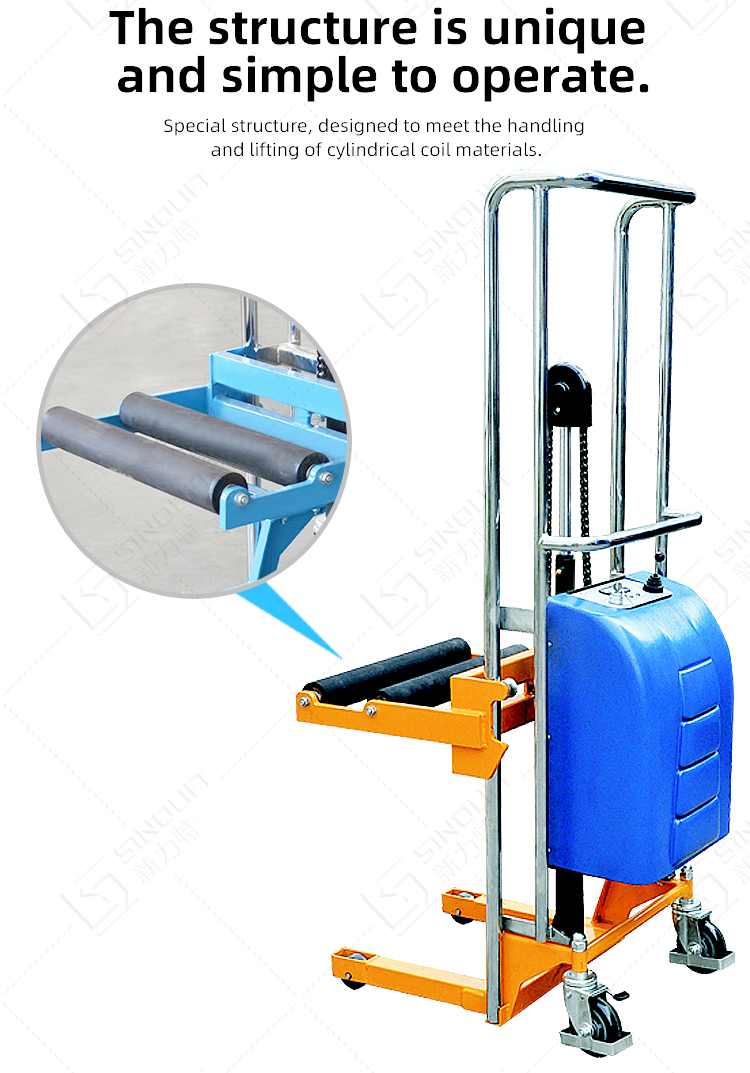

You can see from the picture that where normally you may find a pair of forks or platform plate, there are two heavy duty rollers which rotate and aid the movement of whatever is on the truck.

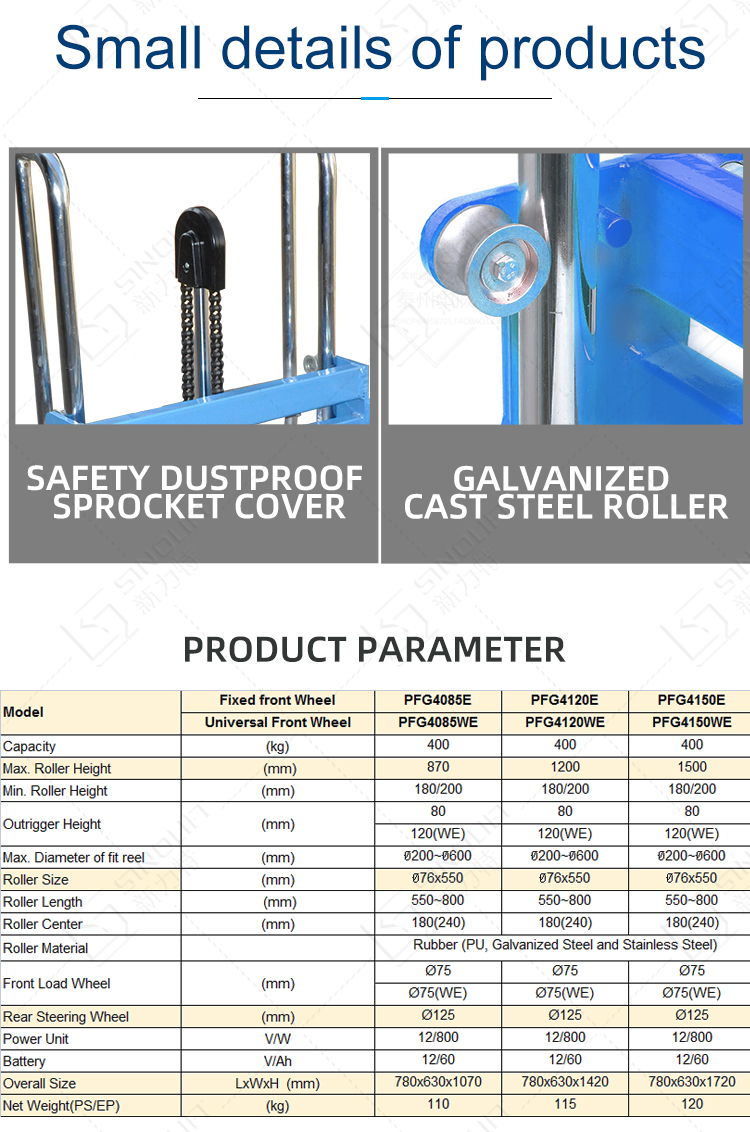

| Model | Fixed front Wheel | PFG4085E | PFG4120E | PFG4150E |
| Universal Front Wheel | PFG4085WE | PFG4120WE | PFG4150WE | |
| Capacity | (kg) | 400 | 400 | 400 |
| Max. Roller Height | (mm) | 870 | 1200 | 1500 |
| Min. Roller Height | (mm) | 180/200 | 180/200 | 180/200 |
| Outrigger Height | (mm) | 80 | 80 | 80 |
| 120(WE) | 120(WE) | 120(WE) | ||
| Max. Diameter of fit reel | (mm) | Ø200~Ø600 | Ø200~Ø600 | Ø200~Ø600 |
| Roller Size | (mm) | Ø76x550 | Ø76x550 | Ø76x550 |
| Roller Length | (mm) | 550~800 | 550~800 | 550~800 |
| Roller Center | (mm) | 180(240) | 180(240) | 180(240) |
| Roller Material | Rubber (PU, Galvanized Steel and Stainless Steel) | |||
| Front Load Wheel | (mm) | Ø75 | Ø75 | Ø75 |
| Ø75(WE) | Ø75(WE) | Ø75(WE) | ||
| Rear Steering Wheel | (mm) | Ø125 | Ø125 | Ø125 |
| Power Unit | V/W | 12/800 | 12/800 | 12/800 |
| Battery | V/Ah | 12/60 | 12/60 | 12/60 |
| Overall Size | LxWxH (mm) | 780x630x1070 | 780x630x1420 | 780x630x1720 |
| Net Weight(PS/EP) | (kg) | 110 | 115 | 120 |
| Note: Specification and materials are subject to change without notice. | ||||
