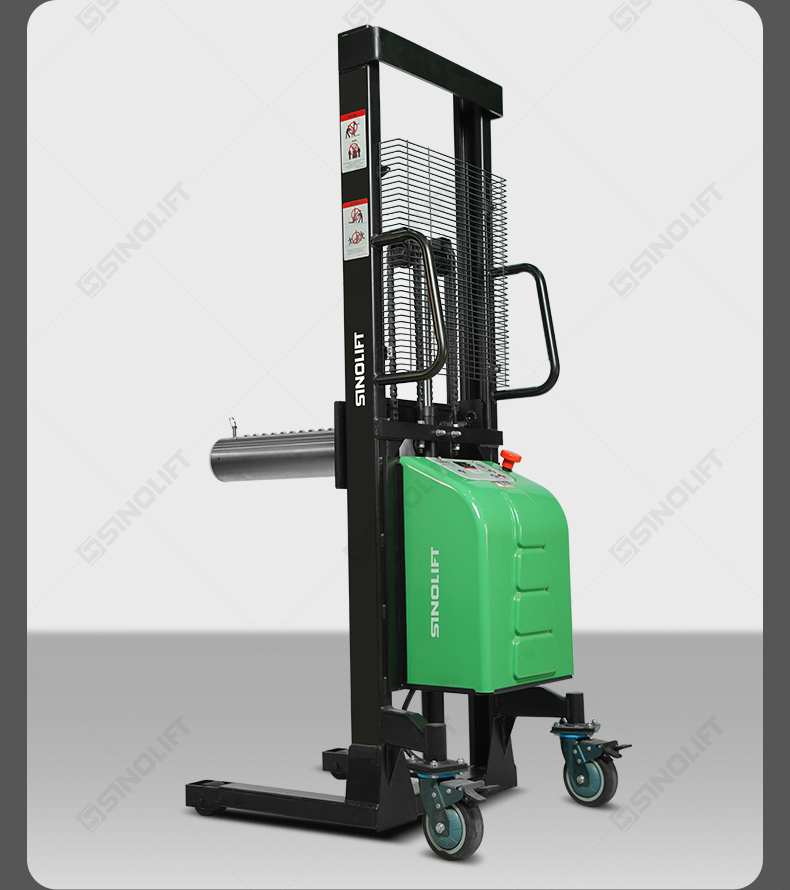

ND Series – Intelligent Single-Arm Compact Electric Reel Stacker

ND series

Specially designed for lithium battery electrode rolls, film rolls, and paper rolls. Compact, lightweight, and easy to operate, the ND series ensures safe and efficient handling in narrow spaces.

Quantity:

Contact Now

add to cart

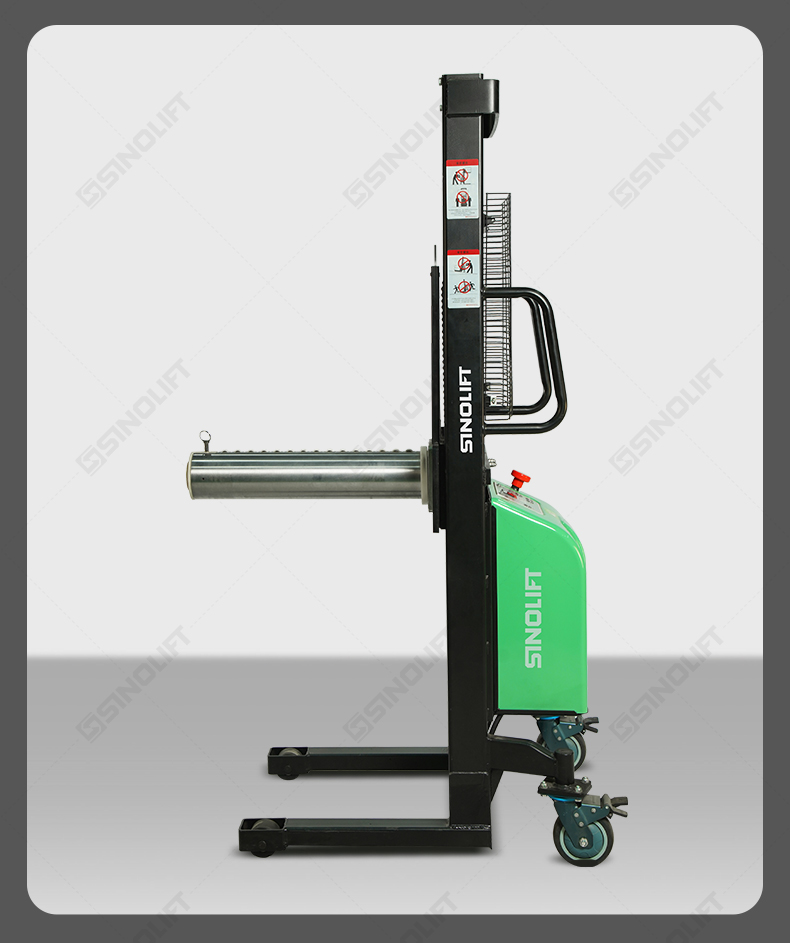

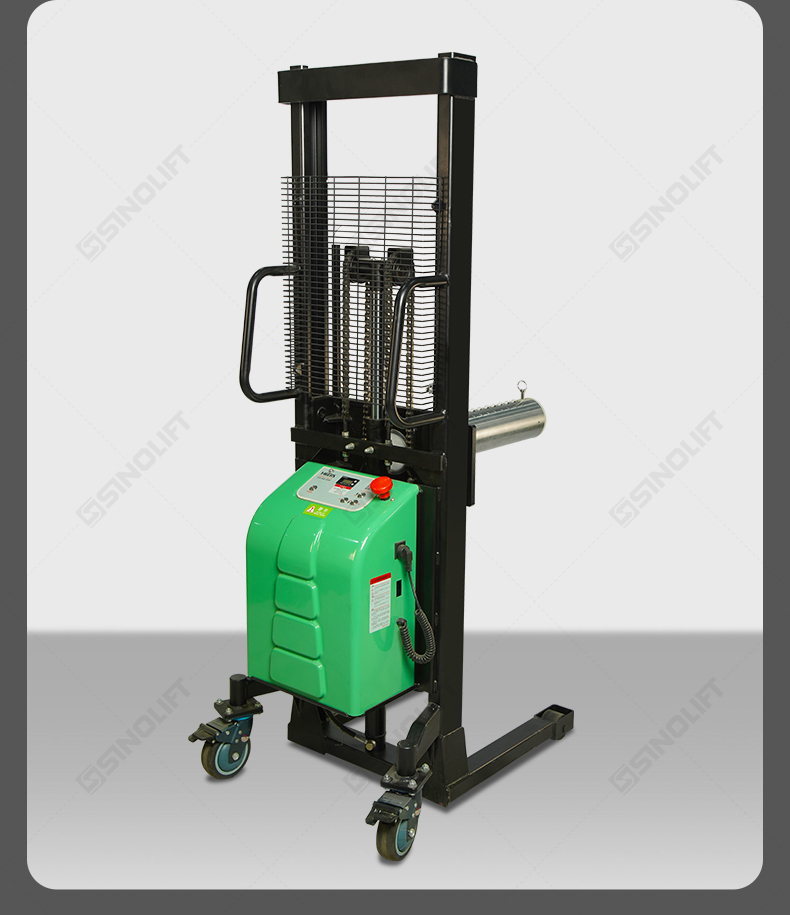

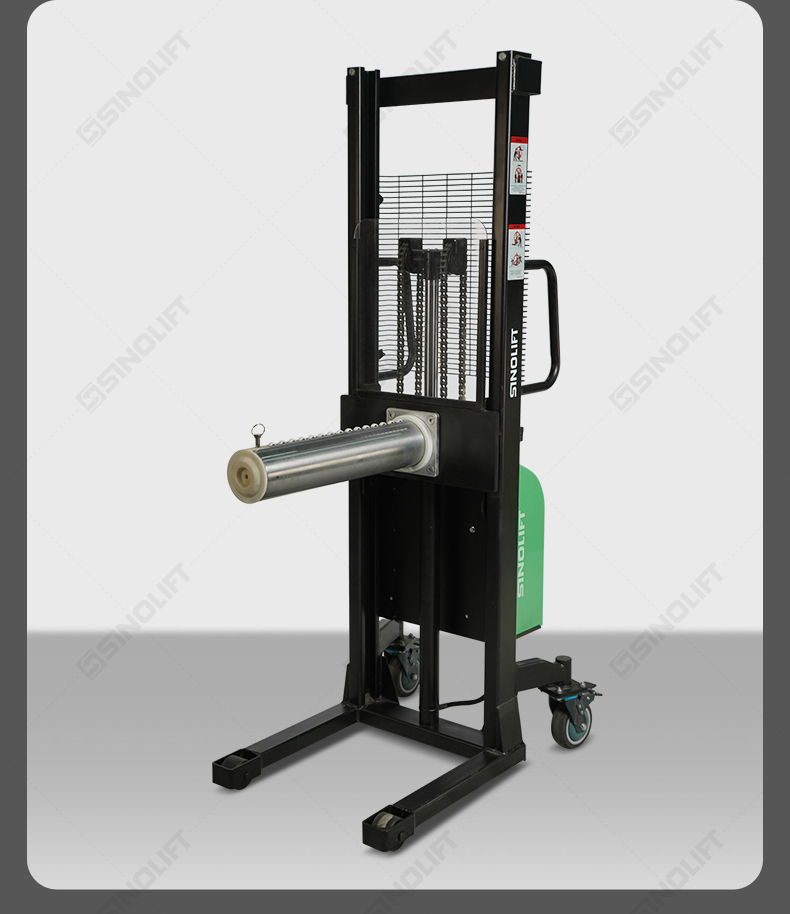

Sinolift ND Series – Intelligent Single-Arm Compact Electric Reel Stacker

Specially designed for lithium battery electrode rolls, film rolls, and paper rolls. Compact, lightweight, and easy to operate, the ND series ensures safe and efficient handling in narrow spaces.

Key Features:

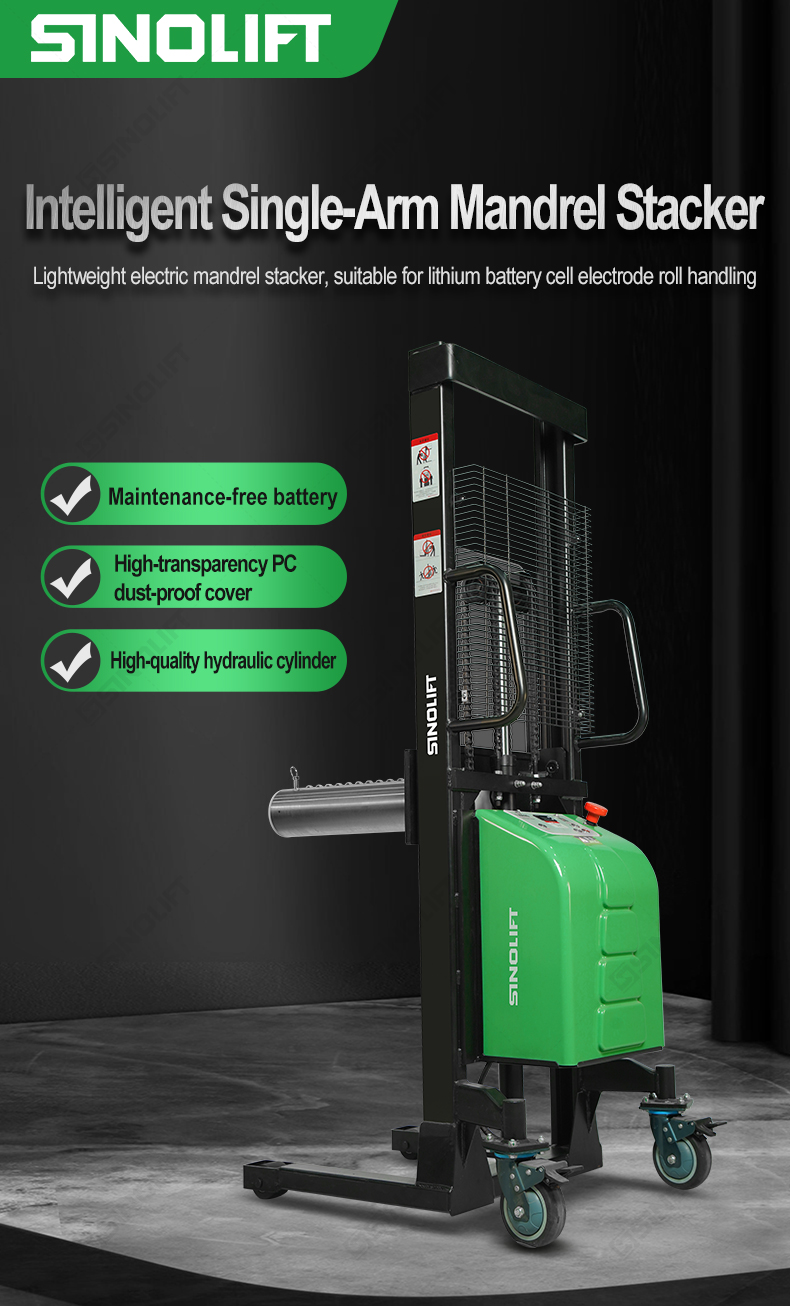

Intelligent Single-Arm Design – Compact and flexible, ideal for tight working environments.

Versatile Applications – Perfect for lithium battery electrodes, film rolls, and paper rolls.

Reliable Power – Equipped with a maintenance-free battery for long-lasting performance.

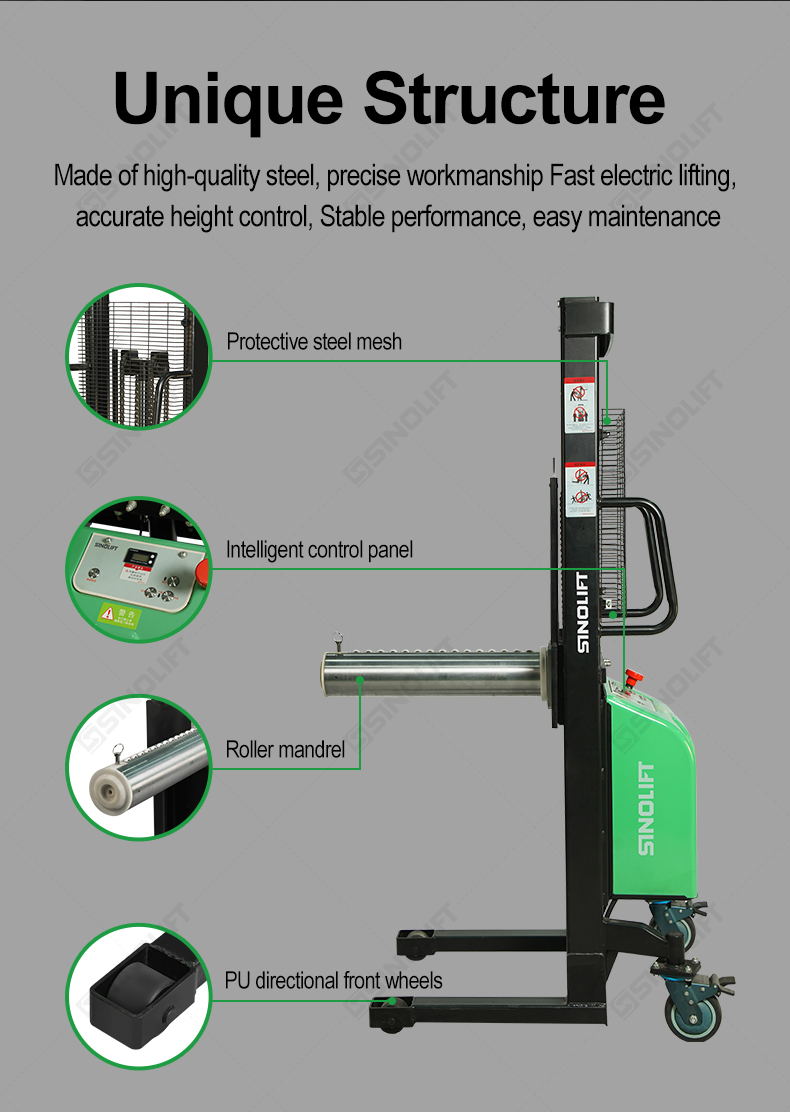

Premium Components:

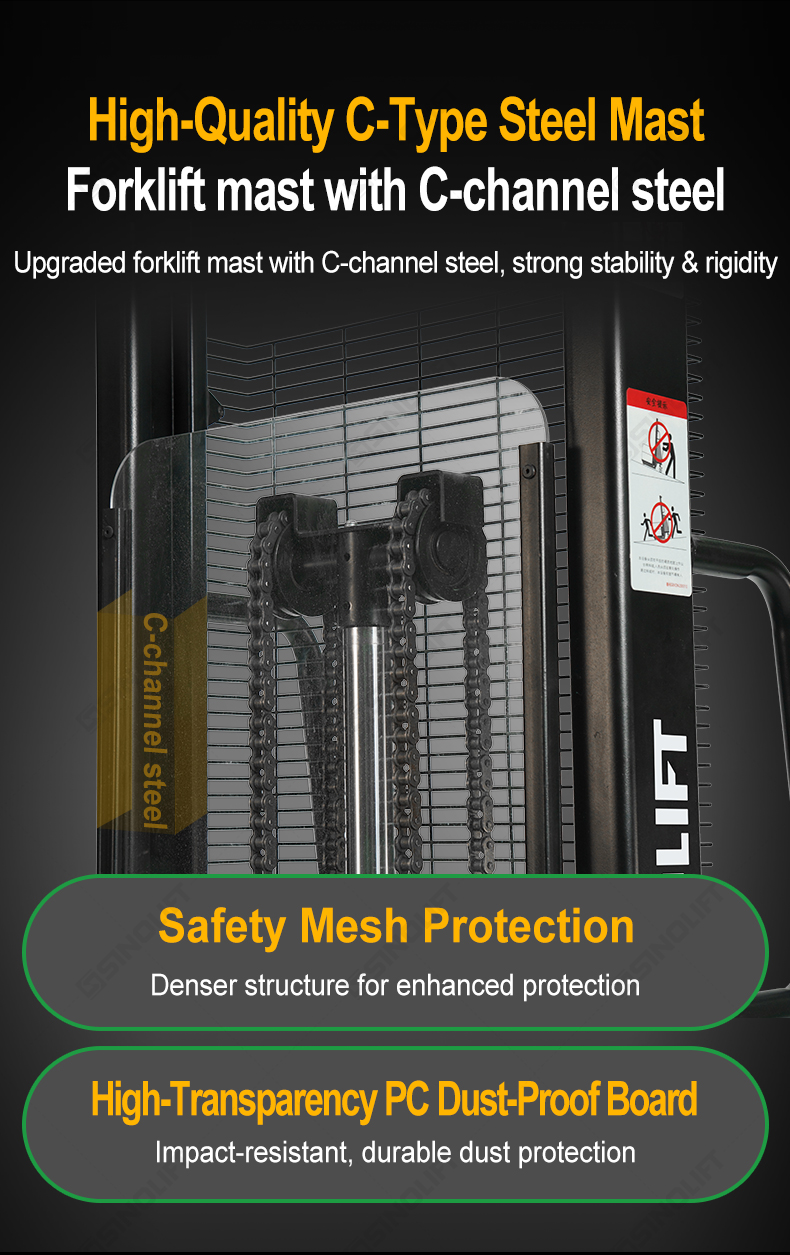

High-transparency PC dust-proof cover for protection and visibility

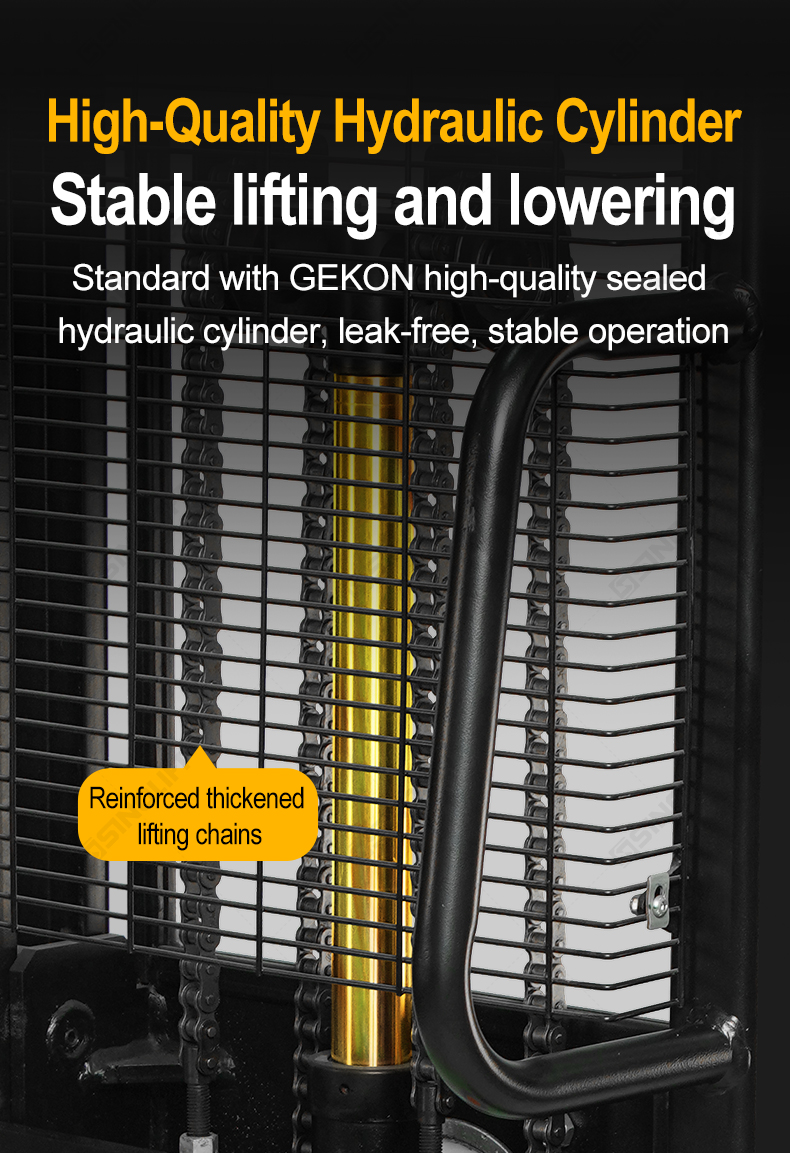

High-quality hydraulic cylinder for smooth and stable lifting

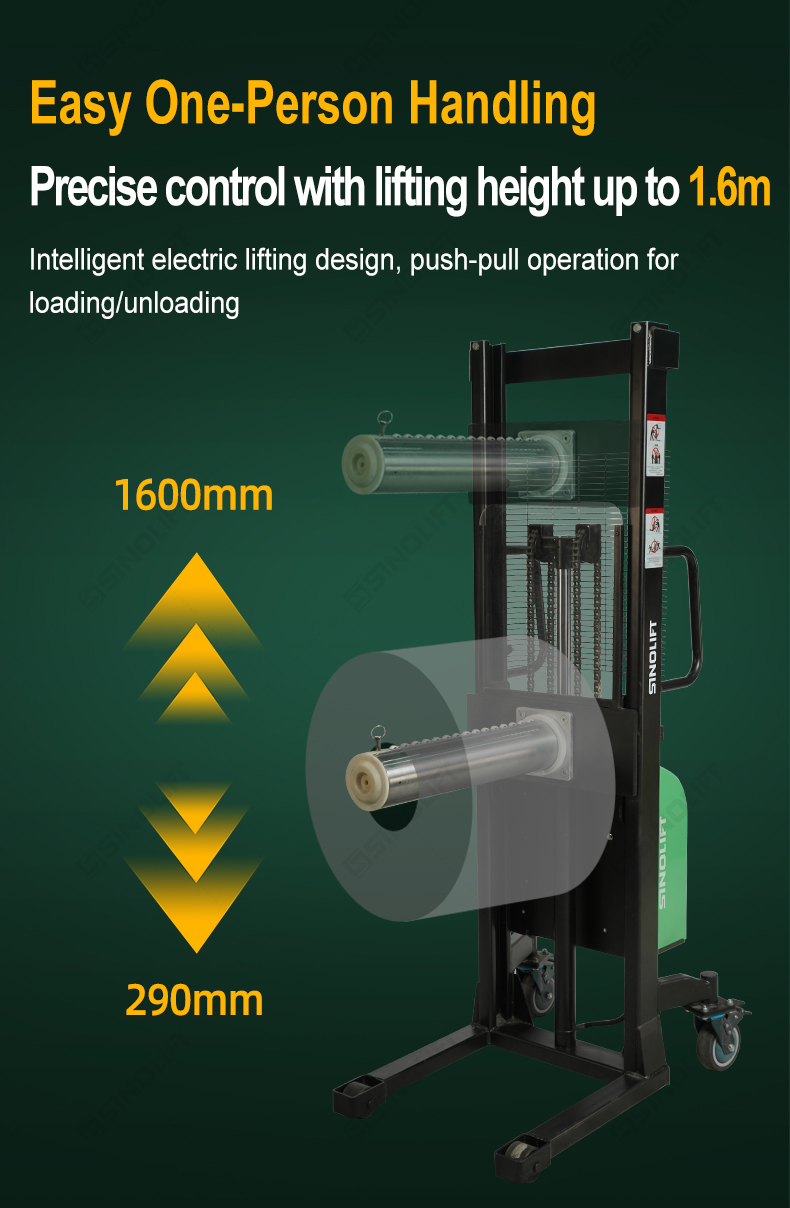

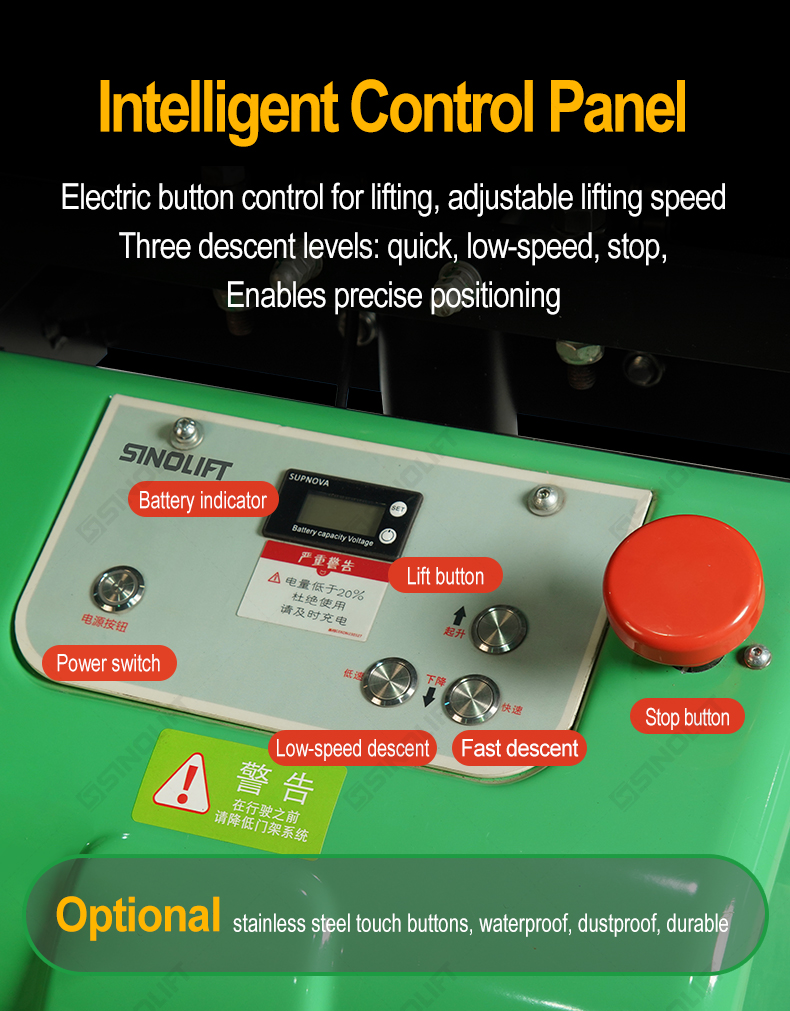

Precise electric lifting with a maximum height of 1.6m

User-Friendly Operation – One-person handling with effortless push-pull movement.

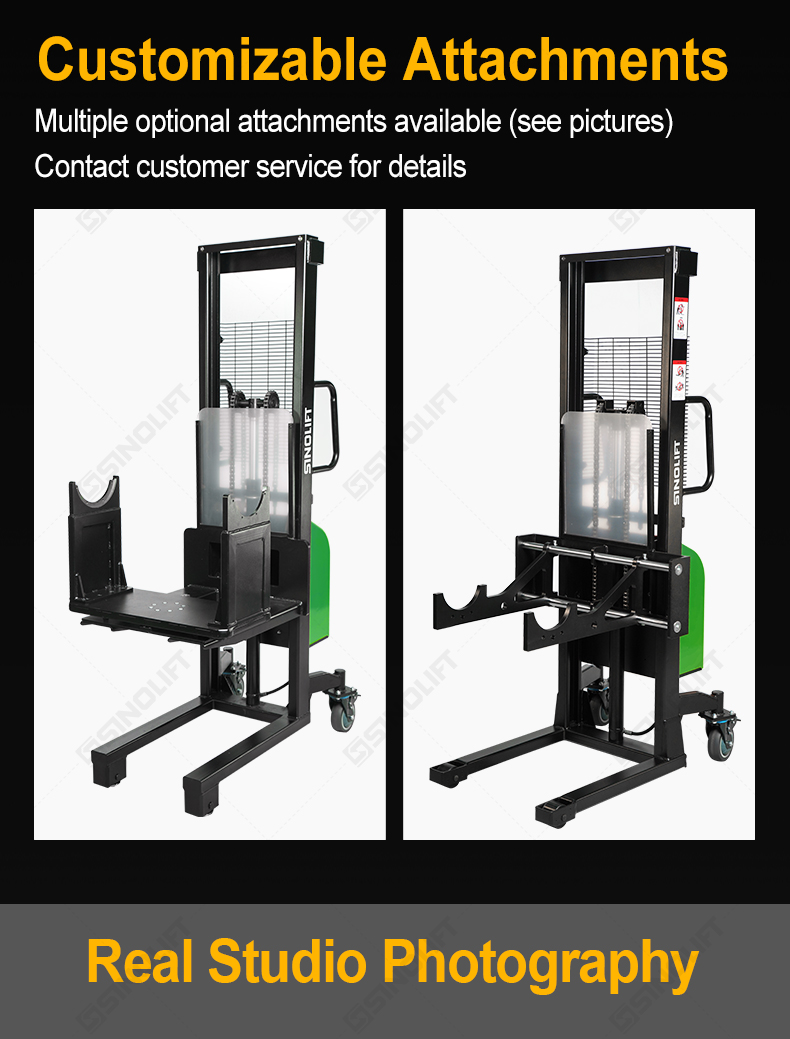

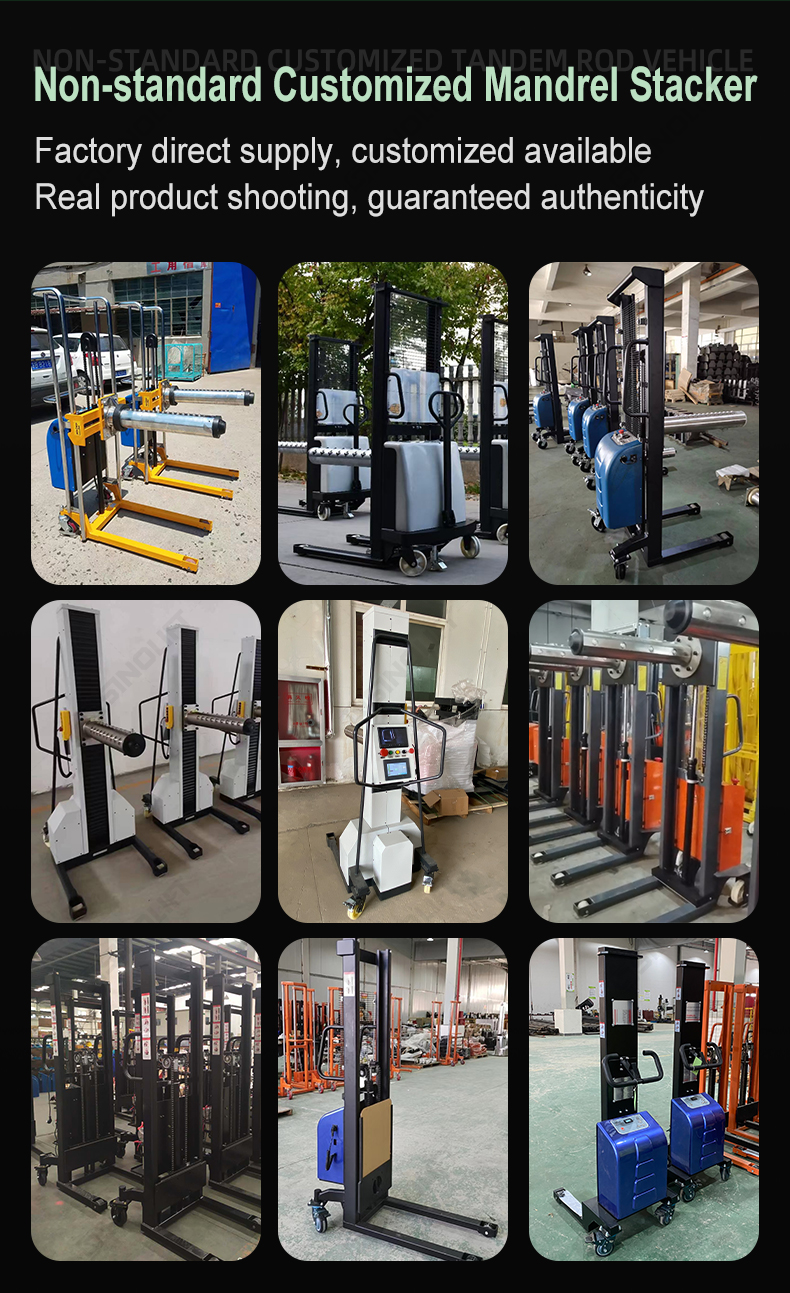

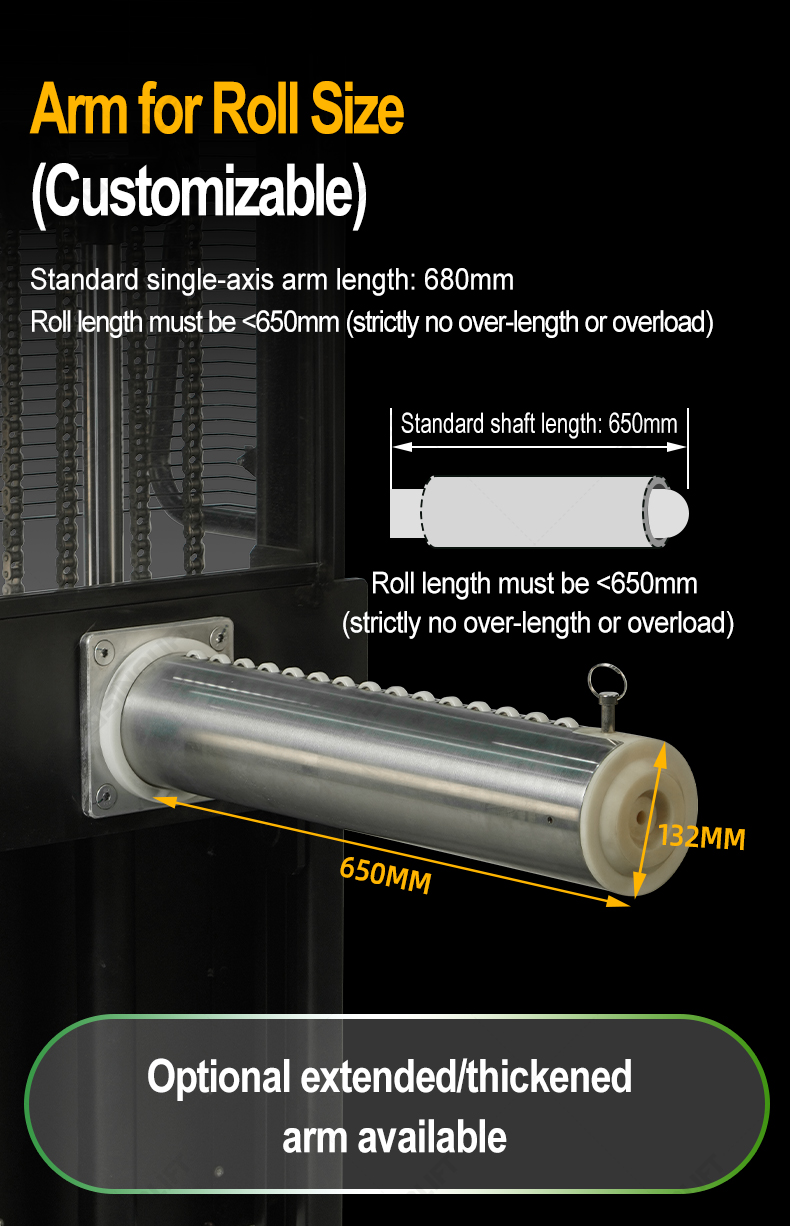

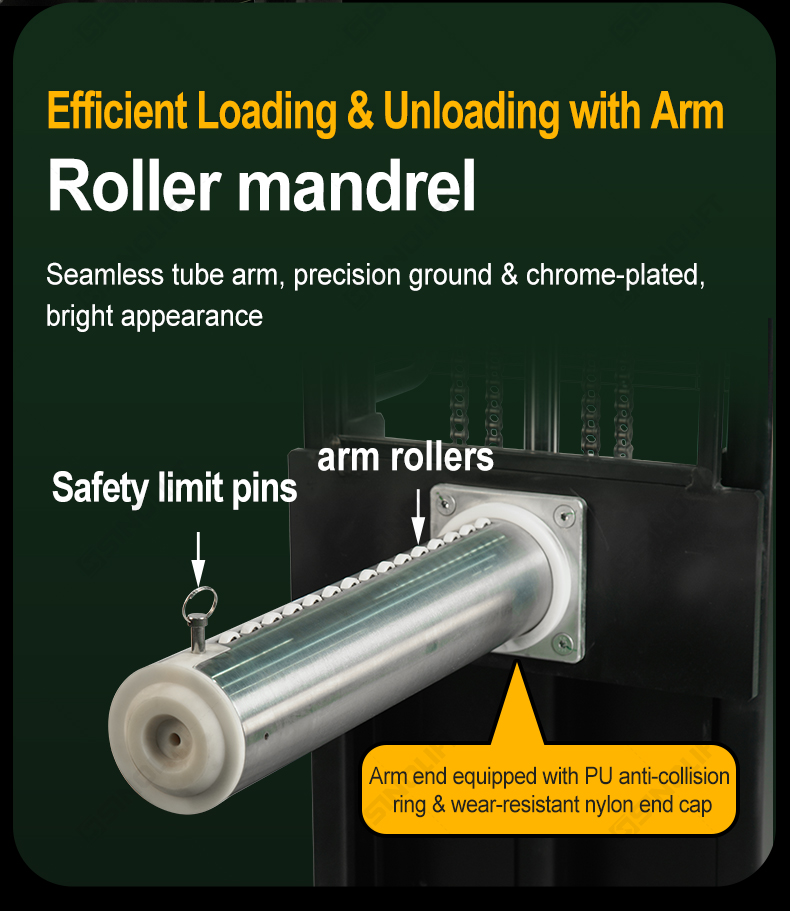

Customizable Options – Adjustable arm sizes to meet diverse roll specifications.

Product Specifications

Model		ND95C	ND95B	ND95D
Drive Type		Hydraulic	Hydraulic	Hydraulic
Rated Load	kg	600	600	600
Load Center	mm	400	400	400
Minimum Height (Boom Center)	mm	290	290	290
Maximum Height (Boom Center)	mm	1600	1600	1600
Overall Length	mm	1120	1120	1120
Overall Width	mm	660	750	691
Overall Height	mm	1960	1960	1960
Leg Outside Width	mm	470	620	500
Boom Specification	mm	Ø132-650	Ø132-650	Ø132-650
Front Wheel Specification	mm	Ø80X60-2	Ø80X60-2	Ø80X60-2
Rear Wheel Specification	mm	Ø150X50-2	Ø150X50-2	Ø150X50-2
Lifting Motor	kw	DC12V/1.0	DC12V/1.0	DC12V/1.0
Driving Motor	kw	DC12/1.0	DC12/1.0	DC12/1.0
Power Supply Specification	V/Ah	DC12/75AH	DC12/75AH	DC12/75AH

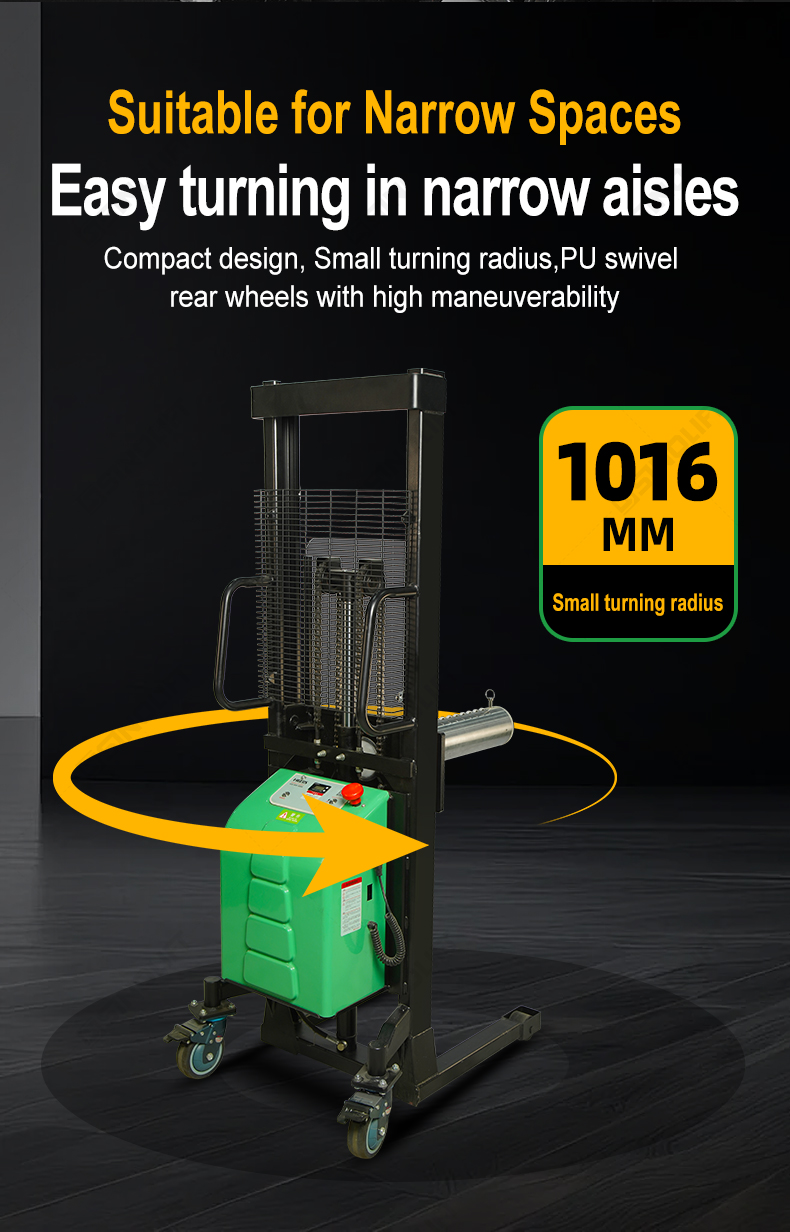

Minimum Turning Radius	mm	1016	1016	1016
Noise Level	Db	≤70	≤70	≤70
Steering Type		Mechanical	Mechanical	Mechanical

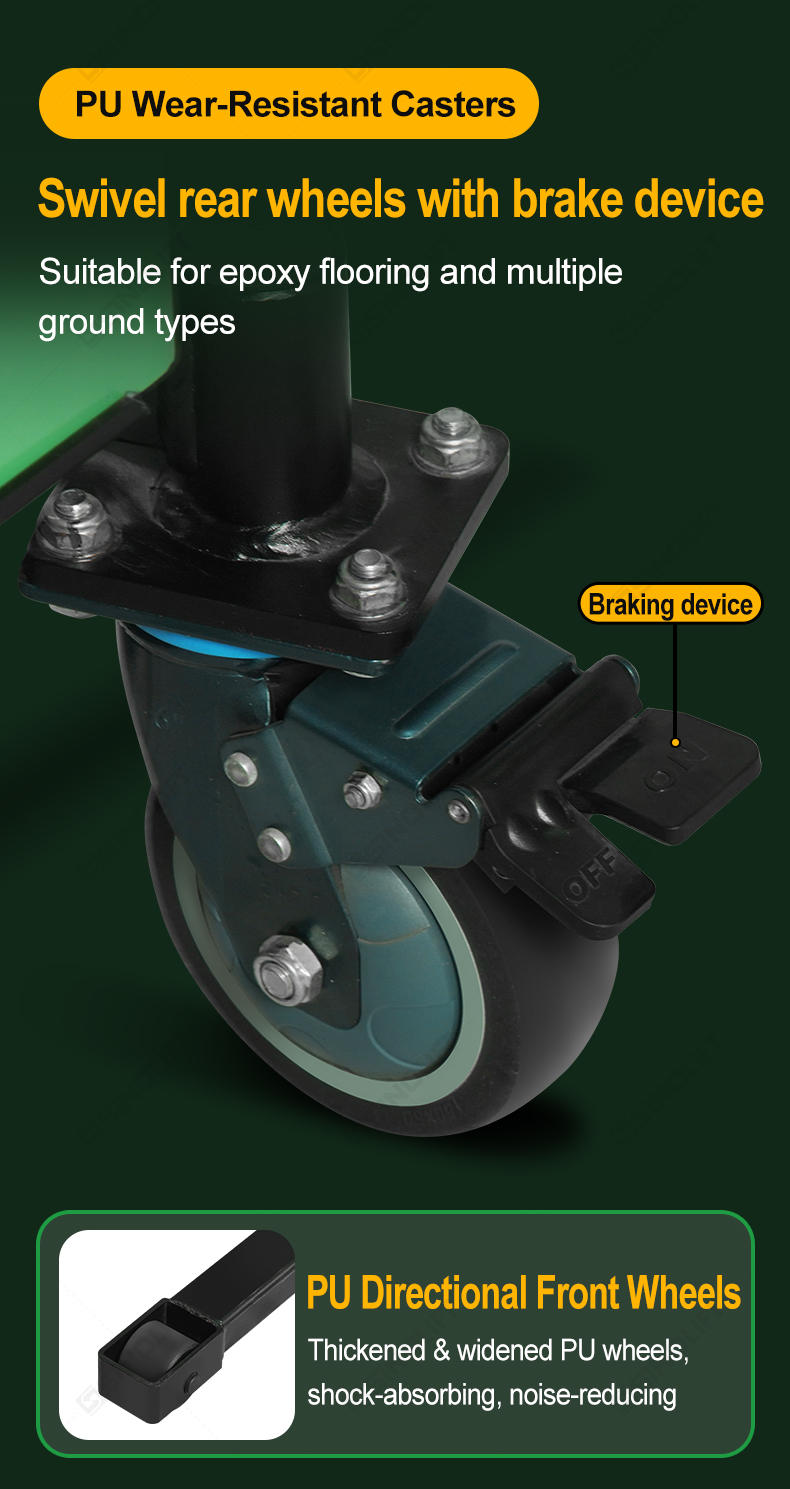

Braking Mode		Swivel Caster Brake	Swivel Caster Brake	Swivel Caster Brake
Net Weight	kg	195	205	205
