PT Series Post lift tables with wheels
PT
Quantity:
Overview
Quick Details
- Place of Origin:Shanghai, China
- Brand Name:SINOLIFT
- Lift Mechanism:Telescoping Lift
- Lift Drive / Actuation:Hydraulic
- Power:manual
- Min. Lifting Height:1245mm
- Table Size:490x420x800mm
- Overall Dimensions:406x406mm
- Weight:29kg
- Warranty:1 Year
- After-sales Service Provided:Online support, Engineers available to service machinery overseas
- Certification:CE
- Product Type:Lifting Table
- Parts List:Yes
- Manual Operation:Yes
- ODM/OEM:Yes
- Option:DC electric motor
- Component:casters, two rigid and tow swivel with wheel brakes
- Color:Red
Supply Ability
- Supply Ability
- 500 Unit/Units per Month
Packaging & Delivery
- Packaging Details
- Standard Export Package
- Port
- SHANGHAI
PT Series Post Lifting Table
1) Features
Built for fast and efficient lifting, transporting and positioning of equipment and materials. Long lasting hydraulic pump is foot operated providing flexibility and portability.
- Foot-operated hydraulic lift tables for heavy duty shop.
- Auto two speed manual hydraulic foot pump for maximum operation comfort and producting.
- DC electric motor to automatically raise and lower the platform is available.
- All models includes:casters, two rigid and tow swivel with wheel brakes.
2) Specification Data
| Model | PT02-1616 | PT05-1818 | PT10-2036 | |
| Load Capacity | kg | 100 | 250 | 500 |
| Lowest Height | mm | 790 | 790 | 915 |
| Max.Height | mm | 1245 | 1245 | 1372 |
| Table.Dimensions | mm | 406x406 | 458x458 | 508x915 |
| Net Weitht | kg | 29 | 44 | 83 |
| Packing Dimensions | mm | 490x420x800 | 540x470x800 | 930x520x920 |
| Qty/1x20"FCL | pcs | 110 | 96 | 44 |
| Model | PT20-2436 | PT20-3036 | PT20-3242 | |
| Load Capacity | kg | 1000 | 1000 | 1000 |
| Lowest Height | mm | 915 | 915 | 915 |
| Max.Height | mm | 1372 | 1372 | 1372 |
| Table.Dimensions | mm | 610x915 | 762x915 | 812x1220 |
| Net Weitht | kg | 127 | 142 | 185 |
| Packing Dimensions | mm | 930x630x920 | 930x780x920 | 1240x830x920 |
| Qty/1x20"FCL | pcs | 36 | 28 | 22 |

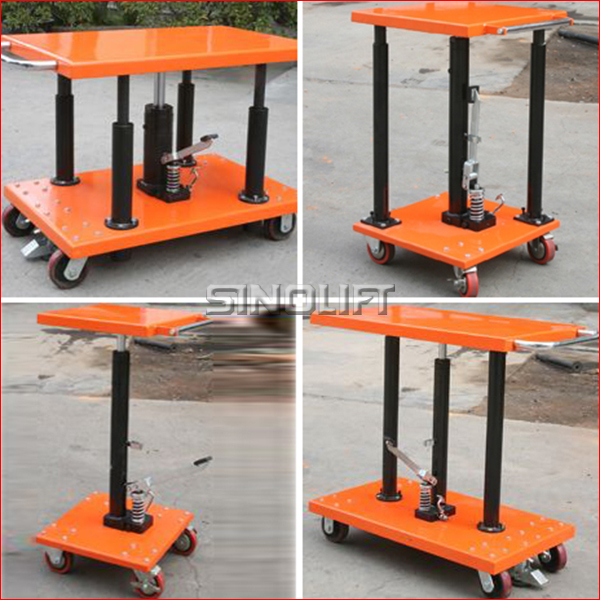

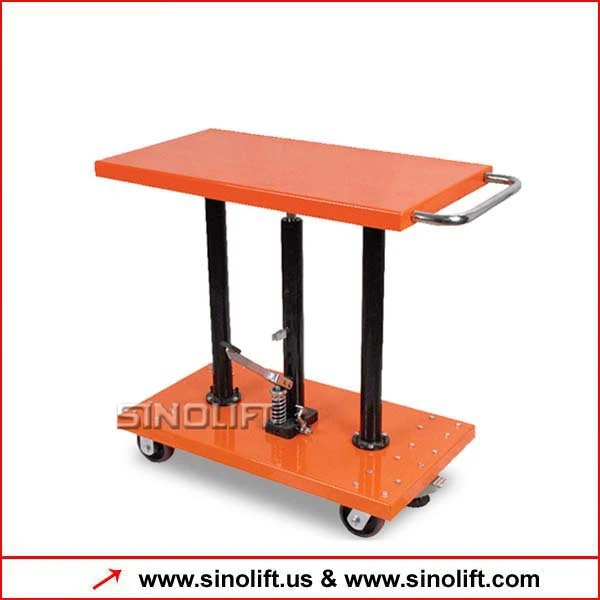

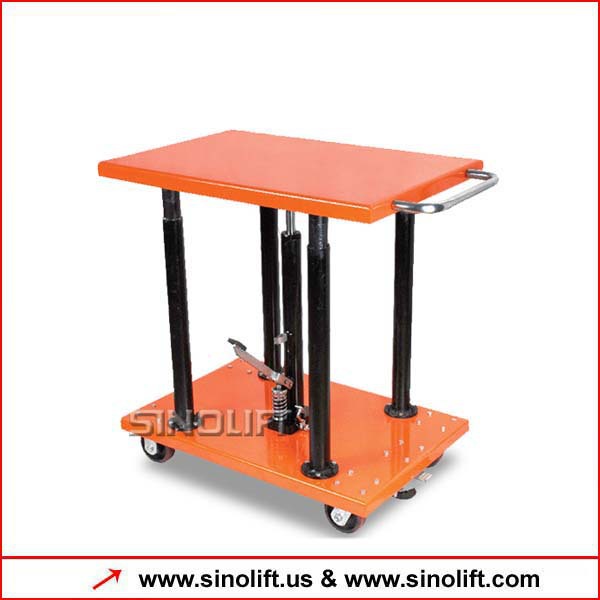

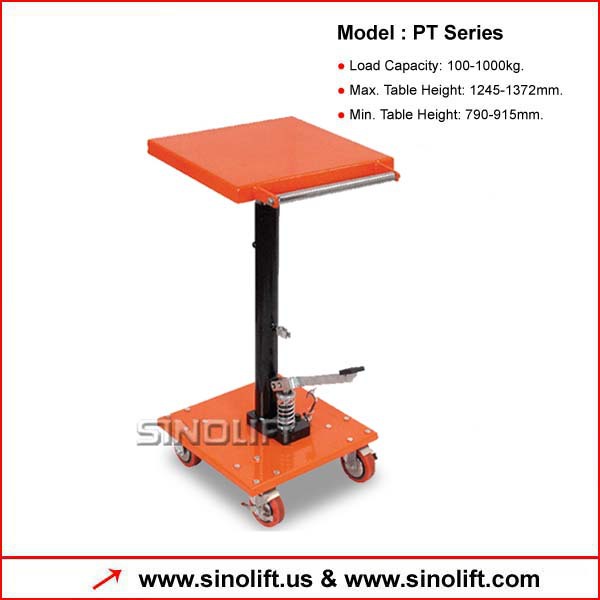

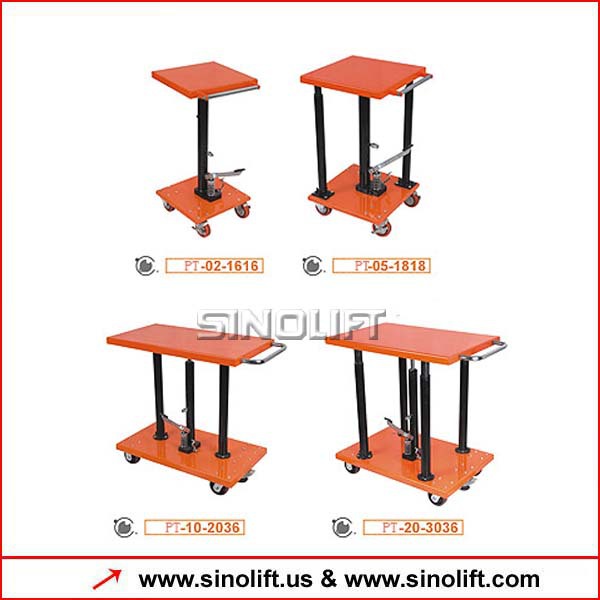

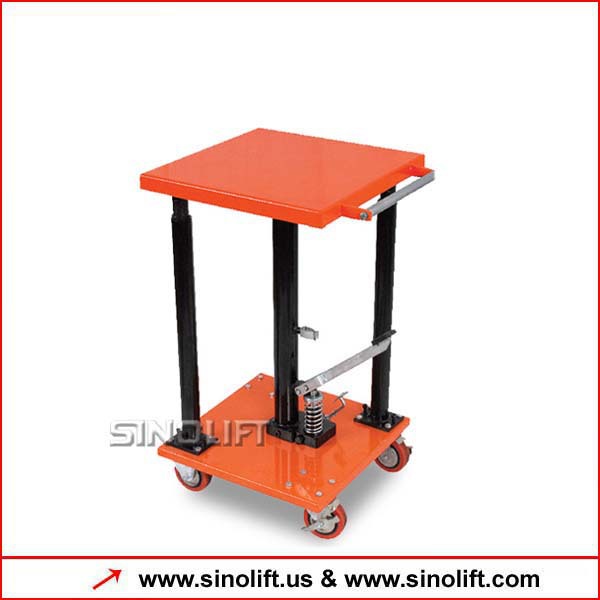

3) Photos
