PTS150 PTS350A PTS350AA Double Scissors Hydraulic Table Lift

PTS150 PTS350A PTS350AA

Quantity

Contact Now

add to cart

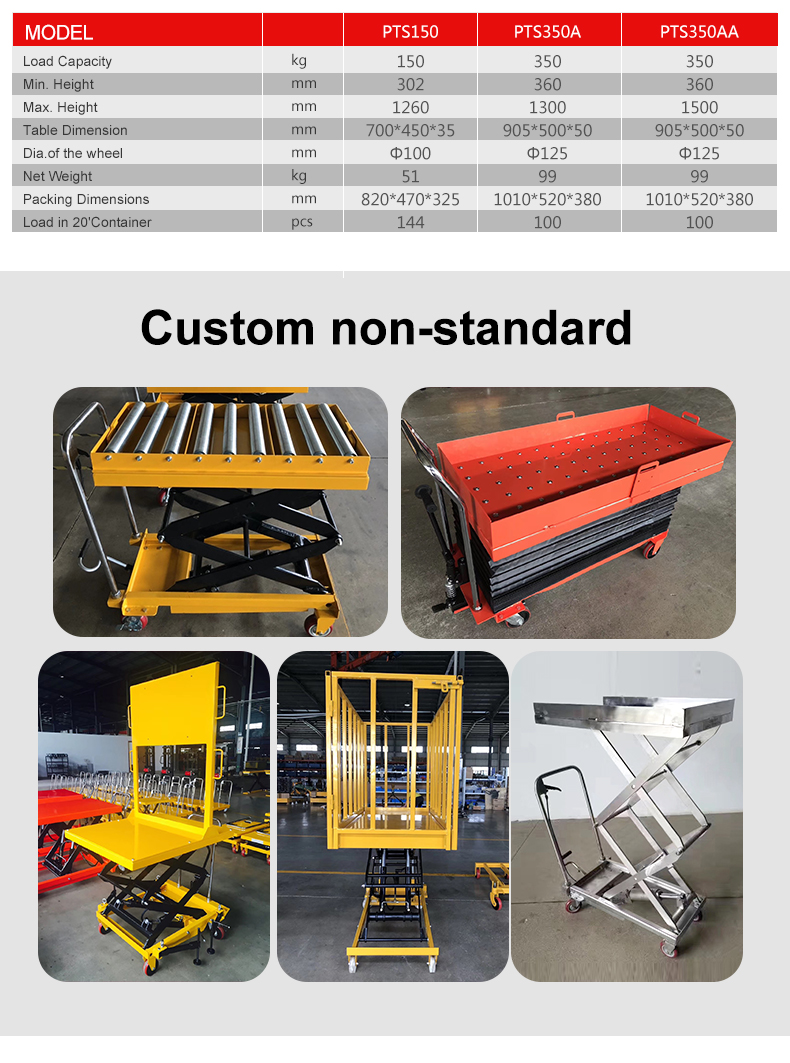

Model		PTS150	PTS350A	PTS350AA
Load Capacity	KG	150	350	350
Min. Height	MM	302	360	360
Max. Height	MM	1260	1300	1500
Table Dimension	MM	70045035	90550050	90550050
Dia.of the wheel	MM	Φ100	Φ125	Φ125
Net Weight	KG	51	99	99
Packing Dimensions	MM	820470325	1010520380	1010520380
Load in 20'Container	PC	144	100	100

01
PTS150 PTS350A PTS350AA

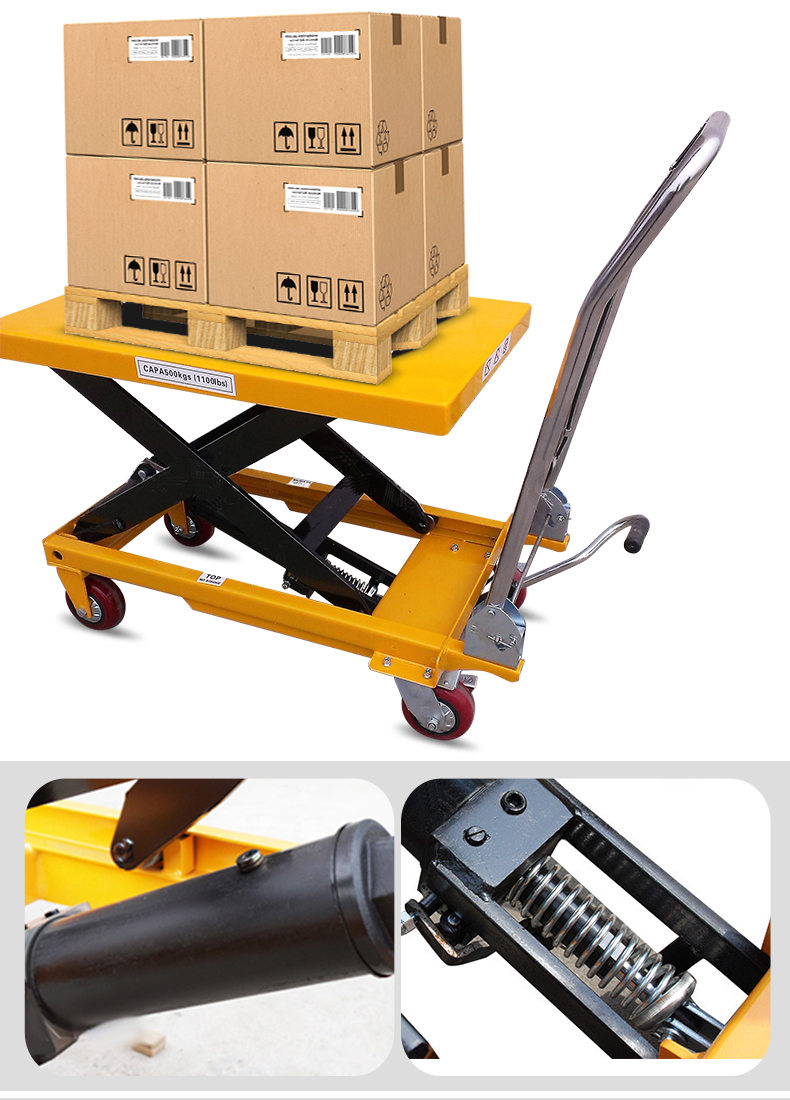

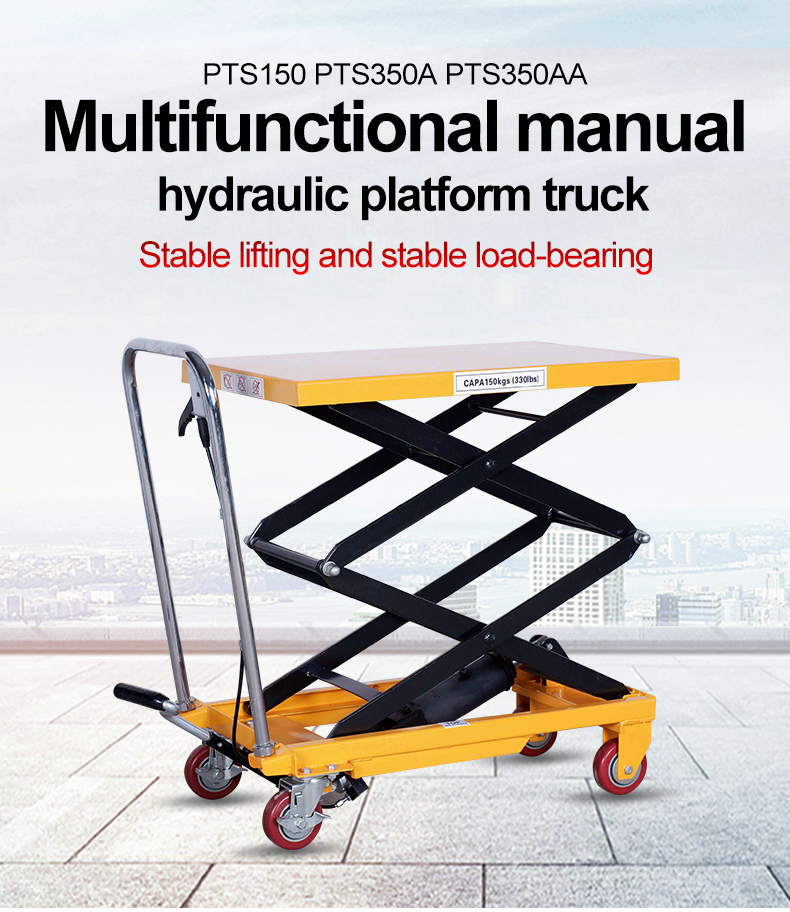

Multifunctional manual hydraulic platform truck Stable lifting and stable load-bearing

02

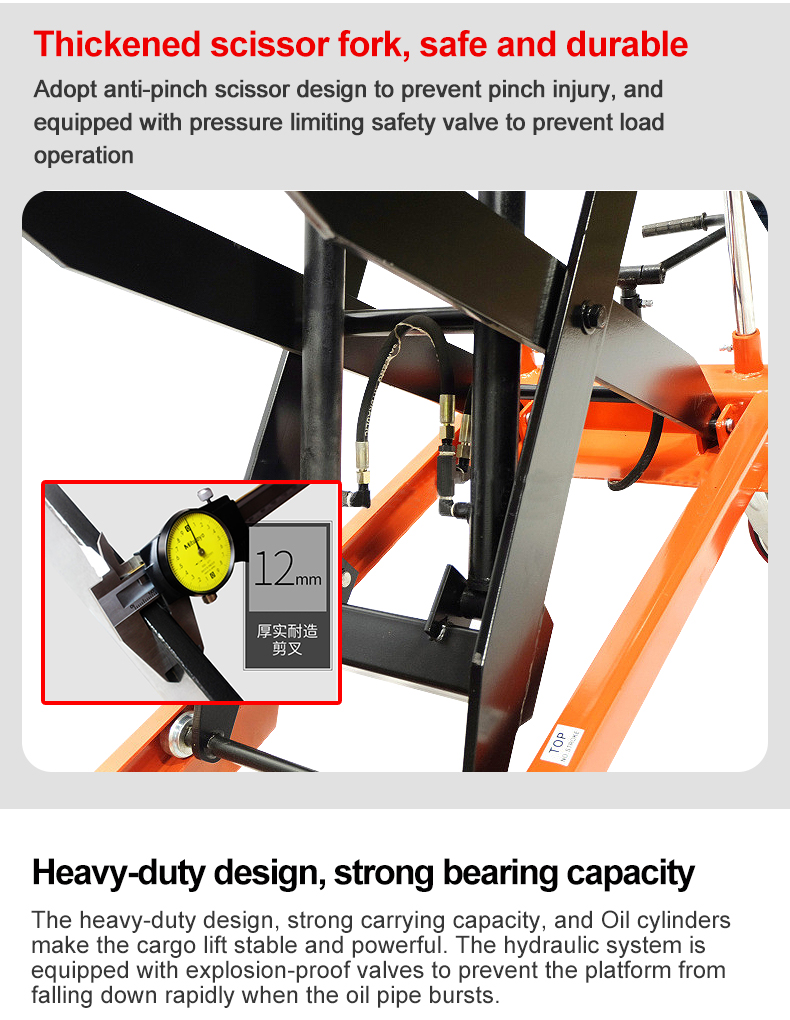

Thickened scissor fork, safe and durable
Adopt anti-pinch scissor design to prevent pinch injury, and equipped with pressure limiting safety valve to prevent load operation.
Heavy-duty design, strong bearing capacity
The heavy-duty design, strong carrying capacity, and Oil cylinders make the cargo lift stable and powerful. The hydraulic system is equipped with explosion-proof valves to prevent the platform from falling down rapidly when the oil pipe bursts.

04

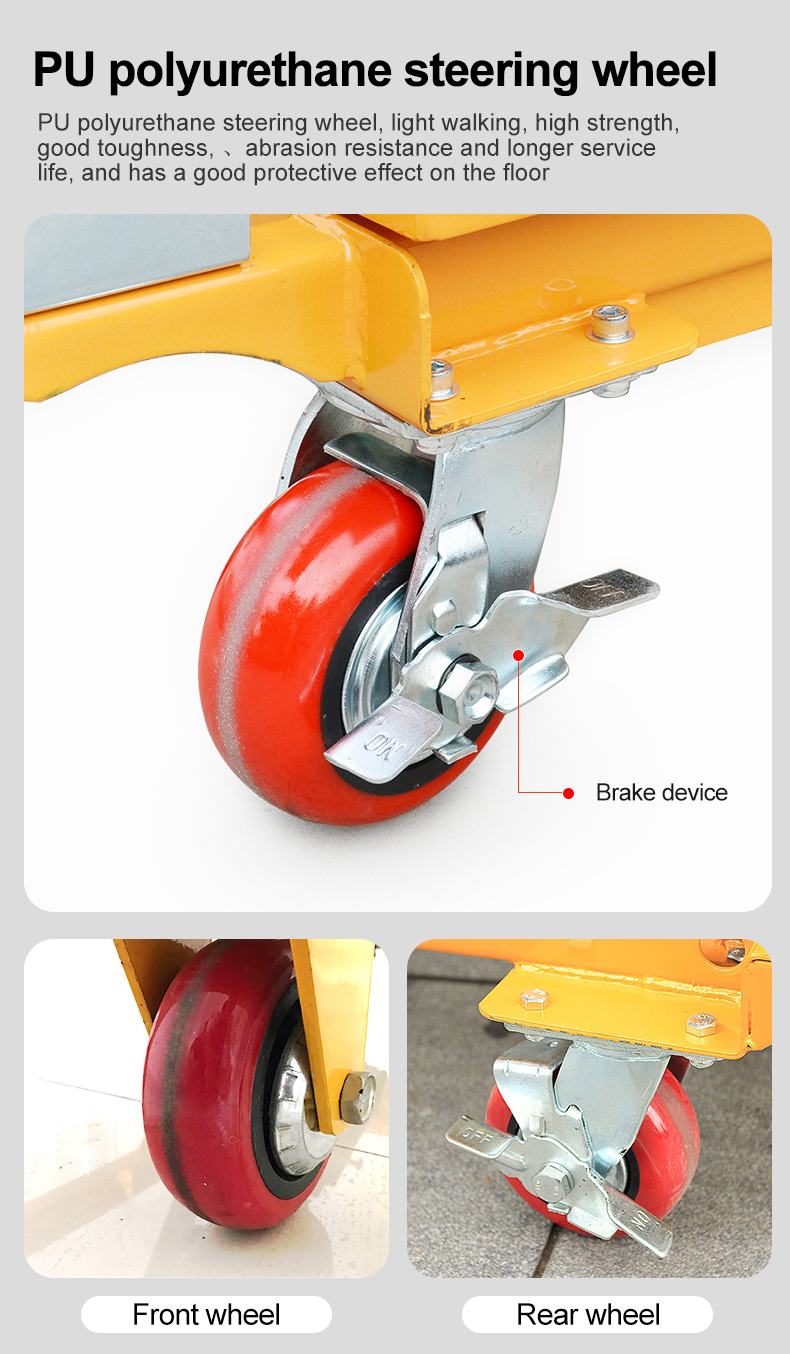

PU polyurethane steering wheel
PU polyurethane steering wheel, light walking, high strength, good toughness,、abrasion resistance and longer service life and has a good protective effect on the floor.

05

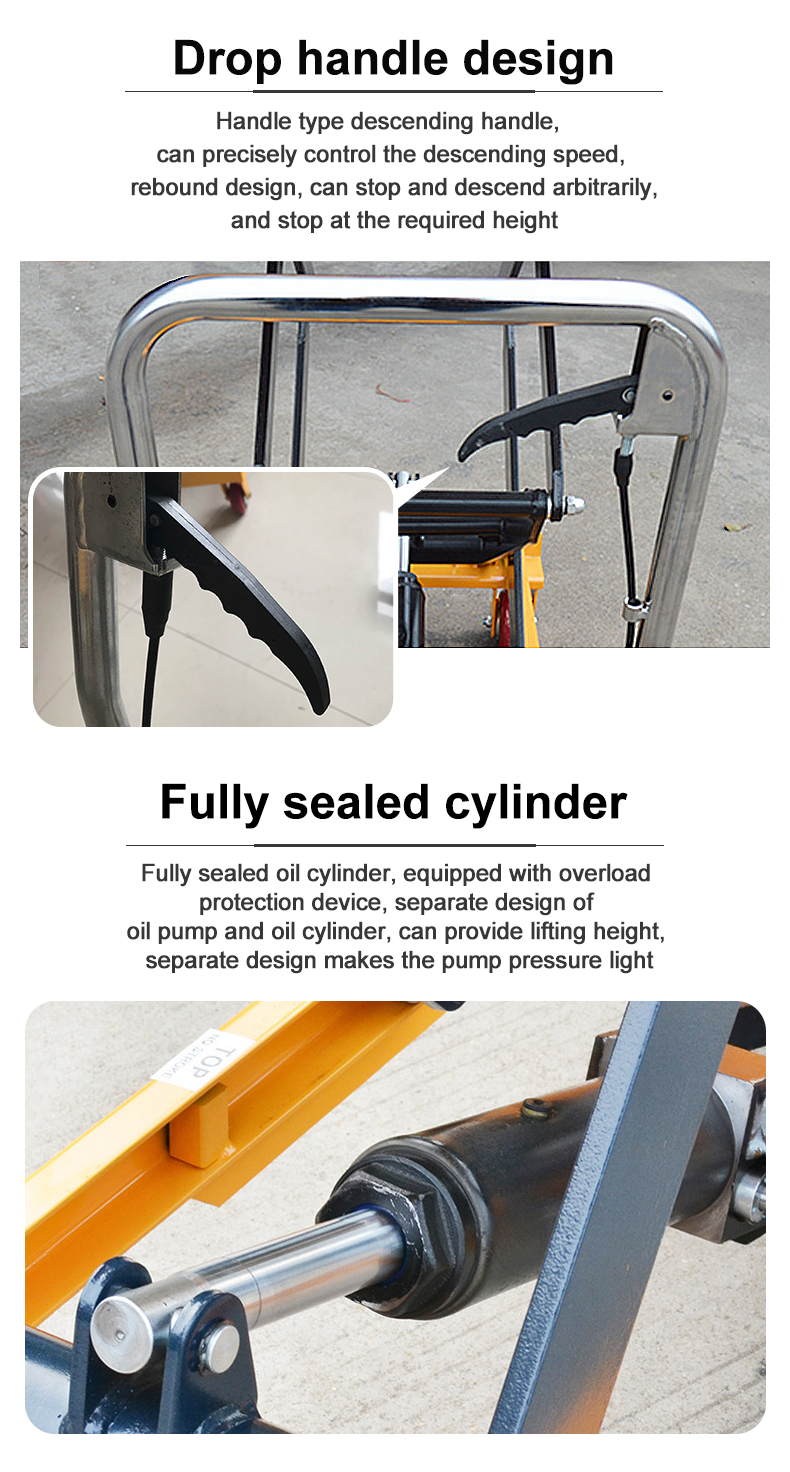

Drop handle design
Handle type descending handle, can precisely control the descending speed,rebound design, can stop and descend arbitrarily and stop at the required height.
Fully sealed cylinder
Fully sealed oil cylinder, equipped with overload protection device, separate design of oil pump and oil cylinder, can provide liting height,separate design makes the pump pressure light.

06

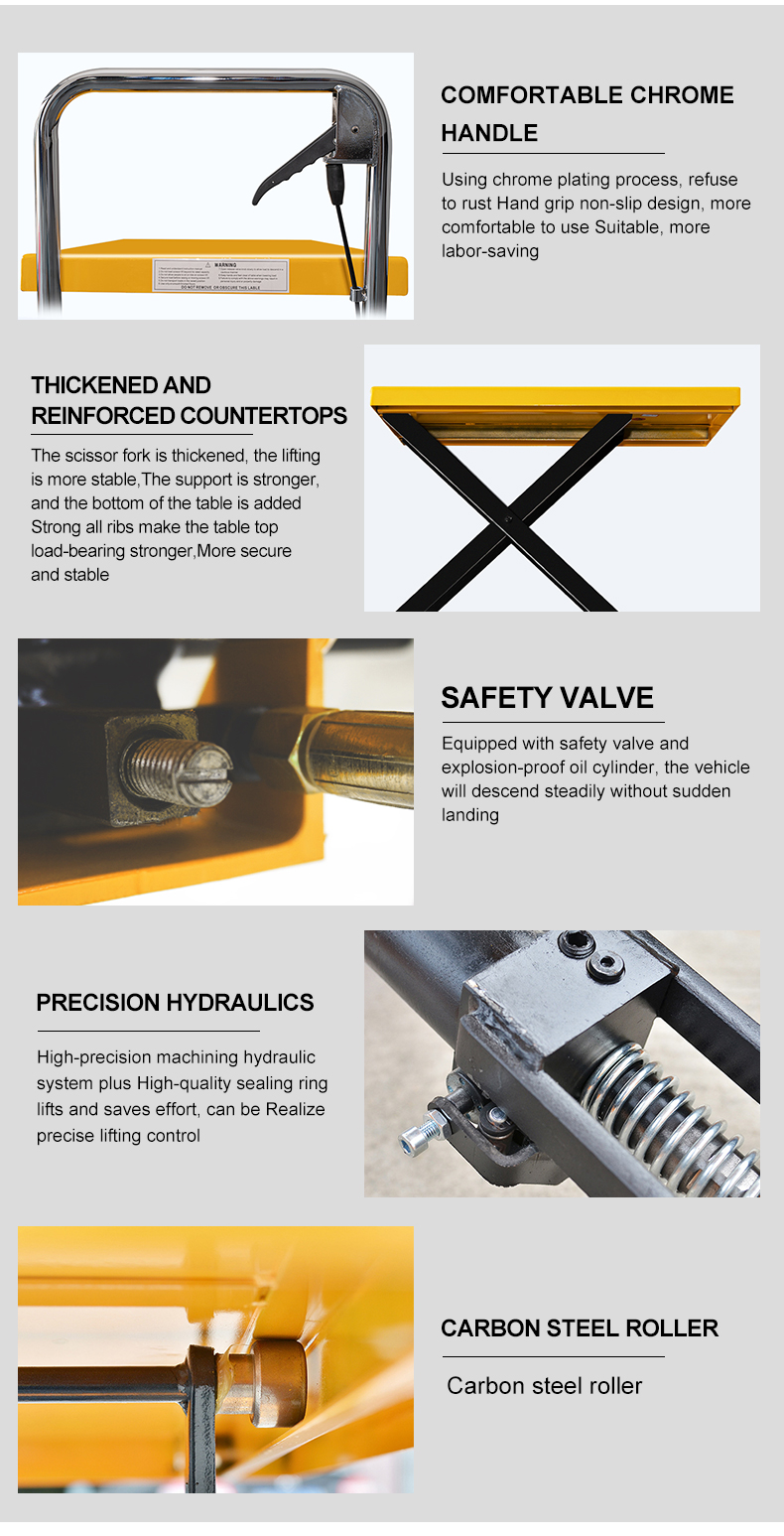

COMFORTABLE CHROME HANDLE
Using chrome plating process, refuse to rust Hand grip non-slip design, more comfortable to use Suitable, more labor-saving.
THICKENED AND REINFORCED COUNTERTOPS
The scissor fork is thickened, the lifting is more stable, The support is stronger,and the bottom of the table is added Strong all ribs make the table top load-bearing stronger. More secure and stable.
SAFETY VALVE
Equipped with safety valve and explosion-proof oil cylinder, the vehicle will descend steadily without sudden landing.
PRECISION HYDRAULICS
High-precision machining hydraulic system plus High-quality sealing ring lifts and saves effort, can be realize precise lifting control.
CARBON STEEL ROLLER
Carbon steel roller

07

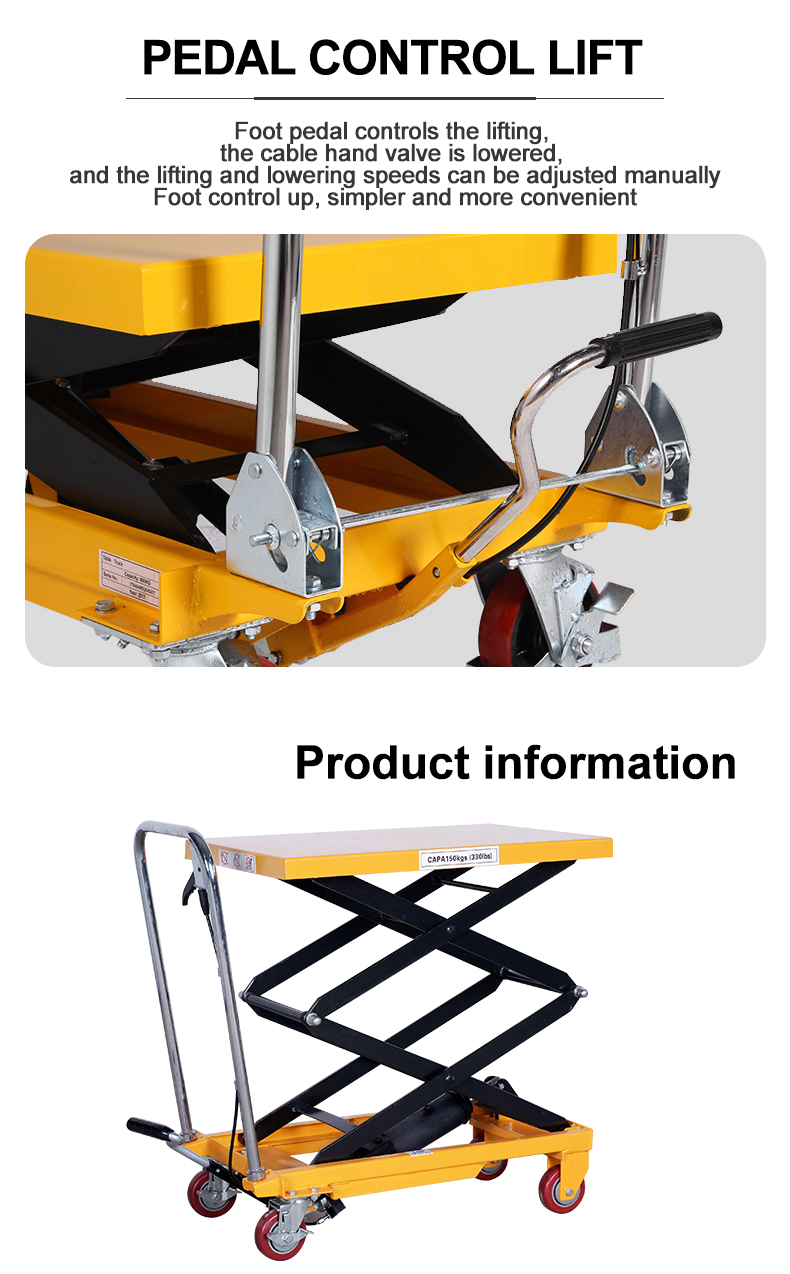

PEDAL CONTROL LIFT
Foot pedal controls the lifting, the cable hand valve is lowered,and the lifting and lowering speeds can be adjusted manually.Foot control up, simpler and more convenient.
