PTS350B Double Scissors Hydraulic Table Lift
PTS350B
Quantity:

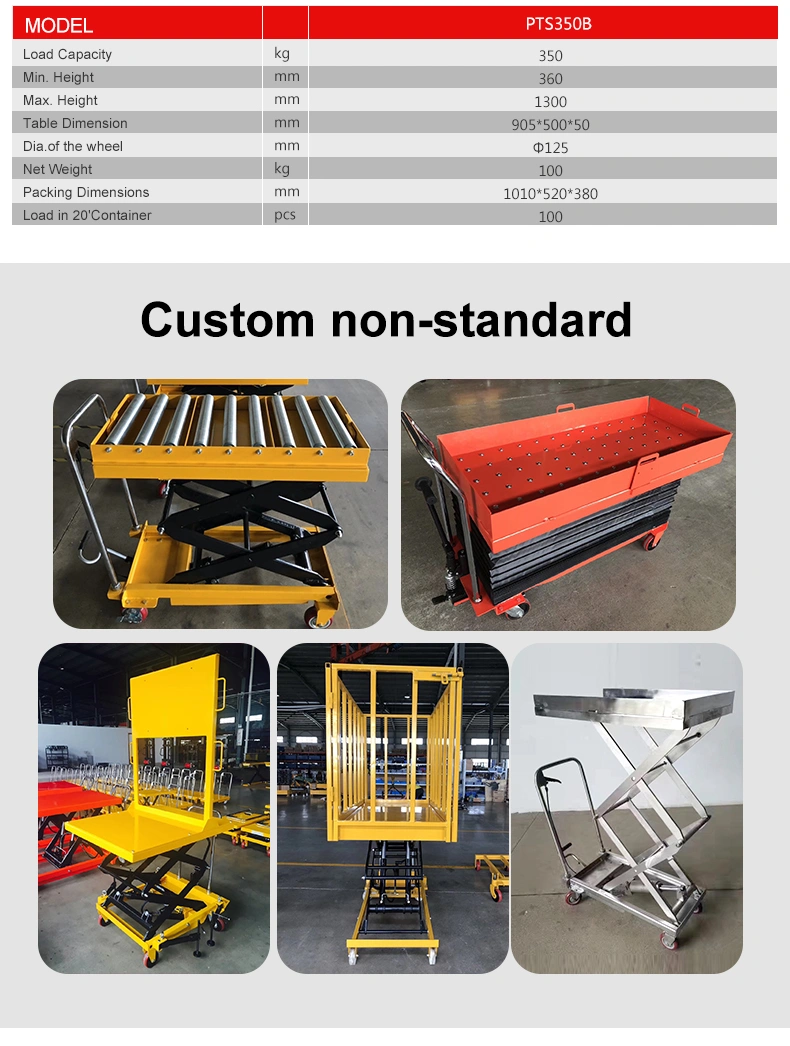

| Model | PTS350B | |
| Load Capacity | kg | 350 |
| Min. Height | mm | 360 |
| Max. Height | mm | 1300 |
| Table Dimension | mm | 905*500*50 |
| Dia.of the wheel | mm | Φ125 |
| Net Weight | kg | 100 |
| Packing Dimensions | mm | 1010*520*380 |
| Load in 20'Container | pc | 100 |
PTS350B

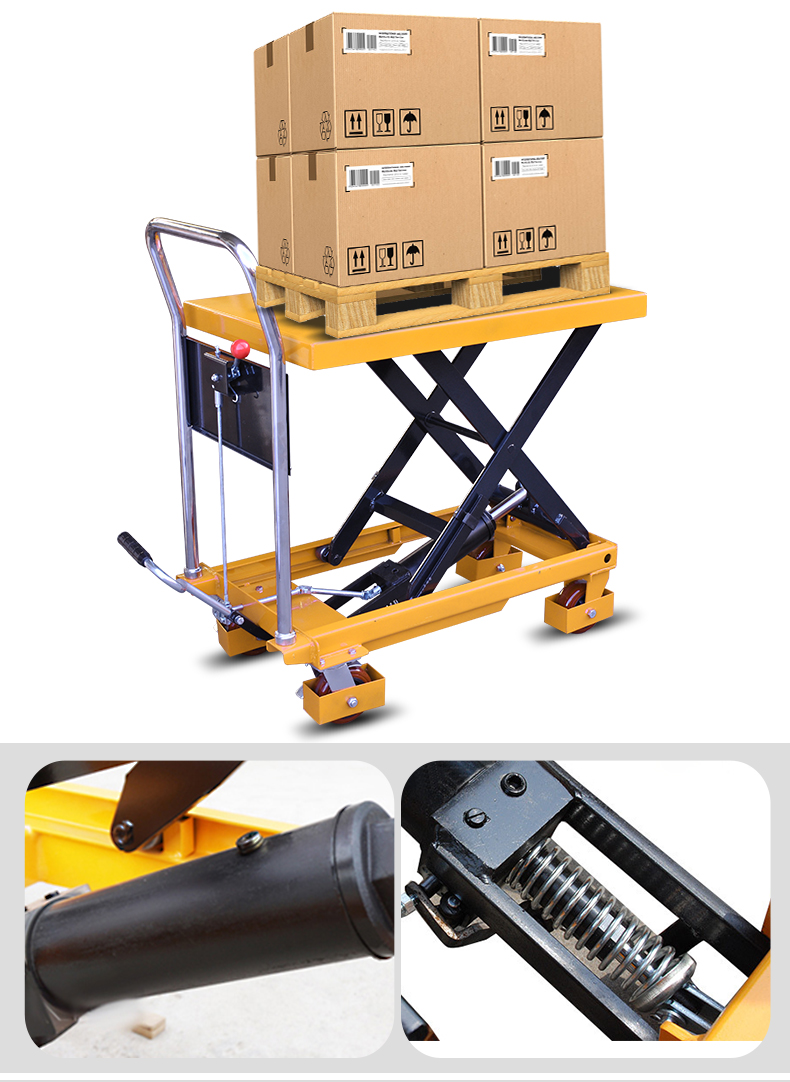

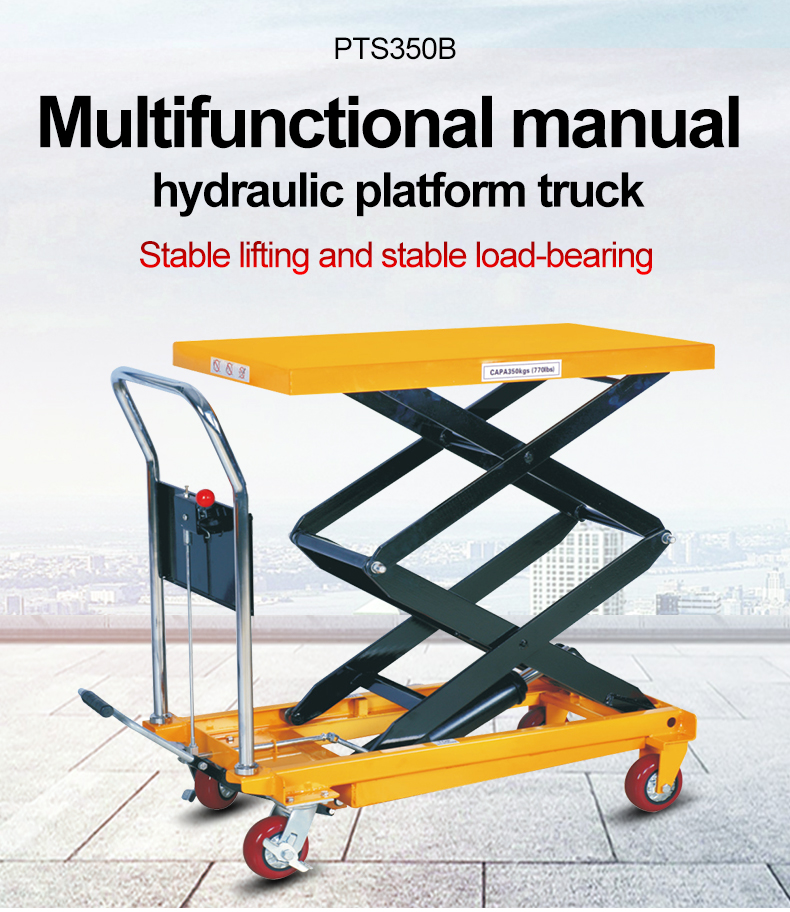

Multifunctional manual hydraulic platform truck Stable liting and stable load-bearing
02

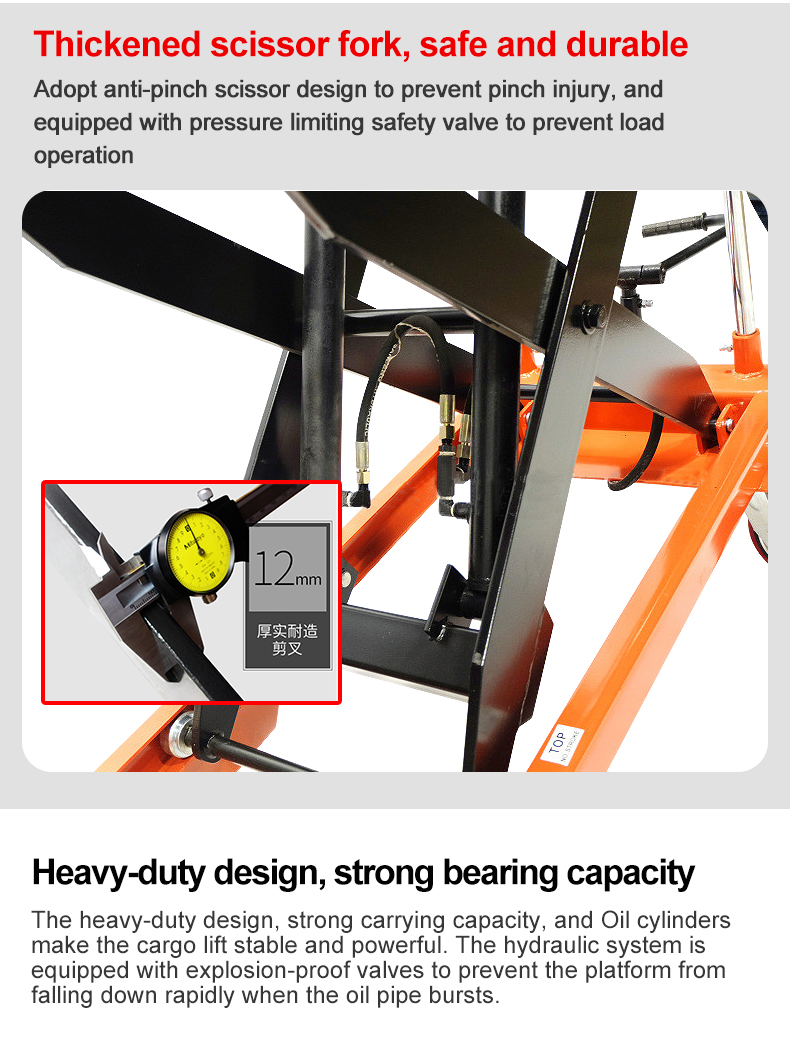

Thickened scissor fork, safe and durable
Adopt anti-pinch scissor design to prevent pinch injury, and equipped with pressure limiting safety valve to prevent load operation.
Heavy-duty design, strong bearing capacity
The heavy-duty design, strong carrying capacity, and Oil cylinders make the cargo lift stable and powerful. The hydraulic system is equipped with explosion-proof valves to prevent the platform from falling down rapidly when the oil pipe bursts.
04

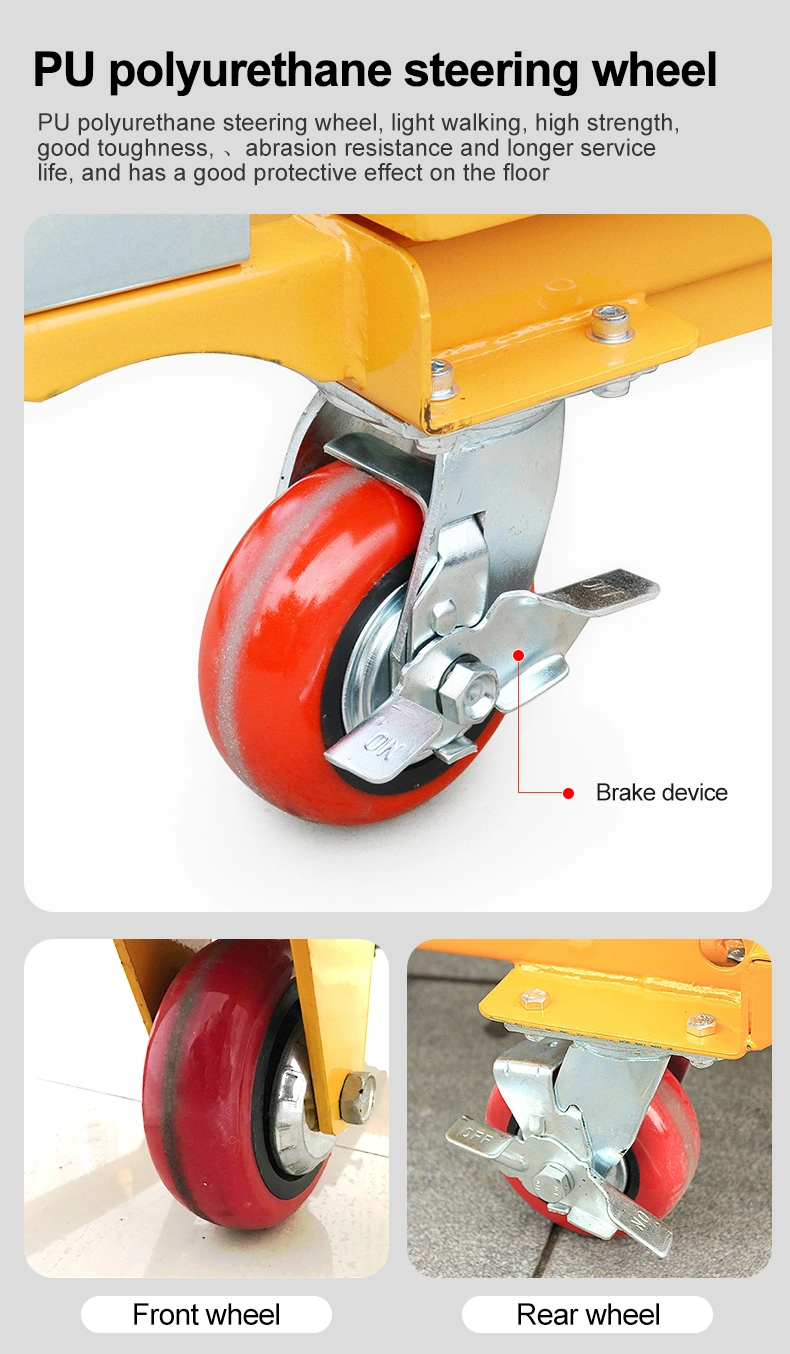

PU polyurethane steering wheel
PU polyurethane steering wheel, light walking, high strength, good toughness,、abrasion resistance and longer service life, and has a good protective effect on the floor.
05

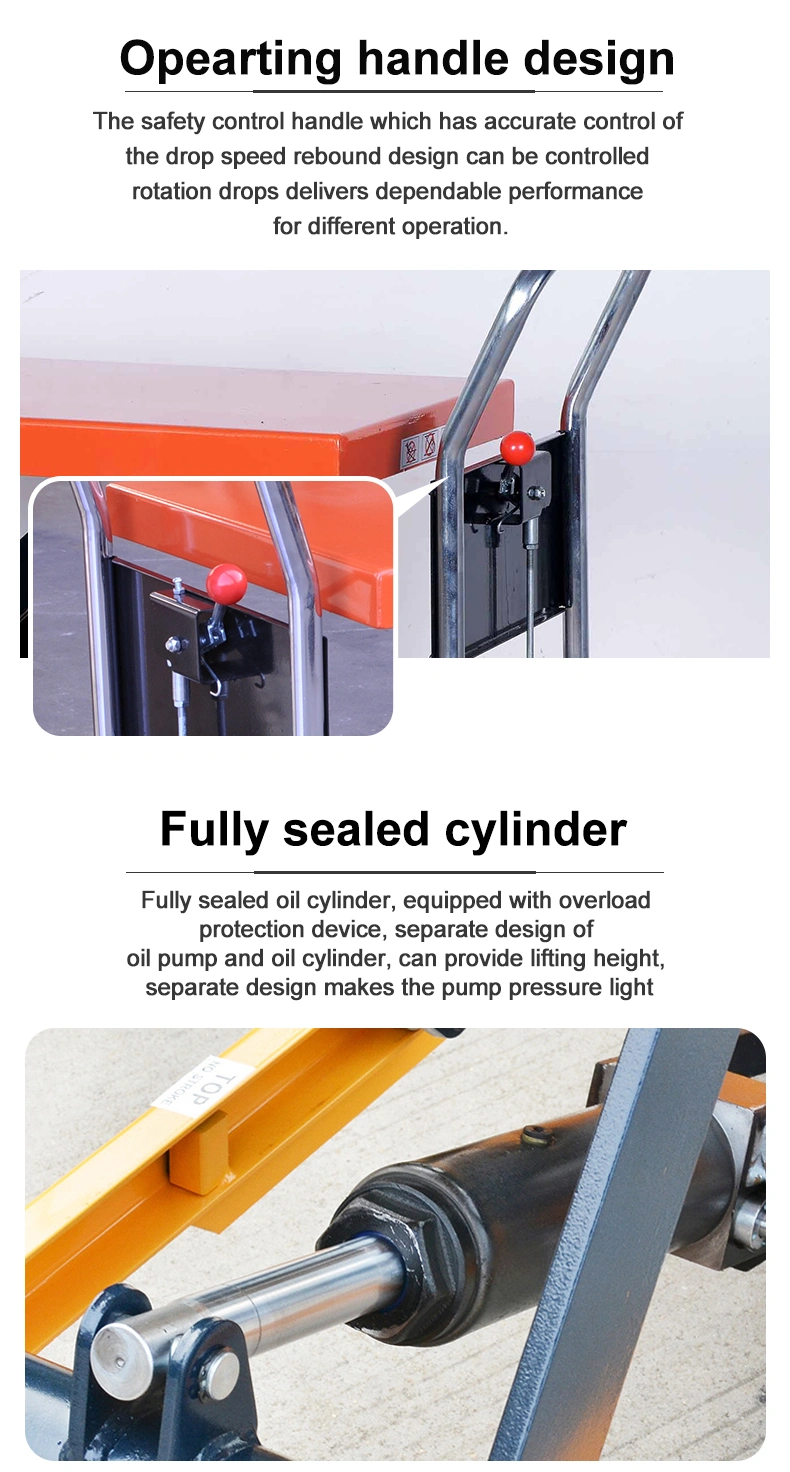

Opearting handle design
The safety control handle which has accurate control of the drop speed rebound design can be controlled rotation drops delivers dependable performance for different operation.
Fully sealed cylinder
Fully sealed oil cylinder, equpped with overload protection device, separate design of oil pump and oil cylinder, can provide lifting height, separate design makes the pump pressure light.
06

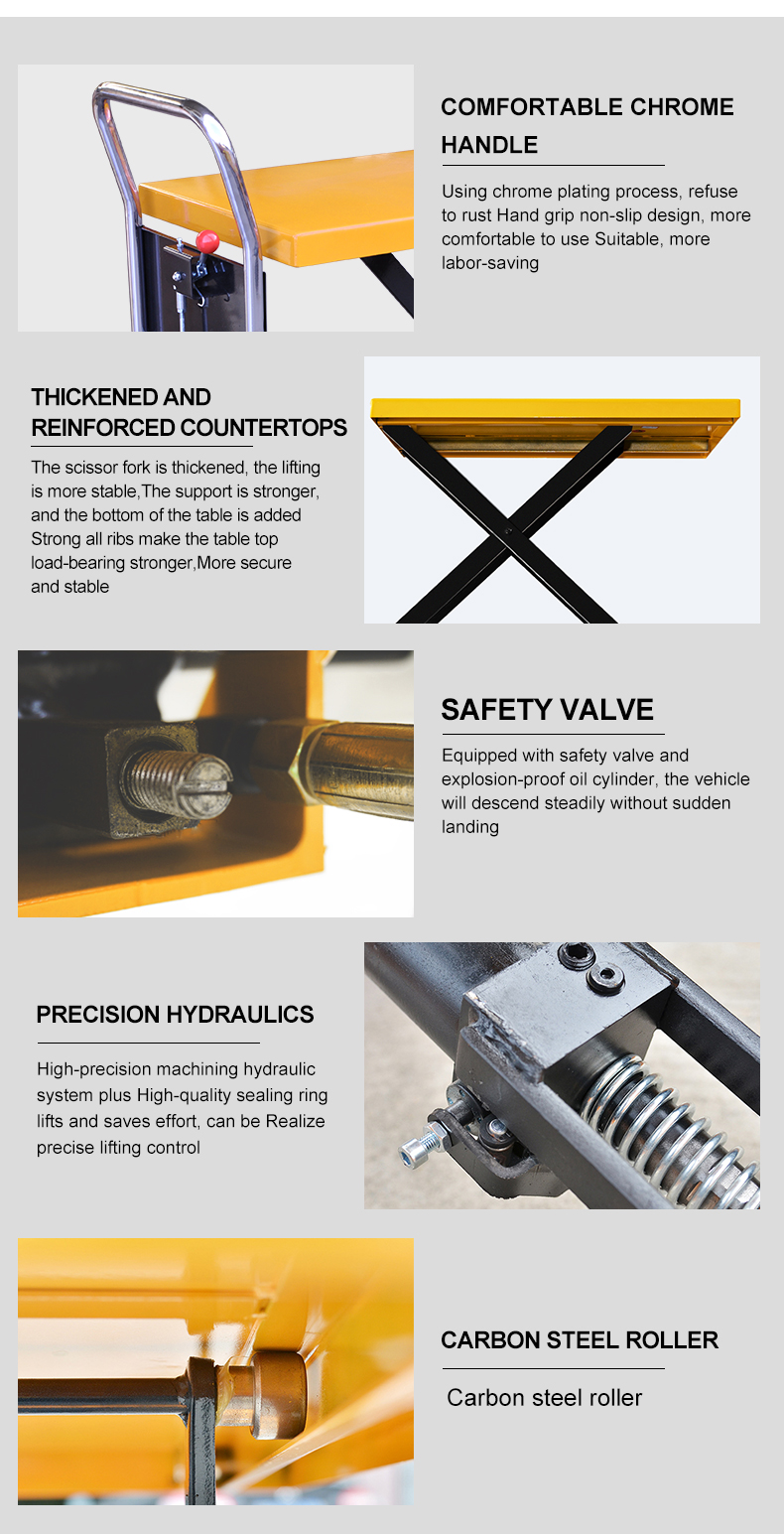

COMFORTABL E CHROME HANDL .E
Using chrome plating process, refuse to rust Hand grip non-slip design, more comfortable to use Suitable, more labor-saving.
THICKENED AND REINFORCED COUNTERTOPS
The scissor fork is thickened, the lifting is more stable, The support is stronger, and the bottom of the table is added Strong all ribs make the table top load-bearing stronger.More secure and stable.
SAFETY VALVE
Equipped with safety valve and explosion-proof oil cylinder, the vehicle will descend steadily without sudden landing.
PRECISION HYDRAULICS
High-precision machining hydraulic system plus High-quality sealing ring lifts and saves effort, can be Realize precise lifting control.
CARBON STEEL ROLL EI
Carbon steel roller
07

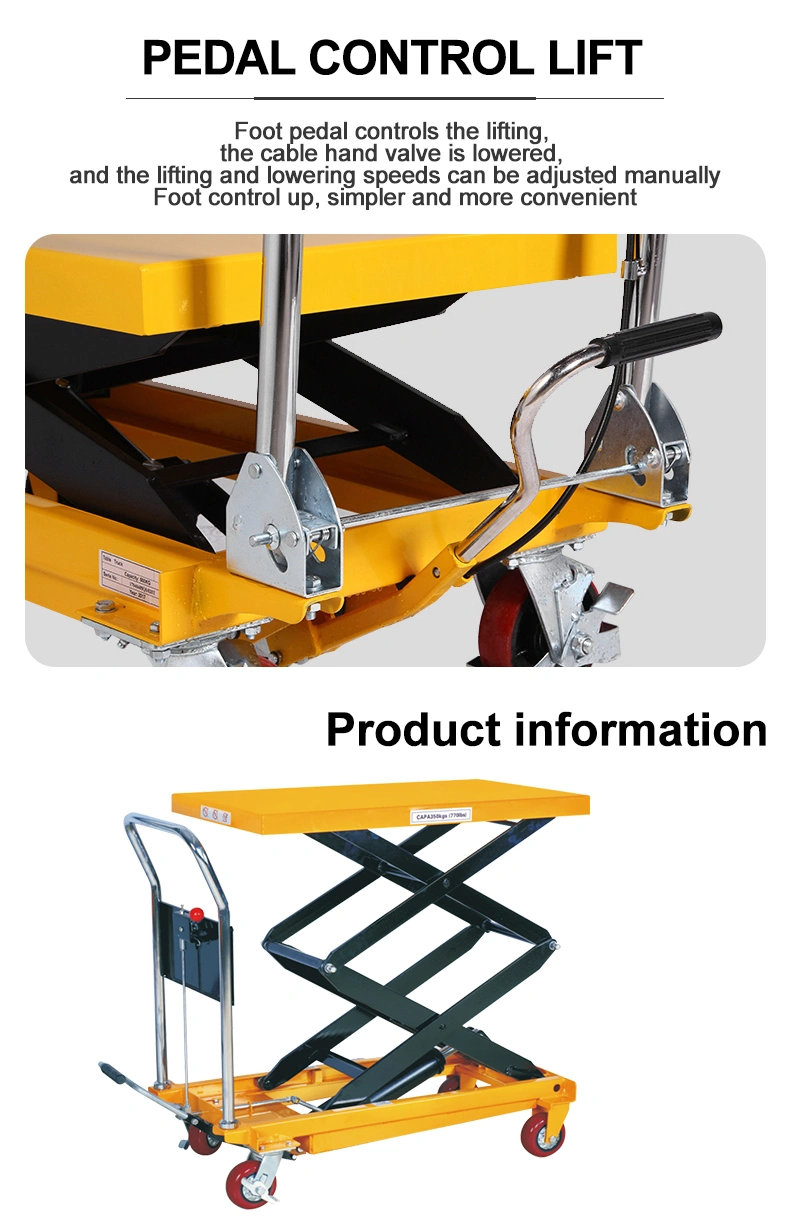

PEDAL CONTROL LIFT
Foot pedal controls the lifting, the cable hand valve is lowered，and the lifting and lowering speeds can be adjusted manually.Foot control up, simpler and more convenient.
