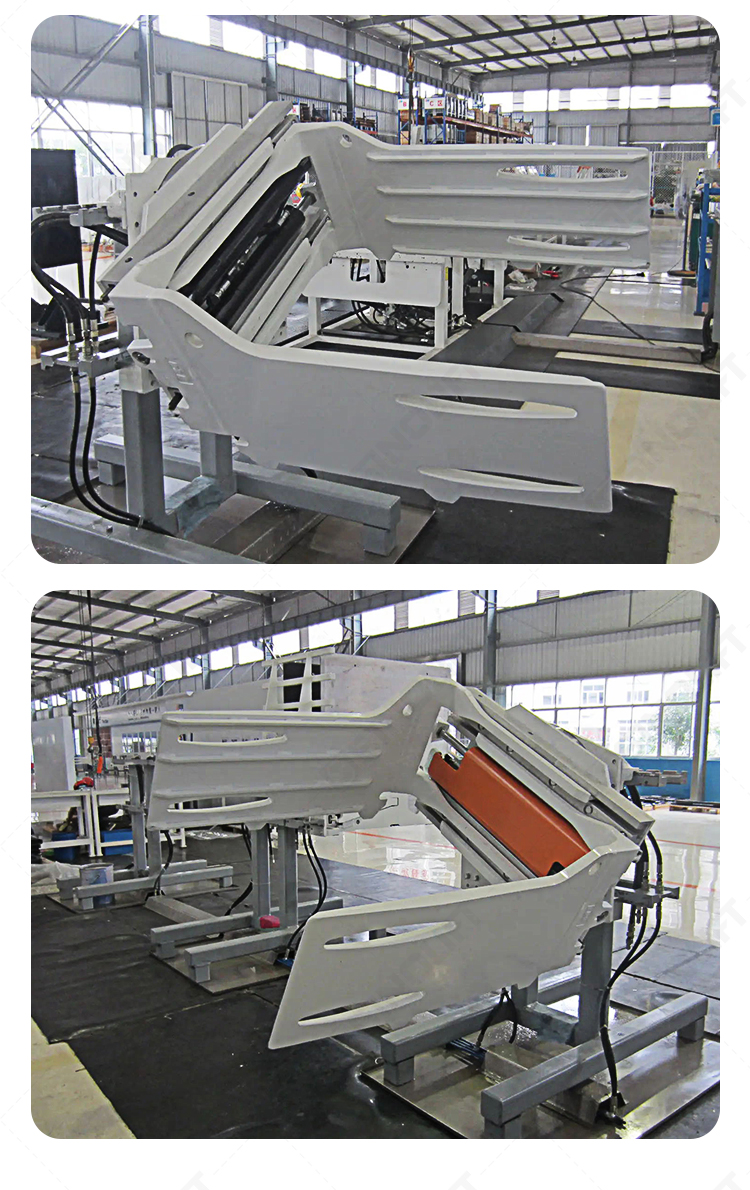

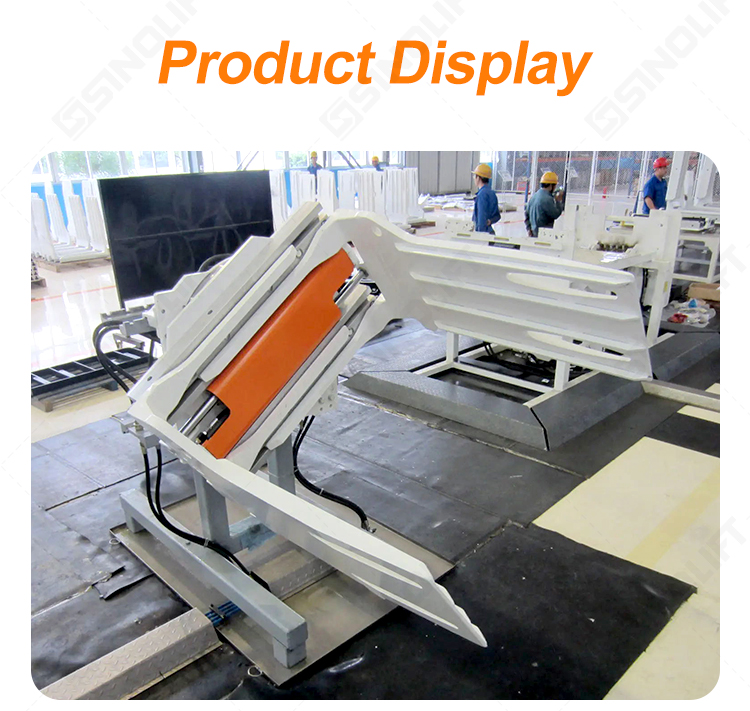

ROTATING BALE CLAMP

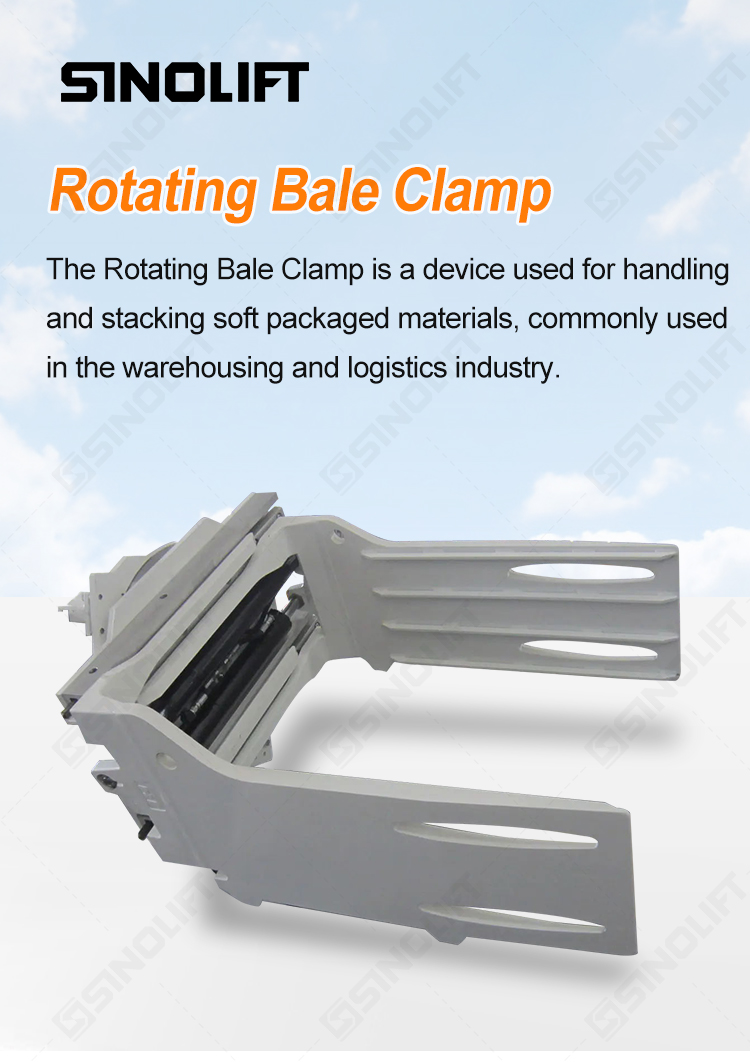

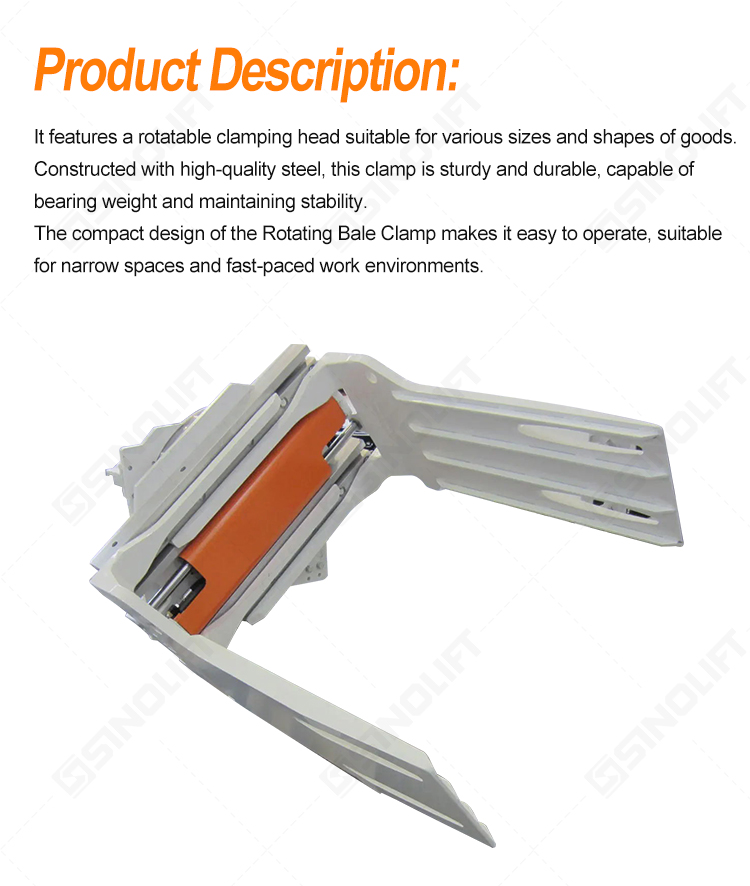

The Rotating Bale Clamp is a device used for handling and stacking soft packaged materials, commonly used in the warehousing and logistics industry. It features a rotatable clamping head suitable for various sizes and shapes of goods.

Features:

• Constructed with high-quality steel, this clamp is sturdy and durable, capable of bearing weight and maintaining stability.
• The compact design of the Rotating Bale Clamp makes it easy to operate, suitable for narrow spaces and fast-paced work environments.

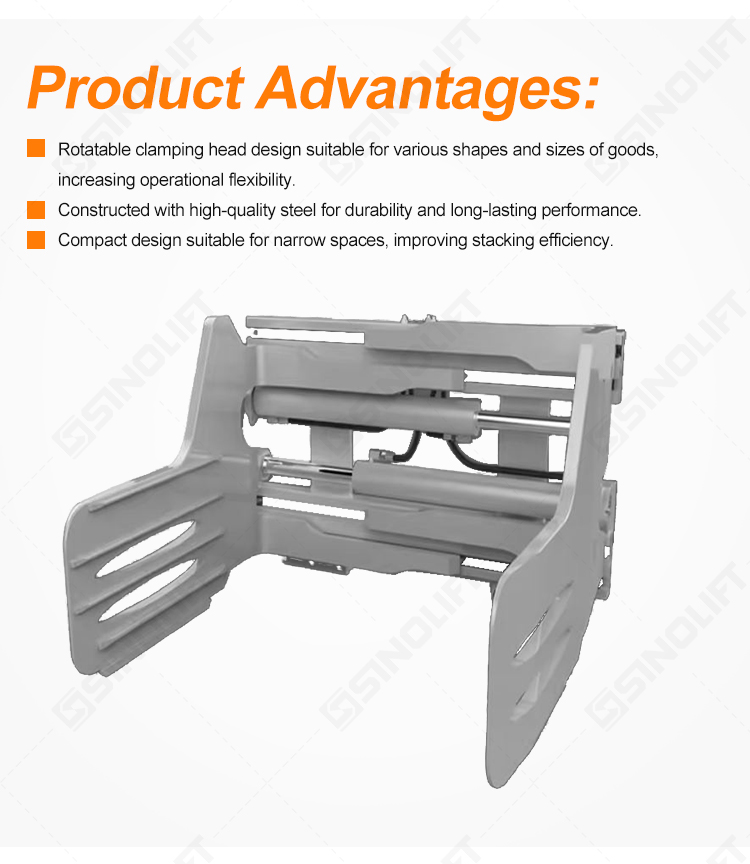

Advantages:

• Rotatable clamping head design suitable for various shapes and sizes of goods, increasing operational flexibility.

• Constructed with high-quality steel for durability and long-lasting performance.
• Compact design suitable for narrow spaces, improving stacking efficiency.

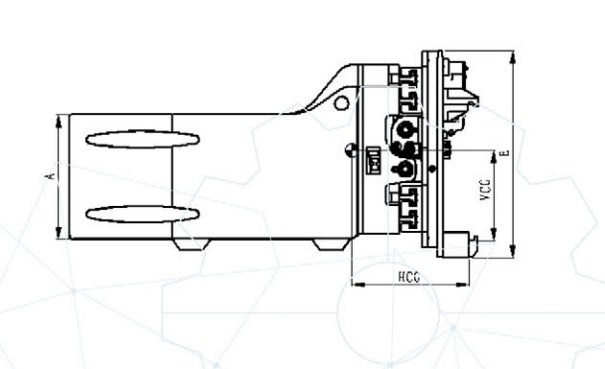

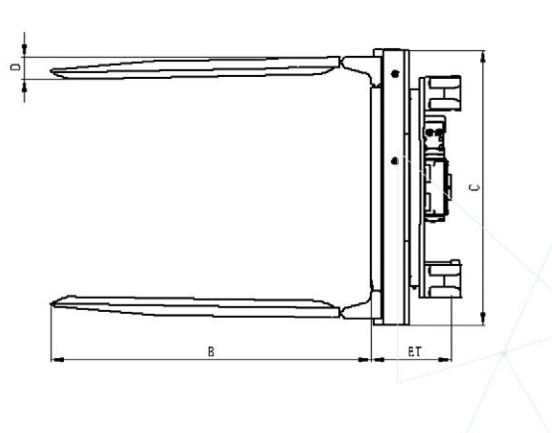

Parameters:

CAPACITY@	MODEL	MOUNTING CLASS	OPENING	ARM	ARM	CARRIAGE	ARM	VERTICAL	WEIGHT	EFFECTIVE	HORIZONTAL
LOAD CENTER			RANGE	HEIGHT	LENGTH	WIDTH	THICKNESS	CENTER OF		THICKNESS	CENTER OF
								GRAVITY			GRAVITY
(kg@mm)			(mm)	A(mm)	B(mm)	C(mm)	D(mm)	VCG(mm)	(kg)	ET(mm)	HCG(@mm)
500@500	RBX05D-B001	II	500-1300	680	1000	940	46	272	570	240	334
500@500	RBX05D-B002	II	600-1400	900	800	940	60	272	570	208	308
1000@500	RBX12D-B042	II	410-1700	700	1000	1100	70	331	690	232	353
1900@500	RBX19D-B001	II	450-1735	415	685	1040	70	335	568	221	216
1900@500	RBX19D-B002	II	445-1735	415	1185	1040	70	335	610	221	241
1900@500	RBX19D-C002	III	445-1735	415	1185	1040	70	321	630	283	381
1900@500	RBX19D-B003	II	445-1730	415	915	1040	70	335	640	221	295
1900@500	RBX19D-B004	II	445-1735	415	982	1040	70	329	580	233	286
1900@500	RBX19D-C004	III	445-1735	415	982	1040	70	317	600	283	286
1900@500	RBX19D-B005	II	438-1728	415	1185	1040	70	322	626	233	348
1900@500	RBX19D-Q005H	II	438-1728	500	1185	1040	70	329	710	232	414
1600@500	RBX19D-C006	II	250-1540	415	1185	1260	70	311	666	286	372
1600@500	RBX19D-C007	III	430-2270	415	1185	1600	70	325	720	283	362
1900@500	RBX19D-B005	II	440-1730	415	1185	1040	70	335	683	221	368
1900@500	RBX19D-B007	II	300-1300	415	985	940	70	328	557	233	291
1900@500	RBX19D-B010	II	587-1877	415	1185	1040	70	322	633	225	348
1900@500	RBX19D-C012	III	520-2100	415	1185	1260	70	321	645	283	388
1900@500	RBX19D-B013	II	485-1775	800	1200	1040	45	345	840	233	497
1900@500	RBX19D-B025	II	460-2300	415	1200	1600	70	327	720	233	325
1900@500	RBX19D-C039	III	300-1340	415	1185	1040	70	321	628	283	381
2700@500	RBX27D-C001	III	560-1910	460	1181	1015	80	305	770	298	416
2700@500	RBX27D-B002	II	560-1910	460	1181	1065	80	304	785	248	371
2700@500	RBX27D-C002	III	560-1915	460	685	1015	75	335	690	298	274
2700@500	RBX27D-B003	II	560-1915	460	785	1015	75	335	708	247	264
2700@500	RBX27D-C003	III	560-1910	460	1100	1015	80	320	750	291	383
2700@500	RBX27D-C004	III	900-2300	460	1500	1200	80	317	930	291	490
2700@500	RBX27D-C005	III	560-1910	460	1000	1015	80	320	740	291	379
2700@500	RBX27D-C006	III	630-2160	700	1300	1200	55	357	977	291	521
3200@600	RBX32F-D001	IV	715-2250	600	1200	1550	80	310	1400	302	270
