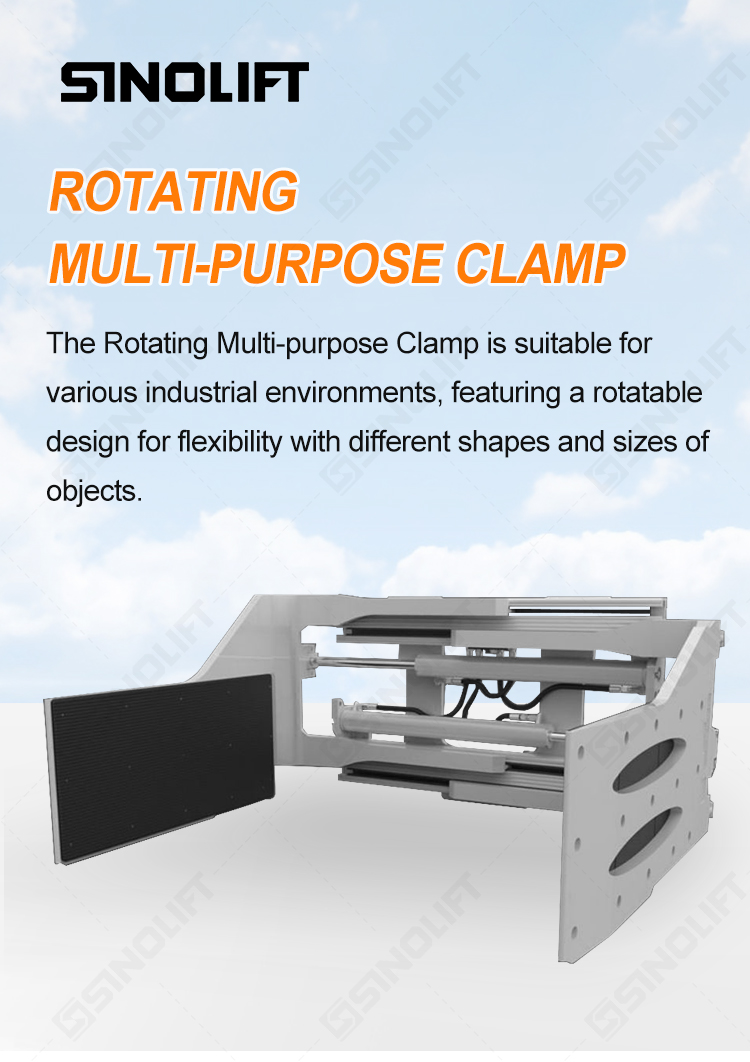

ROTATING MULTI-PURPOSE CLAMP

GBX16D GBX23D

The Rotating Multi-purpose Clamp is suitable for various industrial environments, featuring a rotatable design for flexibility with different shapes and sizes of objects.

Quantity

Contact Now

add to cart

The Rotating Multi-purpose Clamp is suitable for various industrial environments, featuring a rotatable design for flexibility with different shapes and sizes of objects.
Features:
The Rotating Multi-purpose Clamp is suitable for various industrial environments, featuring a rotatable design for flexibility with different shapes and sizes of objects.

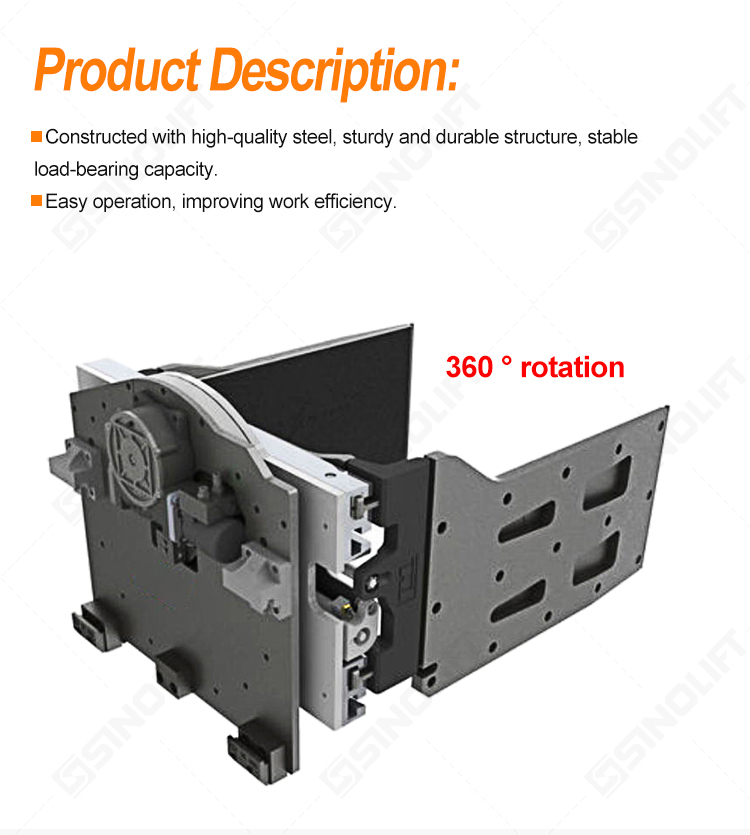

Constructed with high-quality steel, sturdy and durable structure, stable load-bearing capacity.
Easy operation, improving work efficiency.

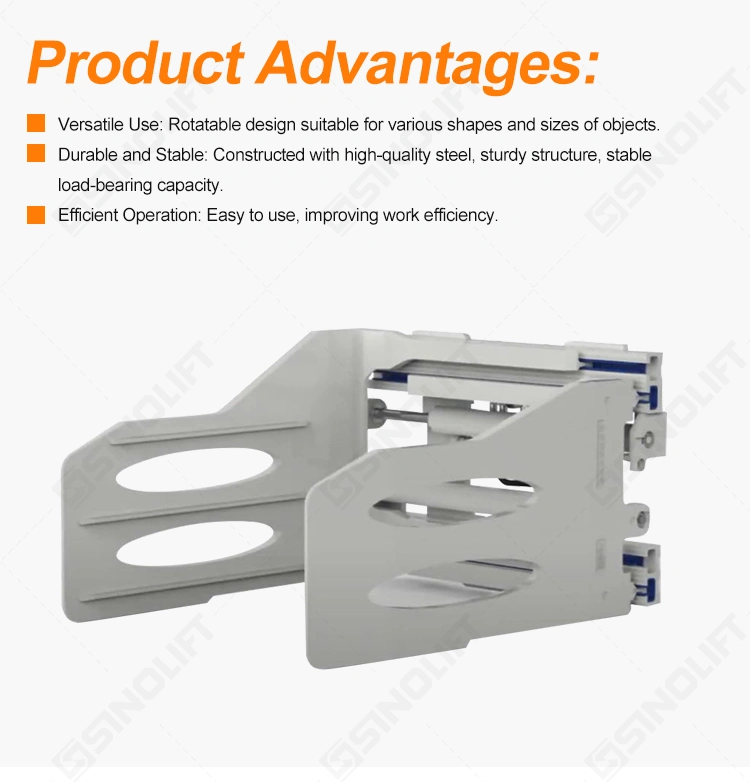

Advantages:
Versatile Use: Rotatable design suitable for various shapes and sizes of objects.
Durable and Stable: Constructed with high-quality steel, sturdy structure, stable load-bearing capacity.
Efficient Operation: Easy to use, improving work efficiency.

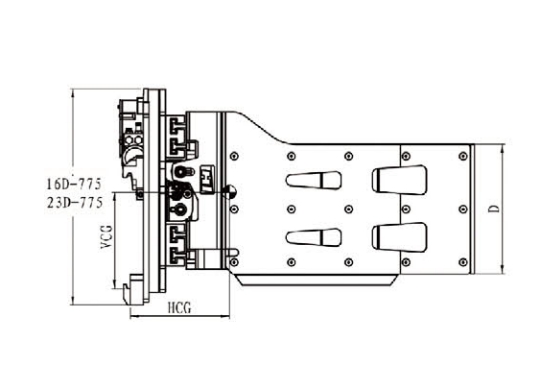

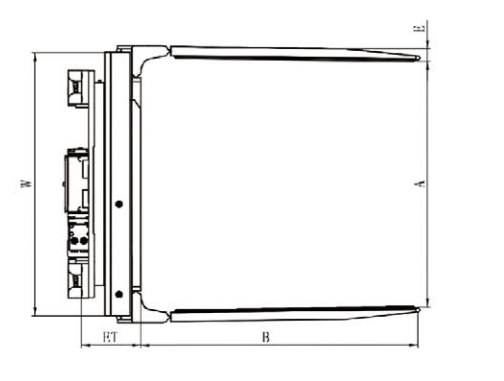

Parameters:

CAPACITY@	MODEL	MOUTING CLASS	MTG.ANGLE	OPENING	ARM	ARM	FRAME	ARM	VERTICAL	WEIGHT	EFFECTIVE	HORIZONTAL
LOAD CENTER				RANGE	HEIGHT	LENGTH	WIDTH	THICKNESS	CENTER OF		THICKNESS	CENTER OF
									GRAVITY			GRAVITY
(kg@mm)				A(mm)	D(mm)	B(mm)	w(mm)	E(mm)	VCG(mm)	(kg)	ET(mm)	HCG(@mm)
1600@500	GBX16D-B001	II	0°	480-1770	600	1015	1040	75	335	650	277	345
1600@500	GBX16D-B018	II	0°	410-1560	610	615	1000	50	352	530	233	210
1600@500	GBX16D-B002F	II	0°	550-1780	610	1070	940	80	352	707	233	375
2300@500	GBX23D-C005	III	0°	590-1940	462	1190	1016	61	335	832	312	340
