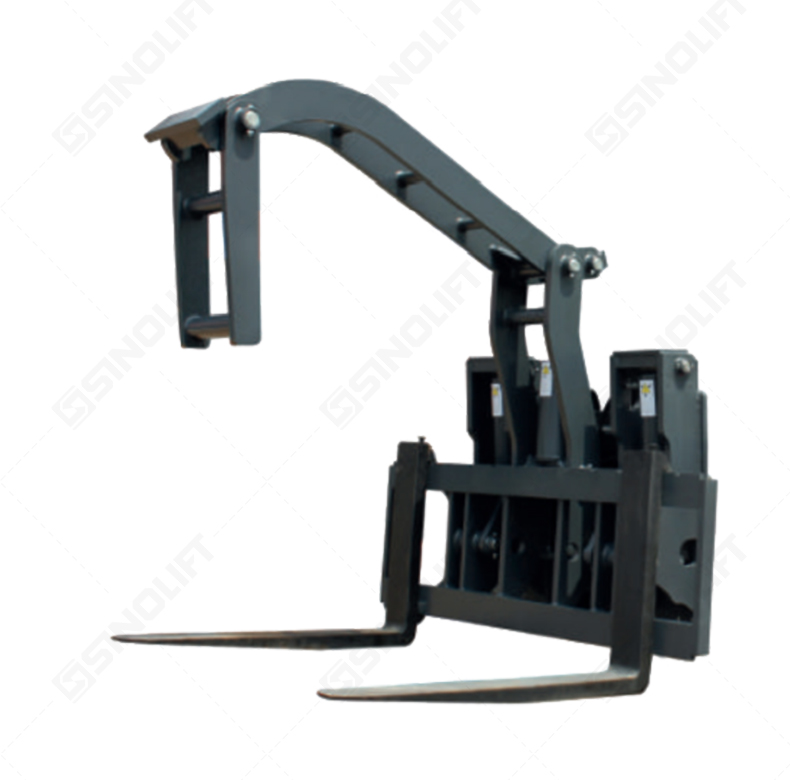

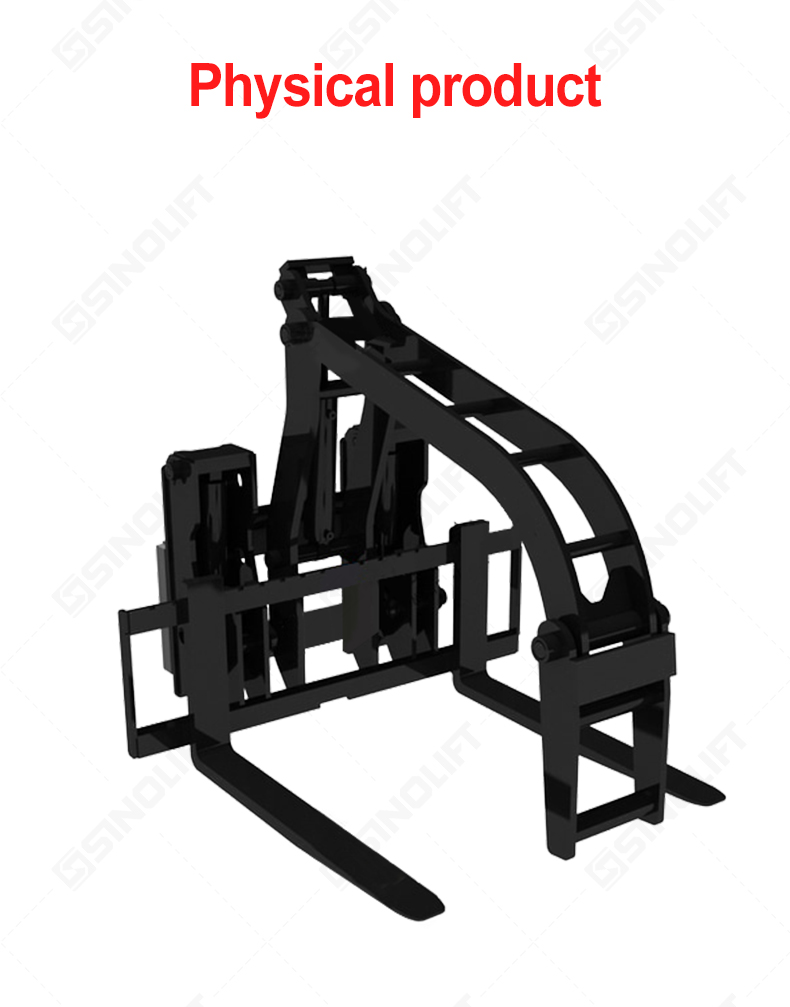

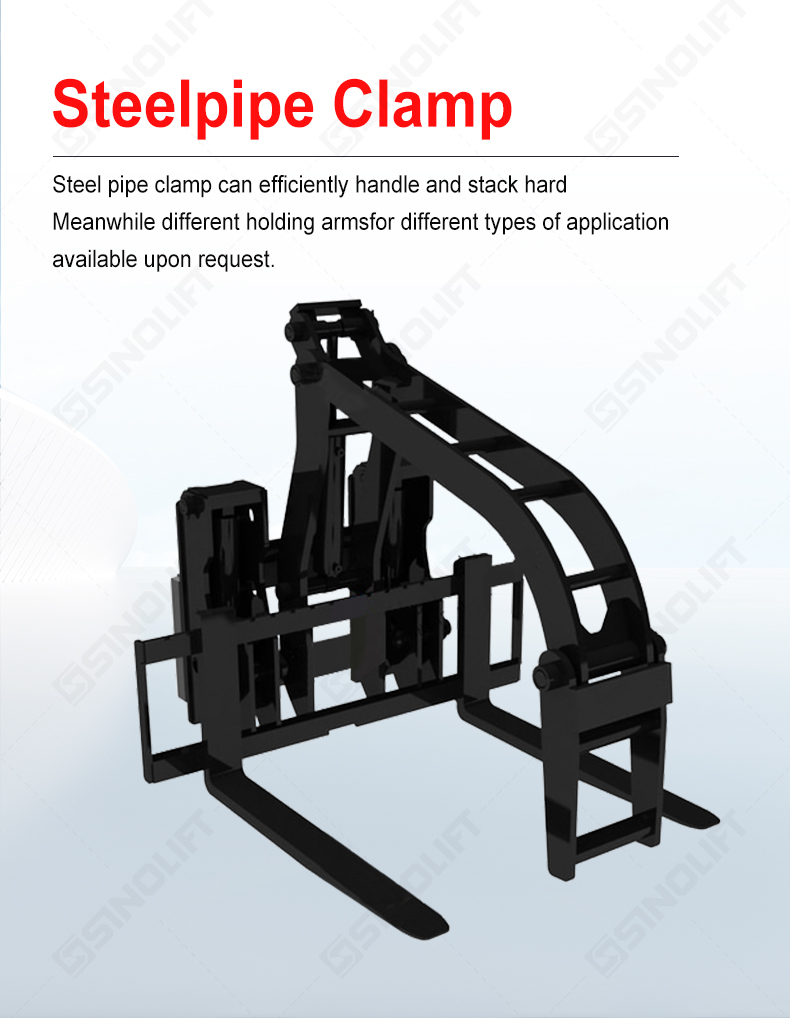

STEELPIPE CLAMP
GGC
Durable overall structure, good stability, dexterous movement, high visibility and easy operating.
It adopts an all-steel overall frame with high strength, which can meet the needs of users for high-strength operations.
The connecting parts are made of alloy materials for durability.
The hydraulic components are reasonably configured so that the hydraulic system is well protected and long service life.
Safe and efficient use, stable and reliable tipping and clamping speed, convenient and simple maintenance.

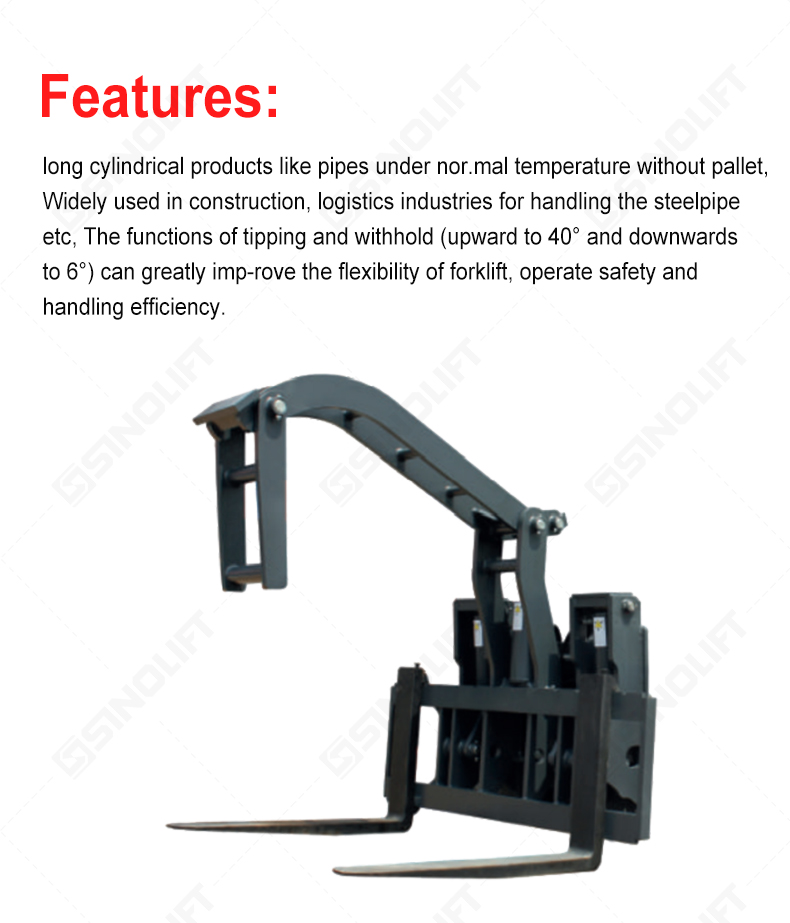

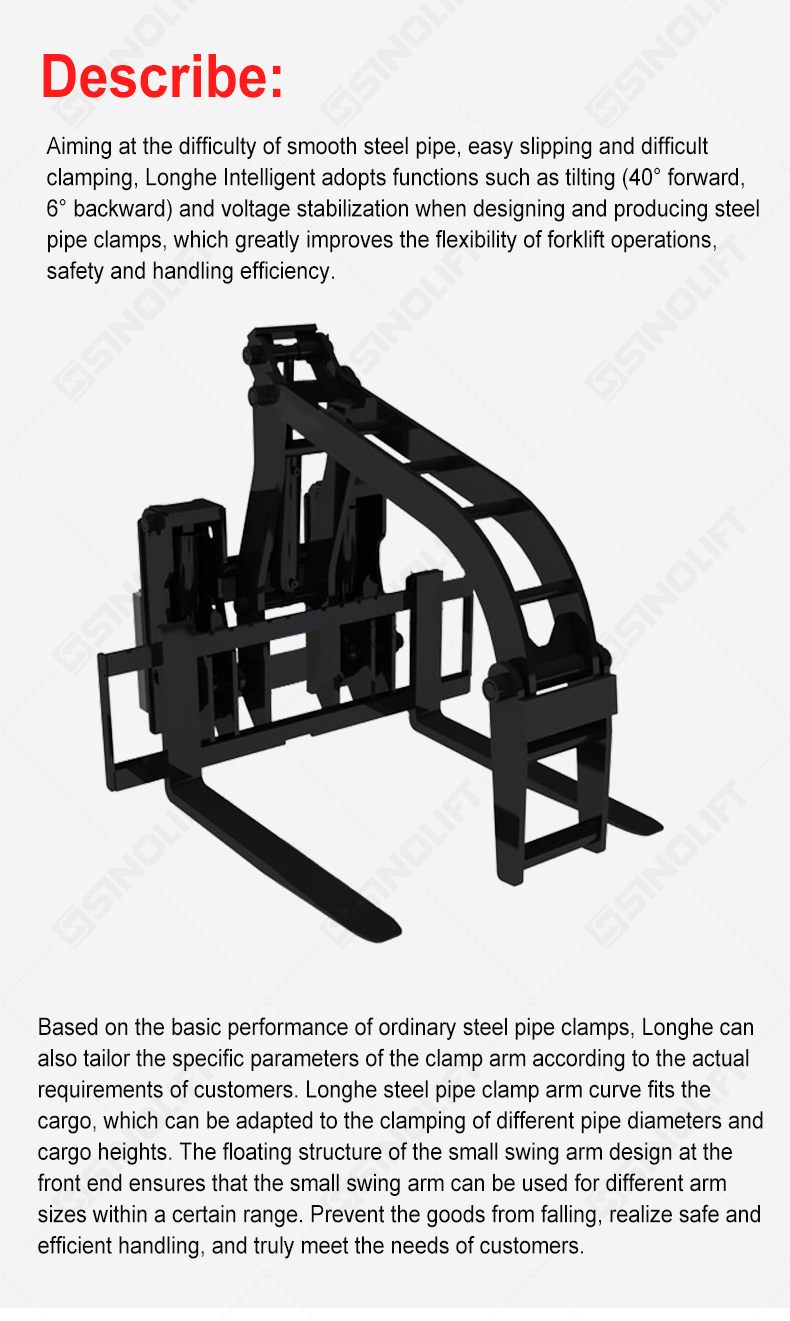

The steel pipe clamp can safely and efficiently carry and clamp pipe materials.
It adopts an all-steel overall frame with high strength, which can meet the needs of users for high-strength operations.
The connecting parts are made of alloy materials for durability.
The hydraulic components are reasonably configured so that the hydraulic system is well protected and long service life.
Safe and efficient use, stable and reliable tipping and clamping speed, convenient and simple maintenance.
The steel pipe clamp can safely and efficiently carry and clamp pipe materials.
Quantity:
Durable overall structure, good stability, dexterous movement, high visibility and easy operating. It adopts an all-steel overall frame with high strength, which can meet the needs of users for high-strength operations. The connecting parts are made of alloy materials for durability. The hydraulic components are reasonably configured so that the hydraulic system is well protected and long service life. Safe and efficient use, stable and reliable tipping and clamping speed, convenient and simple maintenance. The steel pipe clamp can safely and efficiently carry and clamp pipe materials. |

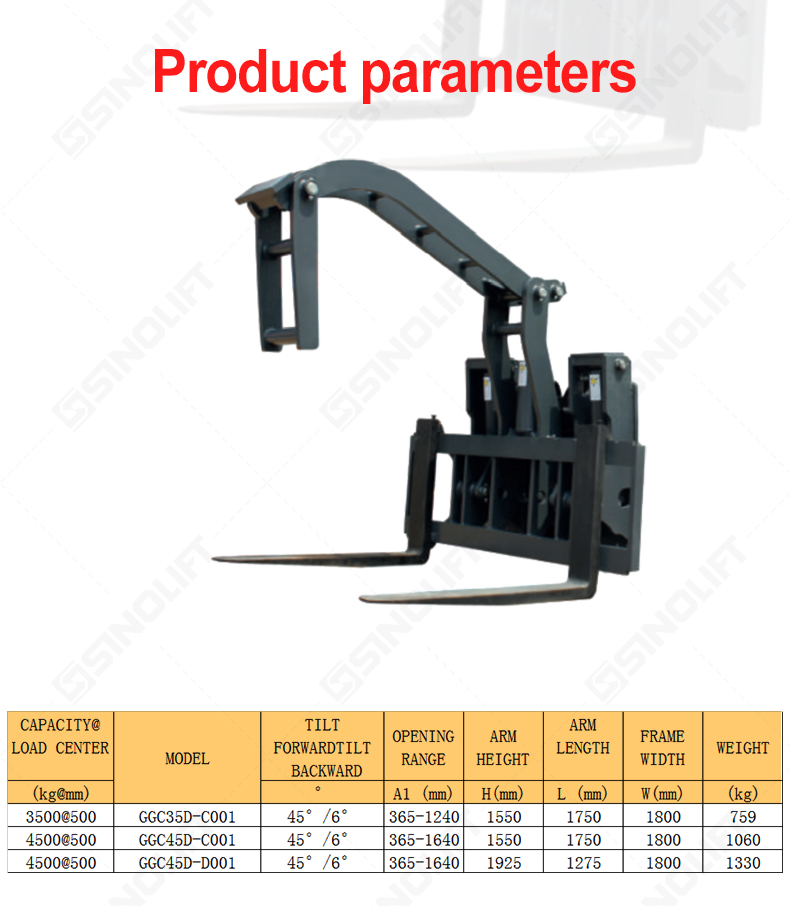

Specifications
APACITY@ LOAD CENTER | MODEL | TILT FORWARDTILT BACKWARD | OPENING RANGE | ARM HEIGHT | ARM LENGTH | FRAME WIDTH | WEIGHT |
| (kg@mm) | ° | A1 (mm) | H(mm) | L (mm) | W(mm) | (kg) | |
| 3500@500 | GGC35D-C001 | 45°/6° | 365-1240 | 1550 | 1750 | 1800 | 759 |
| 4500@500 | GGC45D-C001 | 45°/6° | 365-1640 | 1550 | 1750 | 1800 | 1060 |
| 4500@500 | GGC45D-D001 | 45°/6° | 365-1640 | 1925 | 1275 | 1800 | 1330 |
