TC Series Pneumatic Drum Mixer
TC
The motor power can be selected according to the viscosily of the mixed materia, the form of blades can be selected according to the requirements, and the number of blades can be selected.
The normal contact part is made of SuS304 stainless steel.
SUS316L can be customized and teflon coated blades can be customizedU-TYPE trolley lifting rack for carbon steel painting, can be customized with stainless steel.
The frame is equipped with mobile casters, trolley handrals, air cylinder lift, guide rail assist lift, Automatic Lift Control ValveSuitable for 200L bucket size:0595xH895mm.
The normal contact part is made of SuS304 stainless steel.
SUS316L can be customized and teflon coated blades can be customizedU-TYPE trolley lifting rack for carbon steel painting, can be customized with stainless steel.
The frame is equipped with mobile casters, trolley handrals, air cylinder lift, guide rail assist lift, Automatic Lift Control ValveSuitable for 200L bucket size:0595xH895mm.
Quantity
The motor power can be selected according to the viscosily of the mixed materia, the form of blades can be selected according to the requirements, and the number of blades can be selected. The normal contact part is made of SuS304 stainless steel. SUS316L can be customized and teflon coated blades can be customizedU-TYPE trolley lifting rack for carbon steel painting, can be customized with stainless steel. The frame is equipped with mobile casters, trolley handrals, air cylinder lift, guide rail assist lift, Automatic Lift Control ValveSuitable for 200L bucket size:0595xH895mm. |

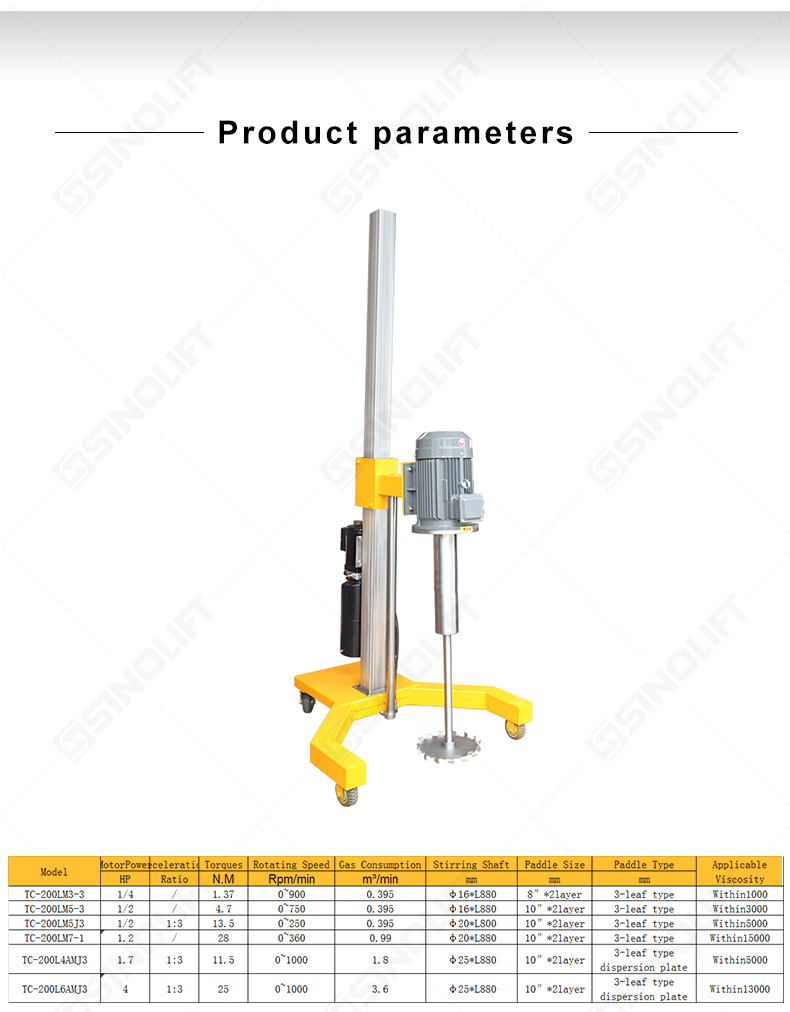

Specifications
| Model | MotorPower | Deceleration | Torques | Rotating Speed | Gas Consumption | Stirring Shaft | Paddle Size | Paddle Type | Applicable Viscosity |
| HP | Ratio | N.M | Rpm/min | m³/min | mm | mm | mm | ||
| TC-200LM3-3 | 1/4 | / | 1.37 | 0~900 | 0.395 | φ16*L880 | 8″*2layer | 3-leaf type | Within1000 |
| TC-200LM5-3 | 1/2 | / | 4.7 | 0~750 | 0.395 | φ16*L880 | 10″*2layer | 3-leaf type | Within3000 |
| TC-200LM5J3 | 1/2 | 1:3 | 13.5 | 0~250 | 0.395 | φ20*L800 | 10″*2layer | 3-leaf type | Within5000 |
| TC-200LM7-1 | 1.2 | / | 28 | 0~360 | 0.99 | φ20*L880 | 10″*2layer | 3-leaf type | Within15000 |
| TC-200L4AMJ3 | 1.7 | 1:3 | 11.5 | 0~1000 | 1.8 | φ25*L880 | 10″*2layer | 3-leaf type dispersion plate | Within5000 |
| TC-200L6AMJ3 | 4 | 1:3 | 25 | 0~1000 | 3.6 | φ25*L880 | 10″*2layer | 3-leaf type dispersion plate | Within13000 |
