TELESCOPIC FORKS
SSC25E SSC35E

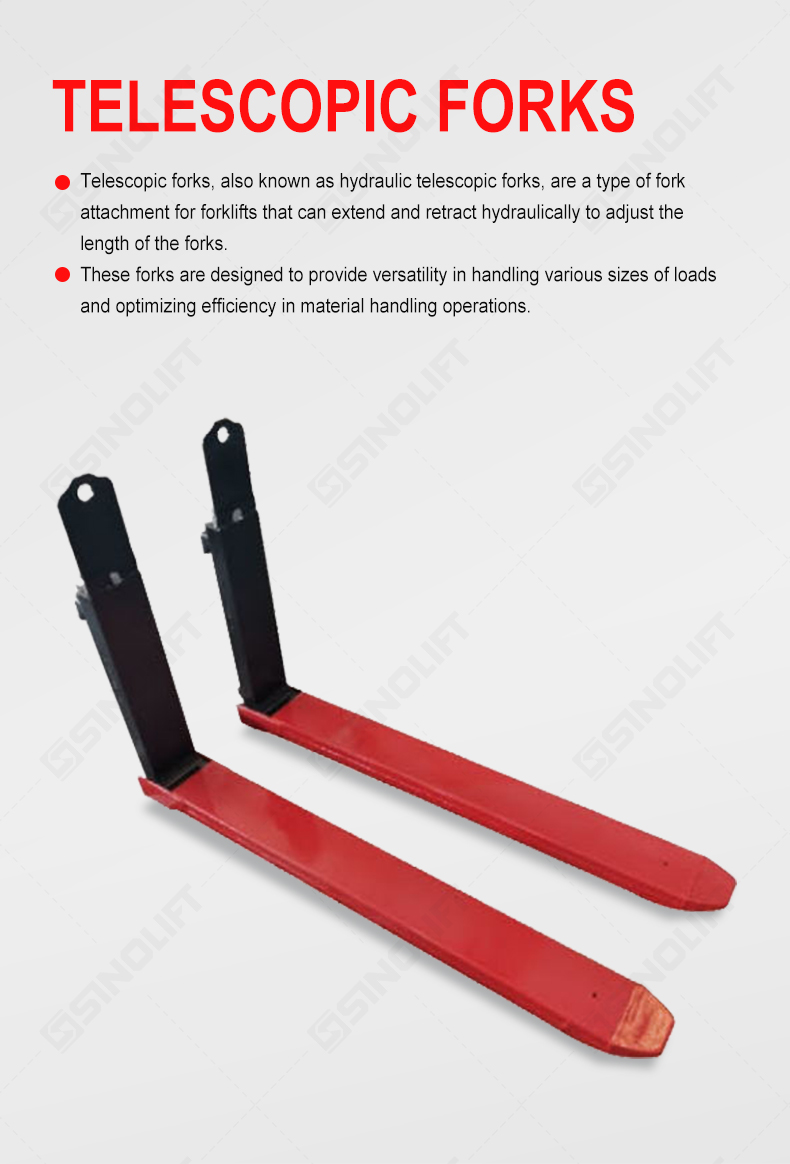

TELESCOPIC FORKS are a type of fork attachment for forklifts that can extend and retract hydraulically to adjust the length of the forks.
Quantity
Product Introduction:
TELESCOPIC FORKS are a type of fork attachment for forklifts that can extend and retract hydraulically to adjust the length of the forks. These forks are designed to provide versatility in handling various sizes of loads and optimizing efficiency in material handling operations.

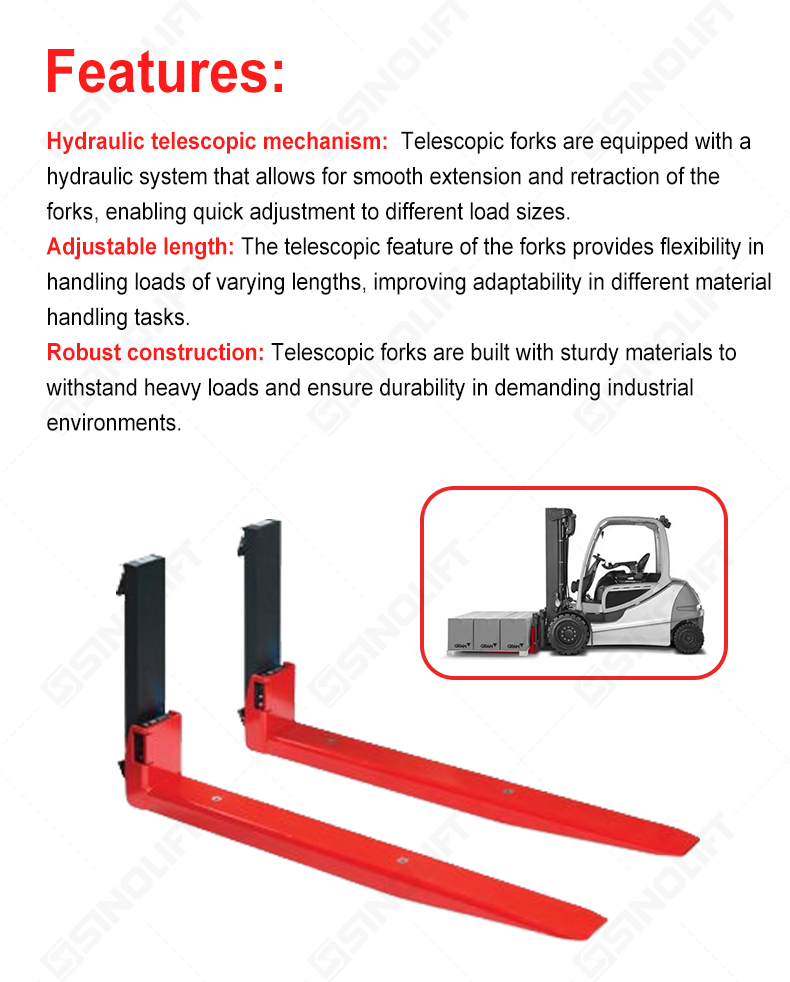

Features:
- Hydraulic telescopic mechanism: Telescopic forks are equipped with a hydraulic system that allows for smooth extension and retraction of the forks, enabling quick adjustment to different load sizes.
- Adjustable length: The telescopic feature of the forks provides flexibility in handling loads of varying lengths, improving adaptability in different material handling tasks.
- Robust construction: Telescopic forks are built with sturdy materials to withstand heavy loads and ensure durability in demanding industrial environments.
Advantages:
- Enhanced versatility: The ability to adjust the length of the forks hydraulically allows for handling a wide range of load sizes, increasing the versatility of the forklift in different applications.
- Improved efficiency: Telescopic forks enable quick and precise adjustment to the required fork length, reducing the need for manual adjustments and enhancing operational efficiency.
- Increased safety: The hydraulic telescopic mechanism enhances the stability and control of the forks during load handling, contributing to safer material handling practices and reducing the risk of accidents.

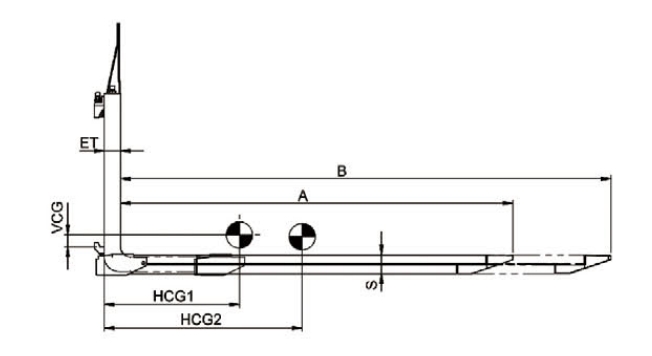

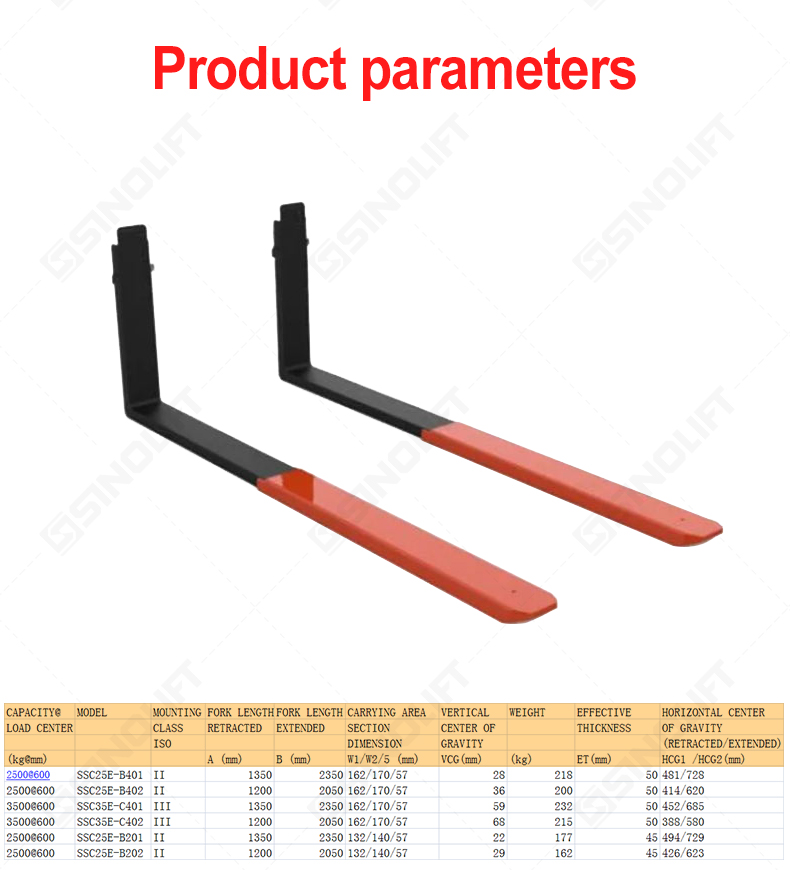

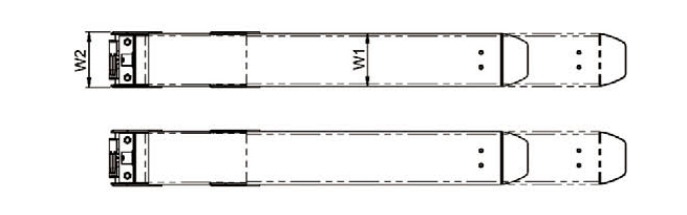

Parameters:
| CAPACITY@ | MODEL | MOUNTING | FORK LENGTH | FORK LENGTH | CARRYING AREA | VERTICAL | WEIGHT | EFFECTIVE | HORIZONTAL CENTER |
| LOAD CENTER | CLASS | RETRACTED | EXTENDED | SECTION | CENTER OF | THICKNESS | OF GRAVITY | ||
| ISO | DIMENSION | GRAVITY | (RETRACTED/EXTENDED) | ||||||
| (kg@mm) | A (mm) | B (mm) | W1/W2/5 (mm) | VCG(mm) | (kg) | ET(mm) | HCG1 /HCG2(mm) | ||
| 2500@600 | SSC25E-B401 | II | 1350 | 2350 | 162/170/57 | 28 | 218 | 50 | 481/728 |
| 2500@600 | SSC25E-B402 | II | 1200 | 2050 | 162/170/57 | 36 | 200 | 50 | 414/620 |
| 3500@600 | SSC35E-C401 | III | 1350 | 2350 | 162/170/57 | 59 | 232 | 50 | 452/685 |
| 3500@600 | SSC35E-C402 | III | 1200 | 2050 | 162/170/57 | 68 | 215 | 50 | 388/580 |
| 2500@600 | SSC25E-B201 | II | 1350 | 2350 | 132/140/57 | 22 | 177 | 45 | 494/729 |
| 2500@600 | SSC25E-B202 | II | 1200 | 2050 | 132/140/57 | 29 | 162 | 45 | 426/623 |
