Drum Dumper

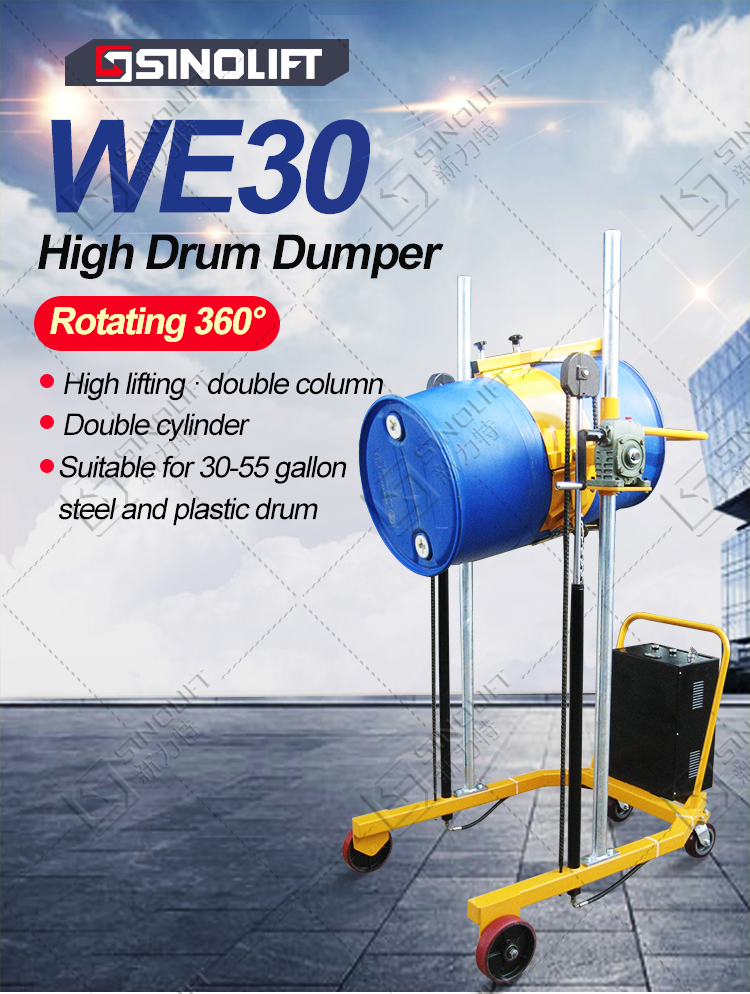

WE30 WE30A Electric Drum Dumper

WE30 WE30A

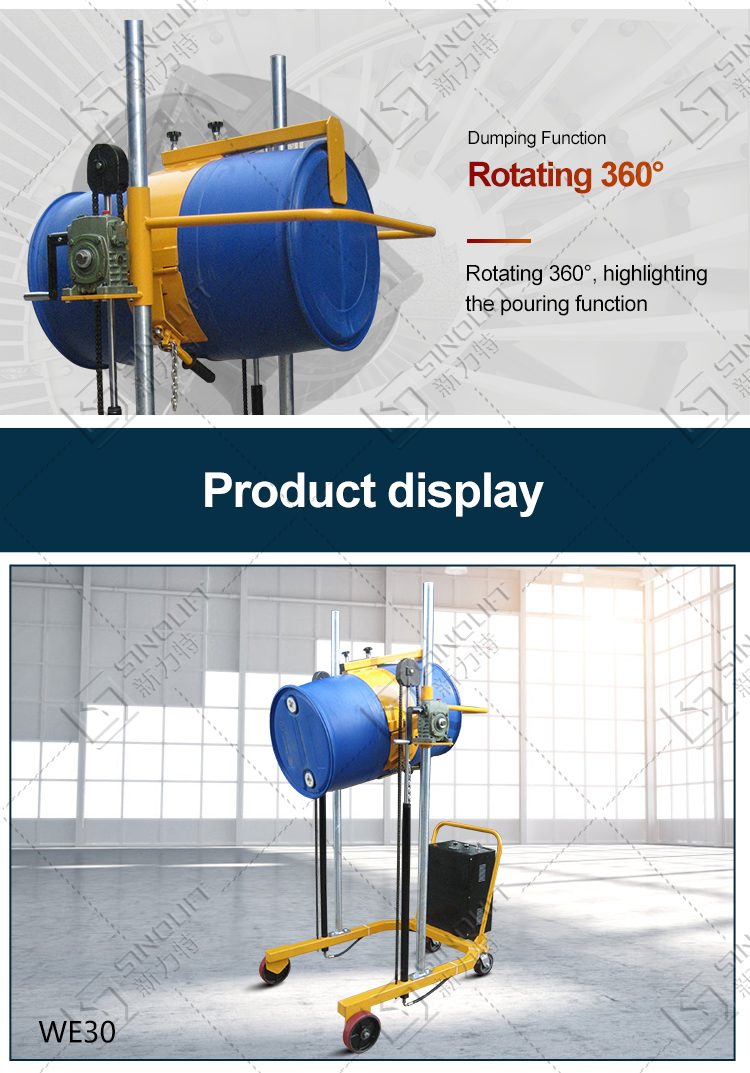

You manually tilt the drum for pouring. The drum can also be locked upright or in horizontal position. You can rotate a drum 360 degrees end-over-end, then tilt drum to pour. Safe drum handling requires well-designed, ergonomic drum handling equipment to reduce risks of injury or property damage. Heavy-Duty Hydra-Lift Drum Carriers combine incredible strength with simple drum handling by one person.
Quantity:
Contact Now
add to cart
All Products
You manually tilt the drum for pouring. The drum can also be locked upright or in horizontal position. You can rotate a drum 360 degrees end-over-end, then tilt drum to pour. Safe Drum Dumper requires well-designed, ergonomic Drum Dumper to reduce risks of injury or property damage. Drum Dumper combine incredible strength with simple drum handling by one person.
Drum Dumper tilt drums to dispense their contents and load them horizontally on storage racks, shelves, and pallet racks. Also known as drum rackets, they raise drums using a hydraulic-powered boom and have wheels to roll around for positioning.
Model WE30WE30A
Lifting power type ElectricElectric
Flipping Type Worm GearElectric
Capacitykg300300
Drum Sizemm30 gallon (Ø450x700)-55 gallon ( (Ø572x900) steel, 210L plastic
Strokes to Maximum Lifting Height Approx 8282
Vertical lifting heightmm13001300
Horizontal lifting heightmm15001500
Tilting height at 135°mm13501350
Leg Inner Widthmm720720
WheelmmØ200Ø200

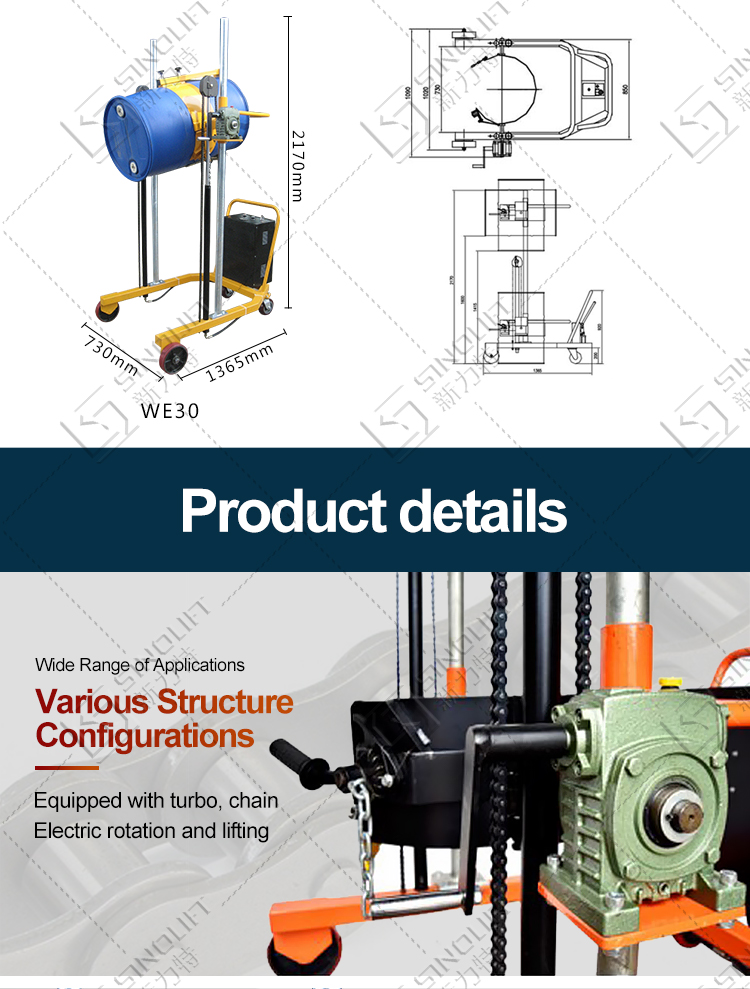

Overall dimensionmm1360x1030x21901360x1030x2190
Net weight 160158

Electric Drum Dumper
Electric Drum Dumper
Electric Drum Dumper
Electric Drum Dumper
Electric Drum Dumper
