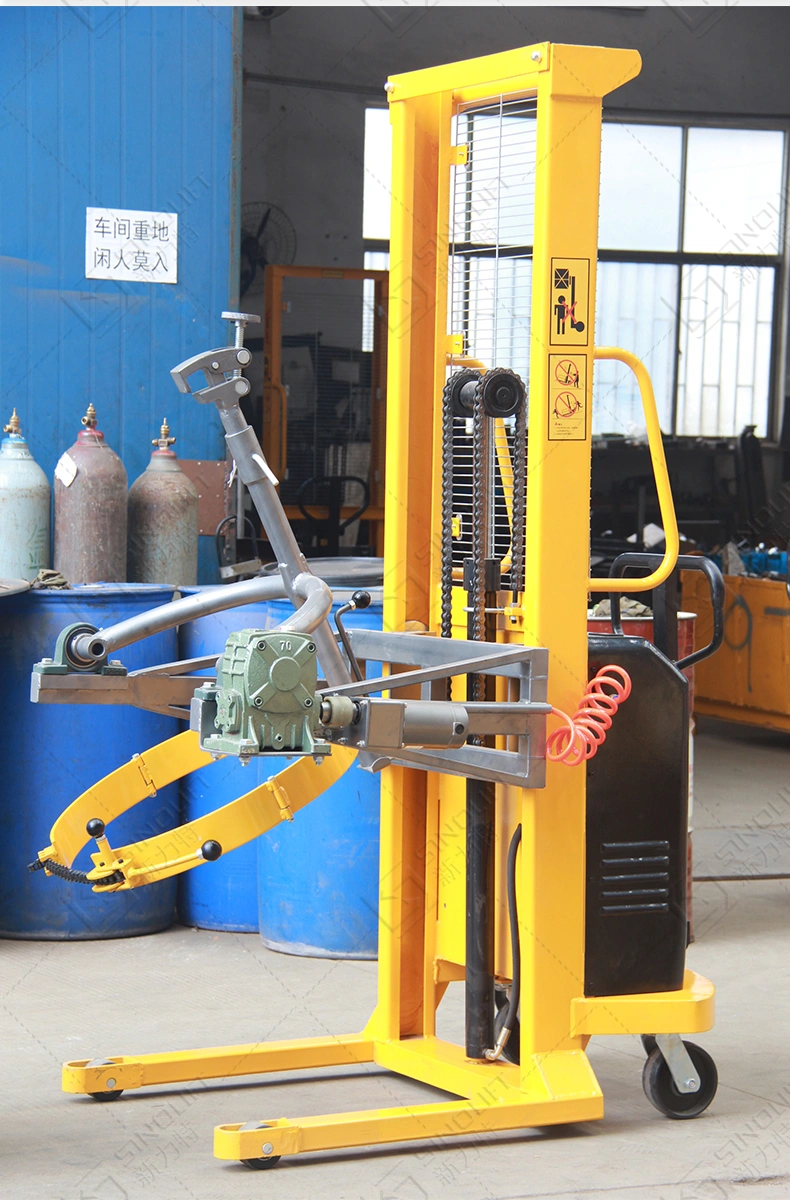

YL520 YL520-1 Semi-electric Drum Dumper
YL520 YL520-1
Quantity
Features of drum dumper:
1. Unique multi-function: Lifting, carry, turnover, dumping, easily and safety operate.
2. Tightly lock oil drum at horizontal or vertical position by left and right locking handles so that it will be dumped easily or free of overflow.
3. A combination of system to ensure that the mouth airfield effective fixation.

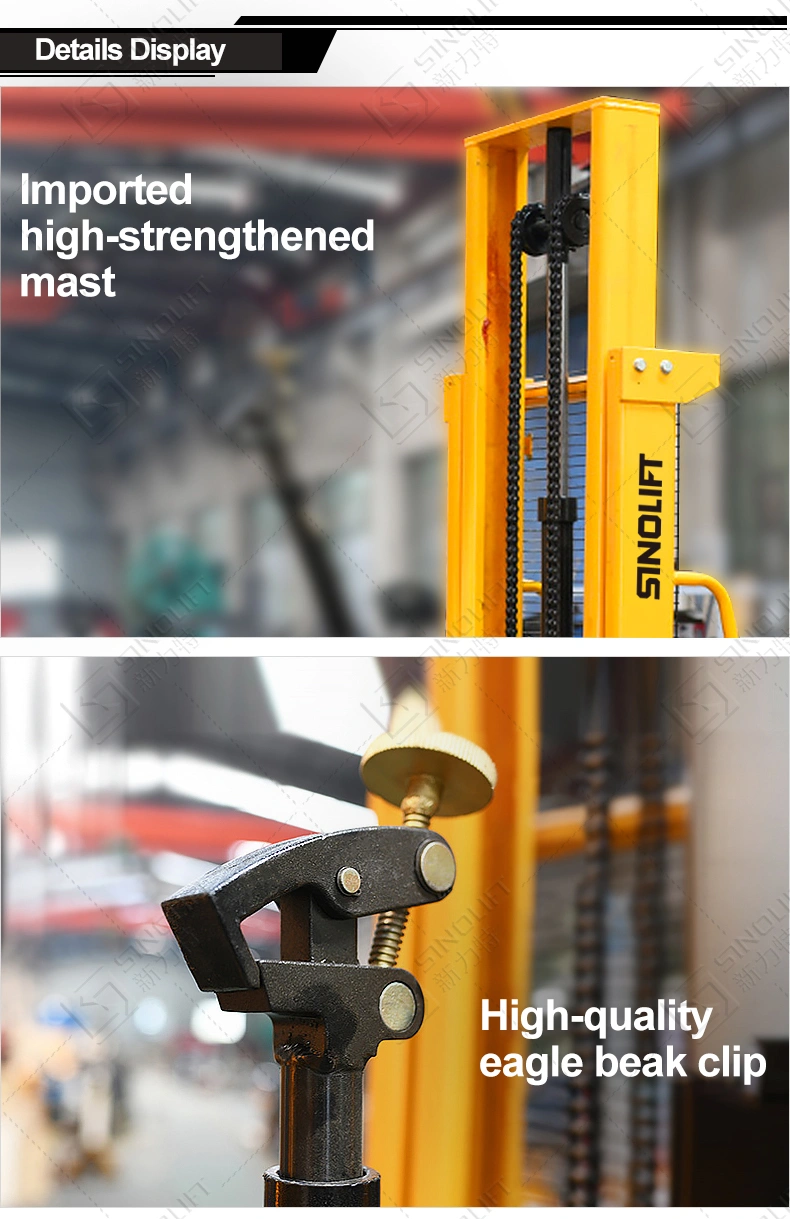

4. Drum Dumper is of simple-and-light-structure design and be combined with Eagle-grip and Anchor ear structure which is fit for operating with steel oil drum and PE oil drum, easy to operate and saves effort.

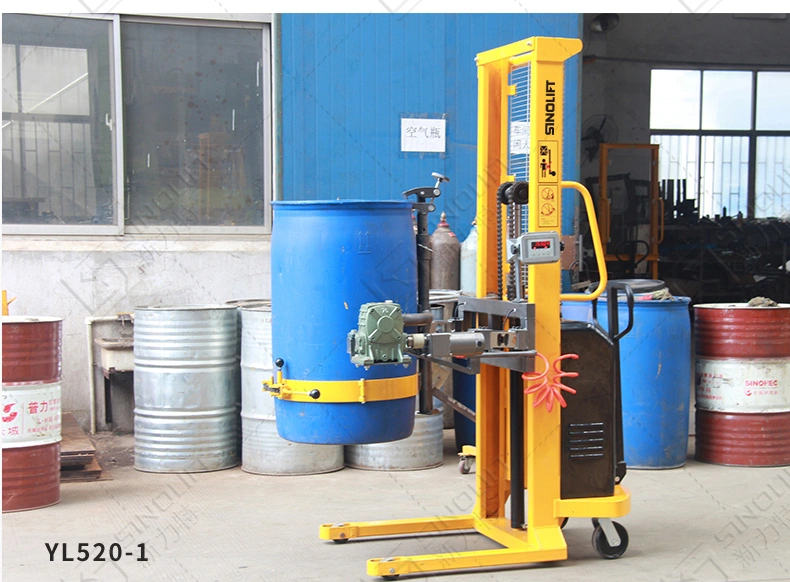

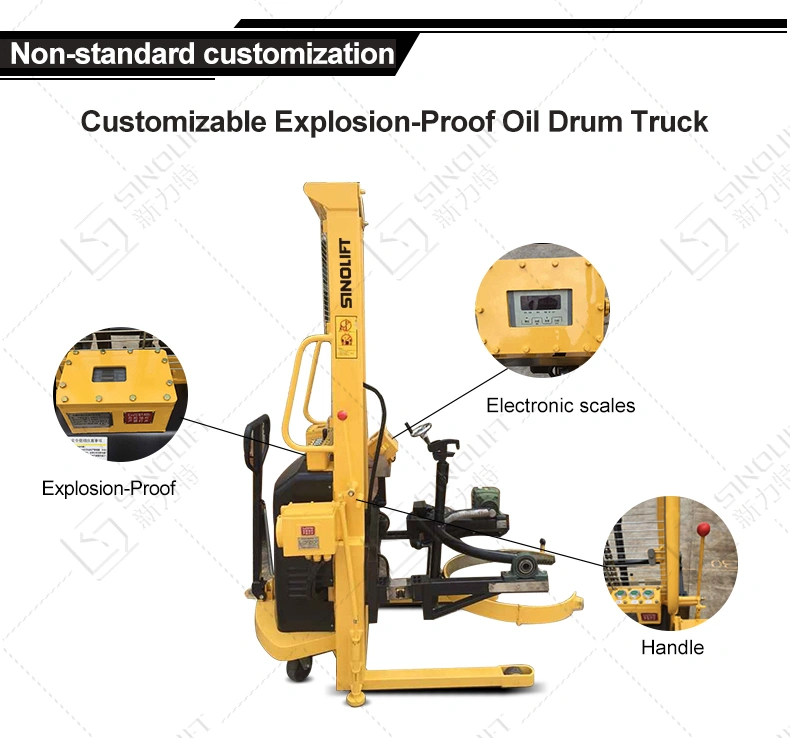

5.With electronic scale built-in YL520-1 Drum Dumper; operational functions include: ZERO, TARE and weighting, of accuracy: ±3‰

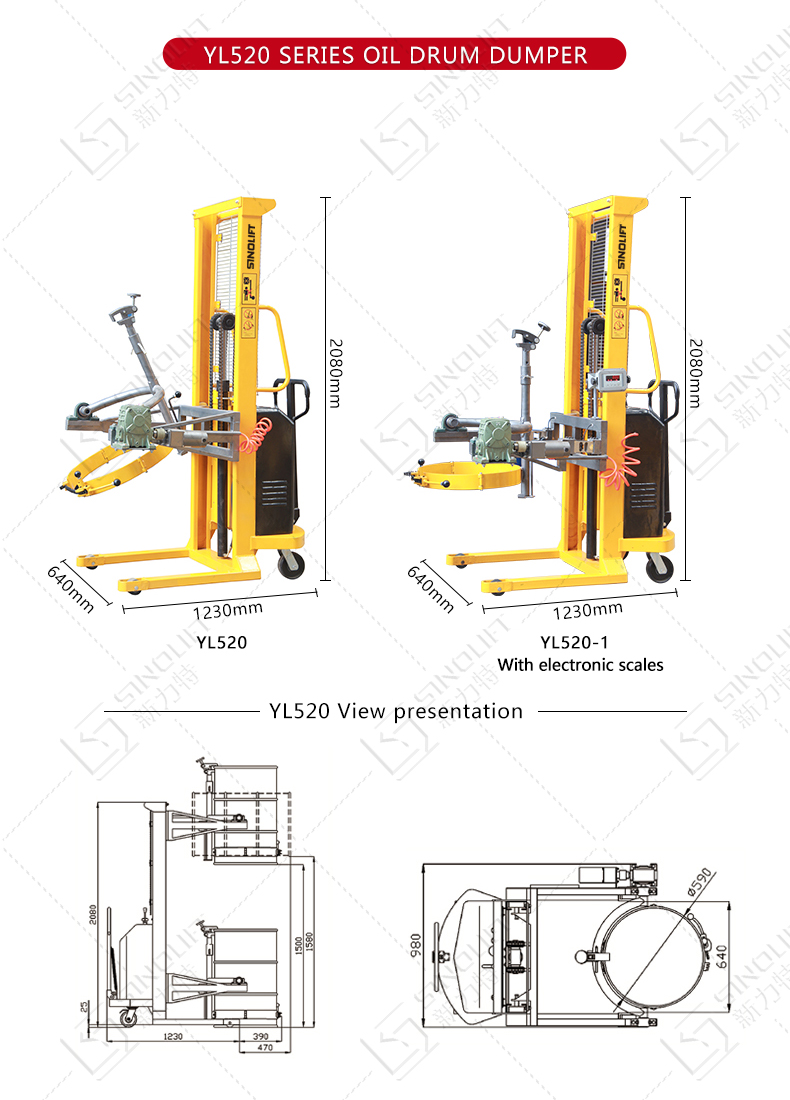

| Model | Drum Dumper YL520 | Drum Dumper YL520-1 | |
| Loading weight | kg | 520 | 520 |
| Drum size | 55 gallon ( (Ø572x900) steel, 210L plastic | 55 gallon ( (Ø572x900) steel, 210L plastic | |
| Lifting Height | mm | 1600 | 1600 |
| Wheel Dimension | mm | Ø80x55/Ø150x50 | Ø80x55/Ø150x50 |
| Inner/Outer Width of Front Leg | mm | 640/800 | 640/800 |
| Turning Radius | mm | 1750 | 1620 |
| Pump Unit Power | KW/h | 1.5 | 1.5 |
| Battery Parameter | Ah/V | 120/12 | 120/12 |
| Lifting Speed | mm/s | 120 | 120 |
| Outline Dimension (LxWxH) | mm | 1400*1000*2060 | 1400*980*2080 |
| Net weight | kg | 264 | 269 |
