YL650A YL650A-1 Walkie Electric Drum Dumper
YL650A YL650A-1
Quantity:
For use with 55-gallon steel and fiber drums 22"in diameter. A hand crank gear mechanism provides the controlled 360° rotation of the drum. A floor lock is standard to stabilize the unit in a fixed position. YL650A Drum Dumper features a 24V DC powered rotation mechanism which provides 360° rotation drum. A 24V DC powered mechanism raises and lowers drums (onboard charger standard). Ergonomic handle features safety enhanced emergency remote function and horn. YL650A-1 Drum Dumper head features automatic turn off and +/- 0.5-pound accuracy.
| Model | Drum Dumper YL650A | Drum Dumper YL650A-1 | |
| Loading Capacity | kg | 650 | 650 |
| Lifting Height | mm | 2400 | 2400 |
| Drum size | 55 gallon ( (Ø572x900) steel, 210L plastic | 55 gallon ( (Ø572x900) steel, 210L plastic | |
| Drive Wheel | mm | Ø250*80 | Ø250*80 |
| Wheel | PU | PU | |
| Turning Radius | mm | 1650 | 1650 |
| Lifting Motor | kw | 2.2 | 2.2 |
| Battery Parameter | Ah/V | 120/24 | 120/24 |

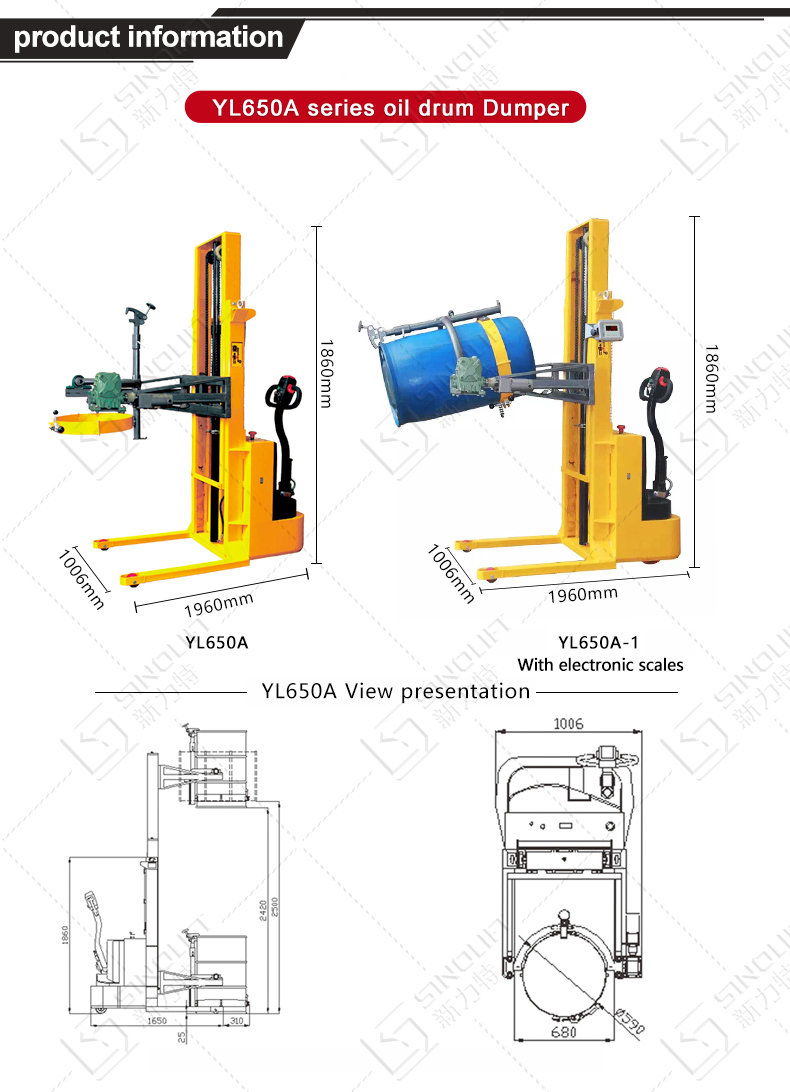

| Outline Dimension LxWxH | mm | 1960x1006x1860 | 1960x1006x1860 |
| Net weight | kg | 518 | 525 |
