Sinolift ERP2000 2 Ton Electric Rotating Platform – 360° Heavy-Duty Industrial Turntable

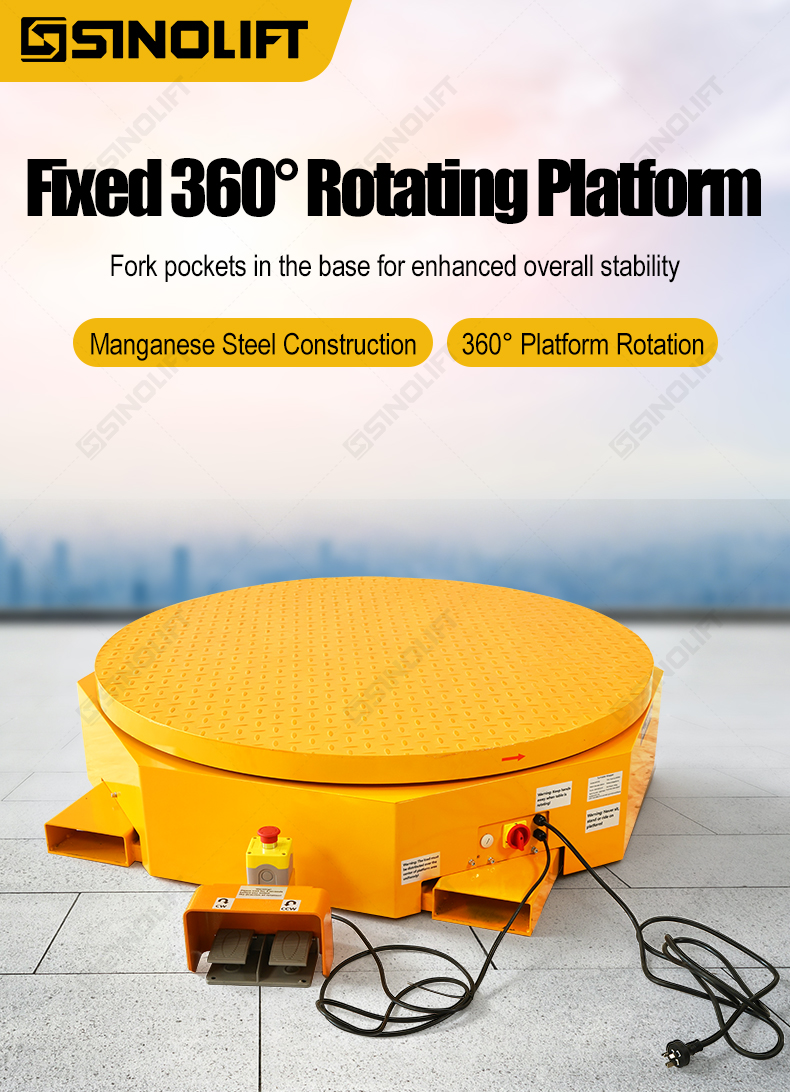

SINOLIFT ERP2000 Electric Rotating Platform
TheSINOLIFT ERP2000 Electric Rotating Platform is designed for efficient load positioning, pallet packaging, and industrial material handling. With a 2,000 kg load capacityand360° powered rotation, it enables operators to position heavy loads smoothly while reducing manual effort.
Built with a reinforced steel structure, an anti-slip platform, and a precision gear reducer, the ERP2000 delivers stable and reliable performance in demanding industrial environments.
The platform features foot-pedal controls and an emergency stop button for convenient operation and enhanced safety. Integrated forklift pockets allow easy relocation between workstations.
Ideal for warehouses, assembly lines, packaging stations, and other industrial applications, the ERP2000 also supports customized configurations and optional flat platform surfaces to accommodate different handling requirements.
| Model | ERP1000 | ERP2000 | |
| Capacity | kg | 1000 | 2000 |
| Dia. Of the Platform | mm | 1220 | 1220 |
| Platform Height | mm | 286 | 286 |
| Speed | r/min | 12 | 12 |
| Motor | KW | 2.2 | 2.2 |
| Wheel | mm | Dia.150 | Dia.150 |
| Fork Pocket | mm | 178*54 | 178*54 |
| Net Weight | KG | 200 | 220 |
Main Features

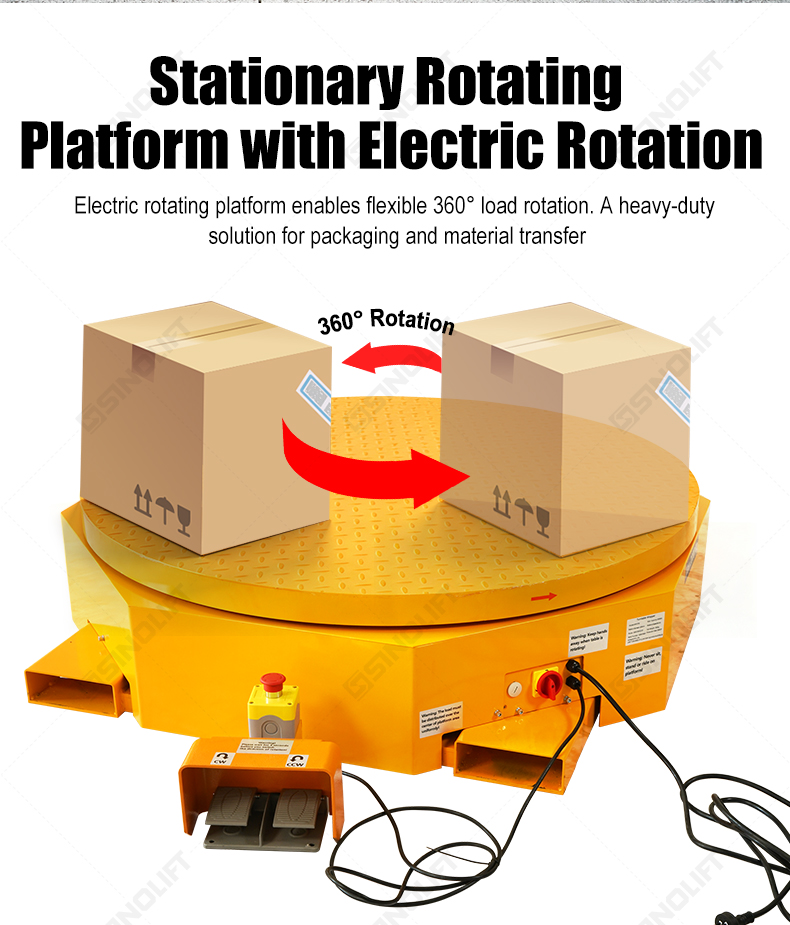

360° Electric Rotation
Powered rotation allows loads to be positioned at different angles, reducing manual repositioning during packaging and assembly.

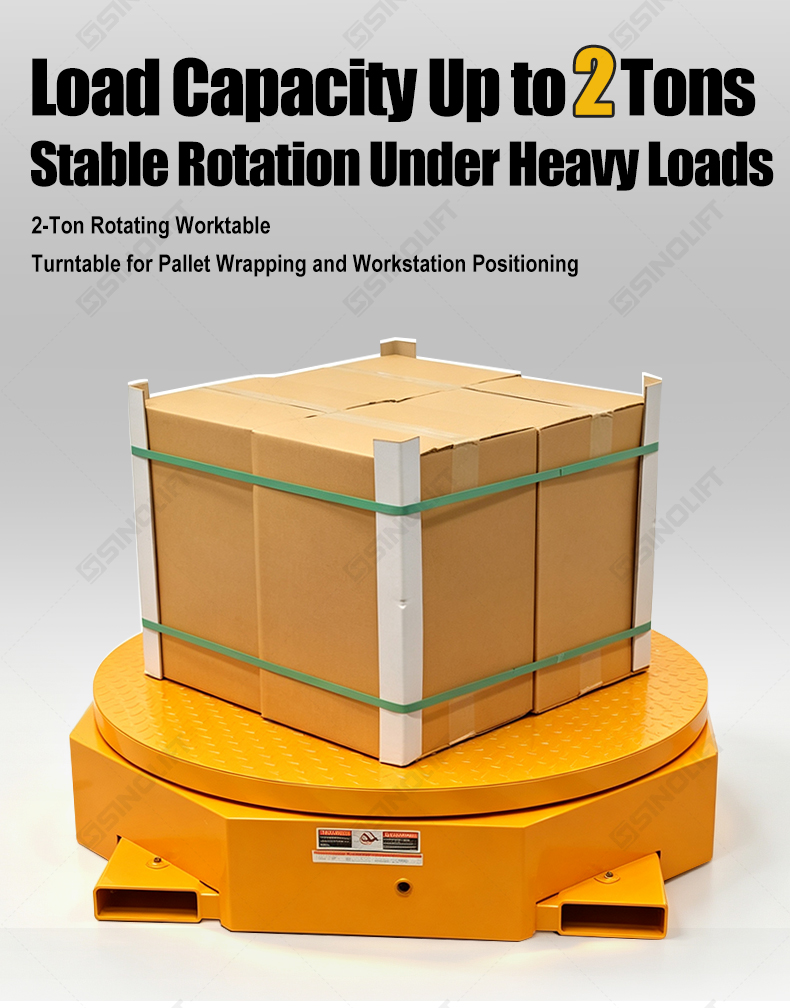

2000 kg Heavy-Duty Load Capacity
Engineered to handle loads up to 2 tons, making it suitable for industrial pallets, machinery components, and heavy workpieces.

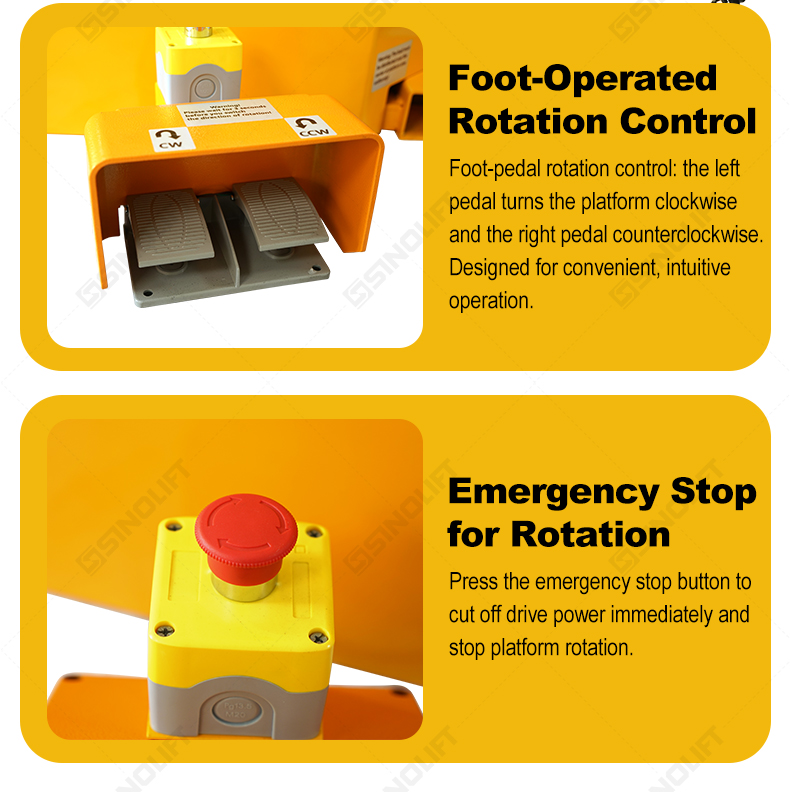

Foot-Pedal Rotation Control
Convenient left and right pedals enable clockwise and counterclockwise rotation while keeping the operator's hands free.

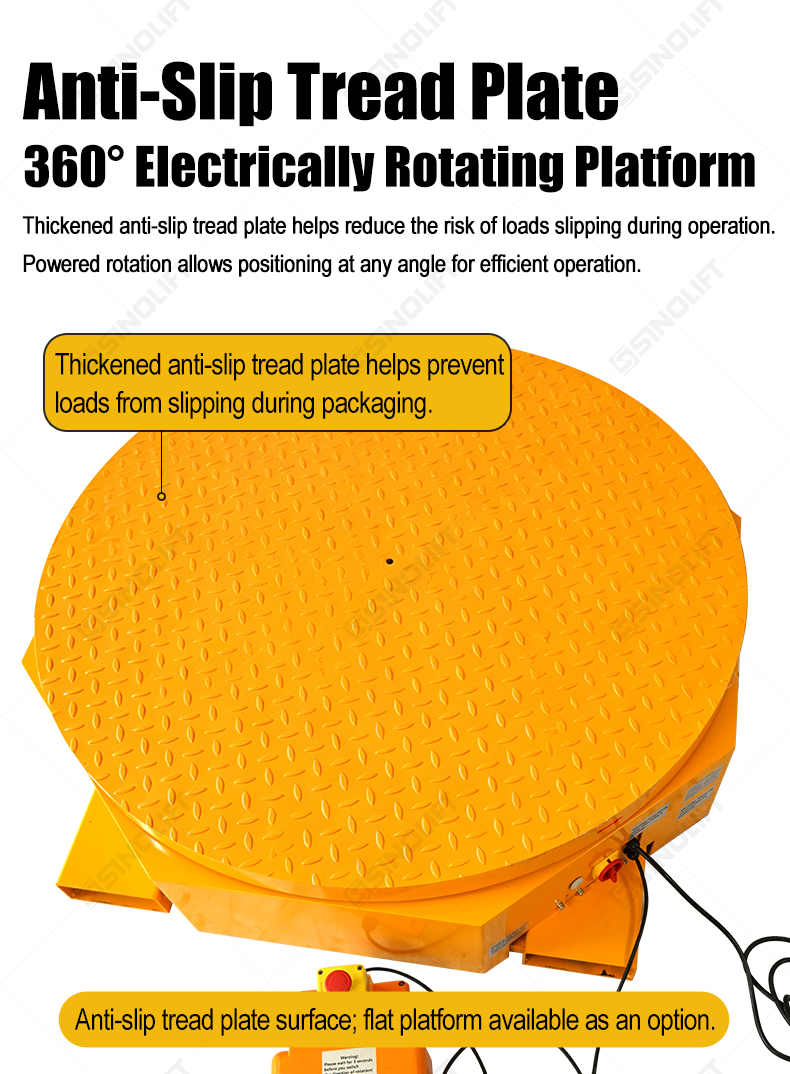

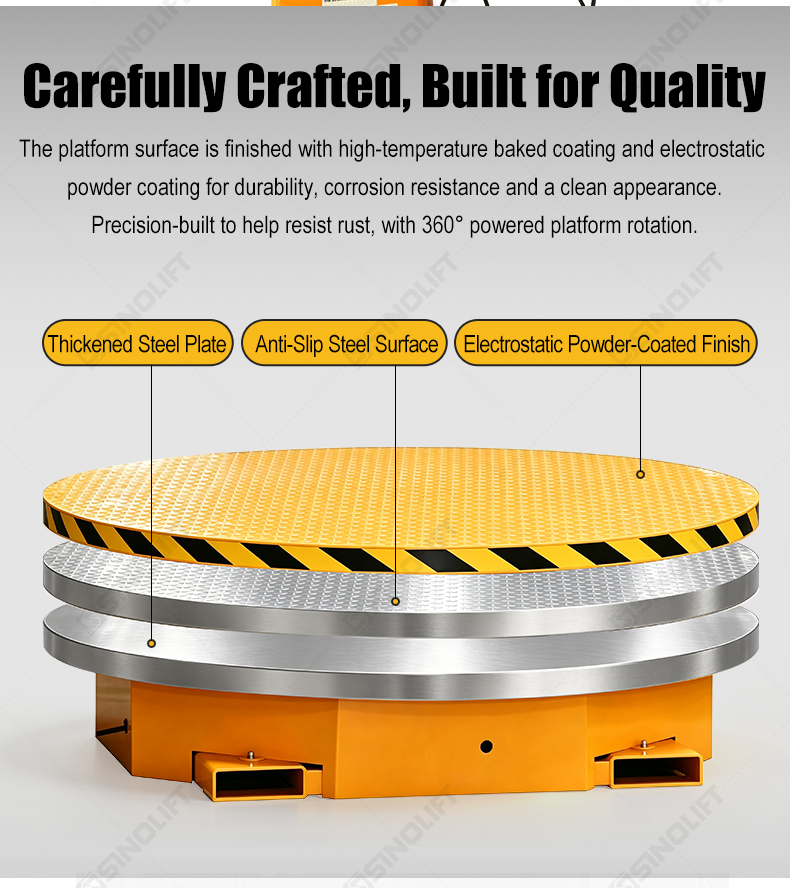

Anti-Slip Steel Platform
A thickened tread plate provides better surface grip and helps reduce the risk of load slipping during operation.
Emergency Stop Protection
The emergency stop button cuts off drive power to stop platform rotation when required.

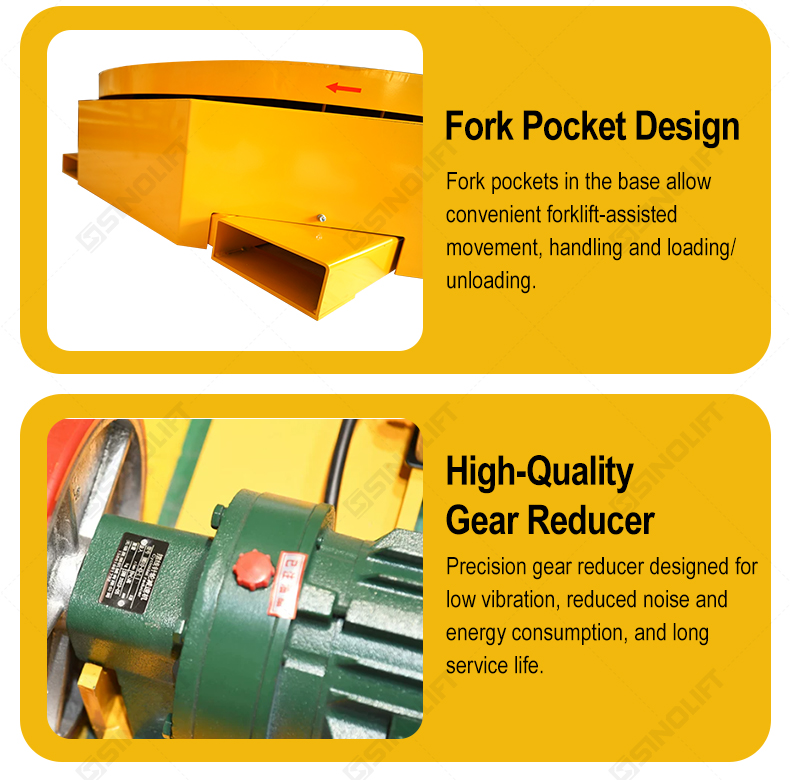

Precision Gear Reducer
A precision reduction drive is designed to minimize vibration, noise, and energy consumption while supporting reliable operation.

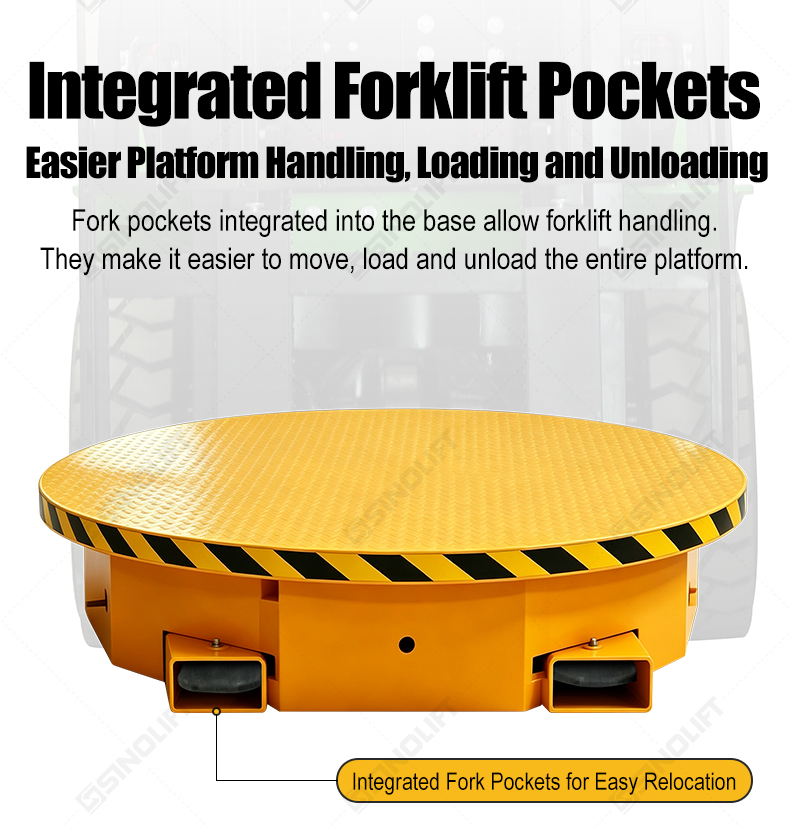

Integrated Forklift Pockets
Built-in fork pockets facilitate forklift-assisted relocation, loading, and unloading of the platform.

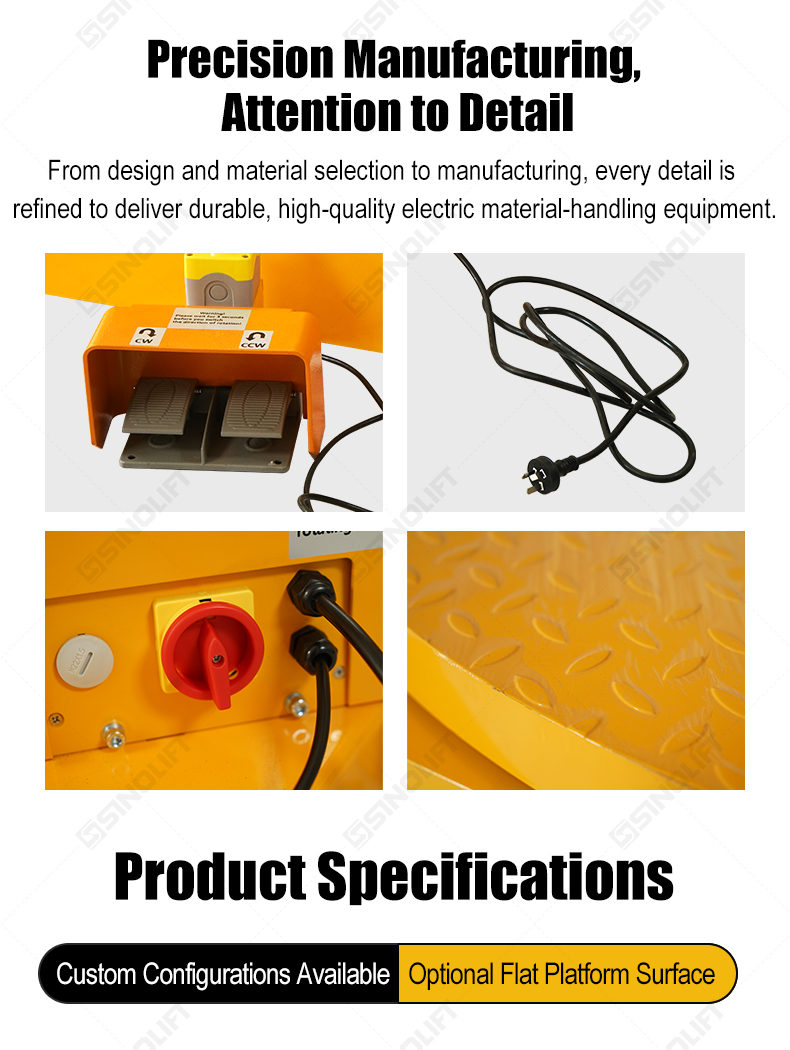

Customizable Platform Options
Optional flat platform surfaces and non-standard configurations are available for specific operating requirements.

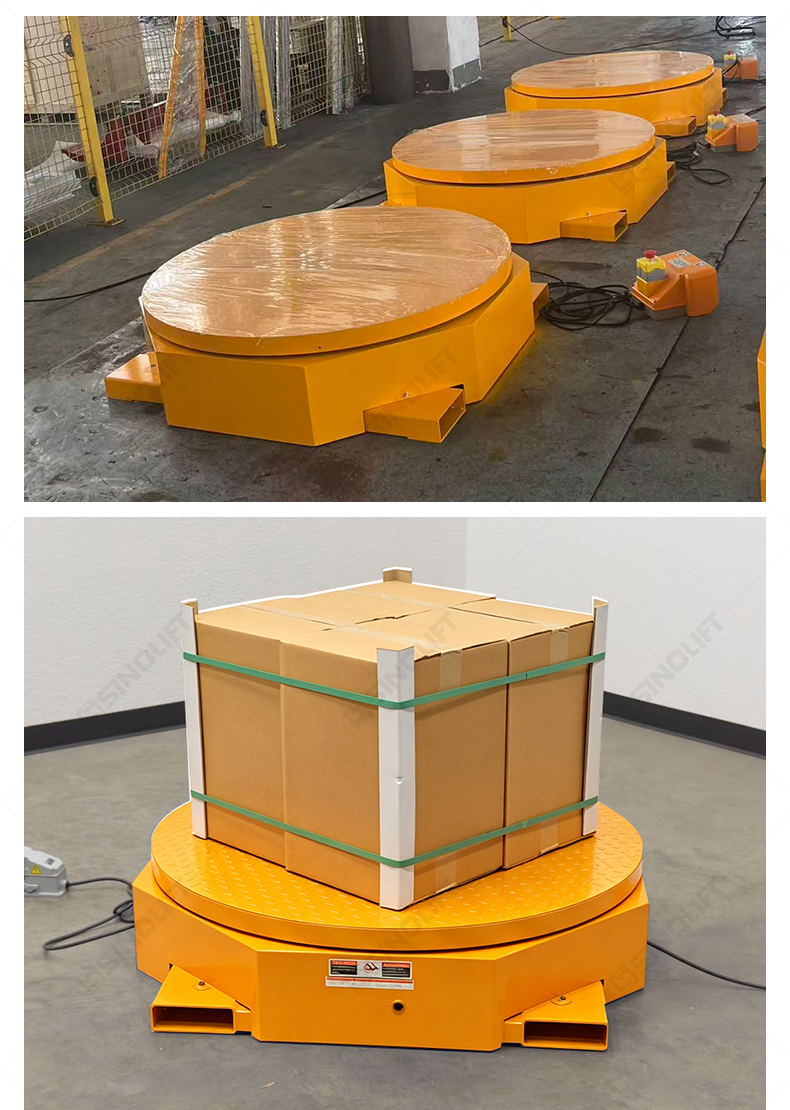

Applications
- Manufacturing and Assembly Lines
- Warehousing and Pallet Packaging
- Automotive Maintenance and Repair
- Heavy Equipment and Mold Workshops
FAQ | Frequently Asked Questions
Q1: What is the maximum load capacity of the ERP2000 electric rotating platform?
The Sinolift ERP2000 has a rated load capacity of 2000 kg (2 tons), making it suitable for heavy-duty industrial load positioning, pallet packaging, and assembly operations.
Q2: Can the ERP2000 rotate a full 360 degrees?
Yes. The ERP2000 features 360° powered rotation, allowing operators to position heavy loads at different working angles without manually turning the entire load.
Q3: How is the electric rotating platform operated?
The platform uses a foot-pedal control system. The left pedal controls clockwise rotation, and the right pedal controls counterclockwise rotation. This provides convenient hands-free operation during positioning tasks.

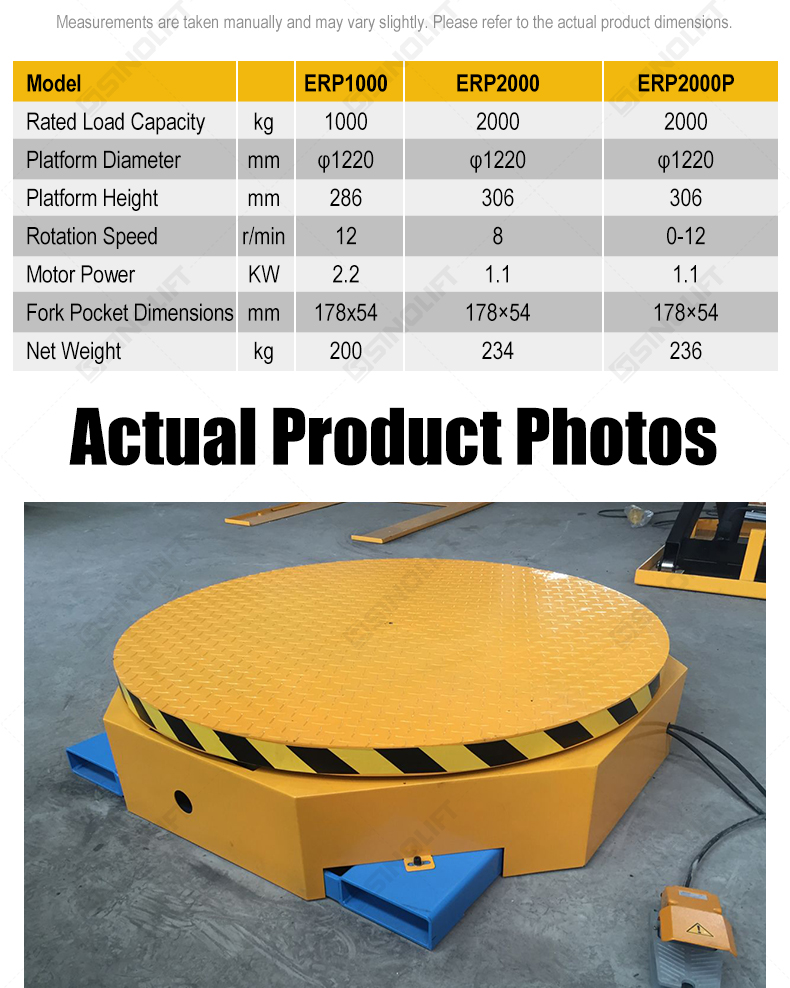

Q4: What is the difference between the ERP2000 and ERP2000P?
Both models have a rated load capacity of 2000 kg and a platform diameter of 1220 mm. According to the product detail document, the ERP2000 has a rotation speed of 8 r/min, while the ERP2000P offers an adjustable rotation speed of 0–12 r/min.
