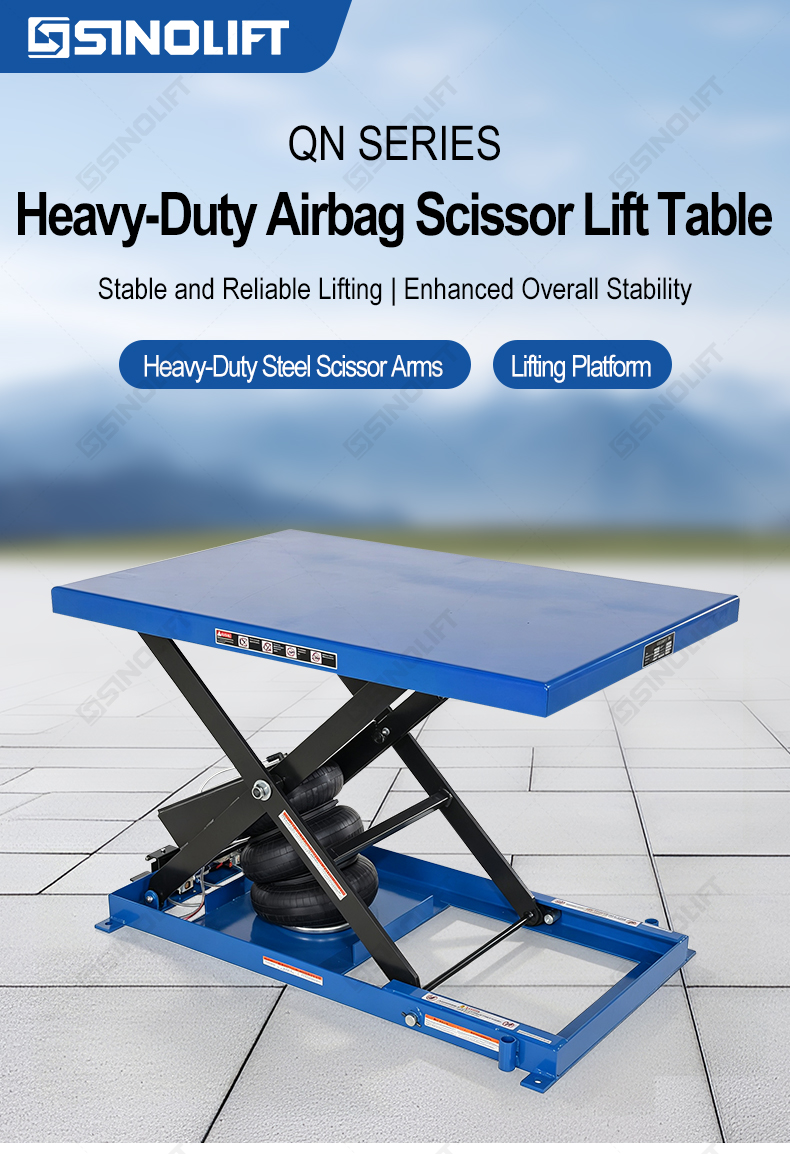

Sinolift QN500 Pneumatic Airbag Scissor Lift Table
QN500 Pneumatic Airbag Scissor Lift Table – Ergonomic Material Handling

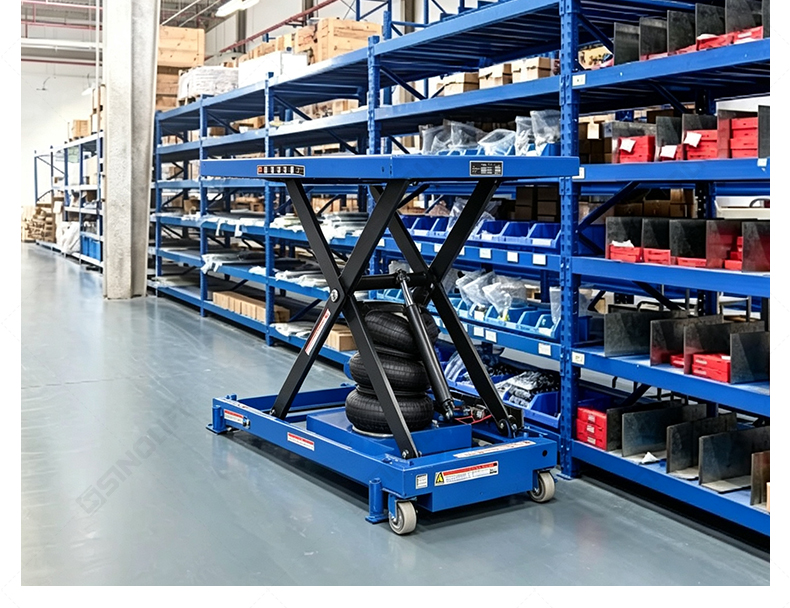

The Sinolift QN500 Pneumatic Airbag Scissor Lift Table provides stable, ergonomic lifting for warehouses, workshops, and production lines. Featuring a 500 kg load capacity, reinforced steel construction, and an airbag lifting system, it ensures smooth operation without hydraulic oil leakage.
Foot-pedal controls allow convenient hands-free height adjustment, while the integrated pressure gauge helps monitor lifting performance. Its low-profile design reduces bending and manual handling effort.
The QN series is also available in 1000 kg and 2000 kg capacities, offering flexible solutions for different industrial applications.

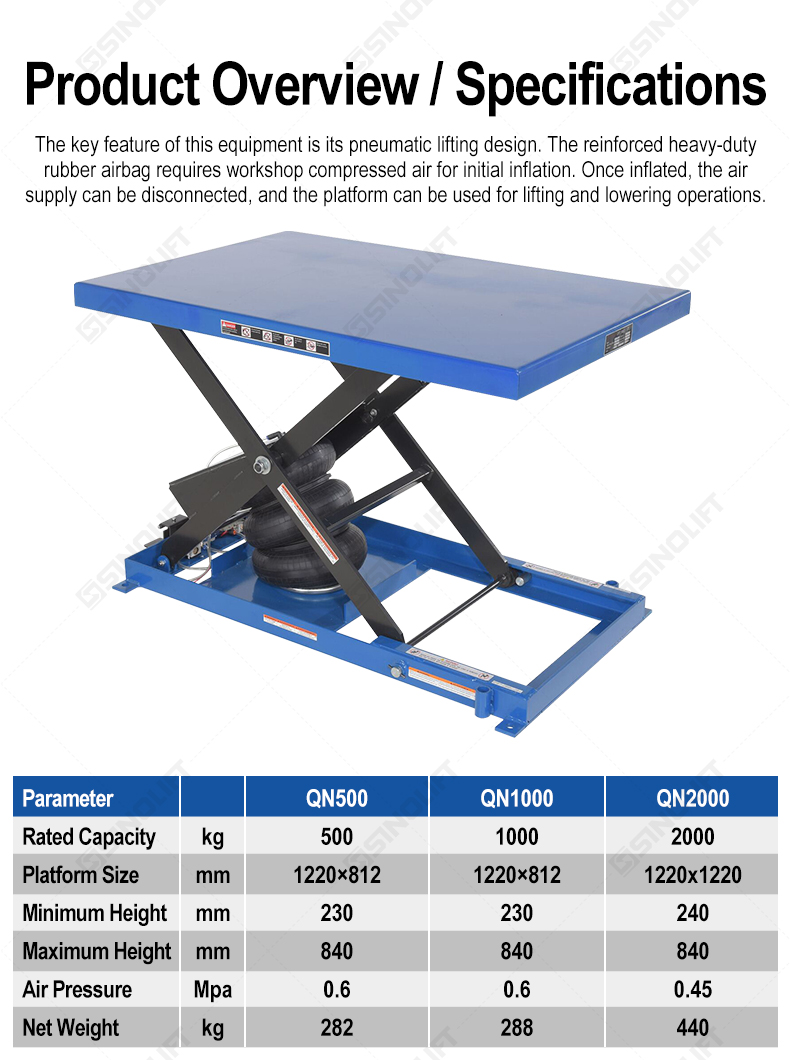

| Model | QN500 | QN1000 | QN2000 | |
| Rated Capacity | kg | 500 | 1000 | 2000 |
| Platform Size | mm | 1220×812 | 1220×812 | 1220x1220 |
| Min. Height | mm | 230 | 230 | 240 |
| Max. Height | mm | 840 | 840 | 840 |
| Air Pressure | Mpa | 0.6 | 0.6 | 0.45 |
| Net Weight | kg | 282 | 288 | 440 |
Main Features

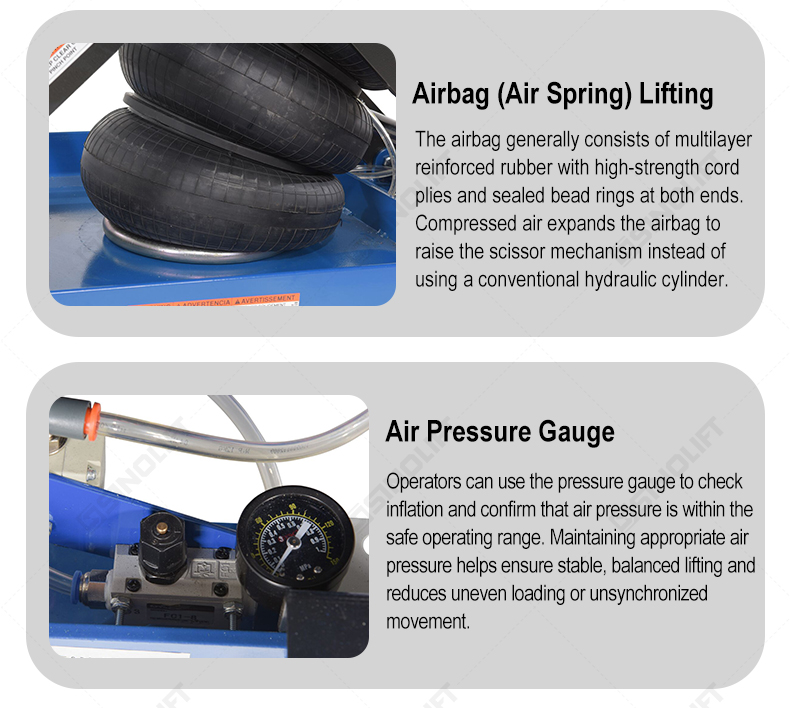

1. Pneumatic Airbag Lifting System

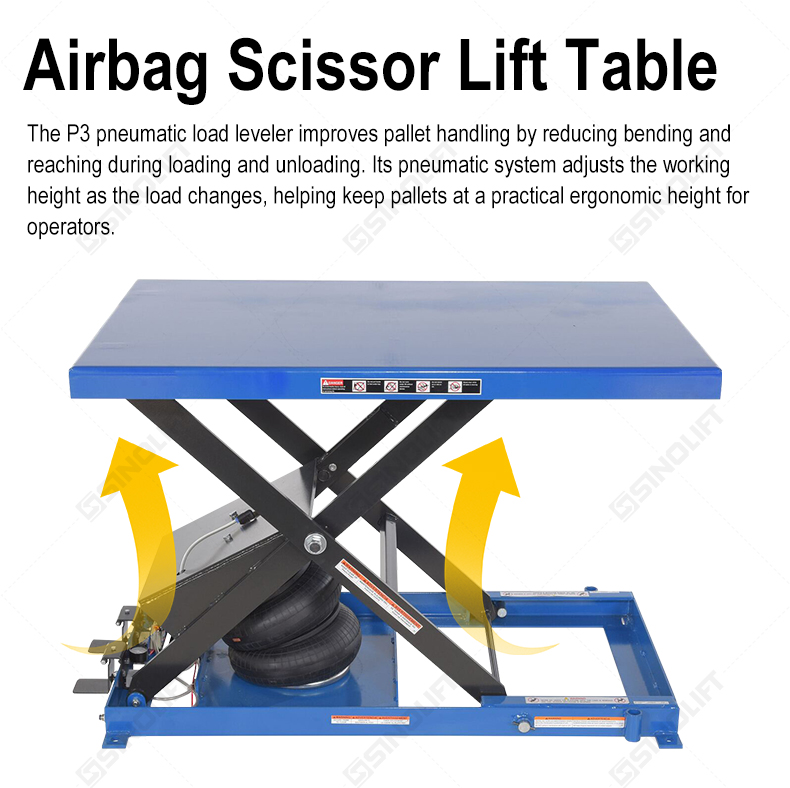

A reinforced air spring uses compressed air to operate the scissor lifting mechanism, providing an alternative to conventional hydraulic lifting systems.

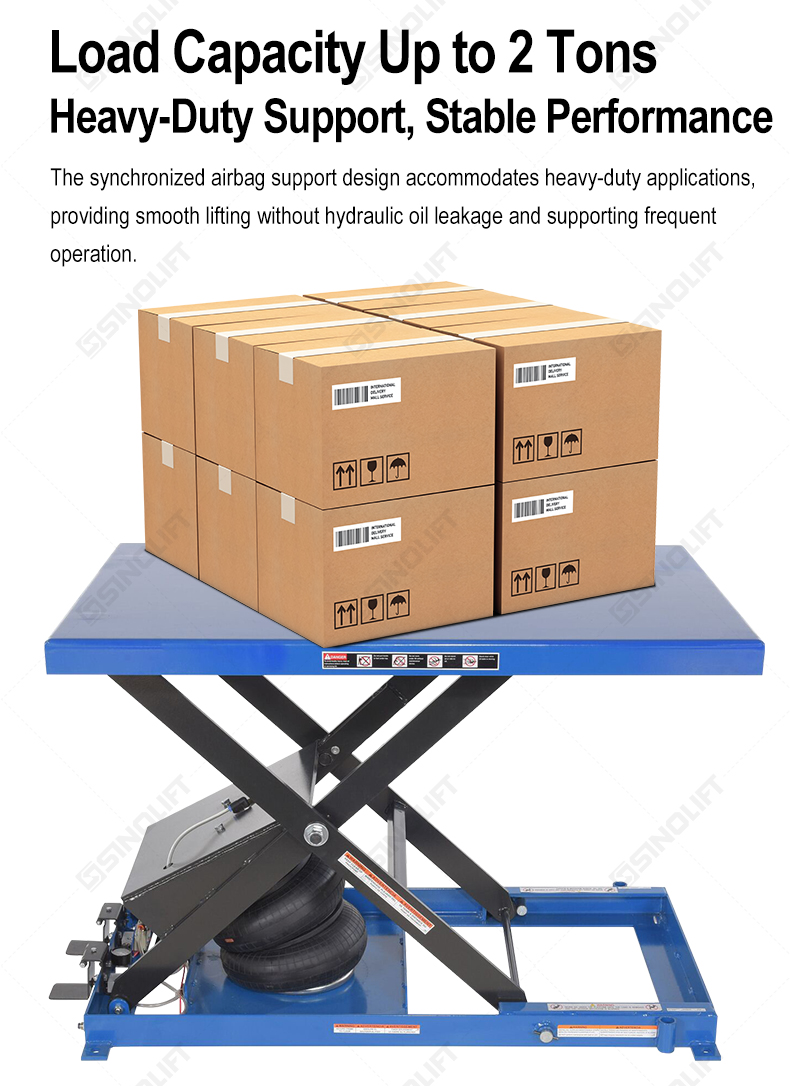

2. Heavy-Duty Load Capacity
Available in 500 kg, 1000 kg, and 2000 kg models to accommodate different industrial material handling and lifting requirements.
3. Convenient Foot-Pedal Operation
Foot-operated lift and lower controls allow operators to adjust the platform height while keeping both hands available for material handling.

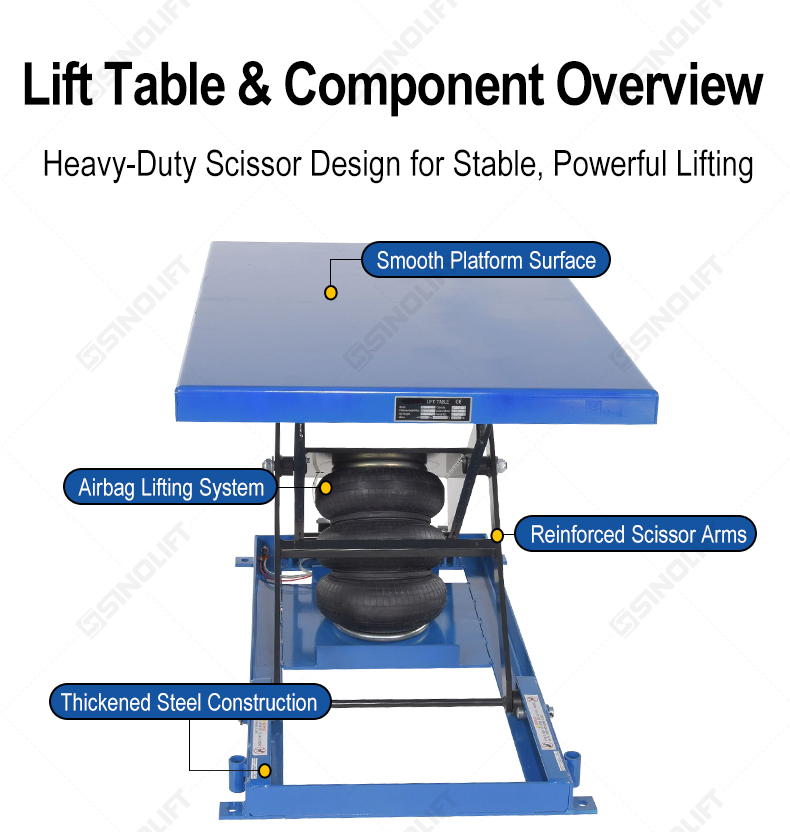

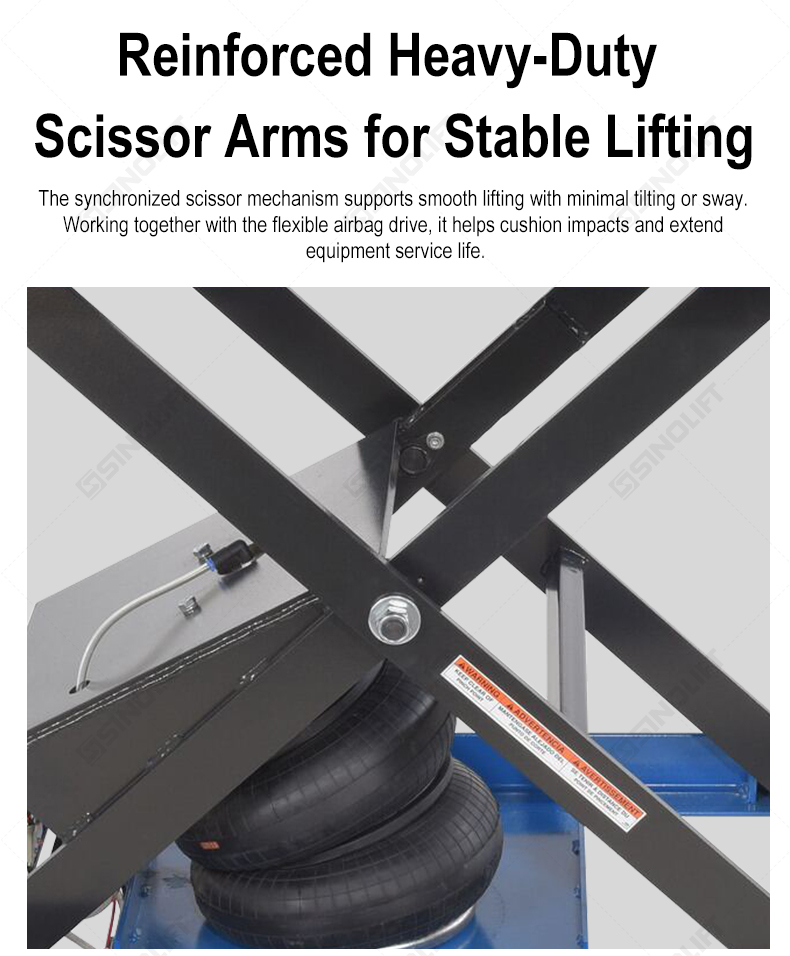

4. Reinforced Scissor Structure
Thickened steel scissor arms provide structural support and work with the airbag lifting system to achieve smooth, stable vertical movement.
5. Integrated Air Pressure Gauge
An air pressure gauge allows operators to monitor inflation pressure and check that the pneumatic system is operating within its specified pressure range.
6. Hydraulic Oil-Free Lifting
The airbag lifting mechanism eliminates the hydraulic cylinder from the lifting drive, avoiding hydraulic oil leakage from that mechanism and supporting cleaner operation.
7. Low-Profile Platform Design
The collapsible airbag enables a low minimum platform height, making the lift table suitable for low-clearance areas and production-line integration.

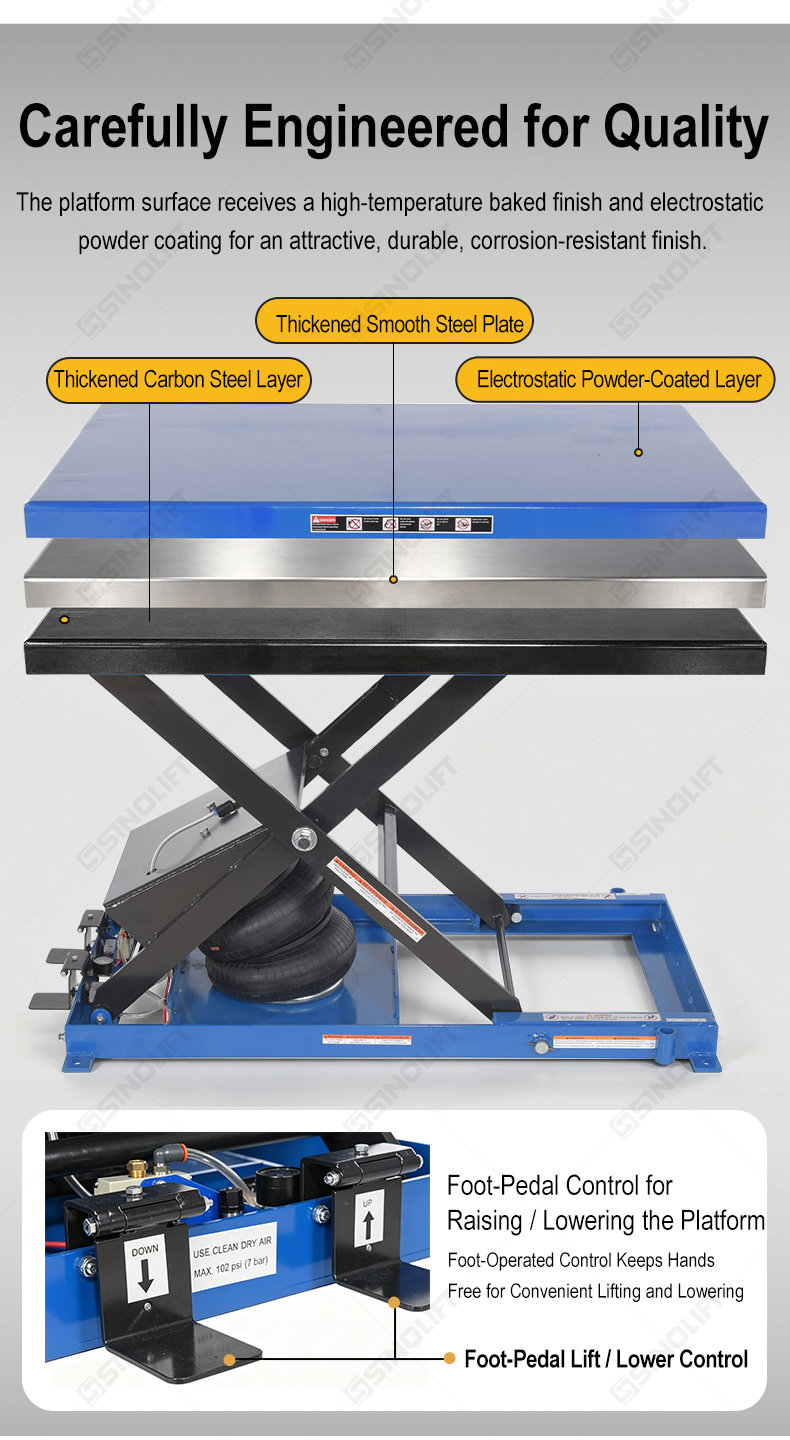

8. Durable Steel Construction
A thickened carbon steel platform with a protective powder-coated finish provides durability and helps resist corrosion in industrial working environments.
Applications
Manufacturing Workshops

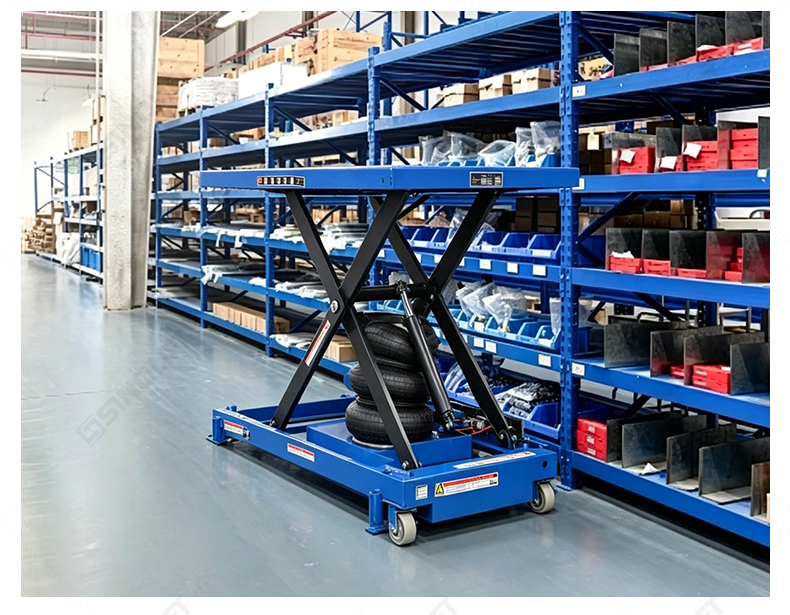

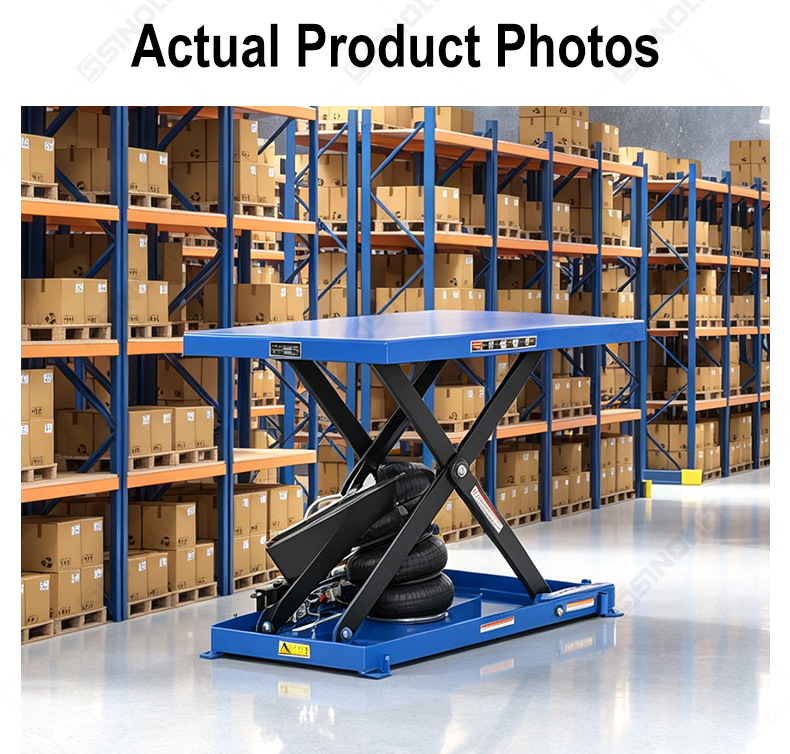

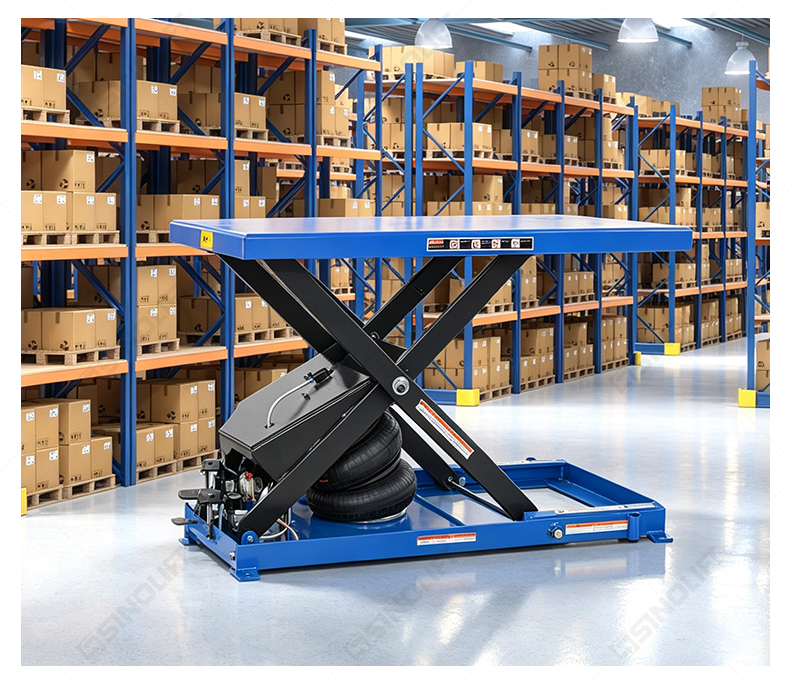

Warehousing and Logistics
Automotive Maintenance and Repair
FAQ:
Q1: What is a pneumatic airbag scissor lift table?
A pneumatic airbag scissor lift table is an industrial lifting platform that uses compressed air to inflate a reinforced air spring, which drives the scissor mechanism to raise the platform. It provides an alternative to conventional hydraulic lifting systems for material positioning and handling.
Q2: What is the lifting capacity of the Sinolift QN500?
The QN500 has a rated lifting capacity of 500 kg. The QN series also includes the QN1000 with a 1000 kg capacity and the QN2000 with a 2000 kg capacity.
Q3: What is the difference between a pneumatic airbag lift table and a hydraulic lift table?
A conventional hydraulic lift table uses hydraulic fluid and a cylinder to generate lifting force. The QN series uses a reinforced pneumatic airbag powered by compressed air, eliminating hydraulic oil leakage from the lifting drive and providing flexible pneumatic lifting.
