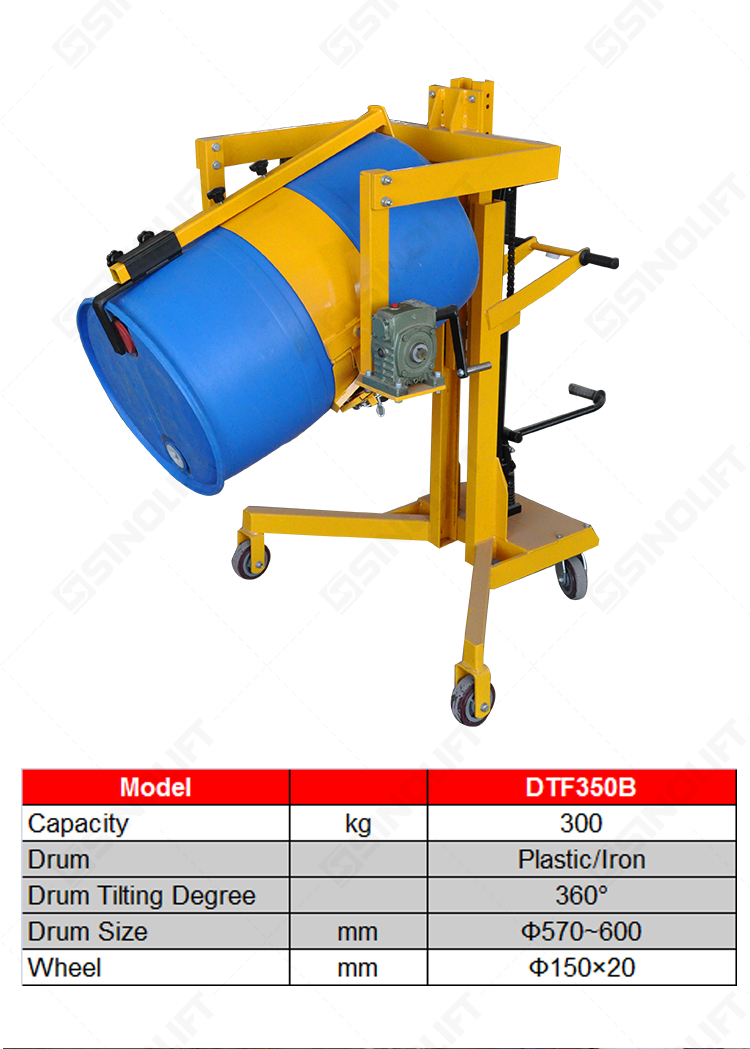

Drum rotating Handler
DTF350B
Designed to lift and pour a heavy drum up to 600mm(26") high. Manually rotate a drum 360 degrees in either direction. Lock drum in vertical position to prevent spills while transporting, or in horizontal position to dispense. Also move a drum to and from pallets.
Quantity:
1.Designed to lift and pour a heavy drum up to 600mm(26") high. Manually rotate a drum 360 degrees in either direction. Lock drum in vertical position to prevent spills while transporting, or in horizontal position to dispense. Also move a drum to and from pallets.2. Quickly lift, move and dispense a heavy drum,
3. Standard unit with gear reduction and the Stop brake. Adds gears for easy rotation and controlled dumping.
4. Pour drum beyond the V-shaped base. It is easy to Move drum off and on pallets.
specifications
| Model | DTF350B | |
| Capacity | kg | 300 |
| Drum | Plastic/Iron | |
| Drum Tilting Degree | 360° | |
| Drum Size | mm | Φ570~600 |
| Wheel | mm | Φ150×20 |
