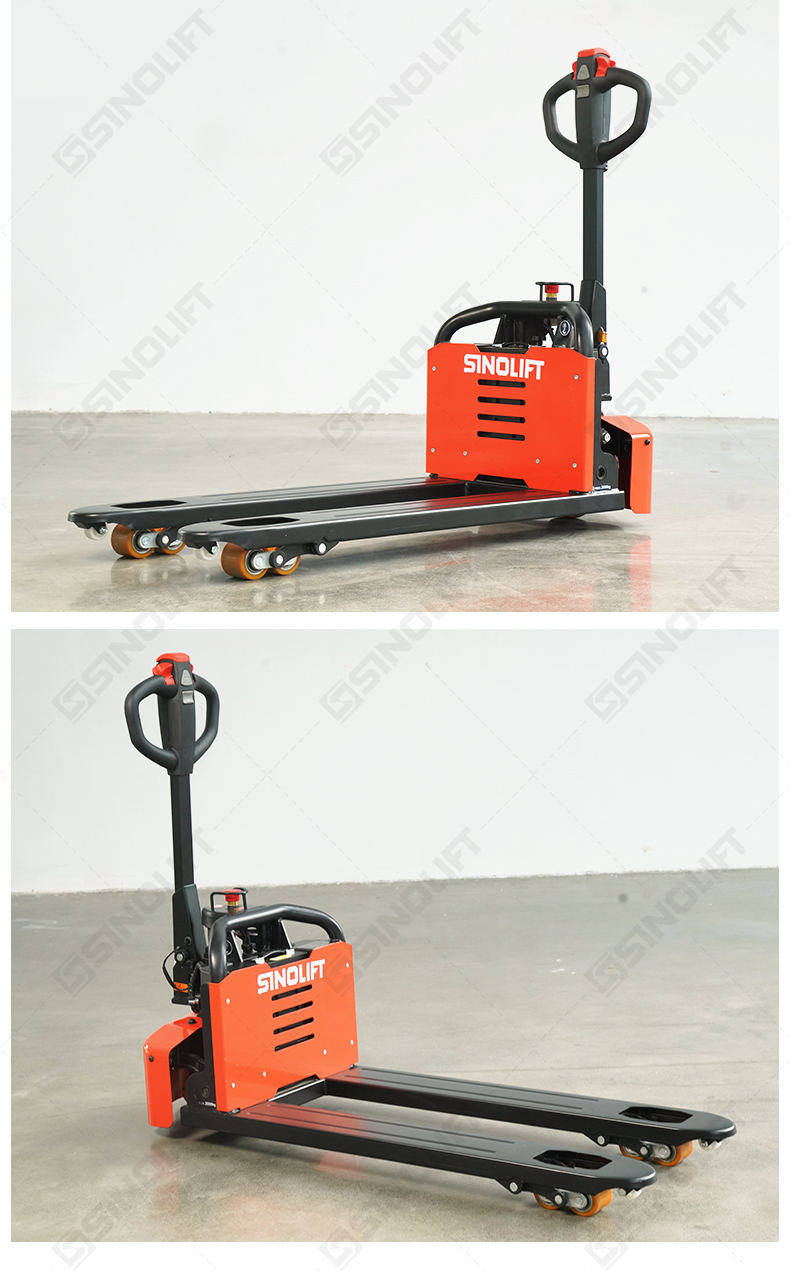

EPT15 EPT18 EPT20 LITHIUM-ION BATTERY PALLET TRUCK

EPT15 EPT18 EPT20

With powerful endurance, the 48V/15Ah maintenance-free rechargeable lithium battery provides continuous operation for 4-6 hours, meeting a full day’s handling needs.

Quantity

Contact Now

add to cart

Product Name:EPT15 EPT18 EPT20 LITHIUM-ION BATTERY PALLET TRUCK

Features of EPT15 EPT18 EPT20 LITHIUM-ION BATTERY PALLET TRUCK:

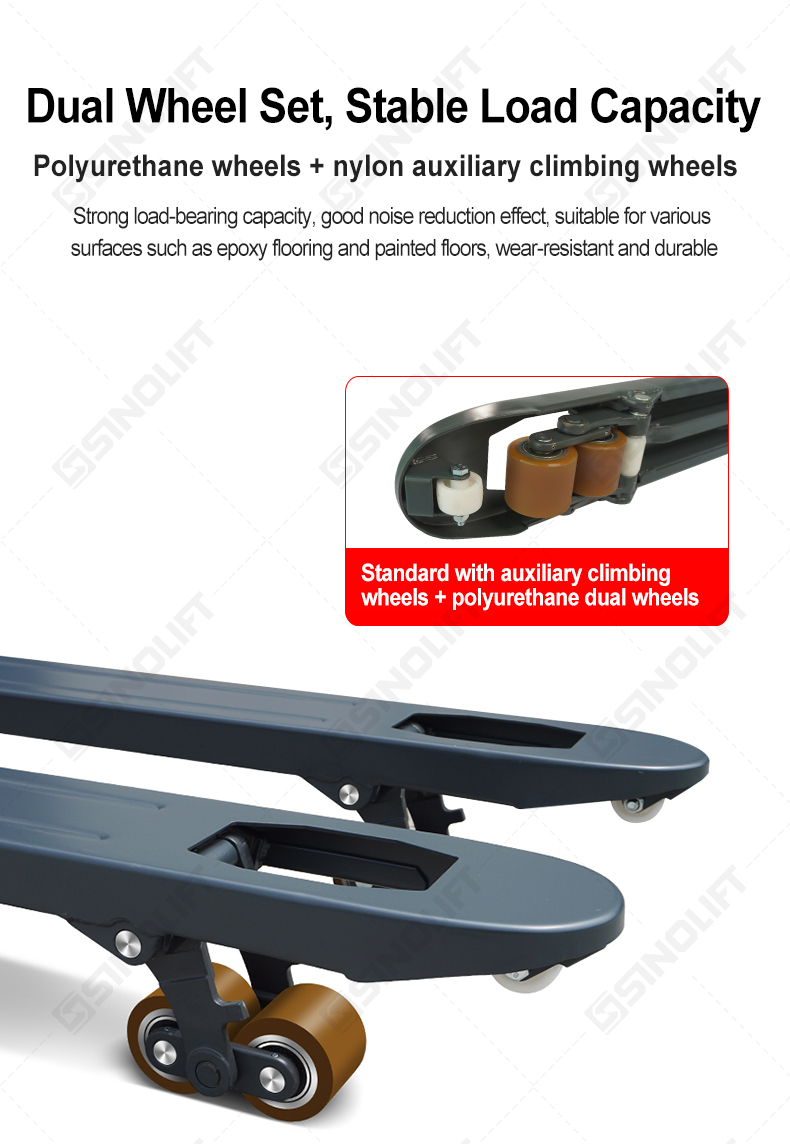

Dual Wheel Set, Stable Load Capacity
Polyurethane wheels and nylon auxiliary climbing wheels
Strong load-bearing capacity, good noise reduction effect, suitable for various surfaces such as epoxy flooring and painted floors, wear-resistant and durable
Standard with auxiliary climbing wheels + polyurethane dual wheels

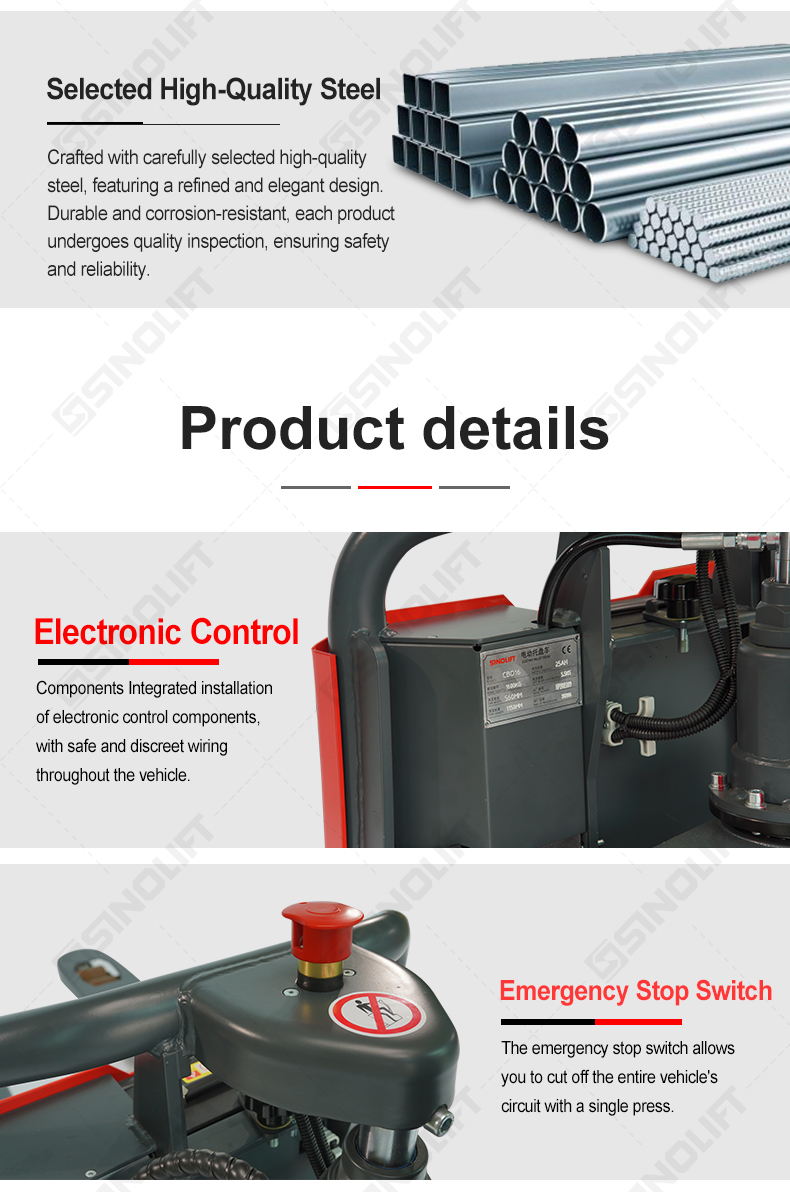

Crafted with carefully selected high-quality steel, featuring a refined and elegant design. Durable and corrosion-resistant, each product undergoes quality inspection, ensuring safety and reliability.
Components Integrated installation of electronic control components, with safe and discreet wiring throughout the vehicle.

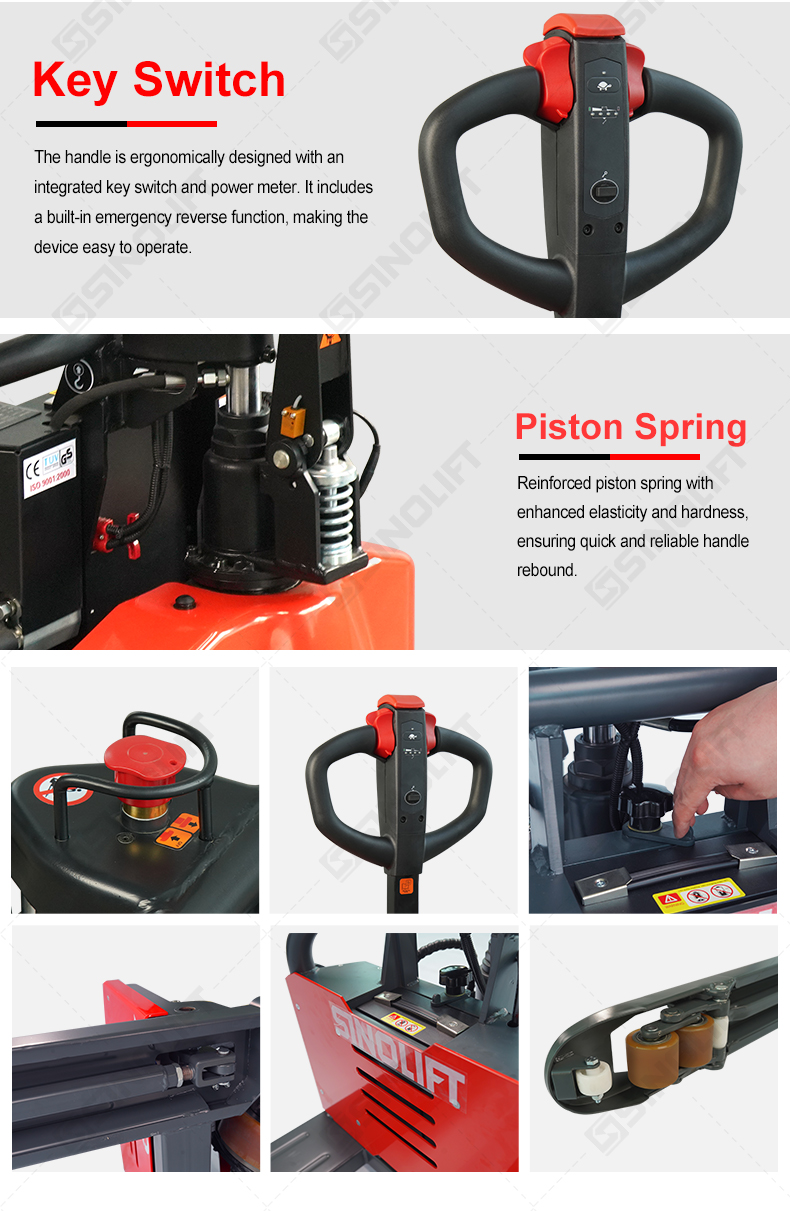

The handle is ergonomically designed with an integrated key switch and power meter. It includes a built-in emergency reverse function, making the device easy to operate.
Reinforced piston spring with enhanced elasticity and hardness, ensuring quick and reliable handle rebound.

Parametersof EPT15 EPT18 EPT20 LITHIUM-ION BATTERY PALLET TRUCK:

Dentiﬁcation	1.1	Manufacturer	SINOLIFT
	1.2	Model			EPT15	EPT18	EPT20
	1.4	Power Type			Lithium Battery	Lithium Battery	Lithium Battery
	1.5	Type of Operation			Pedestrian	Pedestrian	Pedestrian
	1.6	Load capacity/Rated load	q	kg	1500	1800	2000
	1.7	Load Center Distance	c	mm	600	600	650
	1.8	Alex centre to Fork Face	x	mm	950(1020)	950(1020)	950(1020)
	1.9	Wheelbase	y	mm	1220(1295)	1220(1295)	1220(1295)
Weight	2.1	Total Weight (with battery)		kg	148(153)	155(160)	158(163)
	2.2	Axle Load(laden):Drive side/Load-bearing side		kg
	2.3	Axle Load(unladen):Drive Side/Load-bearing side		kg
Tyre and Chassis	3.1	Tyre Type			Polyurethane	Polyurethane	Polyurethane
	3.21	Tyre Size ( Load Wheel) Tandem		mm	φ80x70(85mm) or φ74x70(75mm)	φ80x70(85mm) or φ74x70(75mm)	φ80x70(85mm) or φ74x70(75mm)
	3.22	Tyre Size (Load Wheel) Single			φ80x93(85mm) or φ74x93(75mm)	φ80x93(85mm) or φ74x93(75mm)	φ80x93(85mm) or φ74x93(75mm)
	3.3	Tyre Size (Drive Wheel)		mm	φ210x70	φ210x70	φ190x70
	3.4	Tyre Size (Caster Wheel)		mm	φ70x36	φ70x36	φ70x36
	3.5	Wheels Quantity, front/rear (x=Driving Wheels)			4/1x+2	4/1x+2	4/1x+2
	3.6	Track Width,Front,Driving Side	b10	mm	460	460	460
	3.8	Track Width,Rear,Loading Side	b11	mm	400(520)	400(520)	400(520)
Dimension	4.4	Lifting Height	h3	mm	190(200)	190(200)	190(200)
	4.9	Height of Tiller Arm in Driving Position, Min.- Max.	h14	mm	600-1220	600-1220	680-1200
	4.15	Lowered Height	h13	mm	75(85)	75(85)	75(85)
	4.19	Overall Length	l1	mm	1540(1610)	1540(1610)	1540(1610)
	4.20	Length to Fork Face	l2	mm	390	390	390
	4.21	Overall Width	b1	mm	560(680)	560(680)	560(680)
	4.22	Fork Dimension	s/e/l	mm	50x160x1150(1220)	50x160x1150(1220)	54x160x1150(1220)
	4.25	Fork Spread Width	b5	mm	560/680	560/680	560/680
	4.32	Ground Clearance at Center of Wheelbase (Min)	m2	mm	30	30	42
	4.33	Aisle Width for Pallets 1000x1200 Crossways	Ast	mm	1790	1790	1790
	4.34	Aisle Width for Pallets 800x1200 Crossways	Ast	mm	1740	1740	1740
	4.35	Turning Radius	Wa	mm	1350	1350	1350
Performance	5.1	Traveling Speed (Laden/Unladen)		km/h	4.5/4	4.5/4	4.5/4
	5.2	Lifting Speed (Laden/Unladen)		mm/s	22/17	22/17	15/28
	5.3	Lowering Speed (Laden/Unladen)		mm/s	26/30	26/30	35/26
	5.8	Max.Gradient Performance (Laden/Unladen)		%	5/7	5/7	6/15

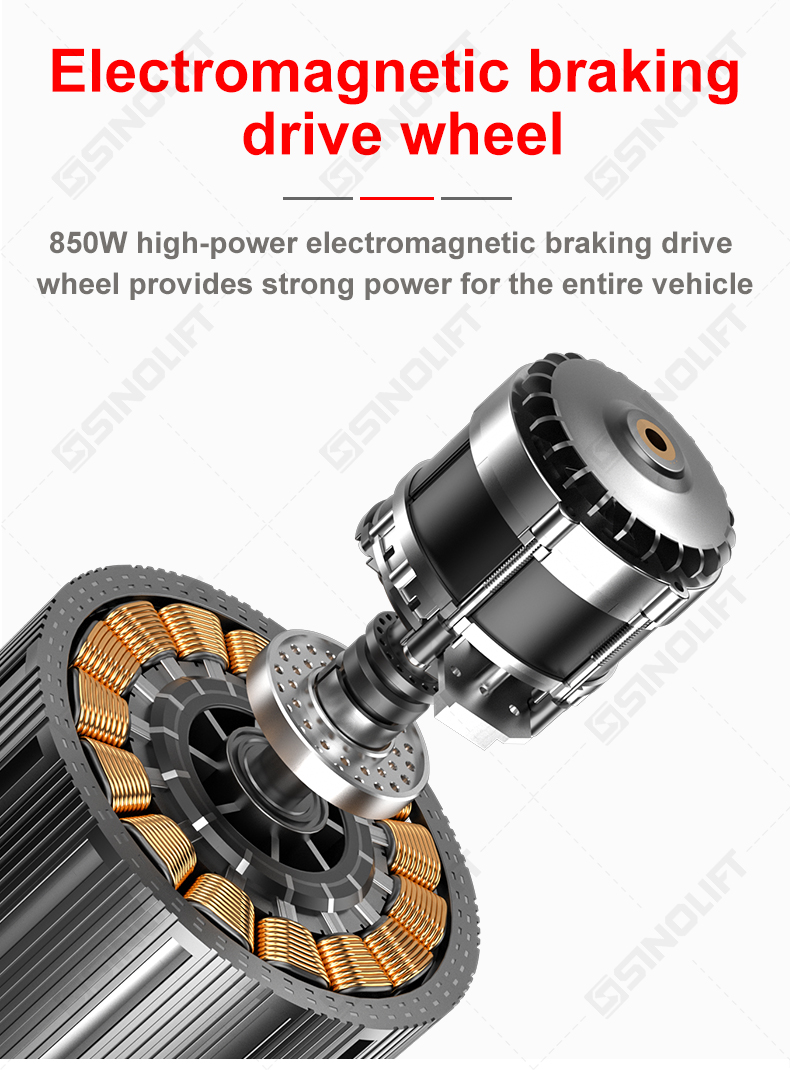

	5.10	Service Brake Type			Electromagnetic	Electromagnetic	Electromagnetic
Power Unit	6.1	Driving Motor Rating (DC) S2 60min		kw	0.75	0.75	0.85
	6.2	Lifting Motor Rating S3 15%		kw	0.5	0.5	0.6
	6.3	Battery Type			Li-ion	Li-ion	Li-ion
	6.4	Battery Voltage/Capacity K5		V/Ah	24/25	24/25	48/15(20Ah 30Ah option)
	6.5	Battery Weight		kg	5	5	6(6.5kg 7kg)
	6.7	Charger		V/A	24/10	24/10	48/6
Others	8.1	Controller Model			DC CURTIS	DC CURTIS	DC CURTIS
	10.5	Steering Type			Mechanical	Mechanical	Mechanical
	10.7	Sound level atdriver's ear according to EN 12 053		dB(A)	70	70	70
