EPT20-15ET2 Fully Electric Pallet Truck

Product Name

EPT20-15ET2Fully Electric Pallet Truck

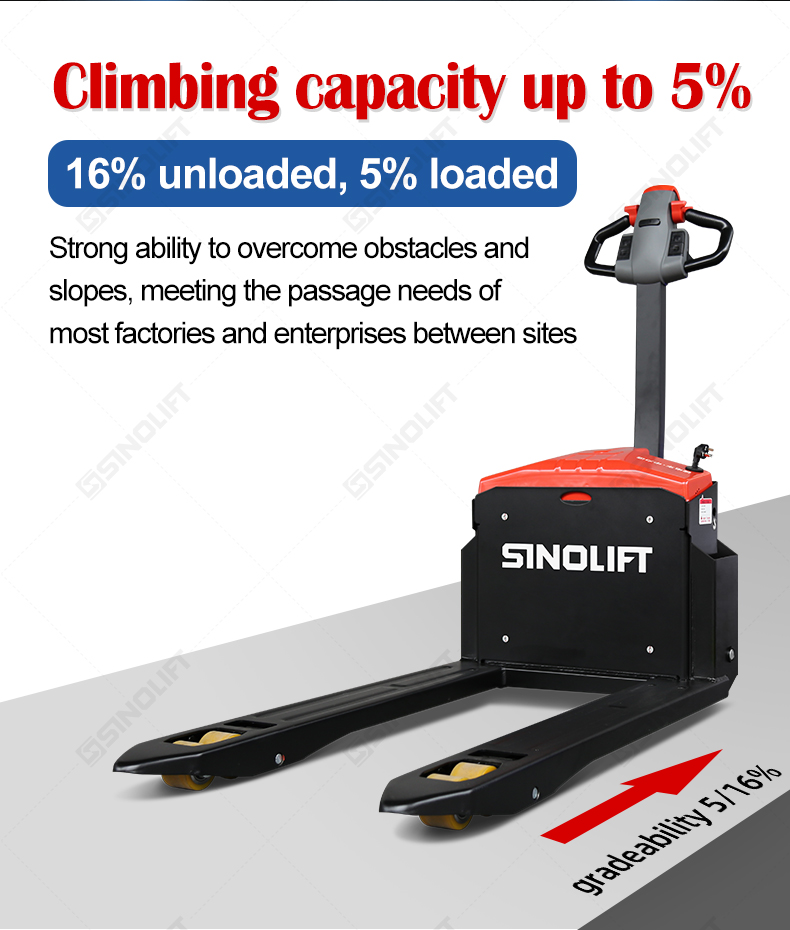

Strong ability to overcome obstacles and slopes, meeting the passage needs of most factories and enterprises between sites.

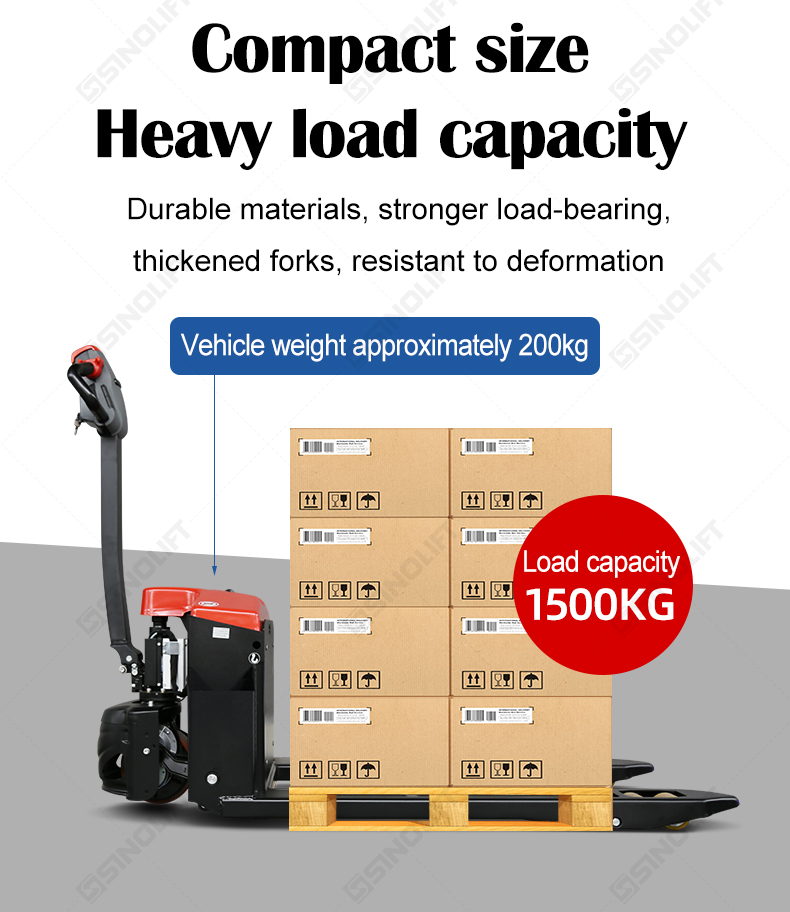

1. Durable materials, stronger load-bearing, thickened forks, resistant to deformation

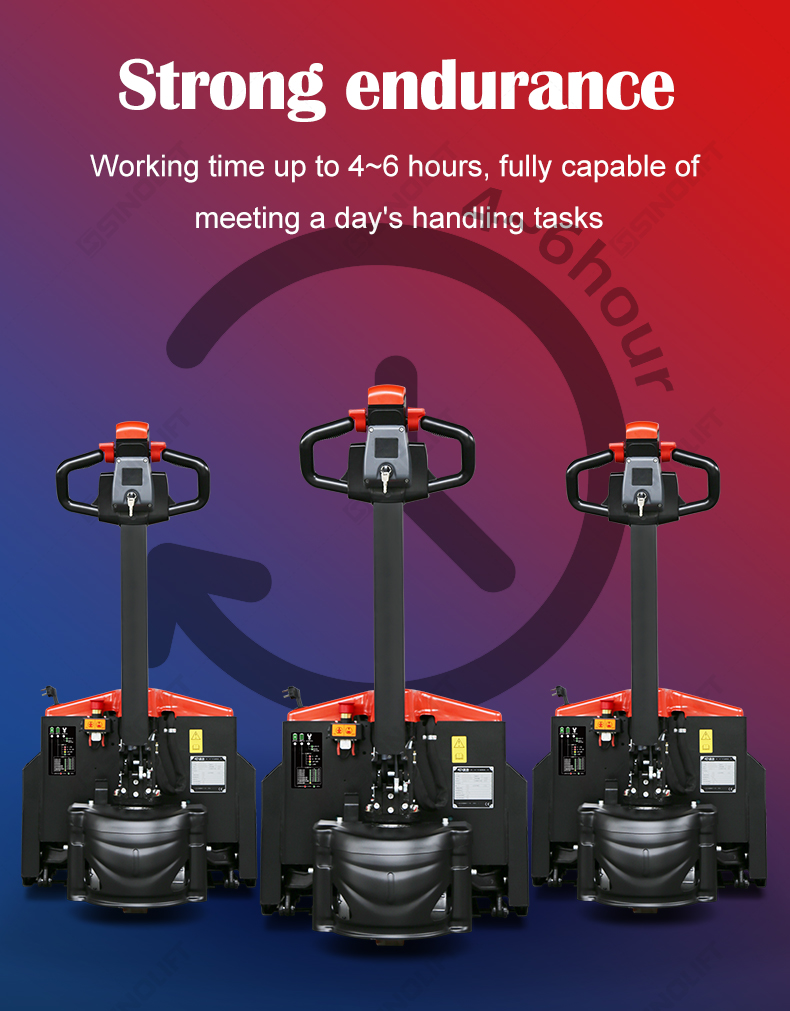

2. Working time up to 4~6 hours, fully capable of meeting a day's handling tasks

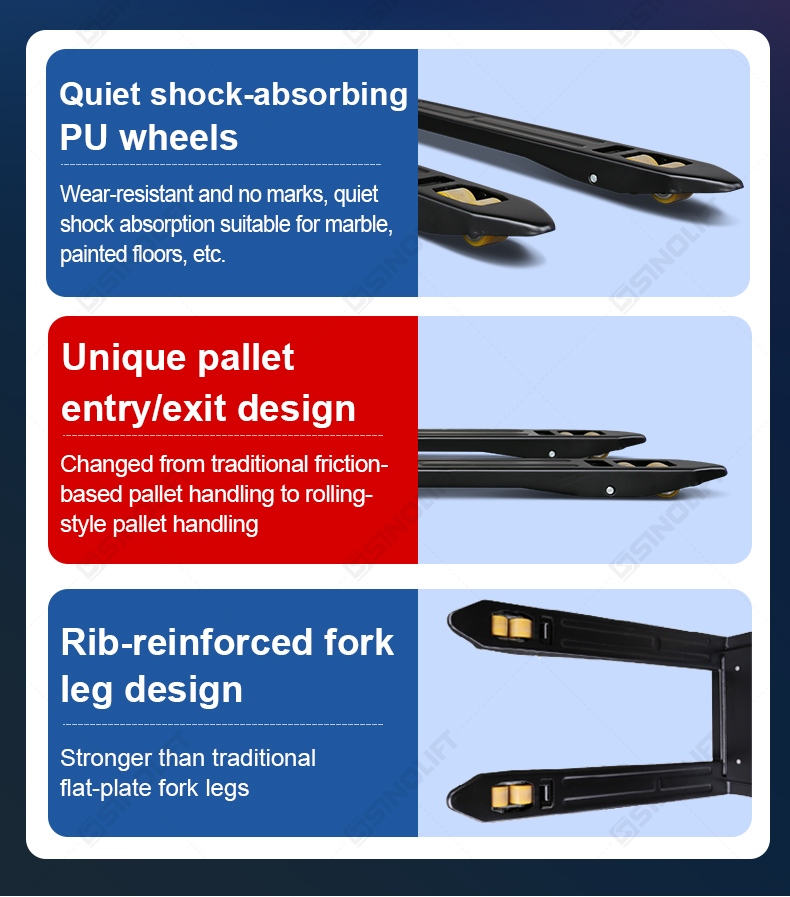

3. Wear-resistant and no marks, quiet shock absorption suitable for marble, painted floors, etc.

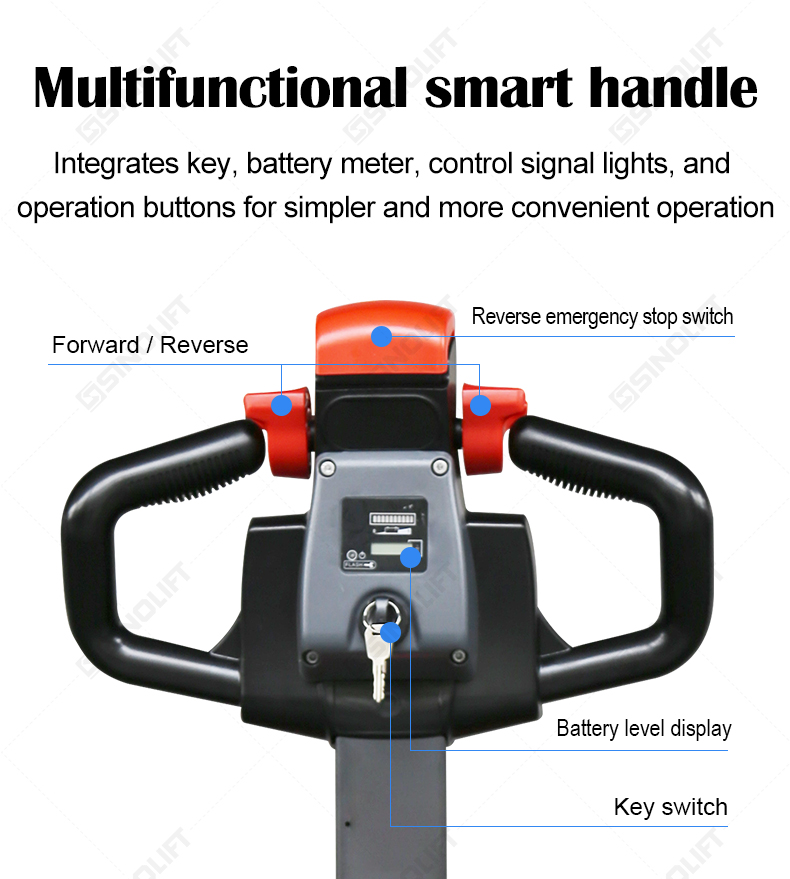

4. Integrates key, battery meter, control signal lights, and operation buttons for simpler and more convenient operation

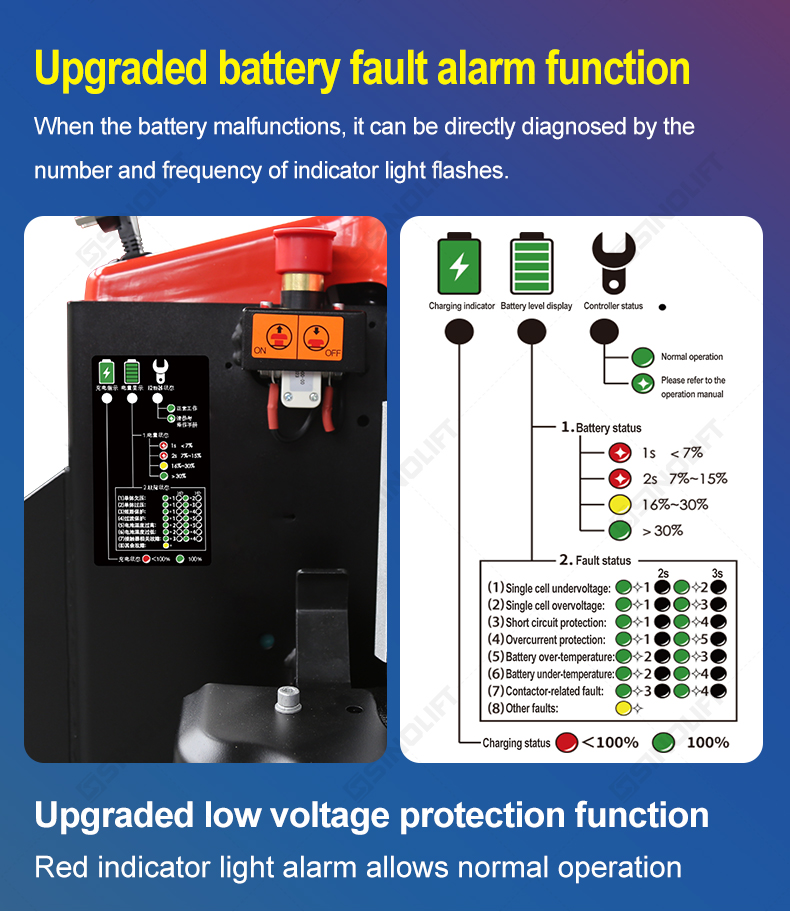

5. When the battery malfunctions, it can be directly diagnosed by the number and frequency of indicator light flashes.

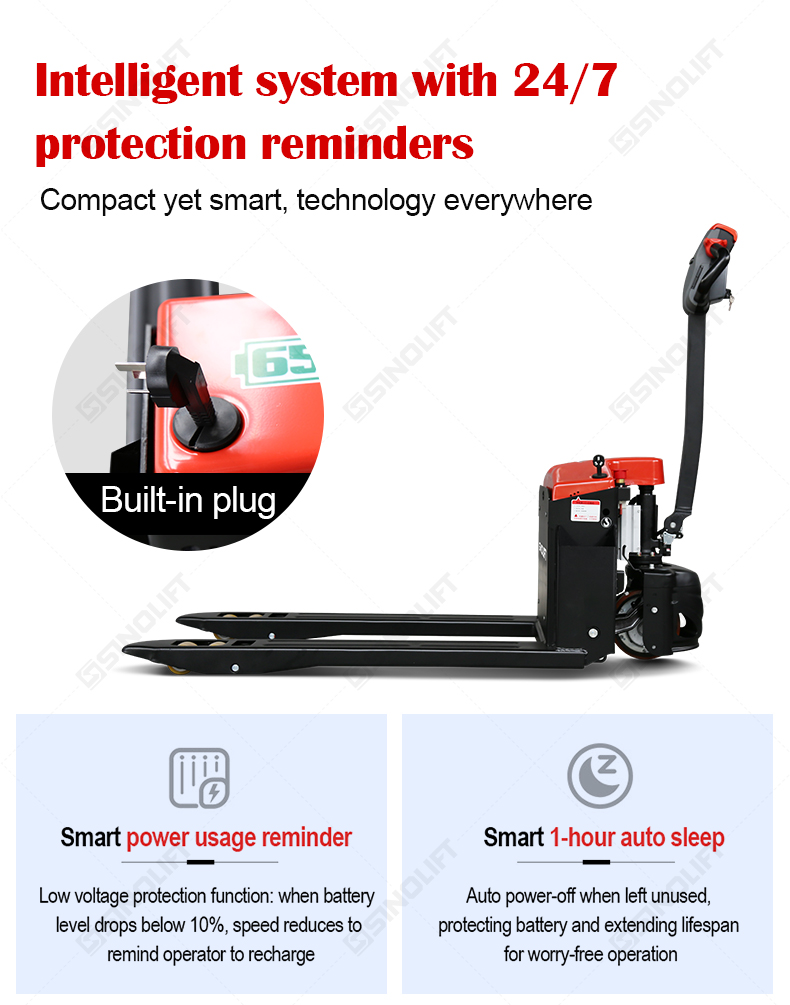

6. Low voltage protection function: when battery level drops below 10%, speed reduces to remind operator to recharge
7. Auto power-off when left unused, protecting battery and extending lifespan for worry-free operation

Model	-	EPT20-15ET2
Power Type	-	Electric
Operation Type	-	Walk-behind
Rated Load	kg	1500
Load Center Distance	mm	600
Load Bearing Length	mm	883/946
Wheelbase	mm	1202/1261
Self-weight (incl. battery)	kg	180
Tire Type (Drive/Load Wheel)	-	Polyurethane
Standard Max Lifting Height	mm	115
Handle Min/Max Height	mm	750/1170
Fork Lowered Height	mm	80
Overall Length	mm	1638
Length to Fork Vertical Face	mm	488

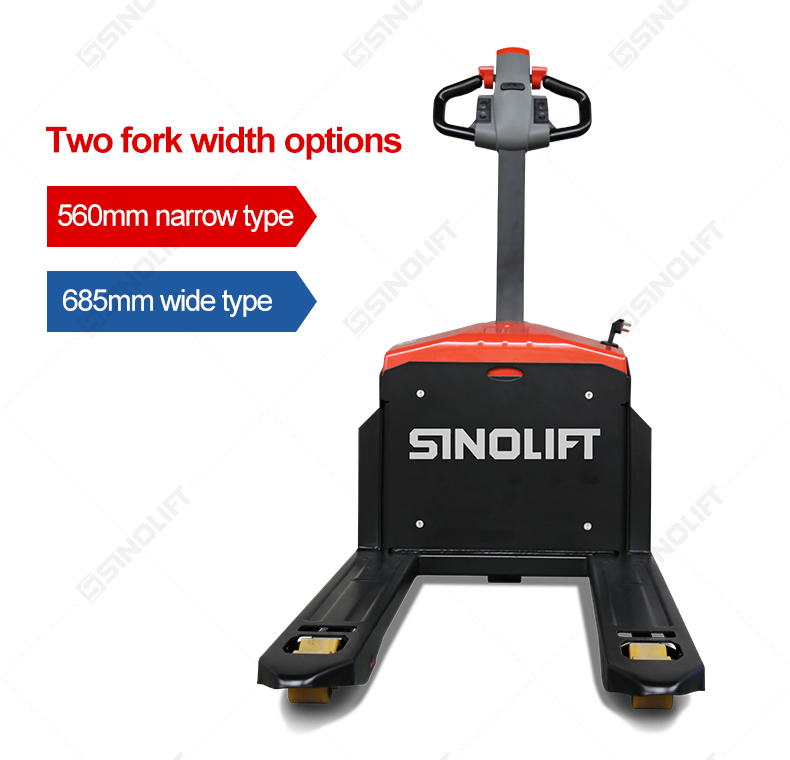

Overall Width	mm	560 (685)
Fork Dimensions	mm	50/150/1150
Fork Outer Width	mm	560 (685)
Aisle Width (1000脳1200 Pallets)	mm	2280
Aisle Width (800脳1200 Pallets)	mm	2150
Turning Radius	mm	1475
Travel Speed (Loaded/Unloaded)	km/h	4.5/5
Lifting Speed (Loaded/Unloaded)	m/s	0.027/0.038
Lowering Speed (Loaded/Unloaded)	m/s	0.059/0.039
Max Gradeability (Loaded/Unloaded)	%	5月16日
Service Brake Type	-	Electromagnetic
Drive Motor Rated Power (S2 60min)	kW	0.75
Lift Motor Rated Power (S3 15%)	kW	0.84
Battery Voltage/Nominal Capacity	V/Ah	2x12/65Ah
Drive Control Type	-	DC
Steering Type	-	Mechanical
Noise Level	dB(A)	74
