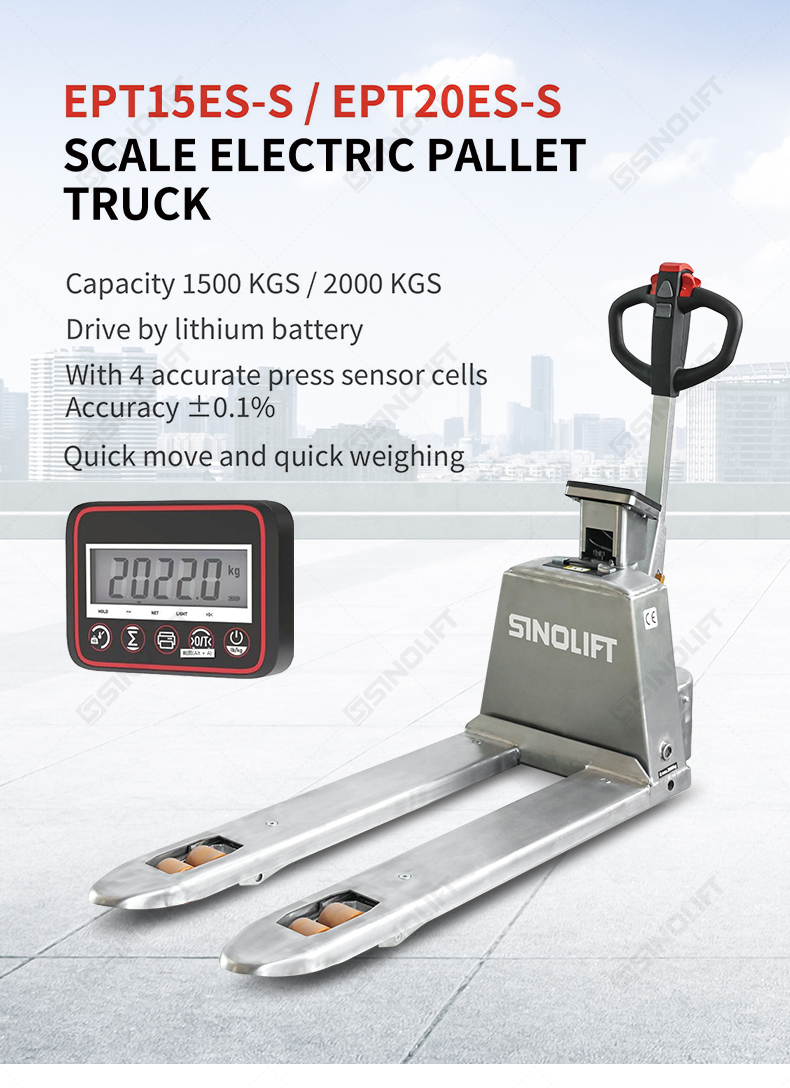

EPT20ES-S Stainless Steel Lithium Battery Operated Pallet Truck

EPT20ES-S Stainless Steel Lithium Battery Operated Pallet Truck

Key Features:

• Long-Lasting Performance: Equipped with a high-capacity 48V/15Ah lithium iron phosphate battery, offering 3 to 6 hours of continuous operation.

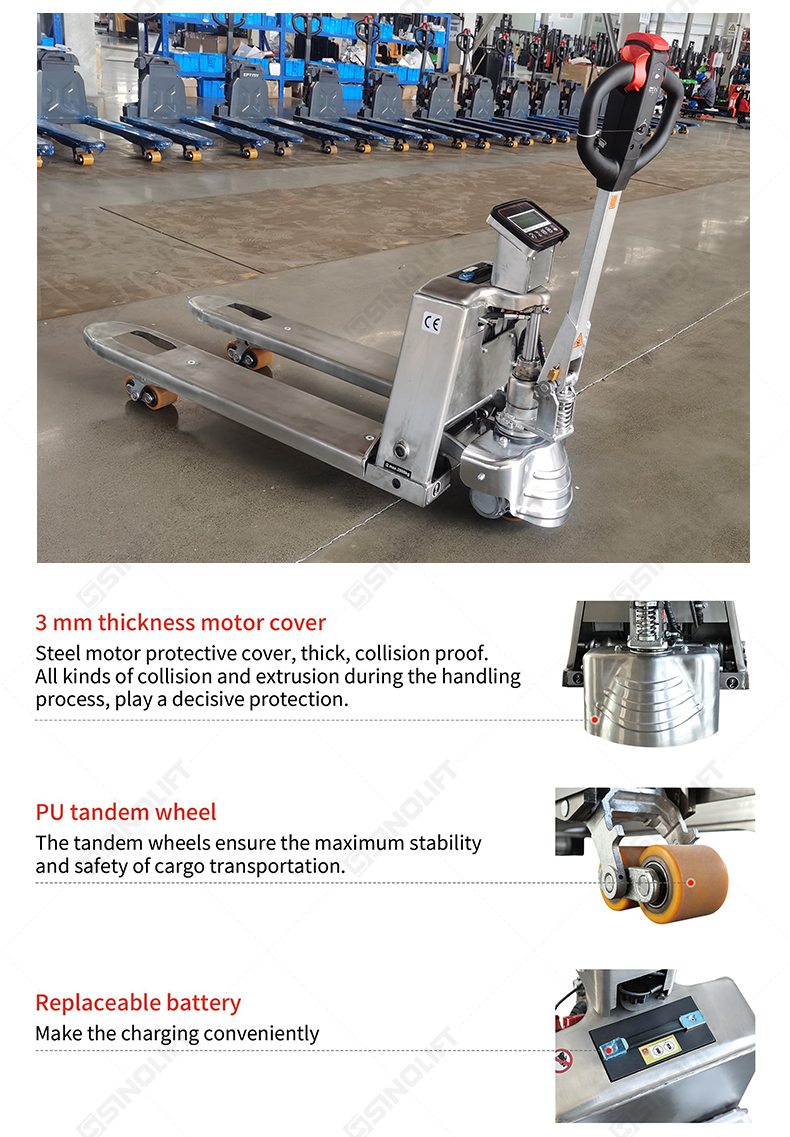

• Easy Maintenance: The slide-out lithium-ion battery design ensures quick and hassle-free replacement.
• Energy-Efficient: The low energy consumption of the lithium iron phosphate battery promotes longer working hours and more stable, safer operation.
• Enhanced Durability: Reinforced forks made of upgraded manganese steel provide superior strength and reliability.

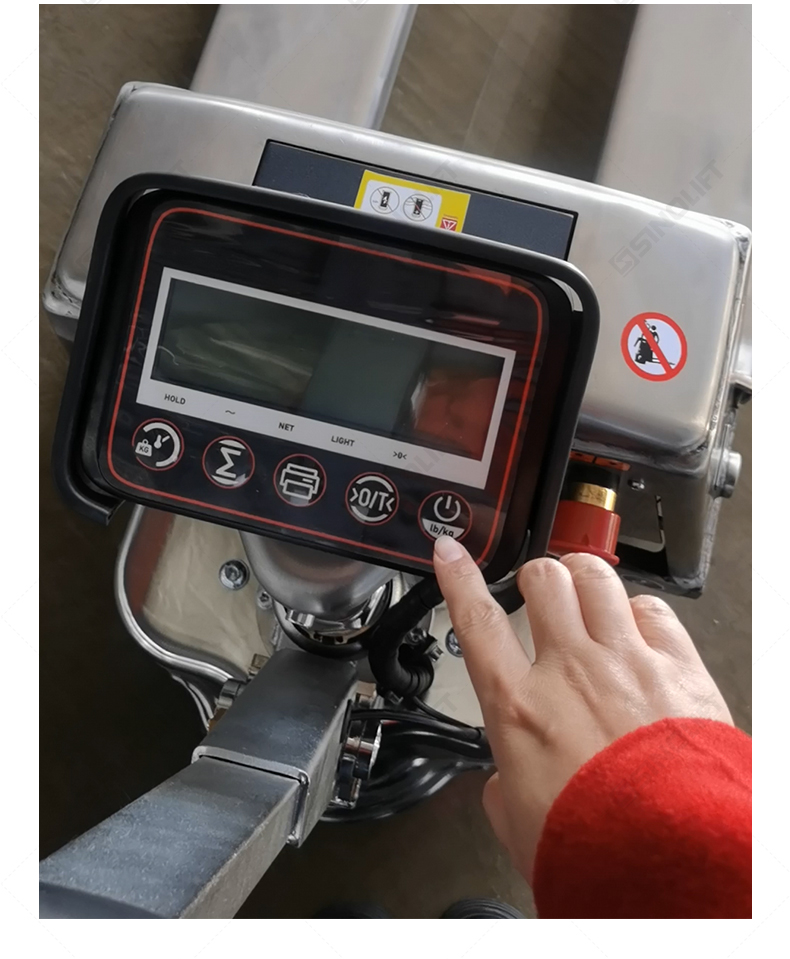

• Precision Weighing: Built-in4 high-precision sensors deliver accurate 0.1KG feedback for reliable weight measurement.
• Stainless Steel Construction: Thestainless steel design adds corrosion resistance and durability, ensuring a longer product life in demanding environments.

Manufacturer	SINOLIFT
Model	EPT20E
Power Type	Lithium Battery
Type of Operation			Pedestrian
Load capacity/Rated load	q	kg	2000
Load Center Distance	c	mm	600
Alex centre to Fork Face	x	mm	840(910)
Wheelbase	y	mm	1220(1295)
Total Weight (with battery		kg	140(145)
Tyre Type			Polyurethane
Tyre Size( Load Wheel)Tandem		mm	φ80x70(85mm)or φ74x70(75mm)
Tyre Size (Load Wheel) Single			φ80x93(85mm)or φ74x93(75mm)
Tyre Size (Drive Wheel)		mm	φ190x170
Wheels Quantity, front/rear (x=Driving Wheels			4/1x+2
Track Width,Front,Driving Side		mm	460
Track Width,Rear,Loading Side		mm	400(520)
Lifting Height	b10	mm	180(200)
Height of Tiller Arm in Driving Position, Min.-Max.	b11	mm	800-1240
Lowered Height	h3	mm	75(85)
Overall Length	h14	mm	1540(1610)
Length to Fork Face	h13	mm	390
Overall Width	l1	mm	560(680)
Fork Dimension	l2	mm	50x160x1150(1220)
Fork Spread Width	b1	mm	560/680
Ground Clearance at Center of WVheelbase (Min)	s/e/l	mm	30
Aisle Width for Pallets 1000x1200 Crossways	b5	mm	1790
Aisle Width for Pallets 800x1200 Crossways	m2	mm	1740
Turning Radius	Ast	mm	1350
Traveling Speed (Laden/Unladen)	Ast	km/h	4.5/4
Lifting Speed (Laden/Unladen)	Wa	mm/s	22/17
Lowering Speed (Laden/Unladen)		mm/s	26/30
Max.Gradient Performance (Laden/Unladen)		%	8月20日
Service Brake Type			Electromagnetic
Driving Motor Rating (DC) S2 60min		kw	0.85
Lifting Motor Rating S3 15%		kw	0.6
Battery Type			Li-ion
Battery Voltage/Capacity K5		V/Ah	48/15
Battery Weight		kg	6.3
Charger		V/A	48/16
Controller Model			DC CURTIS
Steering Type			Mechanical
Sound level atdriver's ear according to EN 12 053		db(A)	70
