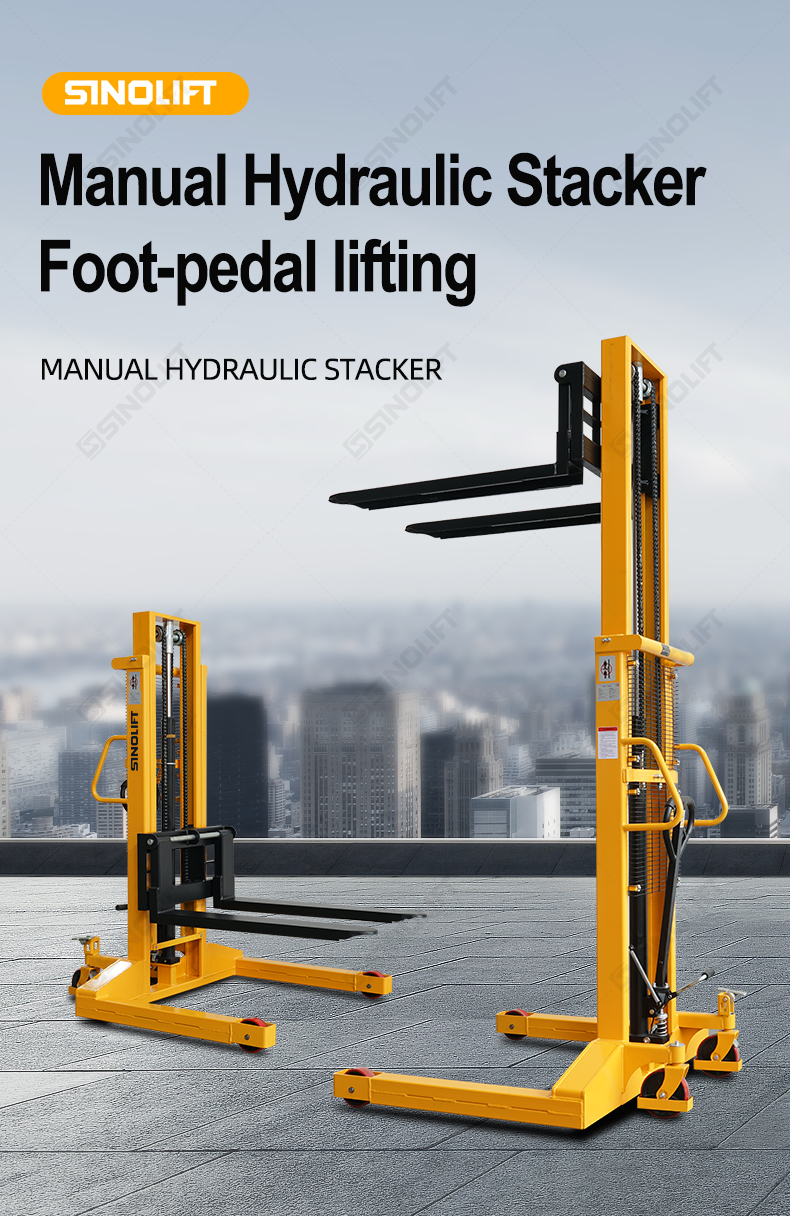

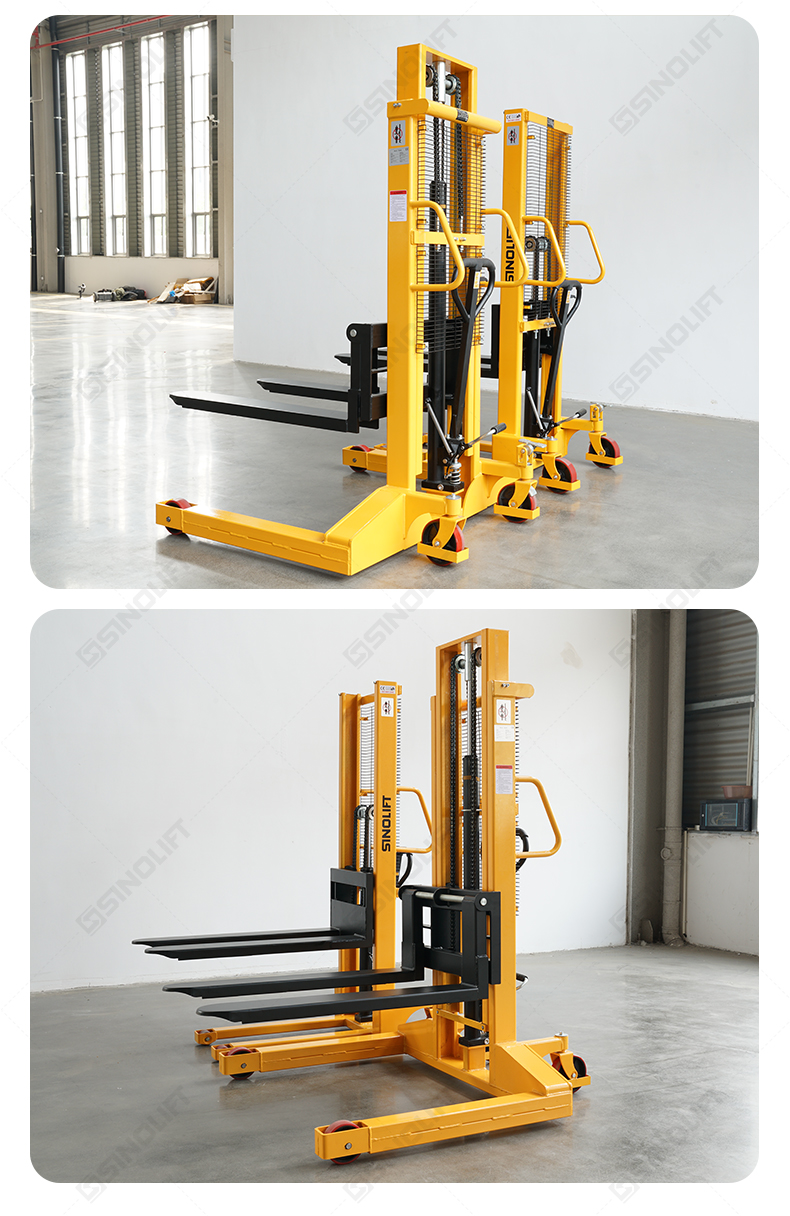

SMS-W Manual Hydraulic Stacker with Wide Legs
Product Name
SMS-W Manual Hydraulic Stacker with Wide Legs
The SMS-W Manual Hydraulic Stacker delivers robust lifting performance (1000–2000 kg capacity) for demanding environments like warehouses, docks, and factories. Its unique trapezoidal wide-leg design increases the support area by 15%, ensuring exceptional stability even on uneven or complex surfaces such as factory floors and loading docks. Built with reinforced steel construction and dual mast options (up to 3m lift height), this stacker safely handles heavy loads with precision.
Key Design Highlights:
Heavy-Duty Construction – Reinforced 6-8mm steel frame and dual plate chains ensure stability and long-term durability.
Wide-Leg Stability – The trapezoidal base design distributes weight evenly, preventing tipping during operation.

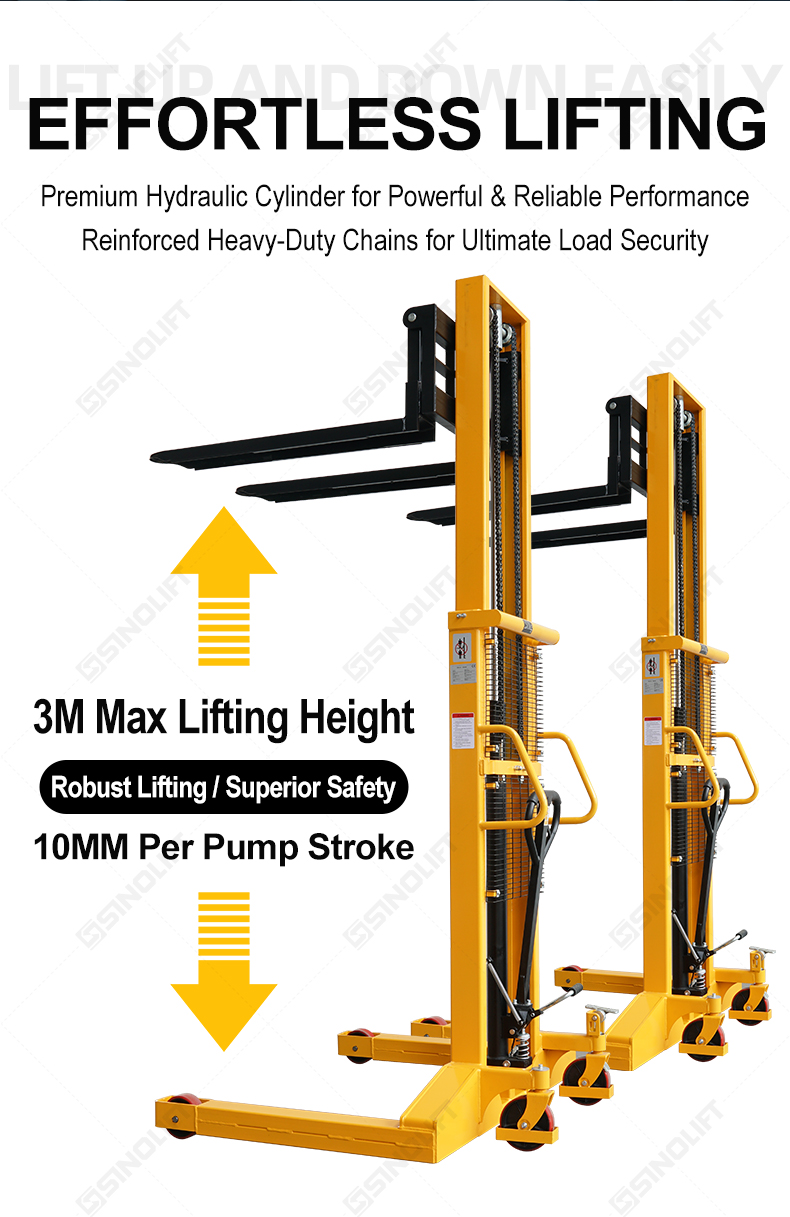

Smooth Hydraulic Lifting – A sealed, leak-proof oil cylinder delivers powerful, controlled lifting with minimal effort.
Adjustable Fork Options – Choose between fixed or movable forks (330–740mm width) for flexible pallet handling.

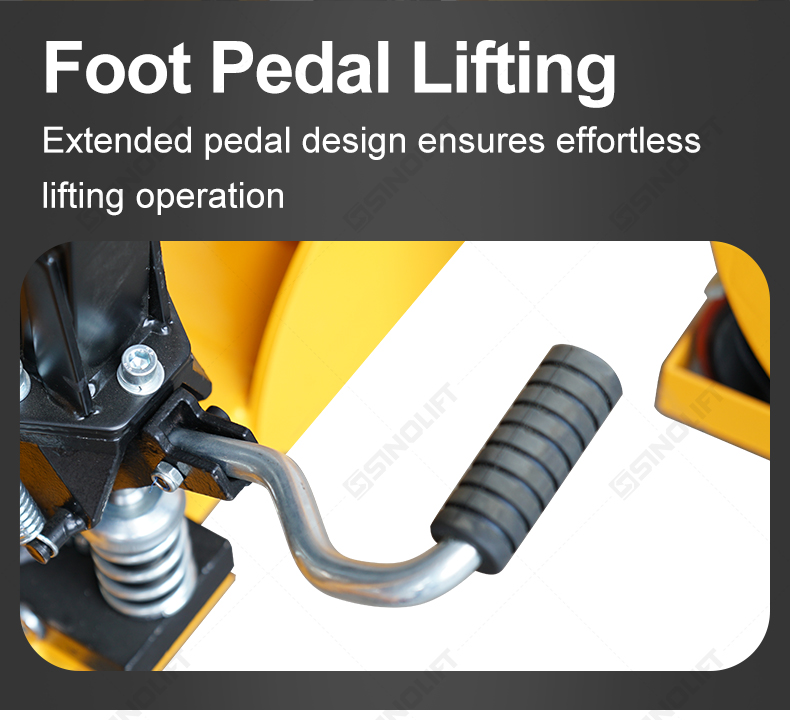

Ergonomic Operation – Oversized handle and foot-pedal lifting reduce operator fatigue, while PU swivel wheels ensure smooth maneuverability.
Safety Features – Foot-activated brake secures the stacker on slopes, and reinforced fork bases prevent deformation under heavy loads.
Ideal For:
•Warehouse Storage & Retrieval
•Factory & Dock Material Transport
•Supermarket & Retail Stocking
•Express & Logistics Loading
Product Specifications
| SMS-W Series - Wide Leg Single Mast Stacker | ||
| Model | SMS1016W1 | SMS1016W2 |
| Load Capacity (kg) | 1000 | 1000 |
| Lifting Height (mm) | 1800 | 1600 |
| Maximum Height (mm) | 85 | 85 |
| Fork Length (mm) | 900/1150 | 900/1150 |
| Fork Width (mm) | 330-740/550 | 330-740 |
| Front Load Wheel (mm) | φ125×70 | φ125×70 |
| Rear Guide Wheel (mm) | φ100×50 | φ100×50 |
| Dimensions (mm) | 1600×1150×1980 | 1600×1340×1980 |
| Net Weight (kg) | 224 | 240 |
| SMS-W Series - Wide Leg Double Mast Stacker | ||||||
| Model | SMS1030W | SMS1030W | SMS1030W | SMS1030W | SMS1030W | SMS1030W |
| Load Capacity (kg) | 1000 | 1000 | 1500 | 1500 | 1500 | 2000 |
| Lifting Height (mm) | 2500 | 3000 | 2000 | 2500 | 3000 | 2000 |
| Maximum Height (mm) | 85 | 85 | ||||
| Fork Length (mm) | 900/1150 | 900/1150 | ||||
| Fork Width (mm) | 310-740/550 | 310-740/550 | ||||
| Front Load Wheel (mm) | φ125×70 | φ125×70 | ||||
| Rear Guide Wheel (mm) | φ100×50 | φ100×50 | ||||
| Overall Length (mm) | 1600 | 1600 | 1600 | 1600 | 1600 | 1600 |
| Overall Width (mm) | 1350 | 1350 | 1350 | 1350 | 1350 | 1350 |
| Overall Height (mm) | 1580 | 1640 | 2080 | 1580 | 1640 | 2080 |
| Net Weight (kg) | 198 | 330 | 345 | 375 | 405 | 425 |
