WP-200-3.4BW Rough Terrain Electric Pallet Truck

sinolift

With a 2000KG load capacity, it features a DC24V/2000W hydraulic pump, DC24V/1000W drive wheel assembly, and a 12x2V/210Ah battery with a VST224-30 (24V/30A) charger.

Quantity:

Contact Now

add to cart

Product Description: WP-200-3.4BW Rough Terrain Electric Pallet Truck

The WP-200-3.4BW Rough Terrain Electric Pallet Truck is a durable, high-capacity solution for challenging environments. With a 2000KG load capacity, it features a DC24V/2000W hydraulic pump, DC24V/1000W drive wheel assembly, and a 12x2V/210Ah battery with a VST224-30 (24V/30A) charger. Designed for rough terrains like construction sites and outdoor warehouses, it combines power and efficiency with an ergonomic CH-1 handle.

Key Features

2000KG Capacity: Handles heavy loads effortlessly on uneven surfaces.
Powerful Systems: DC24V/2000W pump and 1000W drive ensure robust performance.
Long-Lasting Battery: 12x2V/210Ah supports full-day use with fast charging.

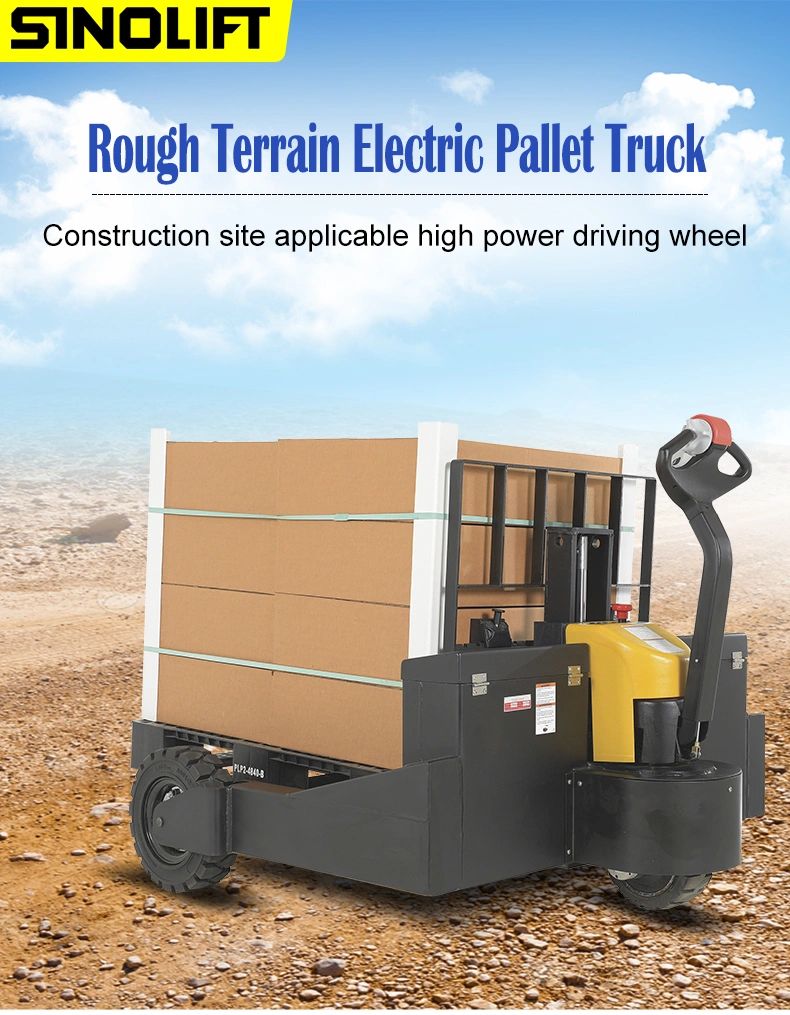

Rough Terrain Ready: Excels on gravel, dirt, and slopes.

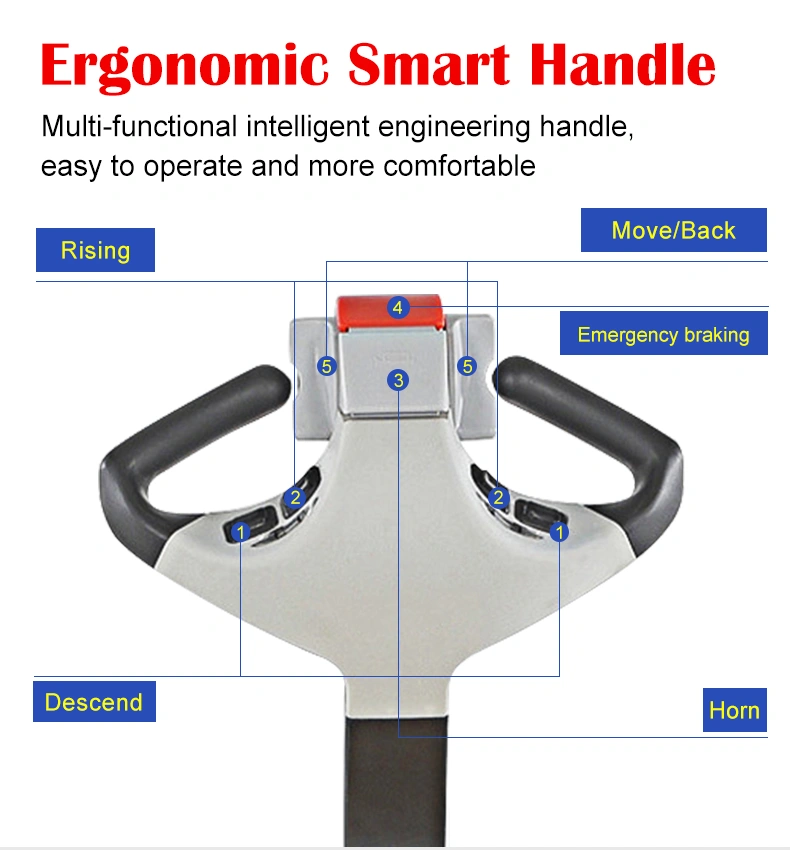

Ergonomic Design: CH-1 handle enhances comfort and control.

Parameters of WP-200-3.4BW Rough Terrain Electric Pallet Truck：


Model	列1	WP-200-3.0A-RT	WP-200-3.4BW
Drive Type		Electric	Electric
Operation Type		Stand-on	Stand-on
Rated Capacity	kg	2000	2000
Load Center	mm	450	600
Service Weight	kg	610	610

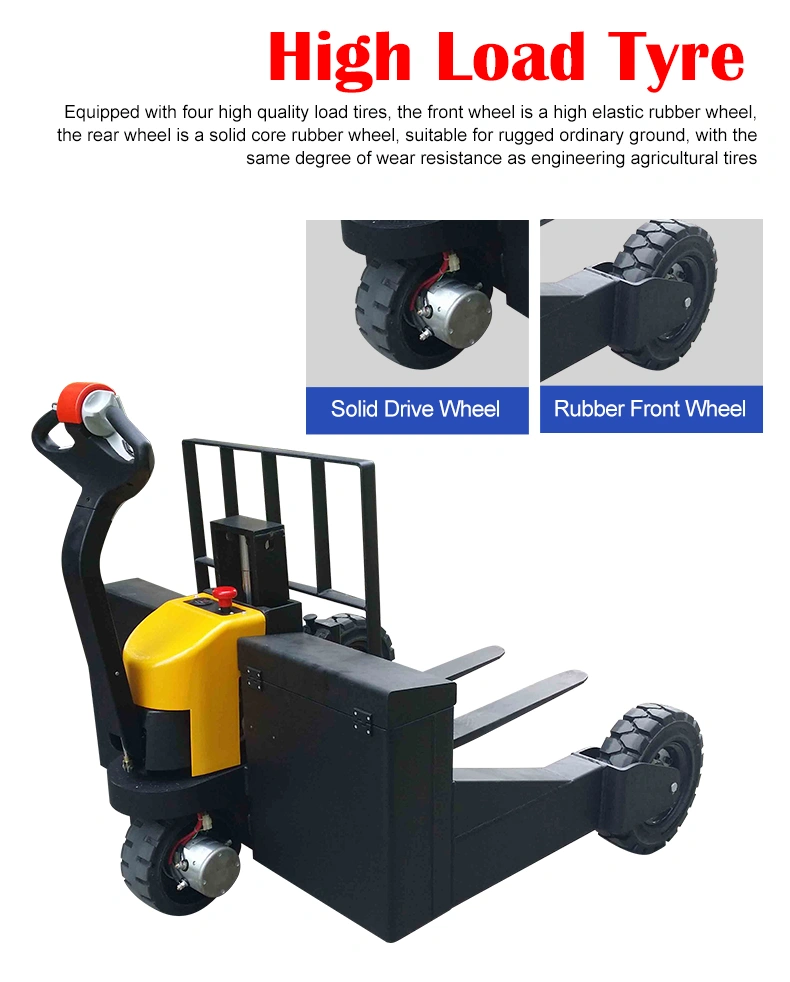

Tire (wheel)		Solid Rubber	Solid Rubber
Drive Wheel	mm	Φ310×100	Φ300×125
Load Wheel	mm	2×Φ310×110	2×Φ300×125
Total Height	mm	1350	1425
Lifting Height	mm	310	340
Clearance	mm	50	80
Handle Height	mm	1350	1425
Overall Length	mm	2160	2462
Overall Width	mm	1540	1588
Fork Length	mm	920	1200
Fork Width	mm	915	680
Frame Clearance	mm	100	100
Inner Width of Straddle Leg	mm	1270	1270
Turning Radious	mm	1750	1820
Drive Speed (Laden/Unladen)	km/h	3.5/4.5	3.5/4.5
Lifting Speed (Laden/Unladen)	mm/s	13/25	13/25

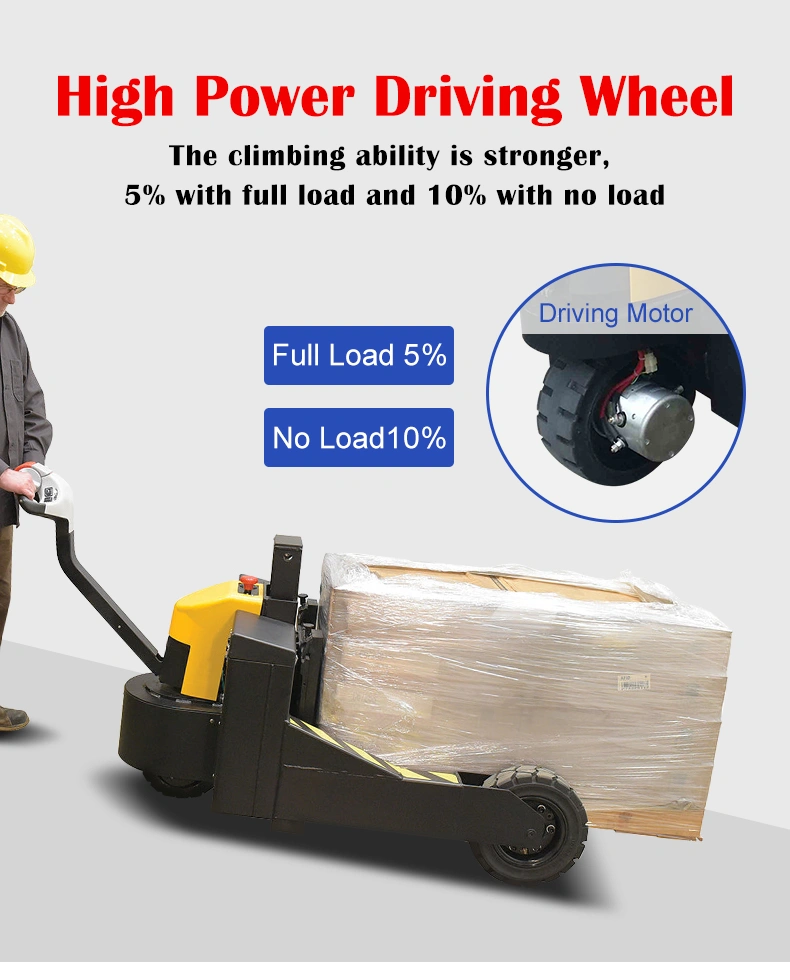

Gradeability (Laden/Unladen)	%	5/10	5/10
Brake		Electro-Magnetic	Electro-Magnetic
Drive Motor	kw	AC 2.0	AC 1.2
Lifting Motor	kw	DC 2.0	DC 2.0
Battery	V/Ah	24/210	24/210
Charger	V/A	24/30	24/30
Noise level	dB	<70	<70
