WB30 WB30A Manual Drum Dumper
WB30 WB30A
WB30 WB30A Manual Clamp and Forward Rotation Drum Dumpers offer affordable solutions for dispensing drums in low level dumping applications.
Quantity:
WB30 WB30A Manual Drum Dumper
TheseManual Drum Dumper units are designed to allow you to dispense drums in low-level dumping applications.
• For lifting, turning, mixing, emptying and transporting drums.

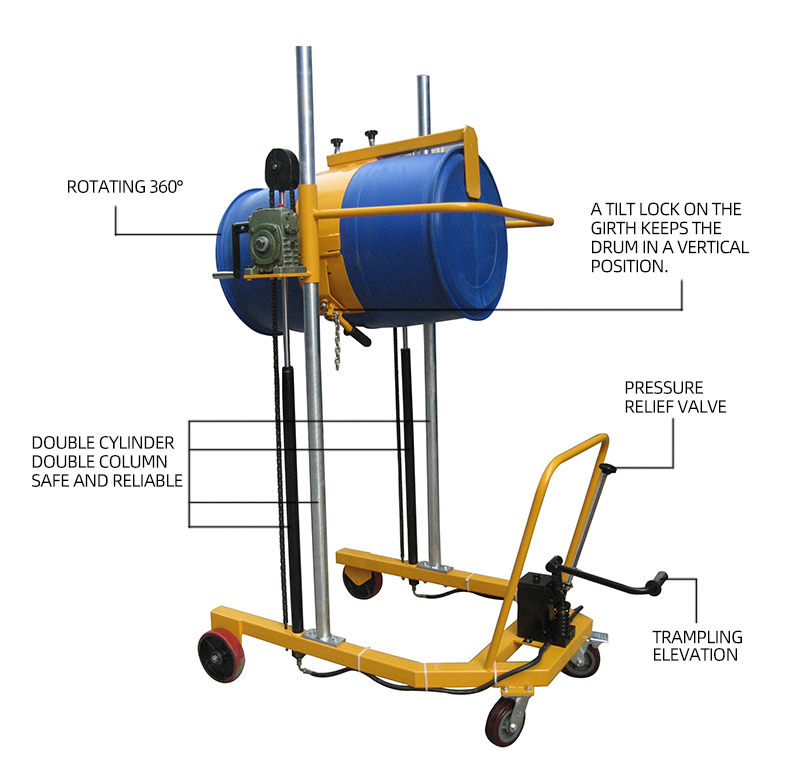

• Hydraulic cylinder with pipe breakage protection. Hydraulic lifting with pedal.
• Drums are turned with hand crank. 2 castors, 2 swivel castor with wheel stop, solid rubber wheels.
• For 210 liter steel drums with rolling hoops.
• For plastic and steel drums, Ø450-700mm and Ø572x900
| Model | Manual Drum Dumper WB30 | Manual Drum Dumper WB30A | |
| Lifting power type | Manual | Manual | |
| Capacity | kg | 300 | 300 |

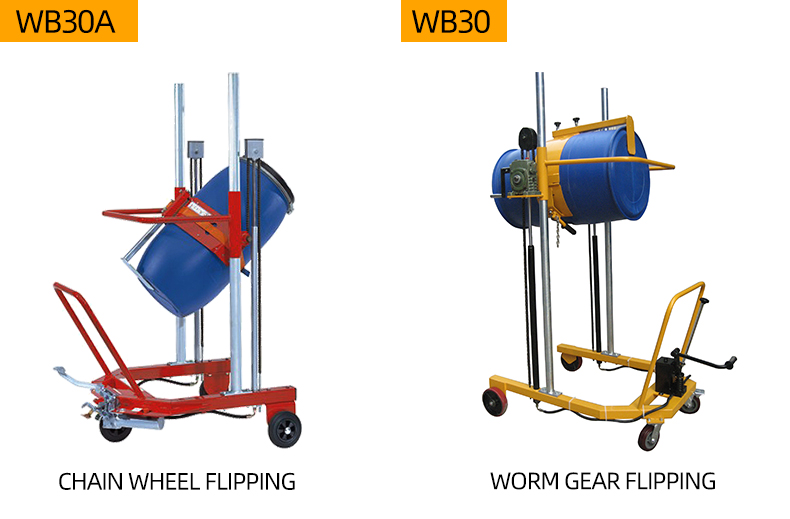

| Flipping Way | Worm gear | Chain wheel | |
| Drum Size | mm | 30 gallon (Ø450x700)-55 gallon ( (Ø572x900) steel, 210L plastic | |
| Strokes to Maximum Lifting Height Approx | mm | 82 | 82 |
| Vertical lifting height | mm | 1300 | 1300 |
| Horizontal lifting height | mm | 1500 | 1500 |
| Tilting height at 135 degree | mm | 720 | 720 |
| Wheel | mm | Ø200/Ø150 | Ø200/Ø150 |

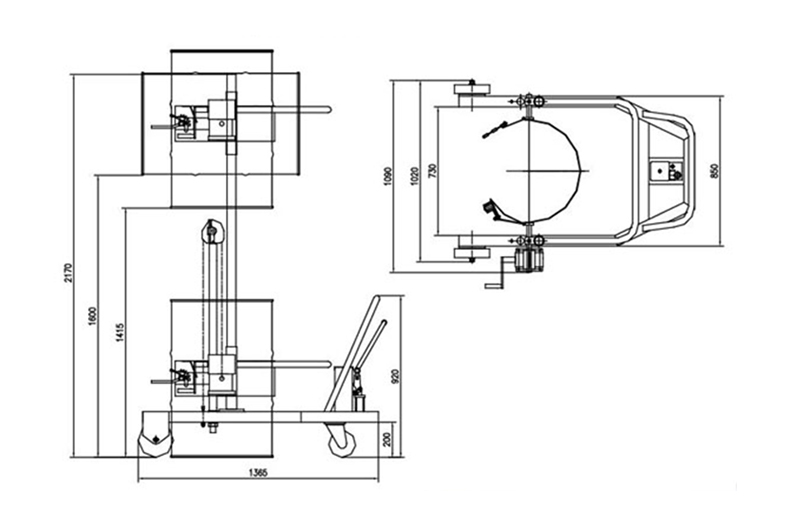

| Overall dimension | mm | 1360x1030x2190 | 1360x1030x2190 |
| Net weight | kg | 135 | 132 |
