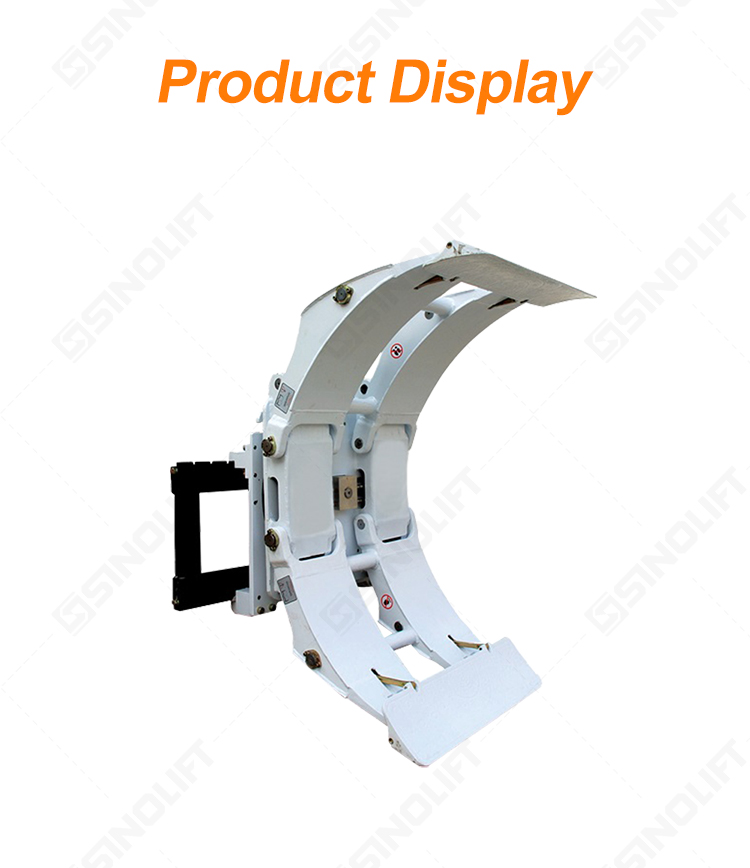

D SERIES PAPER ROLL CLAMP

ZJJ25D-B031/C031 ZJJ30D-C011 ZJJ35D-C017 ZJJ50D-D022

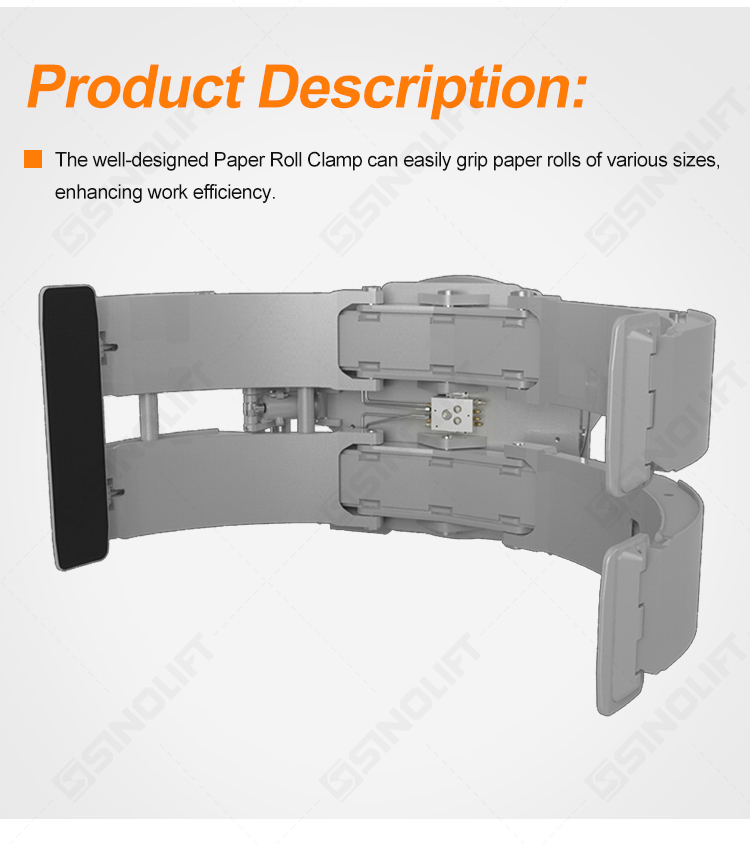

The Paper Roll Clamp is well-designed, using advanced technology to easily grip paper rolls of various sizes. Its sturdy structure and high-quality materials ensure long-term stable use. Easy to operate, improving work efficiency, it is the ideal choice for the paper processing industry.

Quantity

Contact Now

add to cart

The Paper Roll Clamp is well-designed, using advanced technology to easily grip paper rolls of various sizes. Its sturdy structure and high-quality materials ensure long-term stable use. Easy to operate, improving work efficiency, it is the ideal choice for the paper processing industry.

Features:

Using advanced technology to easily grip paper rolls of various sizes. I
Suitable for various cargo handling scenarios, enhancing operational flexibility and efficiency.
The product is known for its durability and reliability, withstanding long-term use without damage.
Simple to operate, reducing labor intensity for operators.

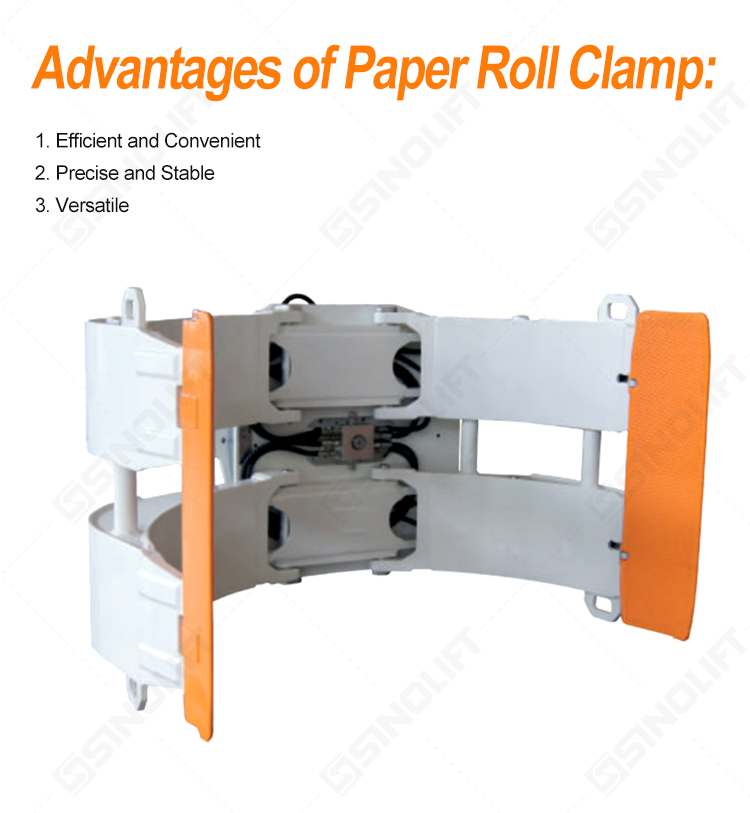

Advantages:

Efficient and Convenient: Quickly grab and move paper rolls, improving work efficiency.
Precise and Stable: Precise gripping, stable and reliable, ensuring the safe transport of paper rolls.
Versatility: Suitable for paper rolls of different sizes and weights, flexible to meet various work requirements.

Parameters:

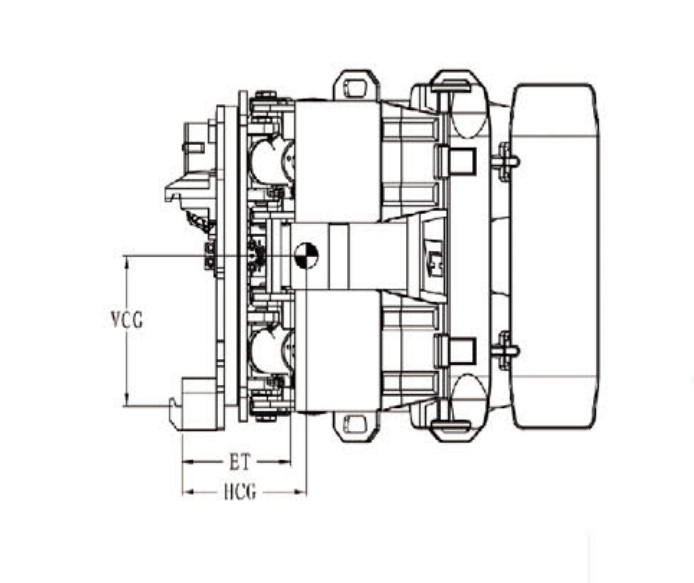

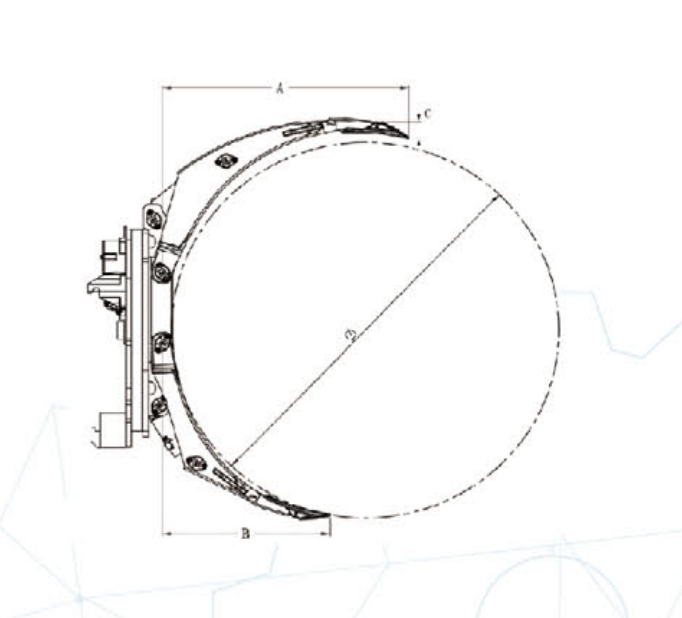

PAPER	TYPE	MOUNTING	LONG ARM	SHORTARM	LONG ARM	VERTICAL	WEIGHT	EFFECTIVE	HORIZONTAL	MOUNTING CLASS
ROLL RANGE		CLASS	LENGTH	LENGTH	THICKNESS	CENTER OF		THICKNESS	CENTER OF
						GRAVITY			GRAVITY
∅(mm)			A (mm)	B(mm)	C(mm)	VCG(mm)	(kg)	ET(mm)	HCG(@mm)
600-1300	A	0°	835	550	48	427	662	250	320	II/III
250-1300	B	0°	835	550	48	429	682	250	318	II/III
630-1350	A	0°	835	550	48	426	660	250	320	II/III
330-1350	B	0°	835	550	48	428	680	250	318	II/III
530-1500	A	0°	1000	715	48	461	728	205/250	373	II/III
250-1500	B	0°	1000	715	48	459	740	205/250	371	II/III
630-1600	A	0°	1030	775	48	353	765	205/250	373	II/III
350-1600	B	0°	1030	775	48	353	775	205/250	370	II/III
750-1800	A	0°	1175	795	48	412	845	250	408	III
400-1800	B	0°	1175	795	48	409	860	250	406	III
590-1350	A	0°	960	616	53	430	830	210	308	III
330-1350	B	0°	960	616	53	430	840	210	305	III
470-1400	A	0°	1063	843	53	433	835	210	320	III
560-1500	A	0°	964	755	53	431	870	210	325	III
250-1500	B	0°	964	755	53	431	880	210	328	III
560-1600	A	0°	1007	843	53	431	885	210	345	III
250-1600	B	0°	1007	843	53	431	895	210	342	III
700-1800	A	0°	1127	905	50	431	940	210	371	III
350-1800	A	0°	1127	905	53	431	960	210	368	III
360-1350	A	0°	975	680	61	460	1130	221	314	III/IV
350-1400	A	0°	987	680	61	424	1150	221	319	III/IV
490-1500	A	0°	1000	772	61	500	1215	221	320	III/IV
250-1500	B	0°	1000	772	61	500	1215	221	320	III/IV
550-1600	A	0°	1100	772	65	500	1140	221	320	III/IV
250-1600	B	0°	1100	772	61	500	1245	221	325	III/IV
250-1600	B	0°	1100	772	61	568	1300	233	307	IV
900-2100	A	0°	1440	960	61	600	1600	221	372	IV
500-2100	B	0°	1440	960	61	606	1550	237	378	IV
700-1800	A	0°	1280	835	61	546	1525	229	338	IV
350-1900	B	0°	1370	873	61	621	1500	237	385	IV
