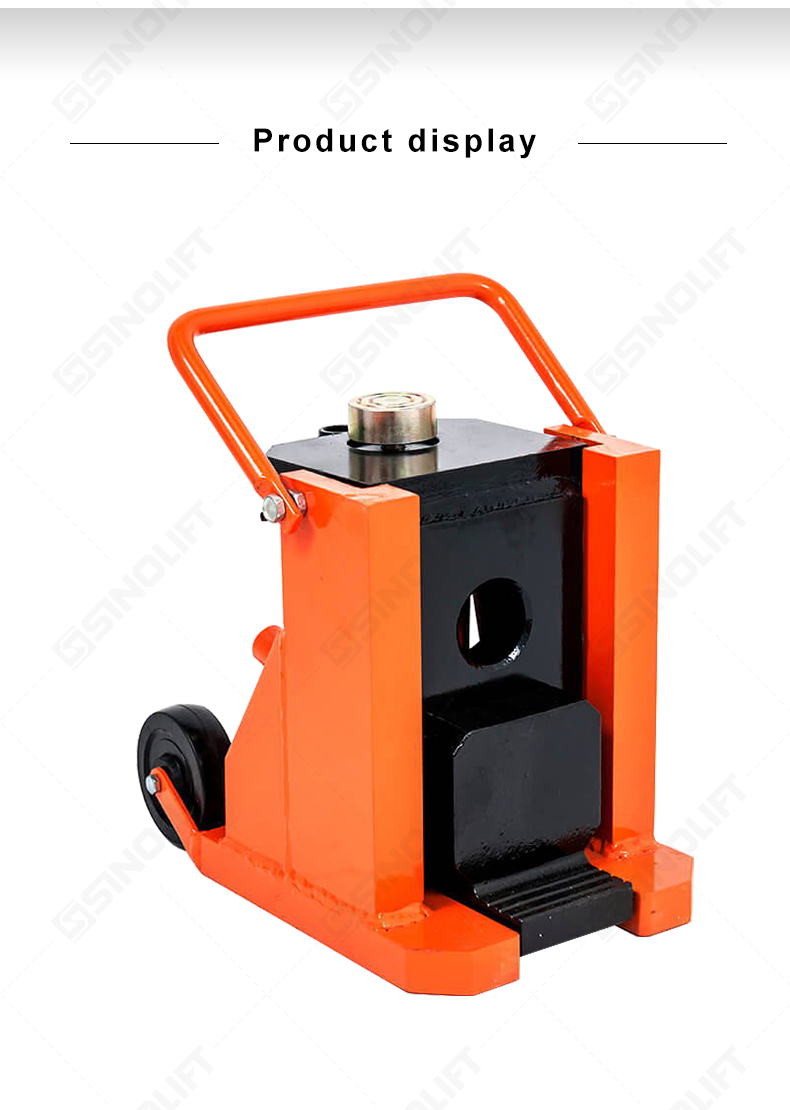

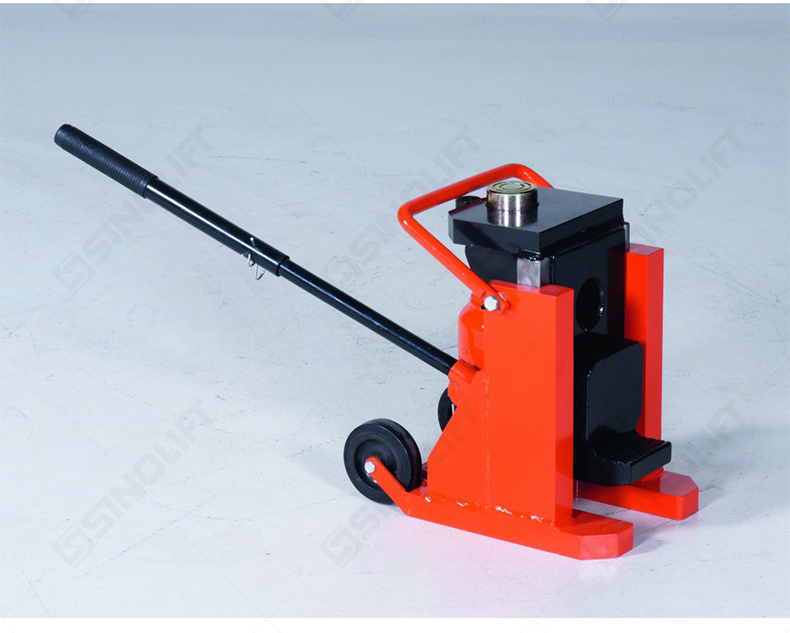

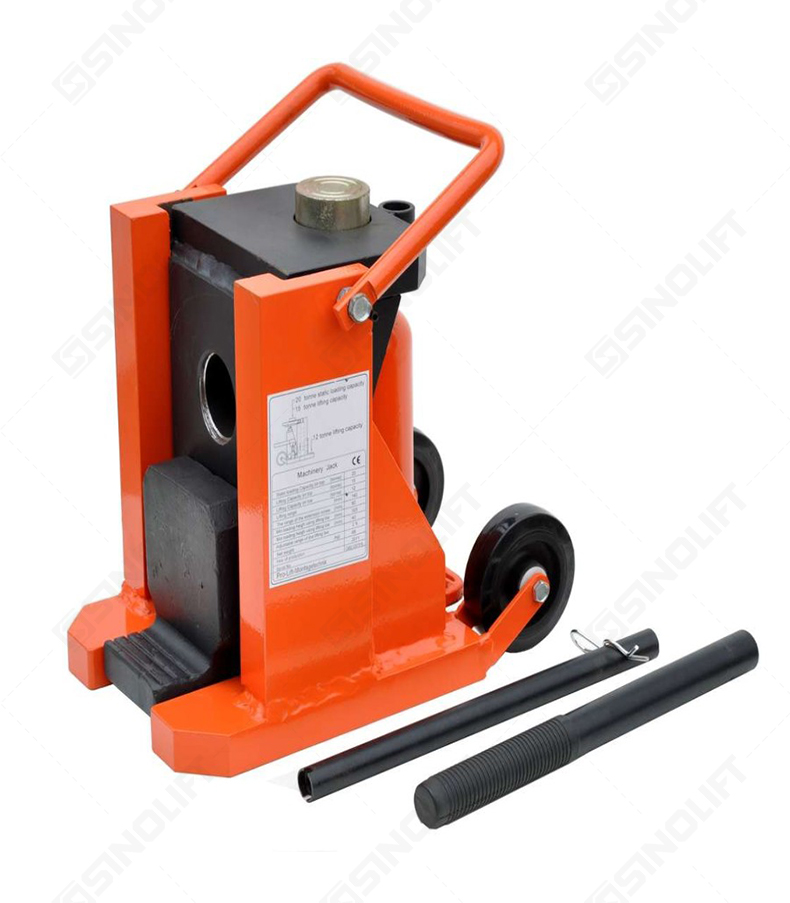

TB Series Machinery Jack

With double support rod for wider application, with two working faces TB200 with wheels, facilitate the movement of heavy objections, with overload protection device, this tool meets CE safety standards, in line with the European uniform safety standards, ensure your safe operation.
Mainly used in housing movement, machine tool installation and bridge construction operations, etc，suitable for shipyard, bridge construction or factory construction site, the ideal mobile tools

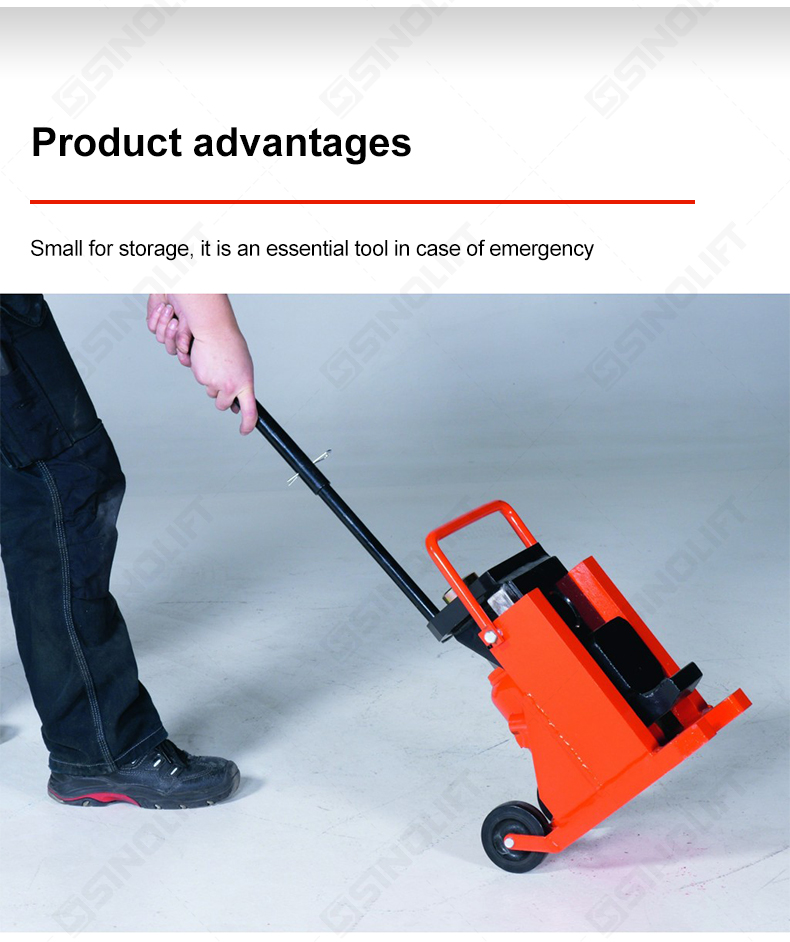

Small for storage, it is an essential tool in case of emergency

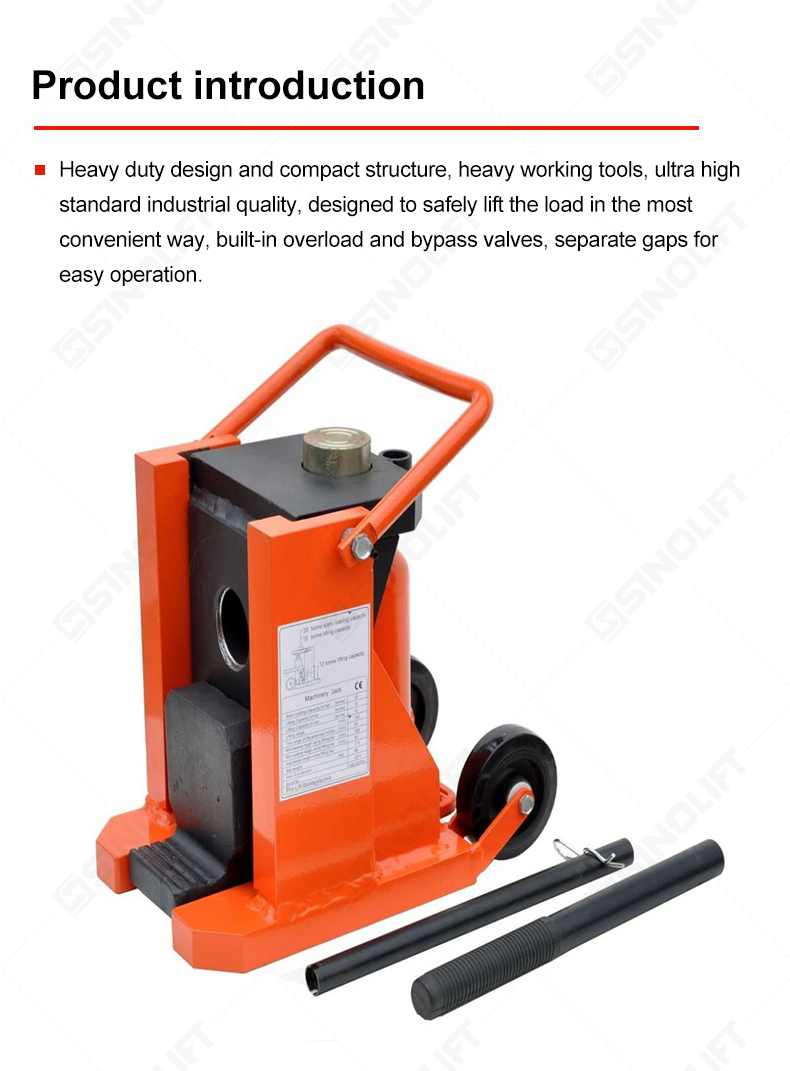

Heavy duty design and compact structure, heavy working tools, ultra high standard industrial quality, designed to safely lift the load in the most convenient way, built-in overload and bypass valves, separate gaps for easy operation.

Quantity

Contact Now

add to cart

With double support rod for wider application, with two working faces TB200 with wheels, facilitate the movement of heavy objections, with overload protection device, this tool meets CE safety standards, in line with the European uniform safety standards, ensure your safe operation.Mainly used in housing movement, machine tool installation and bridge construction operations, etc，suitable for shipyard, bridge construction or factory construction site, the ideal mobile toolsSmall for storage, it is an essential tool in case of emergencyHeavy duty design and compact structure, heavy working tools, ultra high standard industrial quality, designed to safely lift the load in the most convenient way, built-in overload and bypass valves, separate gaps for easy operation.

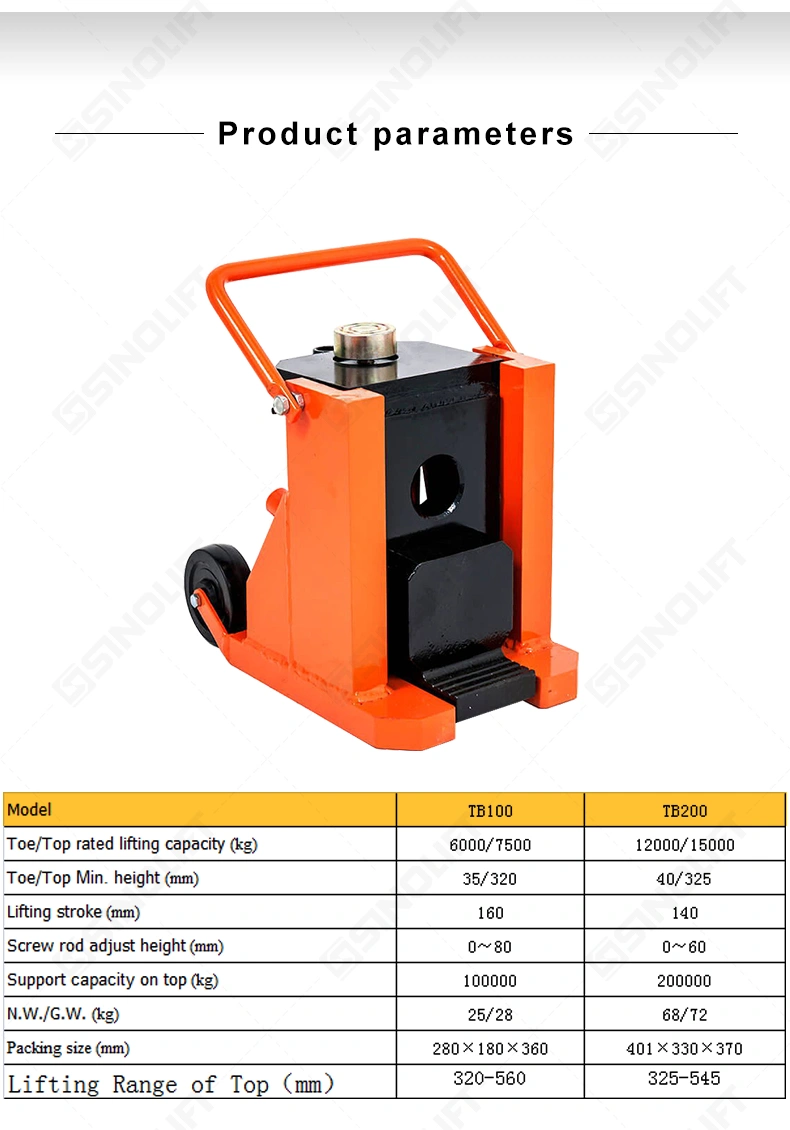

Specifications

Model	TB100	TB200
Toe/Top rated lifting capacity (kg)	6000/7500	12000/15000
Toe/Top Min. height (mm)	35/320	40/325
Lifting stroke (mm)	160	140
Screw rod adjust height (mm)	0～80	0～60
Support capacity on top (kg)	100000	200000
N.W./G.W. (kg)	25/28	68/72
Packing size (mm)	280×180×360	401×330×370
Lifting Range of Top（mm）	320-560	325-545
